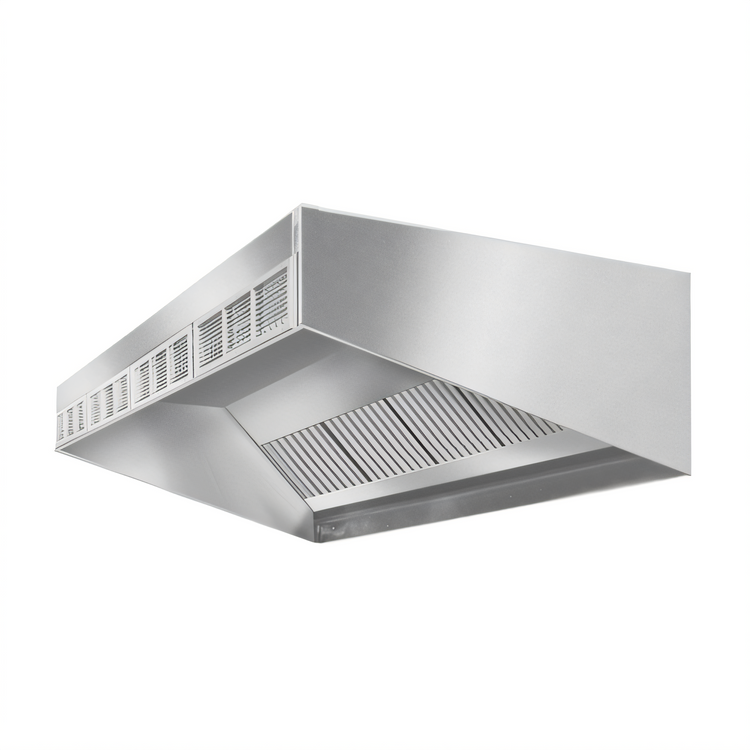

SpecAir HESFA96-48 48" Short Front Make-Up Air Exhaust Hood

Wall-Type, Front Discharge Make-Up Air, 51" Deep, 24" High

Designed for commercial kitchens with low ceilings, the SpecAir HESFA96-48 provides efficient front-discharge make-up air and powerful exhaust capabilities.

  • Compensating make-up air system delivers fresh air independent of other ventilation systems, ideal for maintaining indoor air quality.
  • Features a short front fascia, making it suitable for installations in spaces with lower ceilings.
  • Constructed from heavy gauge type 430 stainless steel with liquid-tight welded seams for durability and compliance.
  • Includes UL classified aluminum filters, a full-length grease trough, and a removable grease container for easy maintenance.
  • Equipped with a UL-listed vapor-proof incandescent light fixture to illuminate the cooking surface.
  • Designed and built to NFPA 96 standards and NSF certified for commercial food service applications.

Overall Dimensions:

48.0"W x 51.0"D x 24.0"H

Product Weight:

302.0 lb

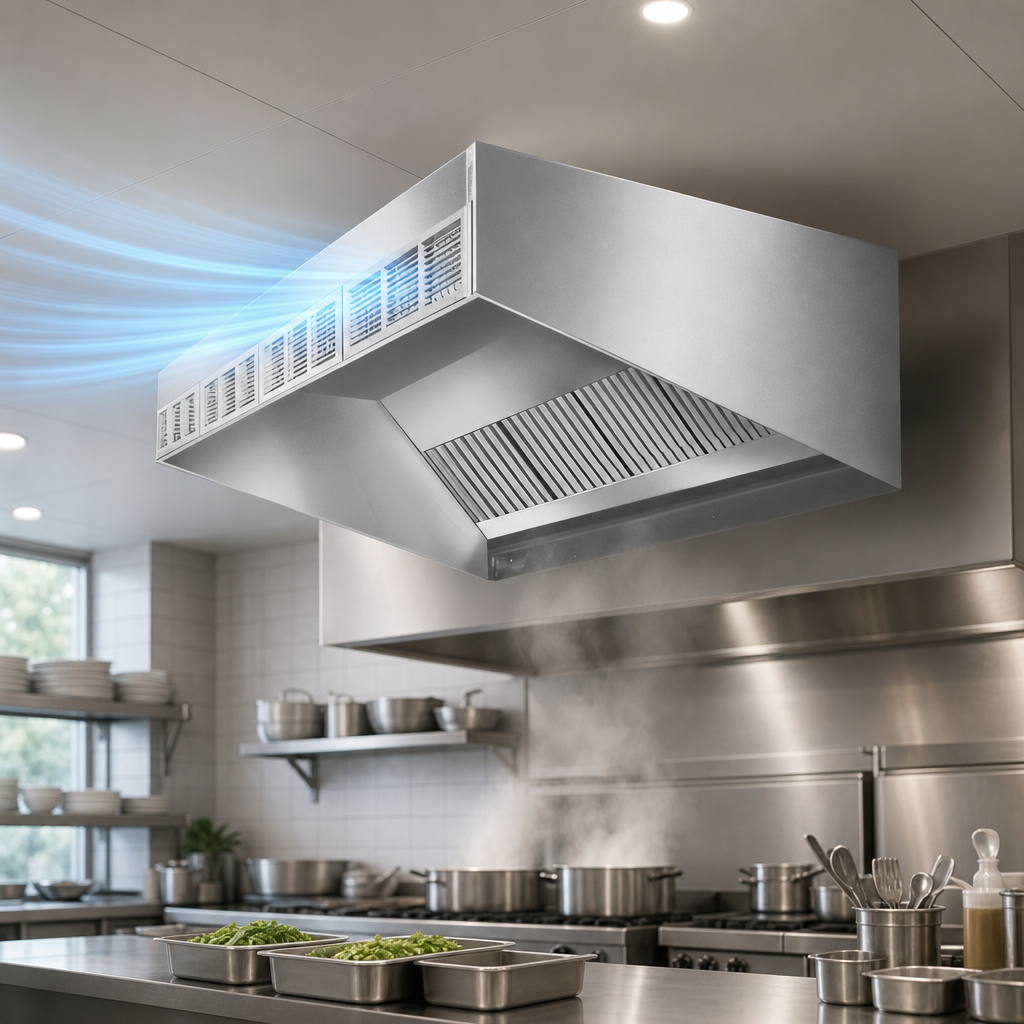

Front Discharge Make-Up Air

Supplies make-up air through the hood at ceiling level, independent of other ventilation systems, ensuring optimal air balance in the kitchen.

Front Discharge Make-Up Air

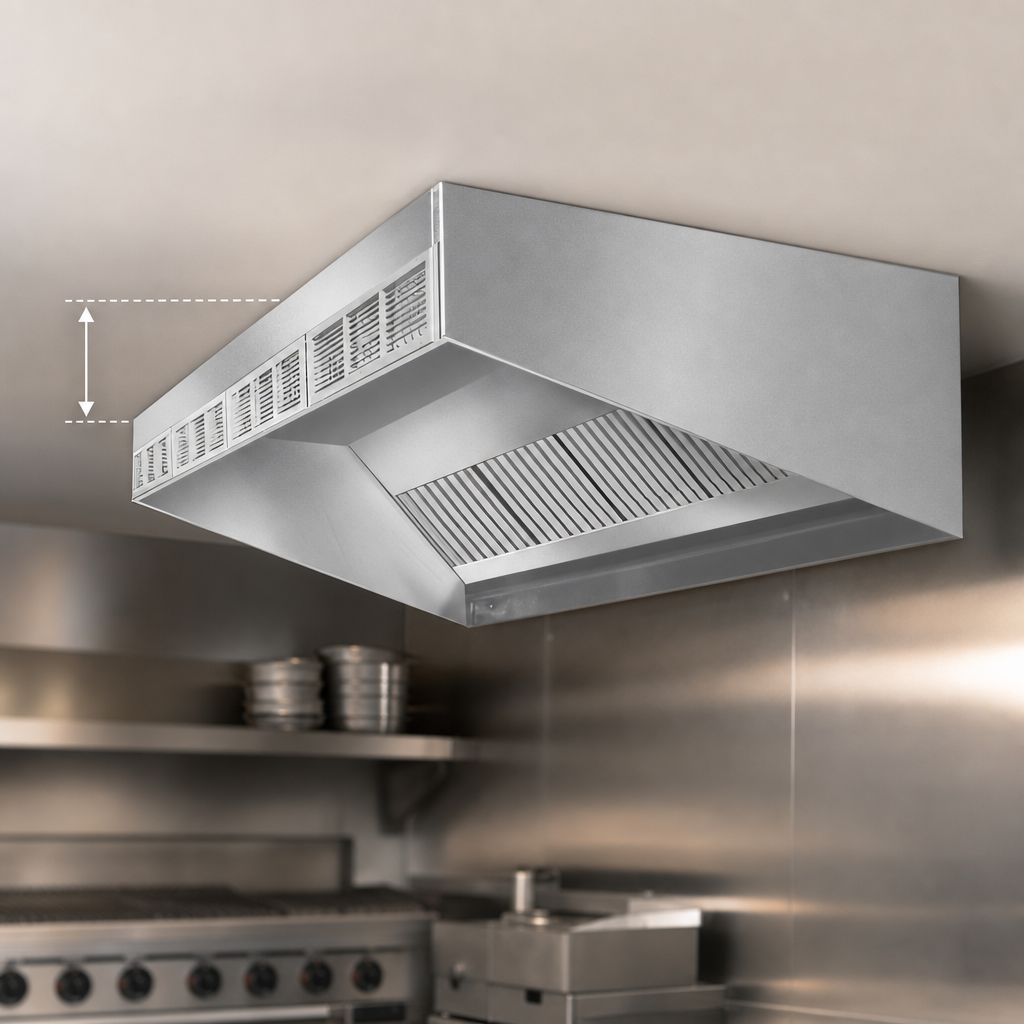

Short Front Design

The 'HESFA' series features a short front fascia, specifically designed for installations in commercial kitchens with lower ceiling heights.

Short Front Design

Heavy Gauge Stainless Steel Construction

All hood surfaces are made from heavy gauge type 430 stainless steel, ensuring robust durability and resistance to corrosion in demanding kitchen environments.

Liquid-Tight Welded Seams

Canopy seams are continuously welded liquid-tight, complying with NFPA 96 standards for fire safety and easy cleaning.

Integrated Lighting

Comes equipped with one UL-listed vapor-proof incandescent light fixture, providing clear illumination over the cooking area.

Removable Aluminum Filters

Includes two UL-classified aluminum filters that are easily removable for routine cleaning and maintenance.

Efficient Grease Management

Features a full-length stainless steel grease trough and a removable grease container for effective capture and disposal of grease.

3-Inch Rear Air Space

A 3-inch (76mm) air space is provided at the rear for proper air circulation and installation.

Mounting Channels

Front and rear mounting channels are included for secure installation to the wall.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Material 430 Stainless Steel
Width 48 Inches
Depth 51 Inches
Height 24 Inches
Weight 302 lb.
Shipping Width 48 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 302 lb.
Exhaust CFM 1600 CFM
Number of Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 12.75 Inches
Supply CFM 1360 CFM
Number of Supply Collars 1
Supply Collar Width 10 Inches
Supply Collar Length 18 Inches
Number of Lights 1
Number of Filters 2
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty on product defects.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Front discharge make-up air systems, like the one in this hood, supply fresh air through the hood itself at ceiling level, operating independently of other ventilation systems. This design helps to maintain optimal air balance, improve indoor air quality, and enhance comfort in the kitchen environment.
Yes, the HESFA series, including this HESFA96-48 model, features a 'short front' fascia, making it specifically designed and ideal for installation in commercial kitchens with lower ceiling heights.
This hood is constructed from heavy gauge type 430 stainless steel. All canopy seams are continuously welded liquid-tight to meet NFPA 96 standards, ensuring durability and compliance.
The hood comes standard with a full-length stainless steel grease trough and a removable grease container, designed for efficient collection and easy disposal of cooking grease.
Yes, the hood is furnished with UL classified aluminum filters that are designed to be easily removable for convenient cleaning and maintenance.
