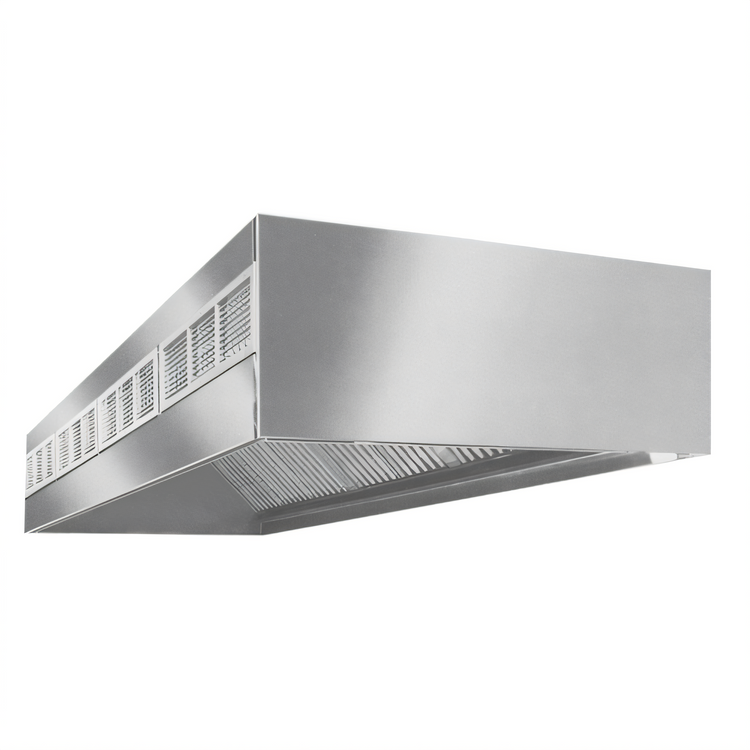

SpecAir HEF96-84 Wall Type Front Discharge Make-Up Air Exhaust Hood, 84"W
Commercial Kitchen, 51" Standard Depth, All Stainless Steel
Designed for commercial cooking environments, this SpecAir exhaust hood efficiently removes grease-laden vapors while providing crucial make-up air through its front discharge system.
- Wall type design ideal for various kitchen layouts, measuring 84" wide, 51" deep, and 24" high.
- Front discharge make-up air compensating system ensures balanced ventilation and optimal kitchen air quality.
- Durable construction with heavy gauge Type 430 stainless steel and liquid-tight welded seams meeting NFPA 96 standards.
- Equipped with UL classified aluminum removable filters for easy cleaning and maintenance.
- Features UL listed vapor-proof incandescent light fixtures for bright and safe illumination.
- Includes a full-length grease trough and a removable grease container for effective grease management.

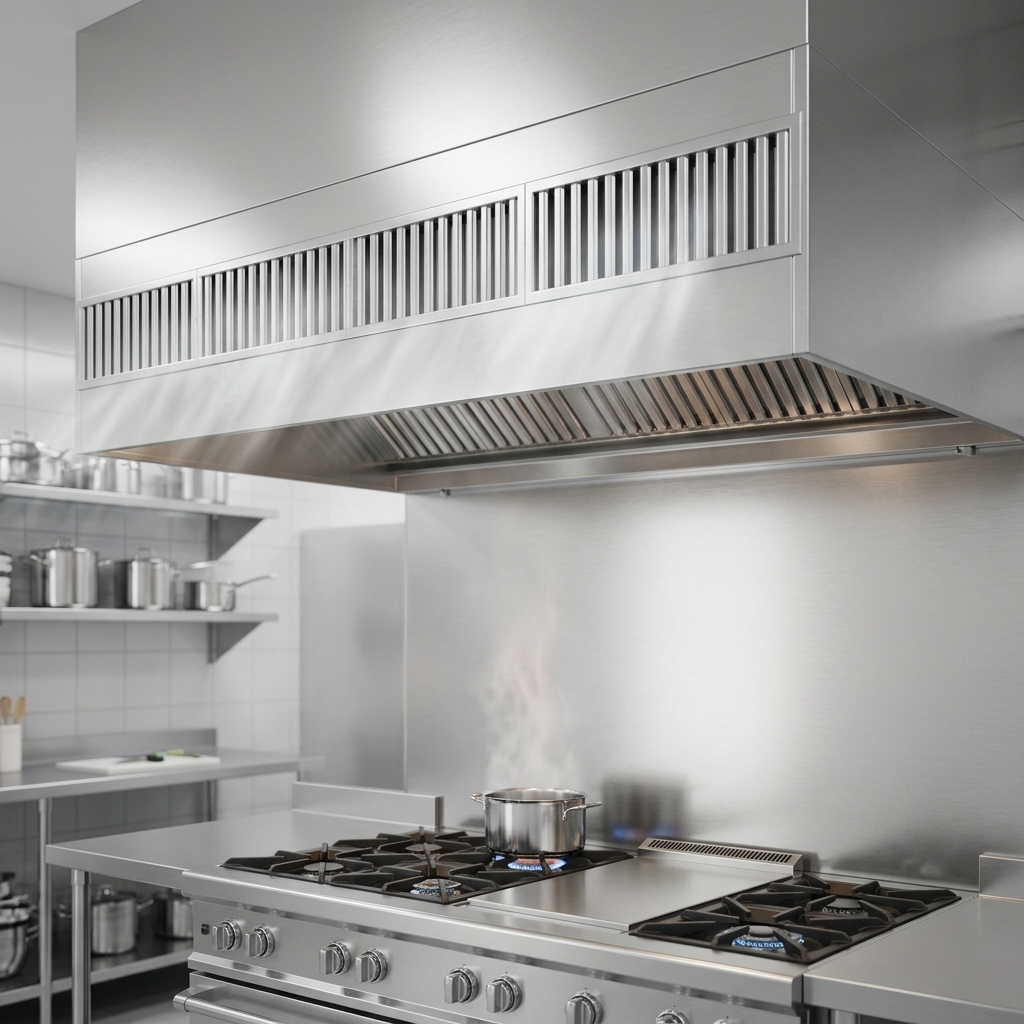

Front Discharge Make-Up Air System
Supplies make-up air through the hood, independent of other ventilation systems, ensuring balanced airflow and preventing negative pressure in the kitchen.

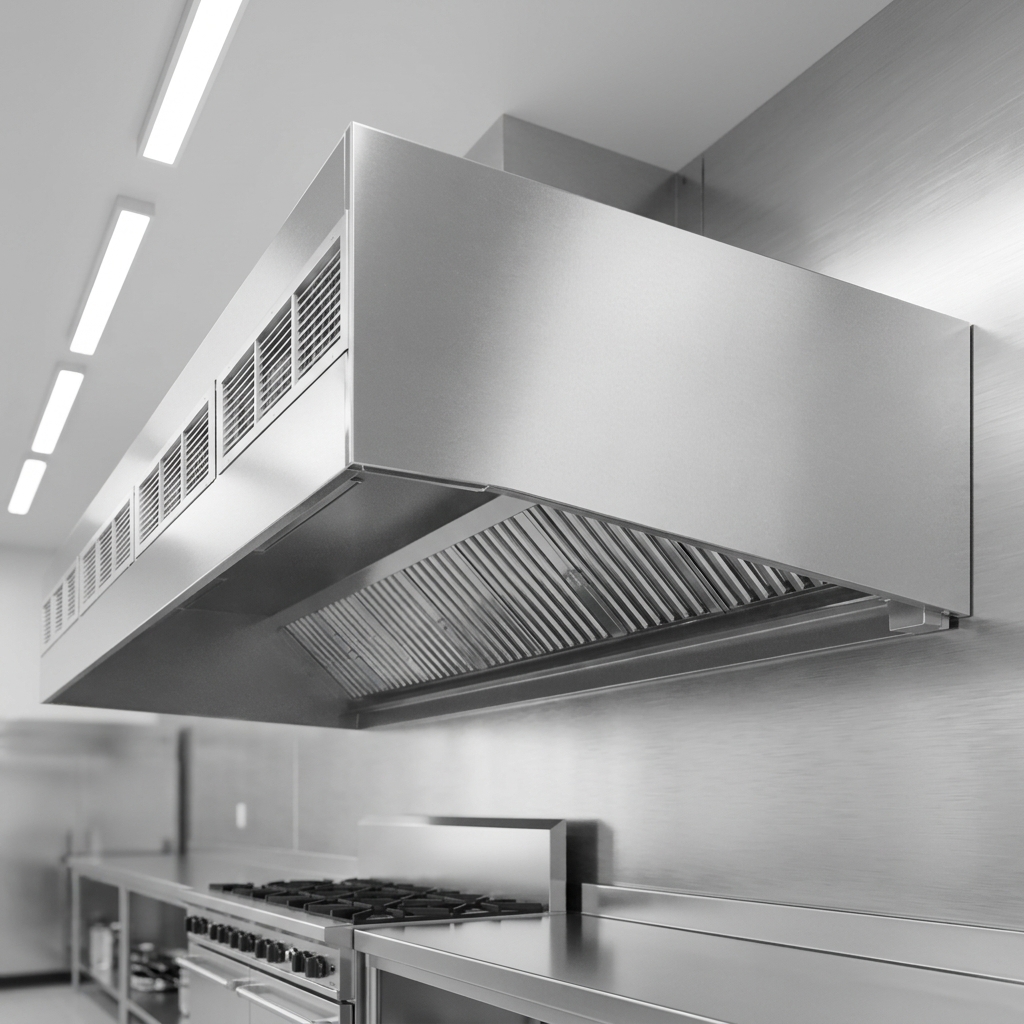

Heavy Gauge Type 430 Stainless Steel Construction
All hood surfaces are made from durable heavy gauge Type 430 stainless steel, offering excellent corrosion resistance, hygiene, and longevity in commercial kitchen environments.

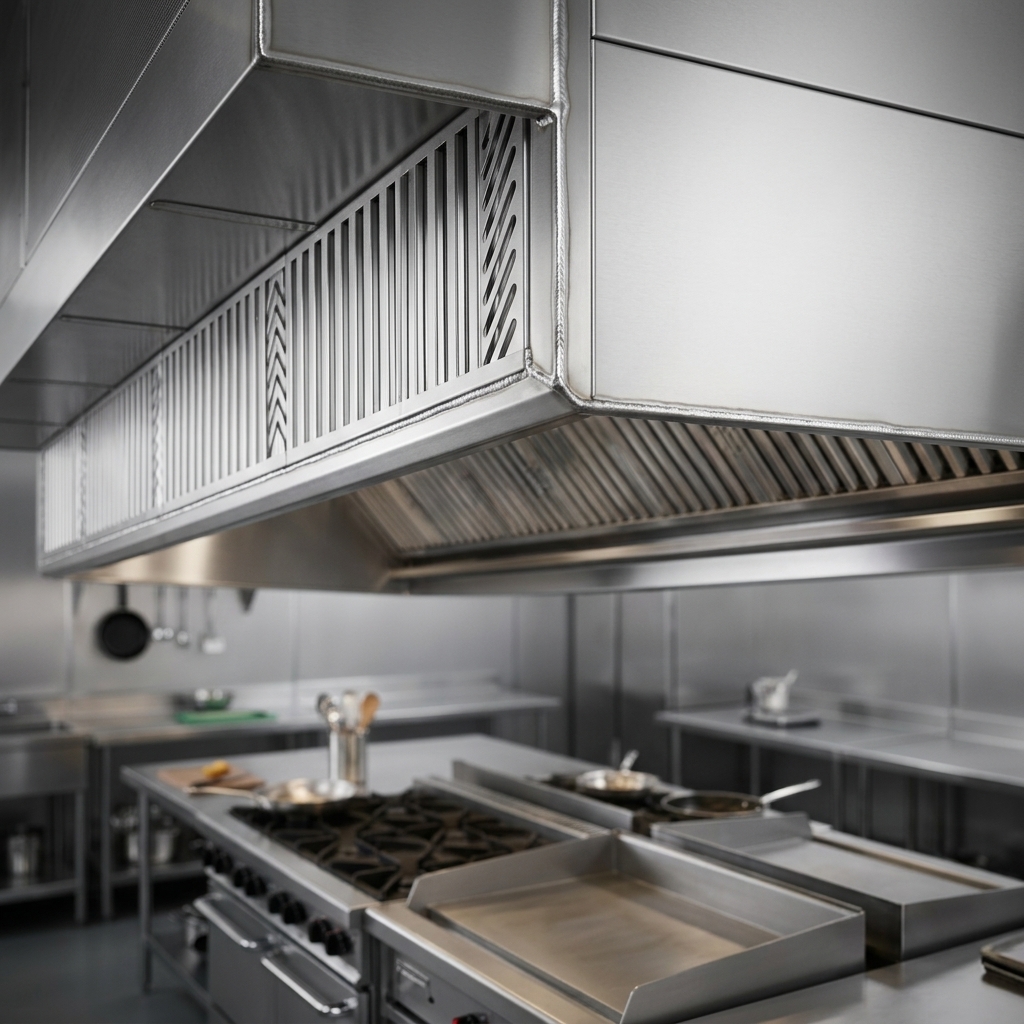

NFPA 96 Compliant Construction
Constructed according to NFPA 96 standards with all seams continuously welded liquid tight, ensuring fire safety and containment of grease-laden vapors.
UL Classified Aluminum Removable Filters
Features easily removable, UL classified aluminum filters designed for efficient grease extraction and simple cleaning and maintenance.
UL Listed Vapor-Proof Incandescent Lights
Equipped with UL listed vapor-proof incandescent light fixtures that provide clear, safe illumination within the hood canopy without being affected by moisture or grease.
Integrated Grease Management System
Includes a full-length stainless steel grease trough and a removable grease container for effective collection and disposal of grease, simplifying cleanup.
3-Inch Air Space at Rear
Standard 3-inch (76mm) air space at the rear ensures proper wall mounting and air circulation around the hood.
Mounting Channels and Collars Included
Comes with front and rear mounting channels for secure installation, along with exhaust and supply collars for direct connection to ventilation ductwork.
Specifications
| Type | Exhaust Hood |
|---|---|
| Style | Wall Type |
| Installation Type | Wall Mounted |
| Material | 430 Stainless Steel |
| Width | 84 Inches |
| Depth | 51 Inches |
| Height | 24 Inches |
| Weight | 529 lb. |
| Shipping Width | 84 Inches |
| Shipping Depth | 51 Inches |
| Shipping Height | 24 Inches |
| Shipping Weight | 529 lb. |
| Make-up Air | Compensating (Front Discharge) |
| Exhaust CFM | 2800 |
| Number of Exhaust Collars | 1 |
| Exhaust Collar Width | 10 Inches |
| Exhaust Collar Length | 22.5 Inches |
| Supply CFM | 2380 |
| Number of Supply Collars | 1 |
| Supply Collar Width | 10 Inches |
| Supply Collar Length | 31 Inches |
| Number of Lights | 3 |
| Number of Filters | 3 |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
84.0"W x 51.0"D x 24.0"HProduct Weight:
529.0 lbCertifications & Compliance
Warranty & Protection
1-year limited warranty on parts and labor from the date of original installation, not to exceed 18 months from the date of shipment.
