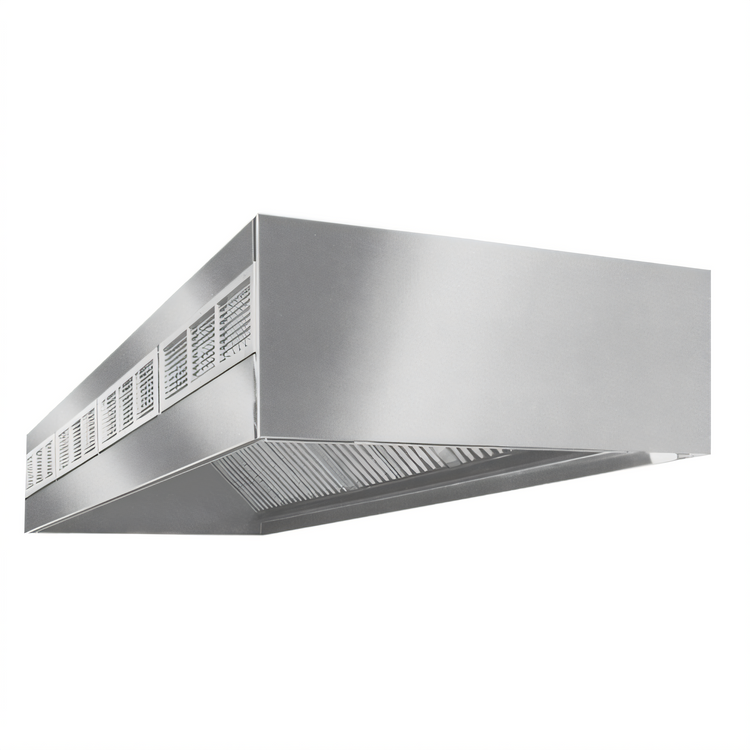

SpecAir HEF96-138 Wall Type Front Discharge Make-Up Air Exhaust Hood, 138 Inches Wide

SKU: HEF96-138
$16,726.32
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

SpecAir HEF96-138 Wall Type Front Discharge Make-Up Air Exhaust Hood, 138 Inches Wide

Full Stainless Steel Construction, Compensating Make-Up Air

Ensure a clean and safe kitchen environment with the SpecAir HEF96-138 exhaust hood, designed for efficient front discharge make-up air and robust construction.

  • Constructed from durable heavy gauge type 430 stainless steel for commercial use.
  • Features front discharge make-up air, supplying fresh air independent of other ventilation systems.
  • Continuously liquid-tight welded seams comply with NFPA 96 standards.
  • Equipped with UL classified aluminum filters that are removable for easy cleaning.
  • Includes UL listed vapor-proof incandescent light fixtures for bright illumination.
  • Designed with a 3-inch air space at the rear for proper ventilation and installation.
  • Comes with a full-length grease trough and removable grease container for easy maintenance.

Heavy Gauge Stainless Steel Construction

Made from robust type 430 stainless steel, ensuring durability and compliance with commercial kitchen standards.

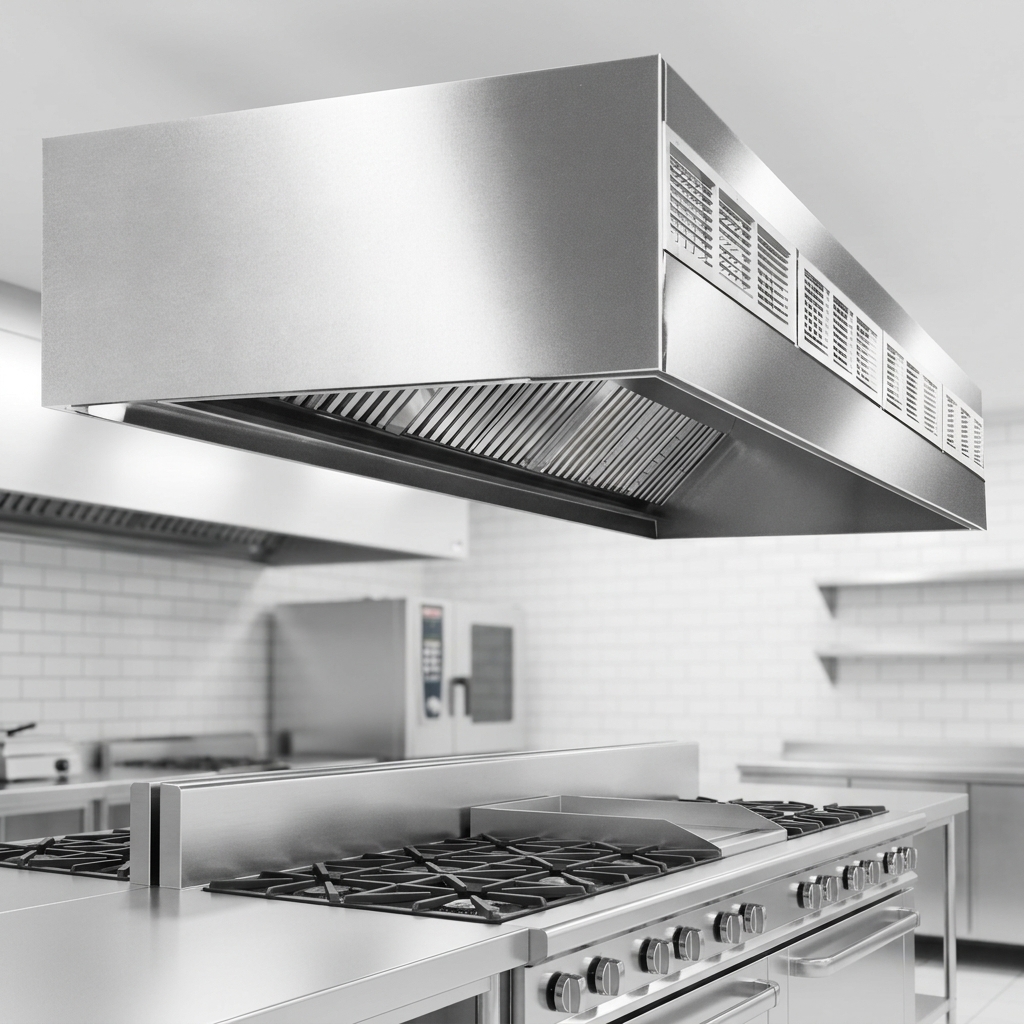

This image highlights the exhaust hood's robust heavy-gauge stainless steel construction, ensuring exceptional durability and a sleek, professional finish.

Front Discharge Make-Up Air

Supplies make-up air through the hood at ceiling level, operating independently of other ventilation systems to maintain proper air balance.

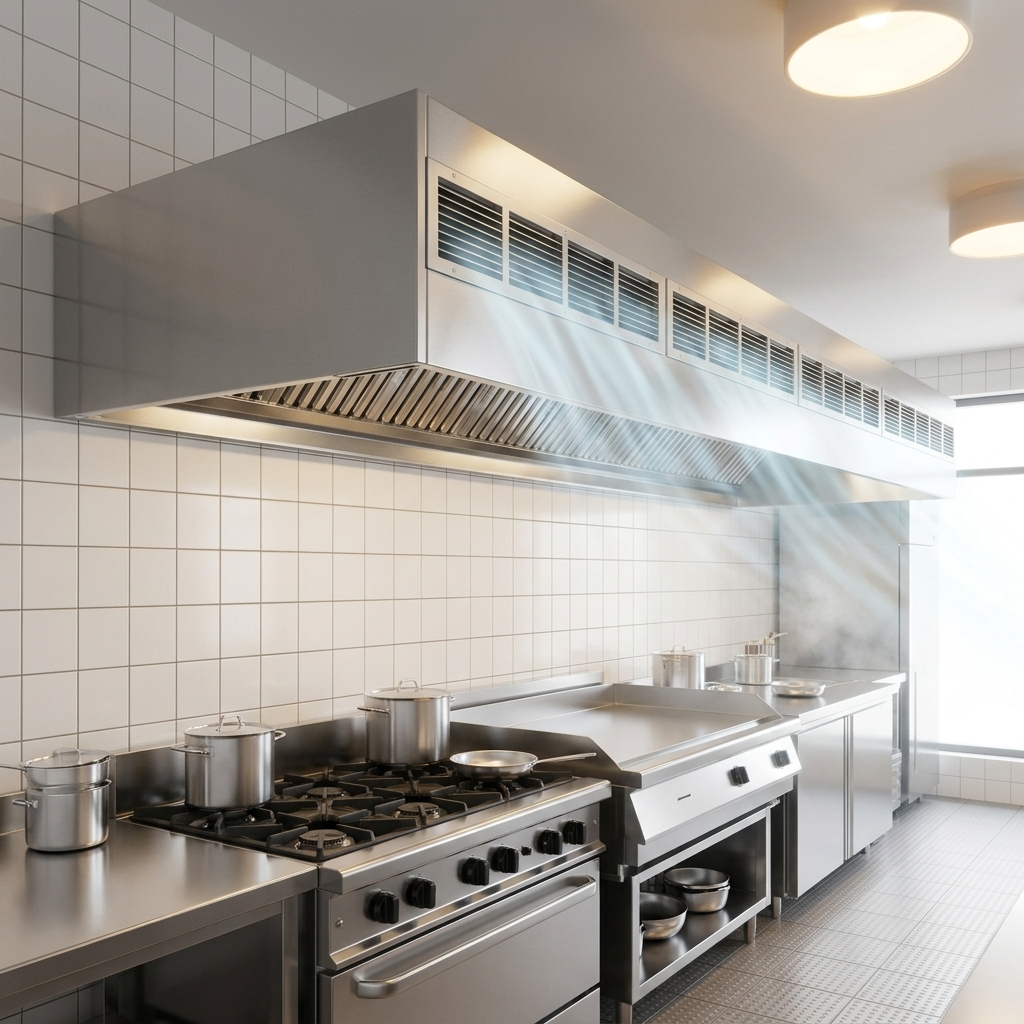

Experience optimal air balance in your kitchen with this hood's innovative front discharge make-up air system.

Liquid-Tight Welded Seams

All canopy seams are continuously welded liquid-tight in accordance with NFPA 96 requirements, preventing grease leaks.

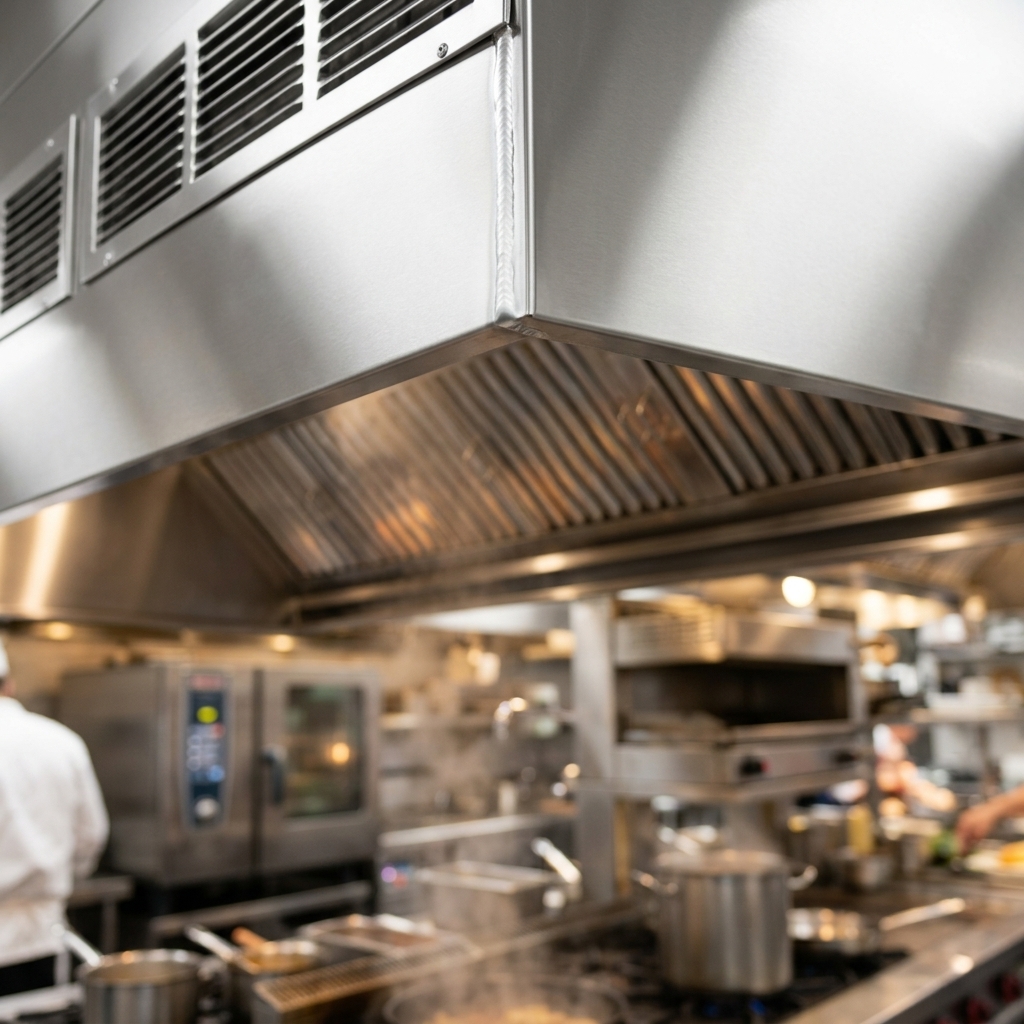

This image showcases the continuous, liquid-tight welded seams of the SpecAir exhaust hood, ensuring a grease-free and compliant professional kitchen environment.

UL Classified Aluminum Filters

Removable aluminum filters are UL classified and designed for easy cleaning and maintenance.

Vapor-Proof Incandescent Lighting

UL listed vapor-proof incandescent light fixtures provide bright and safe illumination within the hood area.

3-Inch Rear Air Space

Standard 3-inch (76mm) air space at the rear ensures proper clearance and airflow.

Full-Length Grease Trough and Container

Includes a full-length stainless steel grease trough and a removable grease container for effective grease collection and simple disposal.

Mounting Channels

Front and rear mounting channels facilitate secure installation.

Exhaust and Supply Collars

Comes with pre-installed exhaust and supply collars for ductwork connection.

Specifications

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Width 138 Inches
Depth 51 Inches
Height 24 Inches
Weight 869 lb.
Material Type 430 Stainless Steel
Exhaust CFM 4600 CFM
Exhaust Collars 2
Exhaust Collar Width 10 Inches
Exhaust Collar Length 18.5 Inches
Supply CFM 3910 CFM
Supply Collars 2
Supply Collar Width 10 Inches
Supply Collar Length 25.5 Inches
Lights 4
Filters 6
Air Space at Rear 3 Inches
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 138 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 869 lb.

Overall Dimensions:

138.0"W x 51.0"D x 24.0"H

Product Weight:

869.0 lb
Manufacturer Eagle Group
Brand name SpecAir
Certifications ["NSF"]
Height 24.0in
Width 138.0in
Depth 51.0in
Shipping Weight 869.0lbs
Hood Style wall type
Height 24"
Width (side - side) 127 - 132" wide
Depth (front - back) 51"
Make-up air compensating
Specifications SpecAIR® Exhaust Hood, wall type, 138"W, 51"D, 3" air space at rear, make-up air compensating with front grills, 24"H, all stainless steel construction, NFPA-96, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation date, not to exceed 18 months from shipment date.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The SpecAir HEF96-138 exhaust hood is constructed from heavy gauge type 430 stainless steel for durability and commercial use.
No, this is a front discharge make-up air compensating hood. It supplies make-up air through the hood itself, independent of other ventilation systems.
Yes, the hood is furnished with UL classified aluminum filters that are removable for easy cleaning and maintenance.
The HEF96-138 model has an overall length (width) of 138 inches, a front-to-back depth of 51 inches, and a height of 24 inches.
The HEF96-138 model is equipped with two 10-inch exhaust collars and two 10-inch supply collars.
Yes, the hood is constructed per NFPA 96 requirements and features UL classified filters and UL listed vapor-proof incandescent light fixtures. It is also NSF certified.
