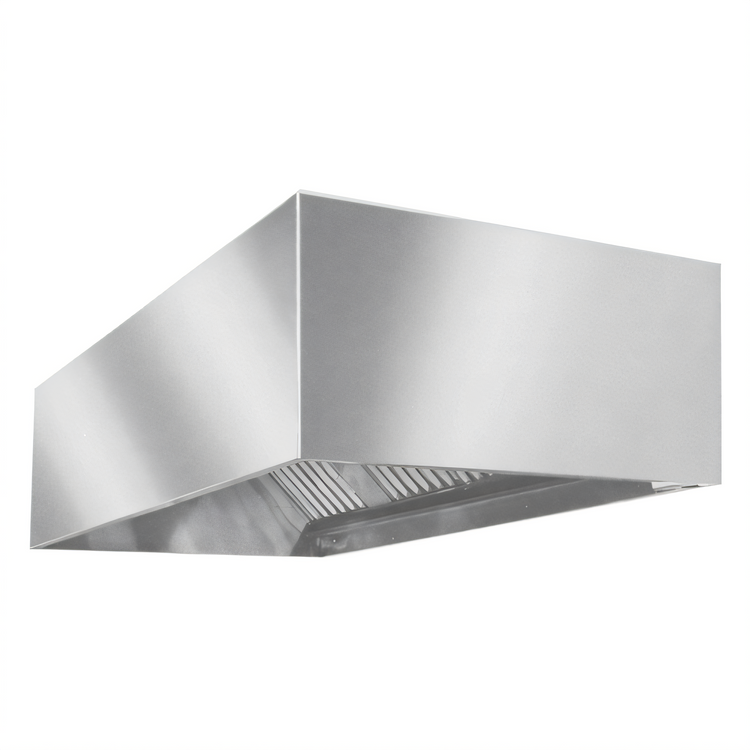

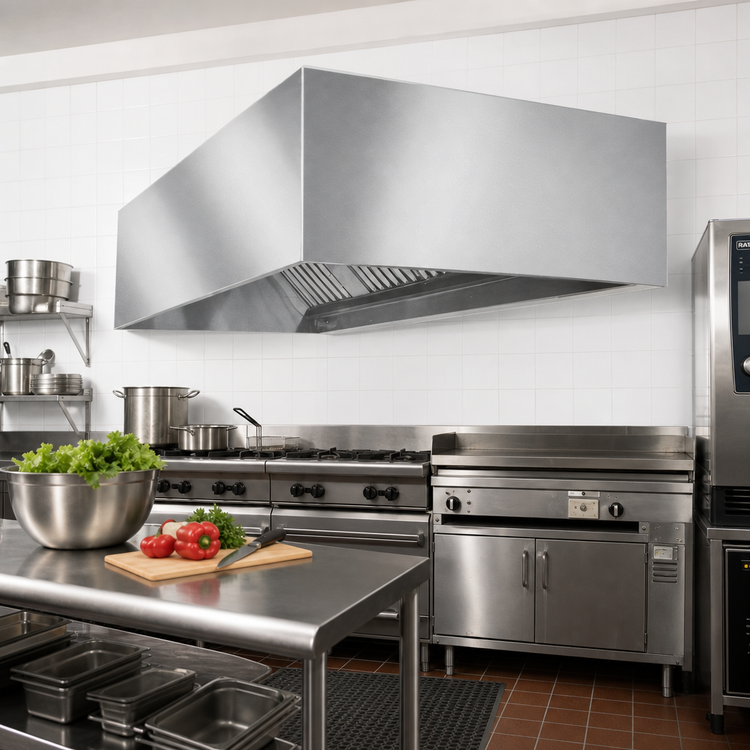

Eagle Group SpecAir HEB96-96 96"W Exhaust-Only Wall Mount Hood

96 Inches Wide, 51 Inches Deep, Non-Compensating

Designed to efficiently exhaust smoke, grease, and odors from commercial kitchens where make-up air is provided by external systems.

  • Heavy-gauge Type 430 stainless steel construction ensures durability and easy cleaning.
  • Engineered as an exhaust-only system, ideal for operations with existing make-up air solutions.
  • Equipped with UL classified aluminum filters, a full-length grease trough, and a removable grease container for effective grease management.
  • Includes UL vapor-proof incandescent light fixtures to illuminate the cooking surface.
  • Features a 3-inch air space at the rear and includes front and rear hanger brackets for sturdy installation.
  • Designed and constructed in accordance with NFPA 96 standards for fire safety.

Overall Dimensions:

96.0"W x 51.0"D x 24.0"H

Product Weight:

584.0 lb

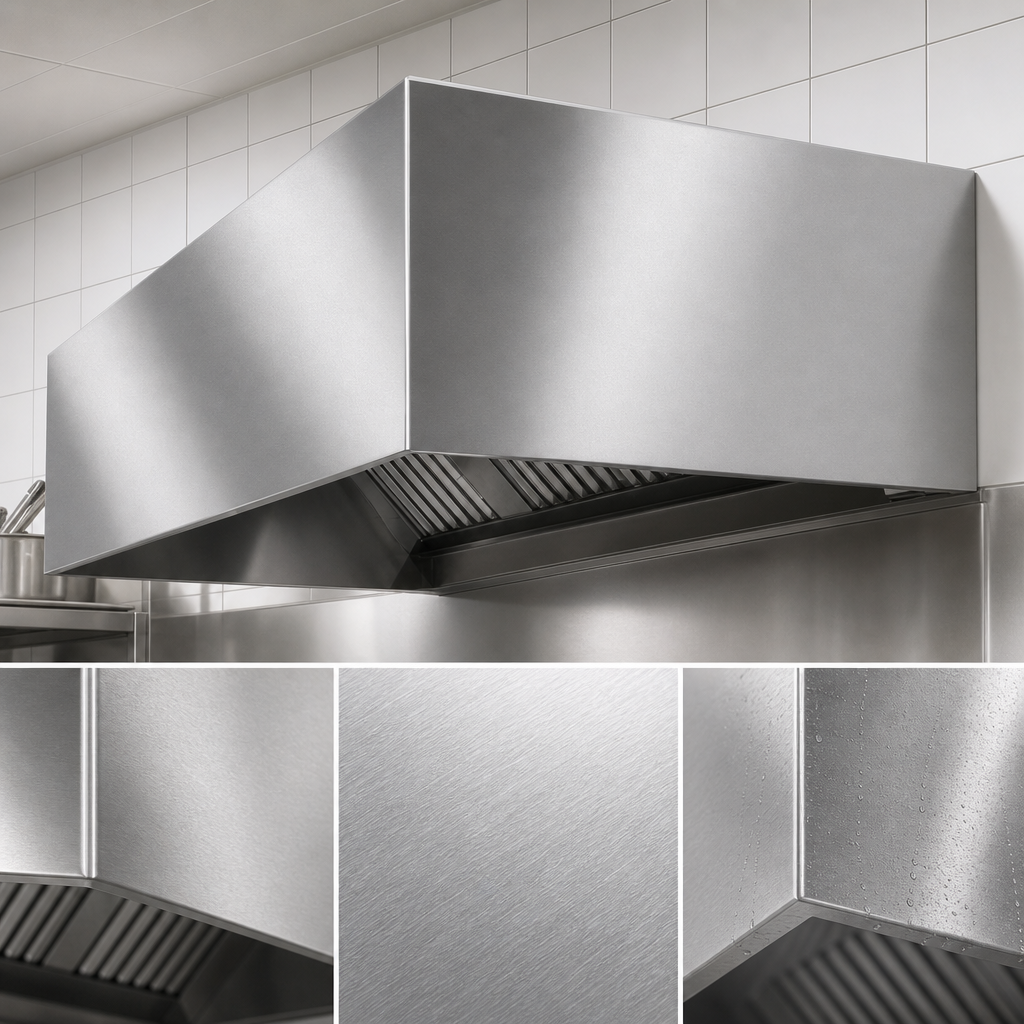

Heavy Gauge Stainless Steel Construction

Exposed surfaces are made from heavy gauge Type 430 stainless steel, providing durability and resistance to corrosion in a demanding kitchen environment.

Heavy Gauge Stainless Steel Construction

Liquid-Tight Welded Seams

All canopy seams are continuously welded liquid-tight to comply with NFPA 96 and ensure hygienic operation.

Liquid-Tight Welded Seams

UL Classified Aluminum Filters

Removable, UL classified aluminum filters efficiently capture grease and are easy to clean.

Vapor-Proof Incandescent Lighting

Equipped with UL listed vapor-proof incandescent light fixtures for bright, safe illumination of the cooking area.

Integrated Grease Management

Features a full-length stainless steel grease trough and a removable grease container for efficient collection and disposal of grease.

Rear Air Space

Designed with a 3-inch air space at the rear, contributing to proper ventilation and installation.

Hanger Brackets

Furnished with front and rear hanger brackets for secure and straightforward installation.

Exhaust Collars

Includes exhaust collars for connecting to the ventilation ductwork.

Type Exhaust-Only Hood
Style Wall Type
Installation Type Wall Mounted
Make-up Air Non-Compensating
Material 430 Stainless Steel
Exhaust CFM 3200 CFM
Exhaust Collar Size 10 Inches
Number of Exhaust Collars 1
Number of Lights Per Hood 3
Number of Filters Per Hood 4
Light Type Incandescent
Filter Material Aluminum
Shipping Width 96 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 584 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor from installation or 18 months from shipment (whichever comes first)

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Eagle Group SpecAir HEB96-96 is an exhaust-only hood and is designed for use where make-up air is supplied by other ventilation systems. It is non-compensating, meaning it does not supply its own make-up air.
The exposed surfaces of the hood are constructed from heavy gauge Type 430 stainless steel, ensuring durability and ease of cleaning.
Yes, the hood is furnished with UL classified aluminum filters that are removable for easy cleaning and maintenance.
Eagle Group warrants its products to be free from defects in materials and workmanship for a period of one year from the date of original installation, not to exceed 18 months from the date of shipment from Eagle. Some exclusions and limitations apply.
Yes, the HEB96-96 hood comes equipped with UL listed vapor-proof incandescent light fixtures for illuminating the cooking surface.
