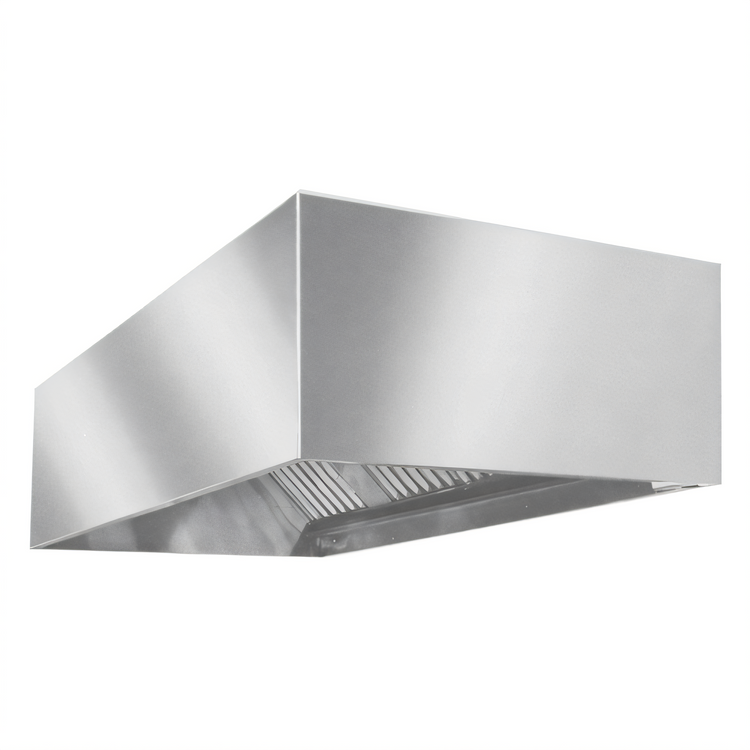

SpecAIR HEB96-66 66-Inch Wall Type Exhaust-Only Commercial Kitchen Hood

66" Wide, 51" Deep, 24" High, Non-Compensating, 430 Stainless Steel

The SpecAIR HEB96-66 exhaust-only ventilation hood provides efficient removal of cooking fumes and grease for commercial kitchens, designed for use with separate make-up air systems.

  • Constructed from heavy gauge type 430 stainless steel for exceptional durability and long life.
  • Designed as an exhaust-only system, perfect for commercial kitchens with existing make-up air solutions.
  • Features UL classified removable aluminum filters, a full-length grease trough, and a removable grease container for easy maintenance.
  • Equipped with UL-listed vapor-proof incandescent light fixtures to illuminate the cooking area.
  • Built to NFPA 96 standards with continuously liquid-tight welded seams ensuring safety and hygiene.
  • Includes a standard 3-inch air space at the rear and mounting channels for straightforward installation.
  • Ideal for various commercial cooking environments including restaurants, fast food, and delis.

Overall Dimensions:

66.0"W x 51.0"D x 24.0"H

Product Weight:

378.0 lb

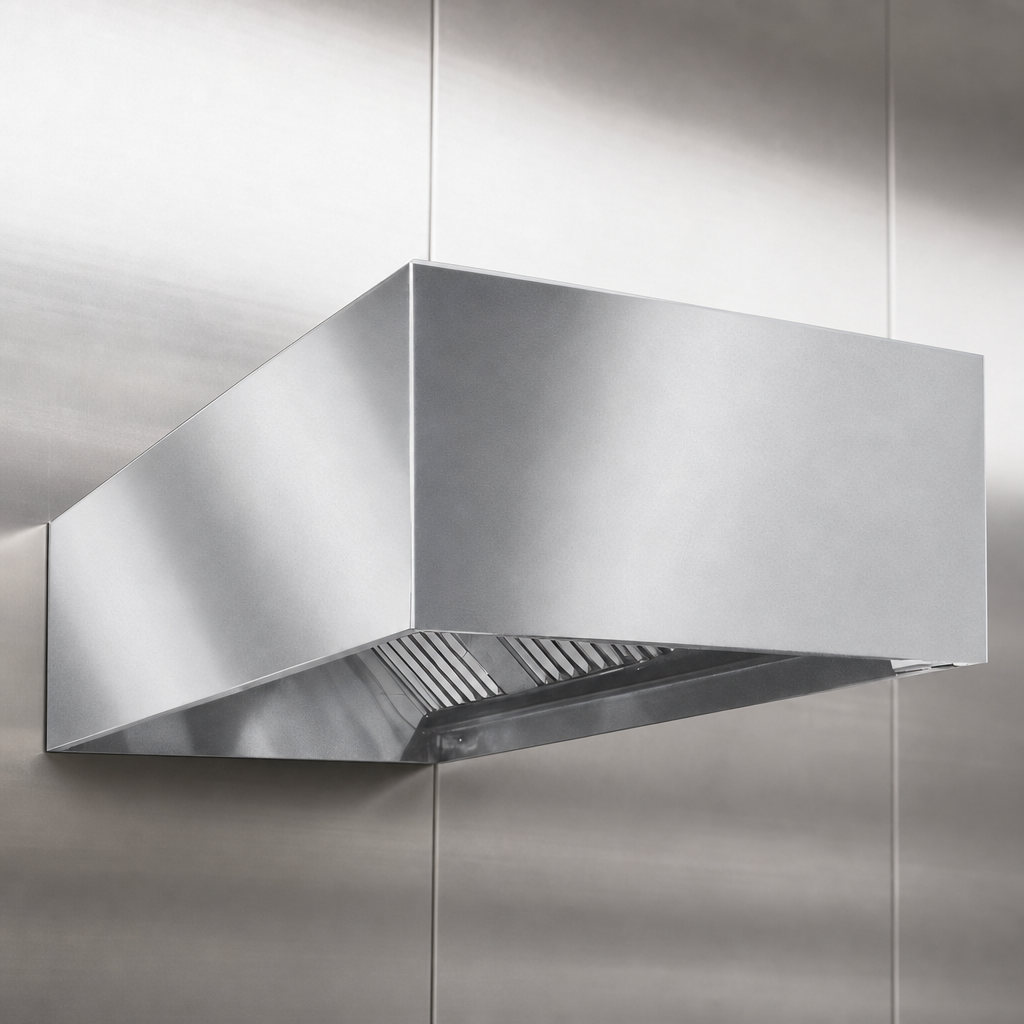

Heavy Gauge Stainless Steel Construction

Exposed hood surfaces are made from heavy gauge type 430 stainless steel for robustness and longevity in demanding commercial kitchen environments.

Heavy Gauge Stainless Steel Construction

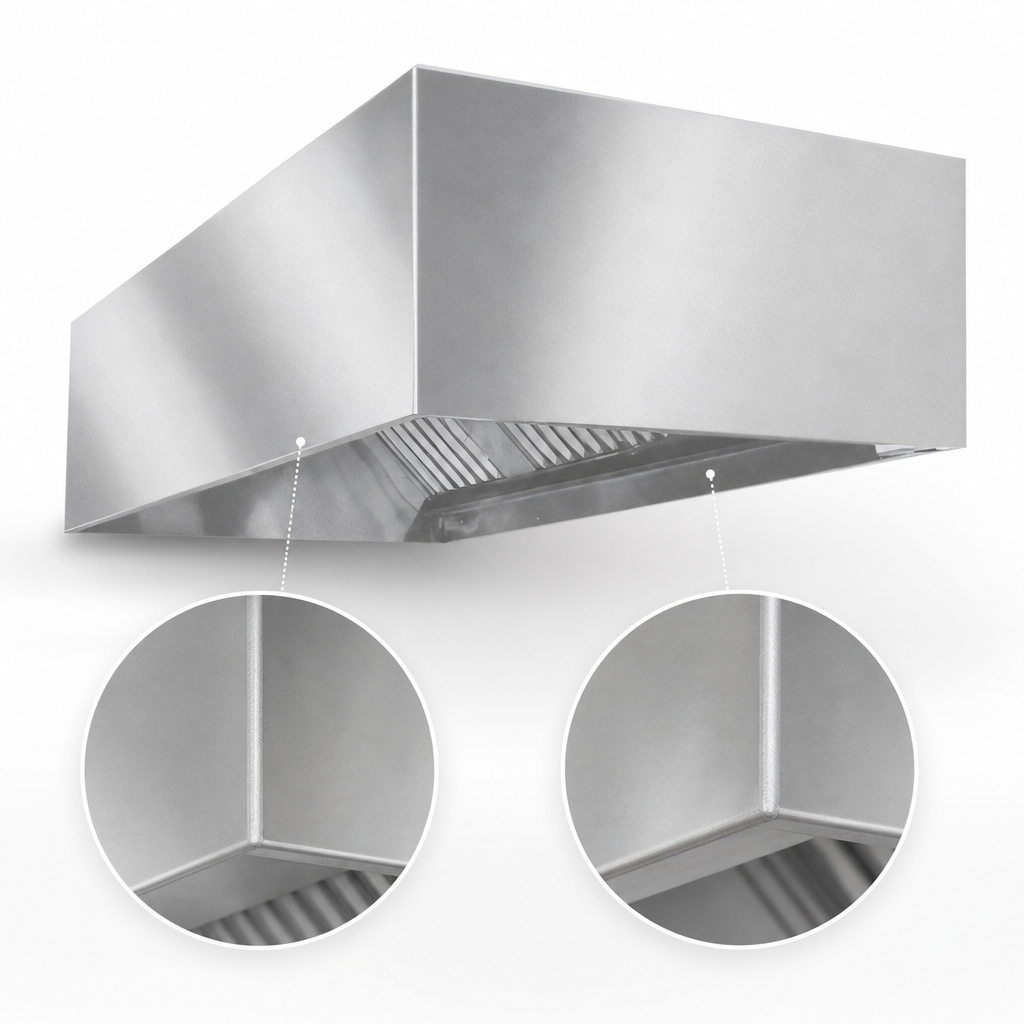

Liquid-Tight Welded Seams

Canopy seams are continuously welded to be liquid-tight, ensuring compliance with NFPA 96 standards and preventing grease leakage.

Liquid-Tight Welded Seams

Vapor-Proof Lighting

Equipped with UL-listed vapor-proof incandescent light fixtures that provide reliable illumination over the cooking area, designed for safety in grease-laden environments.

Removable Aluminum Filters

UL-classified aluminum filters are easily removable for routine cleaning and maintenance, ensuring efficient grease extraction.

Integrated Grease Management

Features a full-length stainless steel grease trough and a removable grease container to efficiently collect and dispose of cooking byproducts.

Rear Air Space

Includes a standard 3-inch (76mm) air space at the rear, facilitating proper wall mounting and ventilation.

Mounting Brackets and Channels

Furnished with front and rear hanger brackets, and standard mounting channels for secure and stable installation.

Type Exhaust Hood
Style Wall Type
Installation Type Wall Mounted
Material 430 Stainless Steel
Exhaust CFM 2200 CFM
Number of Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 17.5 Inches
Number of Lights Per Hood 2
Number of Filters Per Hood 3
Air Space 3 Inches (at rear)
Shipping Width 66 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 378 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited warranty covering defects in materials and workmanship for one year from installation or 18 months from shipment, whichever comes first.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The hood surfaces, including all exposed parts, are made from heavy gauge type 430 stainless steel, ensuring durability and compliance with commercial kitchen standards.
No, the HEB96-66 is an exhaust-only ventilation hood. It is designed for use in commercial kitchens where make-up air is supplied by other, separate ventilation systems.
Yes, the hood is equipped with UL-classified aluminum filters that are removable for easy cleaning. It also features a full-length stainless steel grease trough and a removable grease container for convenient maintenance.
The SpecAIR HEB96-66 hood measures 66 inches wide, 51 inches deep (front-to-back), and 24 inches high.
The hood is constructed per NFPA 96 standards, featuring continuously liquid-tight welded seams. It also includes UL-listed vapor-proof incandescent light fixtures for safety and compliance in commercial settings.
The HEB96-66 model is equipped with 1 exhaust collar, 2 vapor-proof incandescent lights, and 3 removable aluminum filters for efficient operation.
