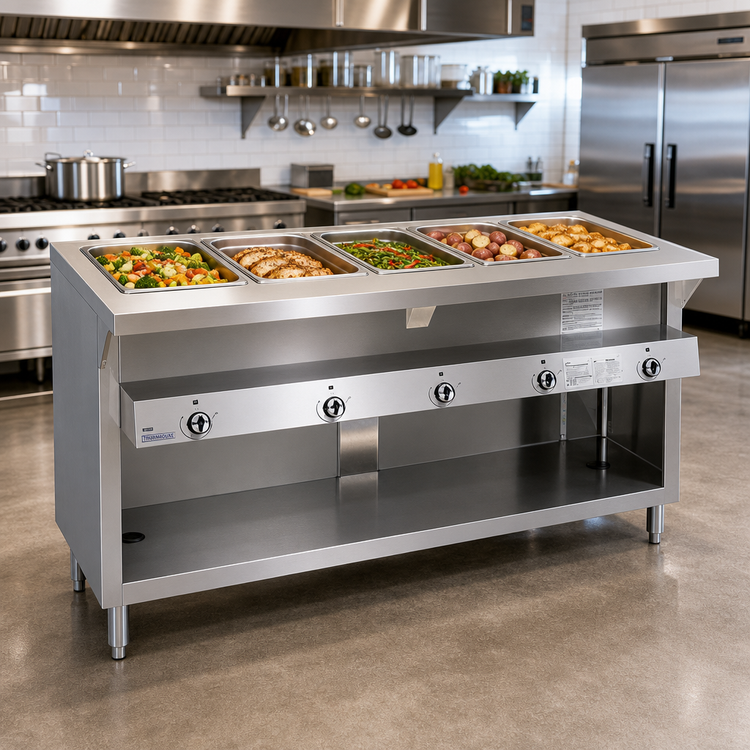

Thurmaduke G-5-DLPG 5-Well Deluxe Propane Gas Hot Food Steam Table with Painted Steel Body

Full-Size, Propane Gas, 5-Well Dry Heat, Painted Steel Body

Efficiently keep your hot food at safe serving temperatures with the durable and versatile Thurmaduke G-5-DLPG 5-Well Deluxe Propane Gas Hot Food Steam Table.

  • Features five 12" x 20" individual dry heat wells for flexible food service.
  • Equipped with individual burners and adjustable gas valves for precise temperature control.
  • Constructed with a heavy-gauge stainless steel top and a sturdy paint grip steel body for long-lasting performance.
  • Includes an integral stainless steel cutting board and dish shelf for convenience.
  • Designed with safety pilots and a gas pressure regulator for reliable operation.
  • Mounted on 6" polished stainless steel adjustable legs for stability and easy cleaning.

Overall Dimensions:

74.0"W x 34.0"D x 36.0"H

Product Weight:

495.0 lb

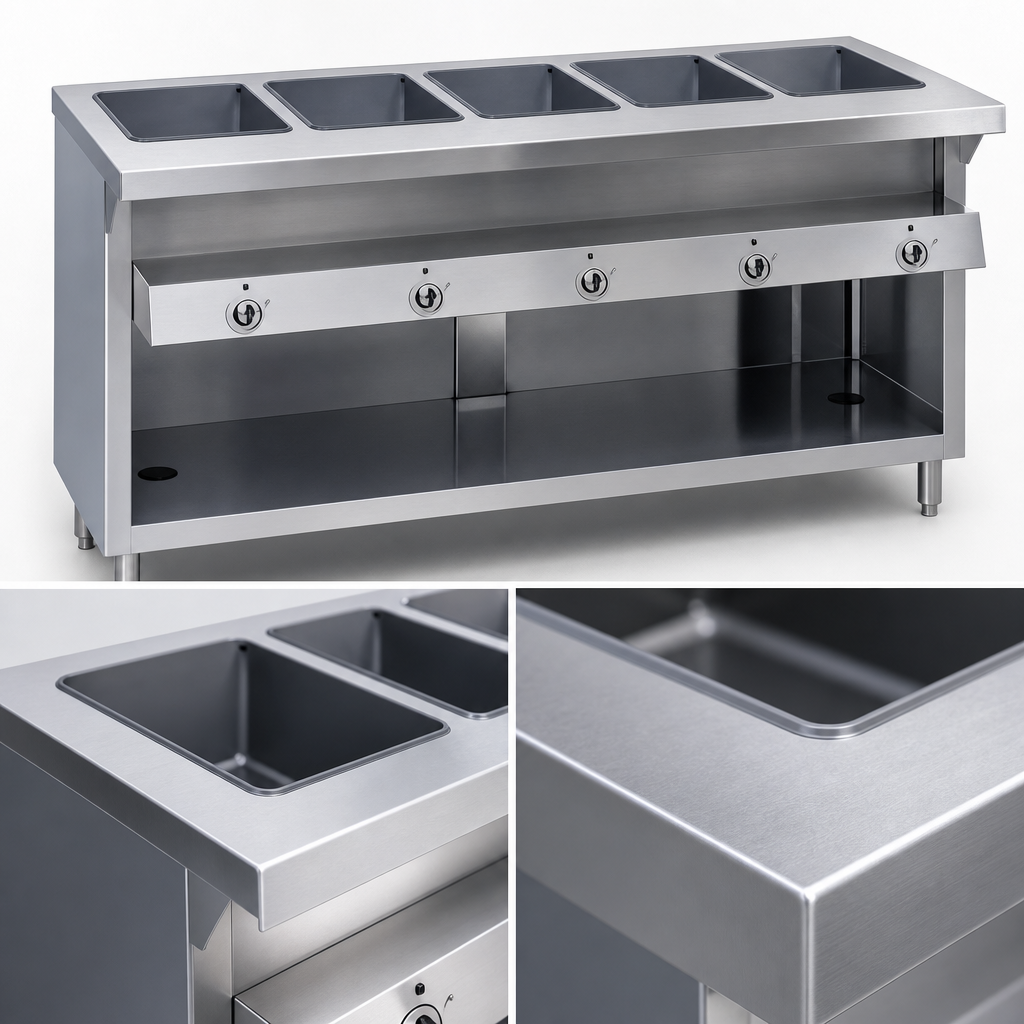

One-Piece Stainless Steel Top

Constructed from 16 gauge, 300 Series stainless steel with die-stamped 12" x 20" top openings for durability and easy cleaning.

Integral Carving/Work Surface

Built into the top, providing a convenient space for food preparation or carving.

Dry Heat Compartments

Five individual 12" x 20" stainless steel liners, 8" deep, with individual burners and adjustable gas valves for precise temperature management.

Safety Pilots

Ensures gas safety by cutting off gas flow if the pilot light extinguishes.

Gas Pressure Regulator

Included for the unit to maintain consistent gas flow and efficient operation.

Paint Grip Steel Body

Made from 20 gauge paint grip steel for robust construction and an attractive finish.

Integral Dishshelf with Control Housing

Heavy gauge, one-piece stainless steel dish shelf (8 1/2" wide) which also houses control knobs and features wire knob guards.

Adjustable Stainless Steel Legs

Six-inch polished stainless steel adjustable legs provide stable support and allow for leveling on uneven floors.

Type Hot Food Steam Table
Style Deluxe
Installation Type Floor Model
Material 16 Gauge 300 Series Stainless Steel Top, Paint Grip Steel Body
Interior Finish Stainless Steel
Pan Capacity 5 Full-Size Pans
BTU 17,500 BTU
BTU Per Burner 2500 BTU/hour
Gas Type Propane
Gas Connection Size 1/2 Inch I.P.S.
Compartments 5
Controls Individual Adjustable Gas Valves
Shipping Width 74 Inches
Shipping Depth 34 Inches
Shipping Height 36 Inches
Shipping Weight 495 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor warranty.

Frequently Asked Questions

The G-5-DLPG model is designed to operate with Propane Gas. When ordering, it's important to specify the desired gas type and elevation for high altitude orifices if applicable.
This Thurmaduke steam table features five 12" x 20" top openings, designed to hold five full-size food pans or equivalent fractional pans.
The top of the steam table is made from one-piece 16 gauge, 300 Series stainless steel, while the body and undershelf are constructed from 20 gauge paint grip steel. It also features 6" polished stainless steel adjustable legs.
This is a gas-powered unit requiring a 1/2" I.P.S. gas connection. It is a floor model with adjustable legs and does not require electrical power for heating.
Duke Manufacturing Co. does not recommend or authorize the use of any product(s) in a non-commercial application, including residential use. Such use voids all warranties.
