Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
114.0"W × 31.5"D × 40.0"H
Type
Refrigerated Work Table
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Delfield SKU: 186114BSTMP

Delfield 186114BSTMP 114-Inch 3-Door Worktop Refrigerator

$13,764.00
/each
Estimated to ship in 61–64 business days
Width
Mounting
Front finish
End finish
Back finish
Included: Delfield warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,273/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Work Table
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Capacity 37.24 cubic feet
Sections 3
Door Count 3
Door Size 32 in
Width 114 in
Depth 31.5 in
Height 40 in
Backsplash Height 4 in
Shelf Count 3
Shelf Type Epoxy-Coated Wire
Caster Size 6 in
Refrigeration Type Self-Contained
Refrigeration Location Side-Mounted
Refrigerant Type R290
Compressor HP 1/3 HP
Temperature Range 36°F to 40°F
Controls Electronic
Voltage 115 Volts
Amps 6.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 ft

Description

Delfield 186114BSTMP is a 114-inch, three-section refrigerated work table with a stainless steel top and exterior, a 4-inch backsplash, and three 32-inch doors.

  • Self-contained, side-mounted refrigeration uses R290 refrigerant.
  • Electronic temperature controls maintain a 36°F to 40°F cabinet temperature range.
  • Each door section has one removable epoxy-coated wire shelf.
  • The unit is mounted on 6-inch casters.

Overall Dimensions:

114.0"W x 31.5"D x 40.0"H

Product Weight:

685.0 lb

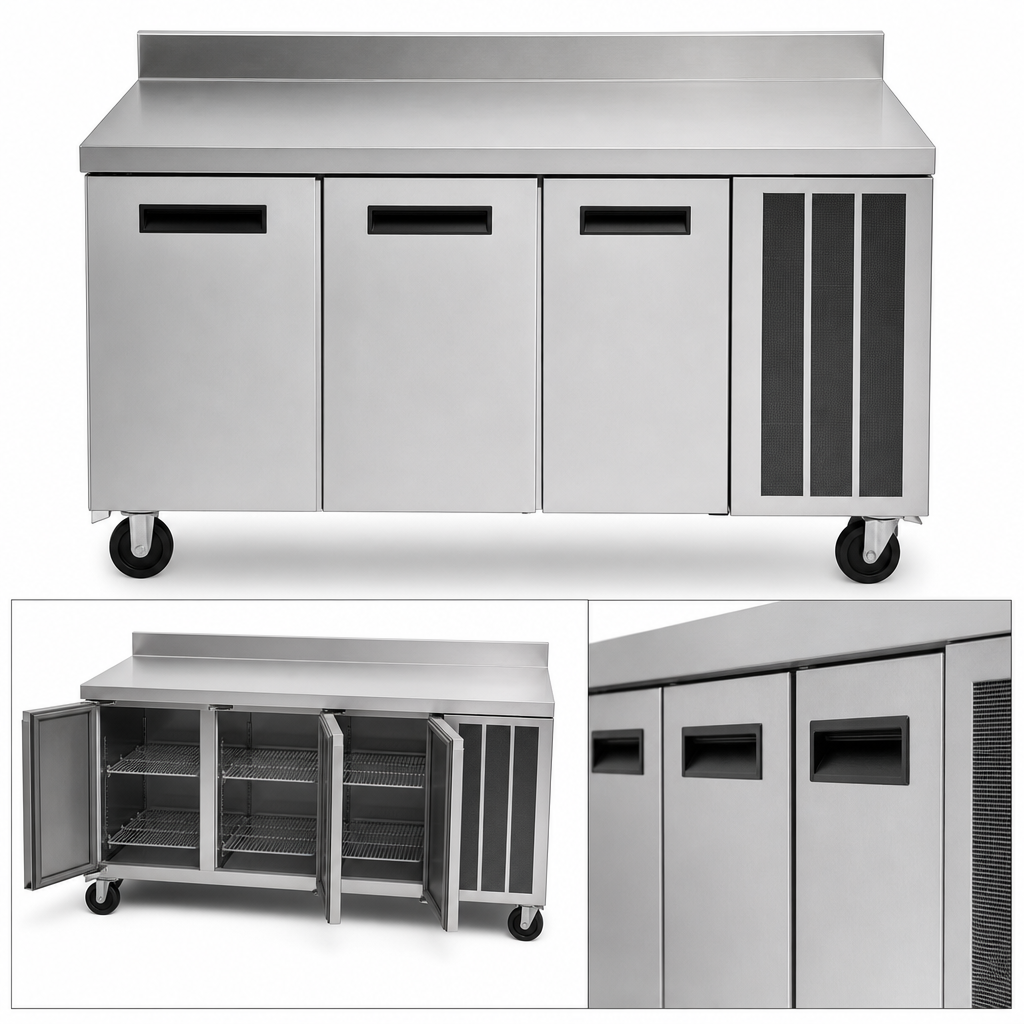

Three-Section Configuration

Provides three refrigerated sections with one removable epoxy-coated wire shelf in each door section.

Stainless Steel Work Surface

Features a stainless steel top and exterior.

Three 32-Inch Doors

Includes three 32-inch doors for access to the refrigerated sections.

Self-Contained Refrigeration

Uses a side-mounted refrigeration system with R290 refrigerant.

Electronic Temperature Control

Maintains a cabinet temperature range of 36°F to 40°F.

Four-Inch Backsplash

Includes a 4-inch high backsplash.

Caster-Mounted Design

Mounted on 6-inch casters.

Electrical Connection

Operates at 115 volts, 60 hertz, single phase, with a NEMA 5-15P plug.

Frequently Asked Questions

It has three 32-inch doors.
The refrigerated cabinet maintains 36°F to 40°F.
It uses R290 refrigerant.
It requires 115 volts, 60 hertz, single phase, and 6.3 amps, with a NEMA 5-15P plug and an 8-foot cord.
Yes. Each of the three door sections has one removable epoxy-coated wire shelf.
