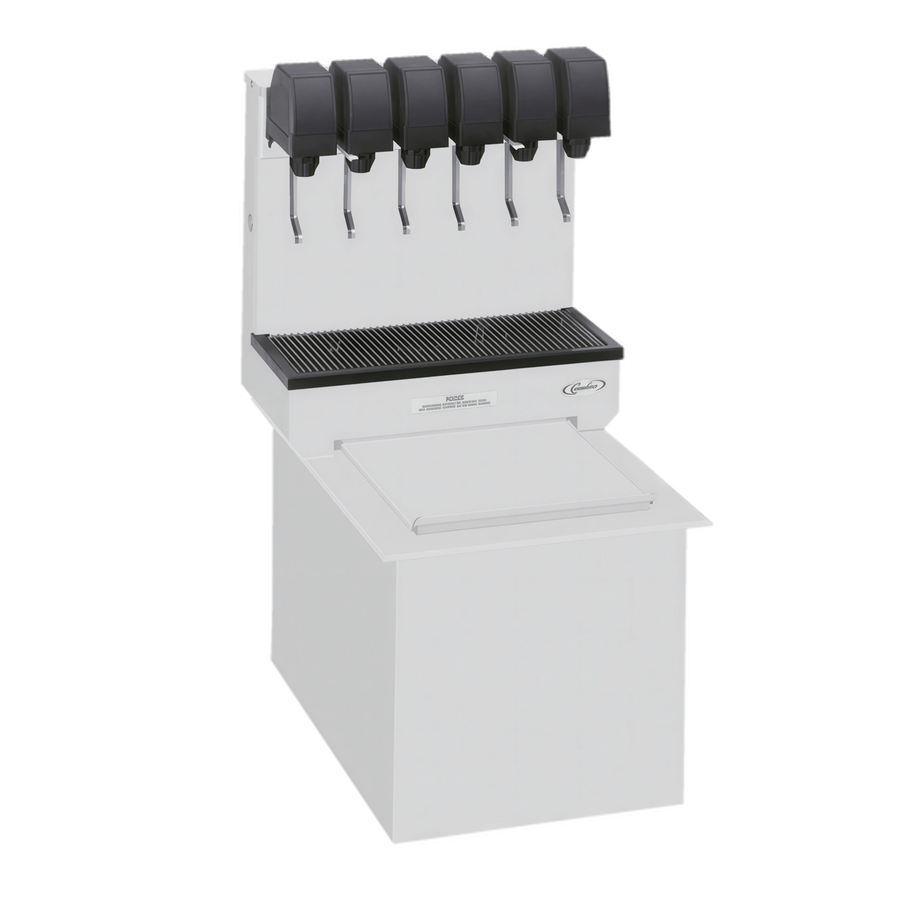

Cornelius 631100046 Post-Mix Soda Dispenser, Drop-In Ice-Cooled, 6 Lever Valves, Stainless Steel, 75 lb Ice Capacity
SKU: 631100046
$8,690.30
The Cornelius 631100046 CB1522 is a post-mix, drop-in soda beverage dispenser with ice cooling, six UFB-1 lever valves, and a 75 lb ice capacity.
- Includes a cold plate, built-in drip tray, and 4-1-1 carb/non-carb manifold.
- Features an all-stainless steel exterior and stainless steel tower without a merchandiser.
- Requires a 15.25 in W x 23.25 in D countertop cutout.
- Includes a key lock switch and provides 9.75 in cup clearance.
Overall Dimensions:
15.0"W x 23.0"D x 37.0"HProduct Weight:
155.0 lbSix UFB-1 lever valves
Provides six 2-4 oz sanitary lever valves for post-mix dispensing.
75 lb ice capacity
The ice bin has a 75 lb capacity.
Ice-cooled cold plate
Uses ice cooling with a cold plate.
Stainless steel exterior
Features an all-stainless steel exterior and stainless steel tower.
4-1-1 manifold
Includes a 4-1-1 carb/non-carb manifold.
Built-in drip tray
Includes a built-in drip tray.
Key lock switch
Includes a key lock switch located on the tower.
Drop-in installation
Requires a 15.25 in W x 23.25 in D countertop cutout.
Product type
Post-mix drop-in soda beverage dispenser
Model family
CB1522
Cooling type
Ice cooled
Number of valves
6
Valve type
UFB-1, 2-4 oz sanitary lever valves
Ice capacity
75 lb
Cold plate circuits
Water 3, syrup 6
Manifold
4-1-1 carb/non-carb
Cup clearance
9.75 in
Countertop cutout
15.25 in W x 23.25 in D
Exterior finish
All stainless steel exterior
Tower
Stainless steel tower without merchandiser
Drip tray
Built-in
Switch
Key lock
Loading method
Manual load
Electrical rating
115 V / 60 Hz / 1 ph; 1.5 A
Certifications & Compliance
Frequently Asked Questions
It has six UFB-1 2-4 oz sanitary lever valves.
The ice bin has a 75 lb capacity.
A 15.25 in W x 23.25 in D countertop cutout is required.
The dispenser is rated at 115 V / 60 Hz / 1 ph and 1.5 amps.
No. The exact product description specifies a stainless steel tower without a merchandiser.
