Cornelius 631100045 Drop-In Ice-Cooled Post-Mix Soda Dispenser, 6 Lever Valves, 60 lb Ice Capacity, Stainless Steel
SKU: 631100045
$7,118.75

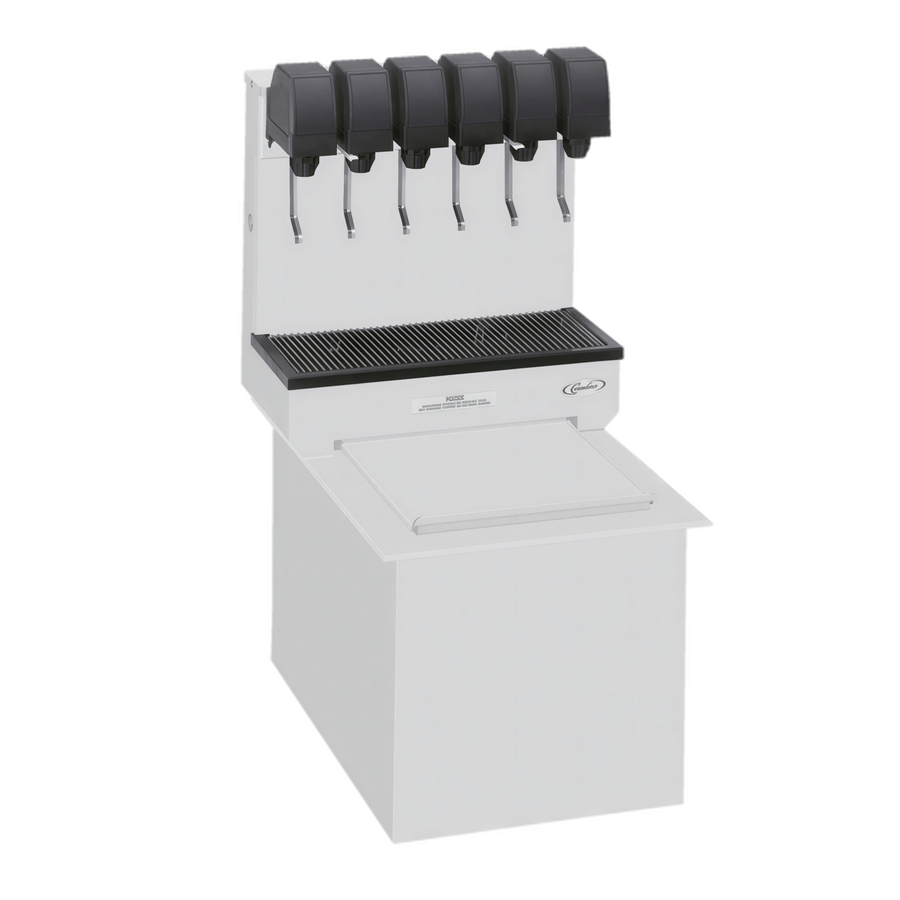

The Cornelius 631100045 is a CB1522 drop-in, ice-cooled post-mix soda dispenser with six UFB-1 sanitary lever valves and a 60 lb ice capacity.
- Stainless steel tower without a merchandiser
- Cold plate with 4-1-1 carb/non-carb manifold
- Built-in drip tray and key lock switch
- 9.75-inch cup clearance
- Requires a 15.25-inch W x 23.25-inch D countertop cutout
The dispenser is rated at 115 V / 60 Hz / 1 ph and 1.5 amps.
Overall Dimensions:
15.0"W x 23.0"D x 33.0"HProduct Weight:
148.0 lbSix UFB-1 lever valves
Six sanitary lever valves are specified at 2-4 oz.
Ice-cooled design
The ice bin has a 60 lb capacity and the dispenser uses a cold plate.
Cold plate circuits
The listed cold plate circuits are water 3 and syrup 6.
Stainless steel tower
The tower is stainless steel and specified without a merchandiser.
Carb/non-carb manifold
A 4-1-1 carb/non-carb manifold is specified.
Built-in drip tray
The dispenser includes a built-in drip tray.
Key lock switch
A key lock switch is located on the tower.
Cup clearance
The specified cup clearance is 9.75 inches.
Product Type
CB1522 drop-in post-mix soda beverage dispenser
Valve Count
6
Valve Type
UFB-1 sanitary lever, 2-4 oz.
Ice Capacity
60 lb
Cooling
Ice-cooled cold plate
Cold Plate Circuits
Water 3; syrup 6
Manifold
4-1-1 carb/non-carb
Exterior Finish
All stainless steel exterior
Merchandiser
None
Loading
Manual load
Cup Clearance
9.75 in
Countertop Cutout
15.25 in W x 23.25 in D
Electrical Rating
115 V / 60 Hz / 1 ph; 1.5 A
Certifications & Compliance
Frequently Asked Questions
It has six UFB-1 sanitary lever valves specified at 2-4 oz.
The ice capacity is 60 lb.
A 15.25-inch W x 23.25-inch D countertop cutout is required.
The dispenser is rated at 115 V / 60 Hz / 1 ph and 1.5 amps.
No. The stainless steel tower is specified without a merchandiser.
