Key specifications
- Amps
- 22/24/32/36 Amps
- Phase
- 1-Phase / 3-Phase
- Dimensions
- 24.0"W × 26.75"D × 33.75"H
- Type
- Dishwasher
- Style
- High Temperature
- Installation Type
- Undercounter

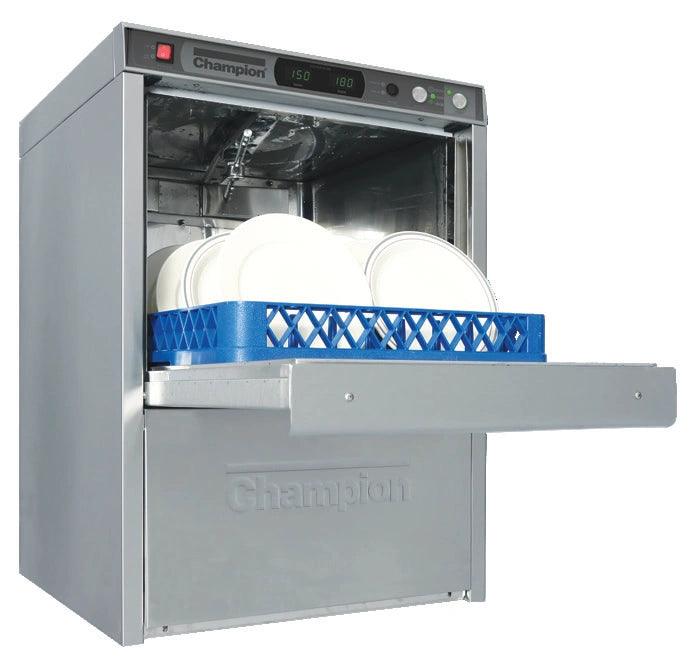

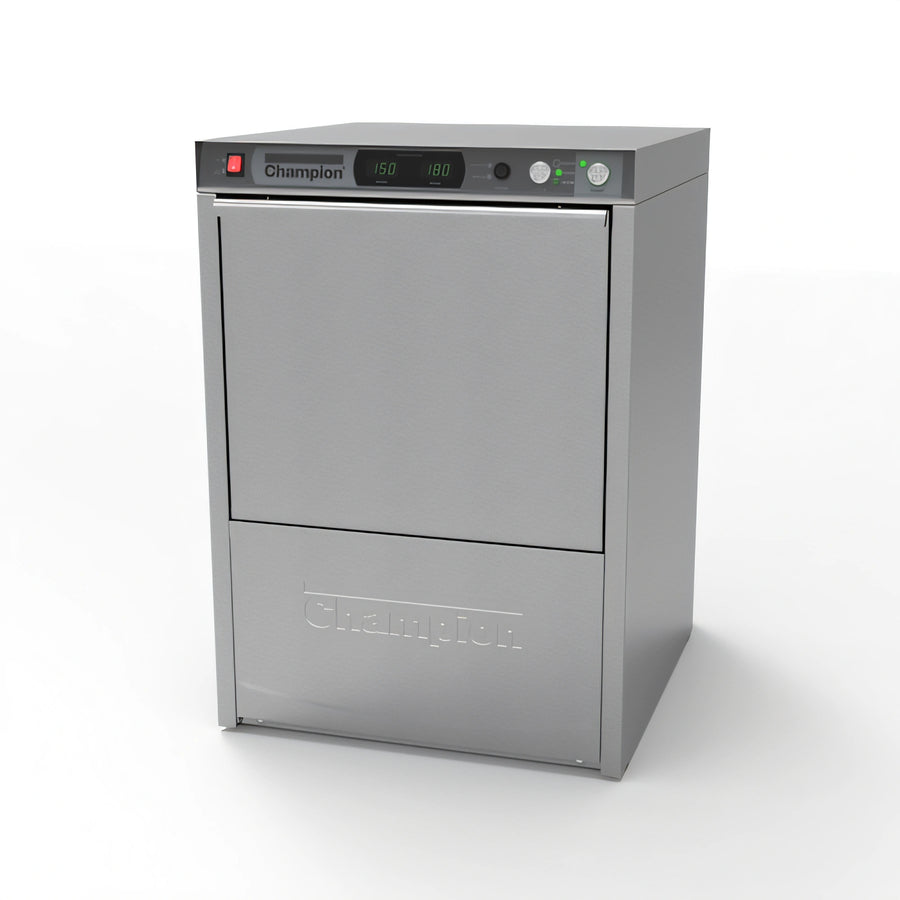

Champion UH330B High-Temperature Undercounter Dishwasher
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Champion UH330B is a high-temperature undercounter dishwasher with heat recovery condensate removal, Dry Assist, and a built-in electric booster for a 180°F final rinse.
Selectable 150-, 200-, and 277-second cycles provide listed capacities of 24, 18, and 13 racks per hour. Vari-Cycle controls, a precise digital temperature display, Rinse Sentry, detergent and rinse aid pumps, automatic drain, and pumped drain support daily operation.
- Includes one peg rack and one flat rack for 20 in x 20 in racks.
- Stainless steel top and side panels with an insulated booster and insulated panels.
- Multi-Power allows field conversion for 208-240 volt operation and single- or three-phase power.
Overall Dimensions:
24.0"W x 26.75"D x 33.75"HProduct Weight:

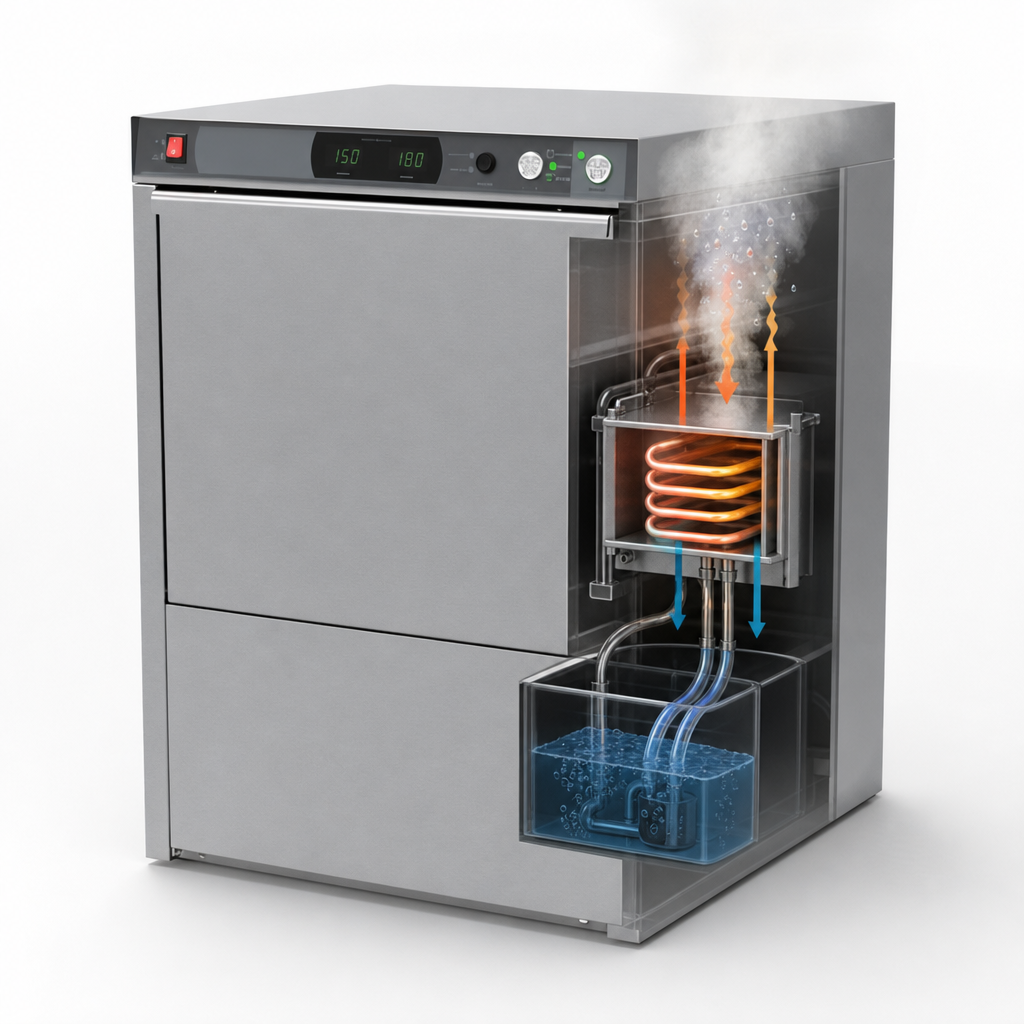

215.0 lbHeat Recovery Condensate Removal
Uses a cold-water feed and removes condensation during operation.
Dry Assist
Improves and speeds drying of wares.
StemSure Soft Start
Soft start helps protect glasses and dishes from chipping and breaking.
Vari-Cycle Controls
Provides three selectable cycle options of 150, 200, and 277 seconds.

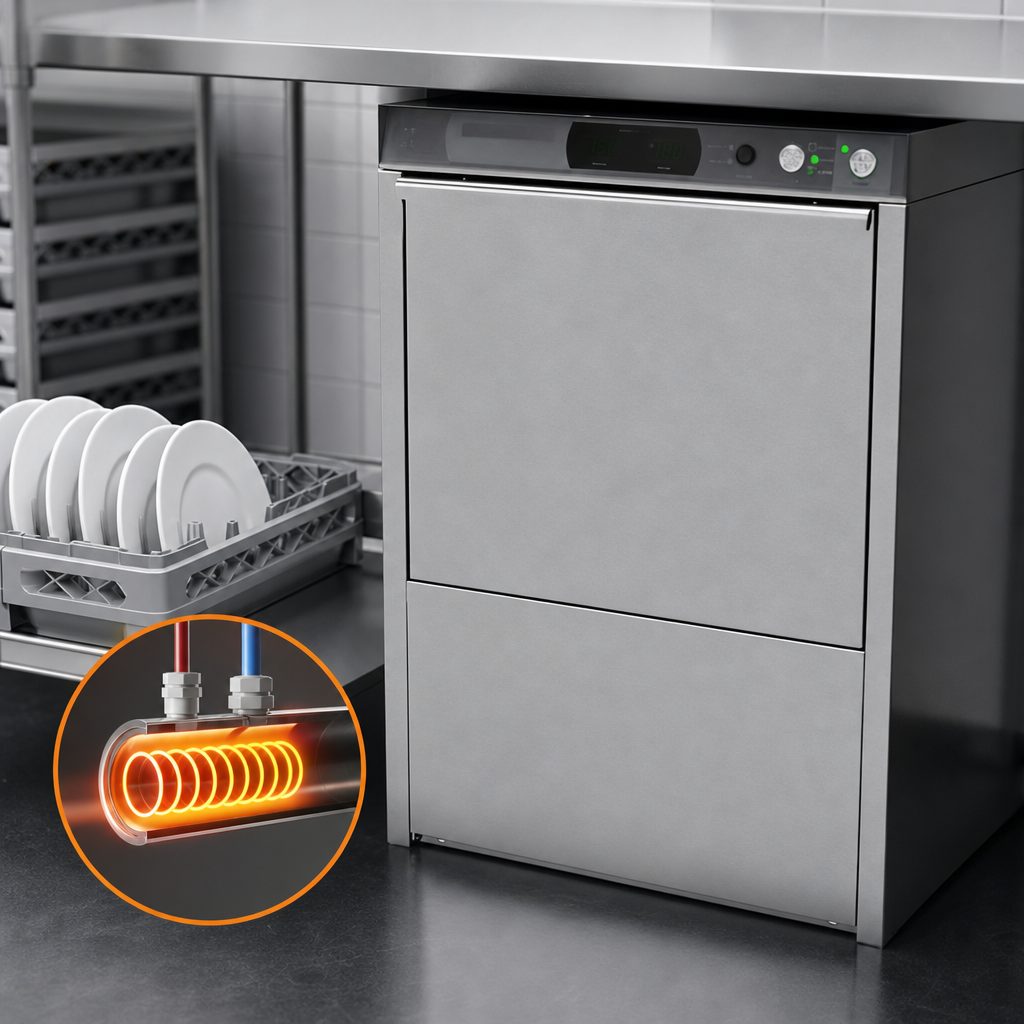

Built-In Electric Booster
Provides 180°F final rinse water with a standard 70°F/39°C rise.
Rinse Sentry
Extends the cycle time to ensure an 180°F final rinse.
Multi-Power
Allows field conversion for 208-240 volt operation and single- or three-phase power.
Included Racks
Includes one peg rack and one flat rack.
Chemical and Drain Systems
Includes detergent and rinse aid pumps, automatic drain cycle, and pumped drain.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
Parts
Troubleshooting
Need help deciding?
Our specialist can help you confirm dimensions, building requirements, and other important details before you buy. We usually reply within 1 hour.
