Eurodib DSP4EKDPS

Eurodib Lamber DSP4EKDPS High-Temperature Undercounter Dishwasher, Stainless Steel, Electric Tank Heat, 20 x 20 in Rack, No Top or Side Panels

$4,001.58
/each
Ships in 9–12 business days Free Shipping
Phase
1 phase
Dimensions
23.7"W × 25.6"D × 32.2"H
Dishwasher type
High-temperature undercounter
Construction
Stainless steel
Cabinet configuration
Without side panels and top
Tank heat
Electric

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Dishwasher type High-temperature undercounter
Construction Stainless steel
Cabinet configuration Without side panels and top
Tank heat Electric
Rack size 20 x 20 in
Dish clearance 15.3 in
Wash cycles 2, 3, 4, and 15 min
Wash capacity 30/20/15/4 baskets per hour
Tank capacity 4 gal (15 L)
Boiler capacity 1.32 gal (5 L)
Water consumption per cycle 0.6 gal (2 L)
Electric pump power 550 W
Wash tank element 2000 W
Rinse tank element 3000 W
Power 3.5 kW (3550 W)
Voltage 208 V
Frequency 60 Hz
Phase 1 phase
Current 17 A
Electrical connection Hardwired
Water inlet temperature 131–140 °F (55–60 °C)
Rinse temperature 180–195 °F (82–90 °C)
Water inlet connection 3/4 in G
Water outlet connection 32 mm / 3/4 in
Inlet water pressure 40–80 psi
Noise level < 70 dB(A)

Description

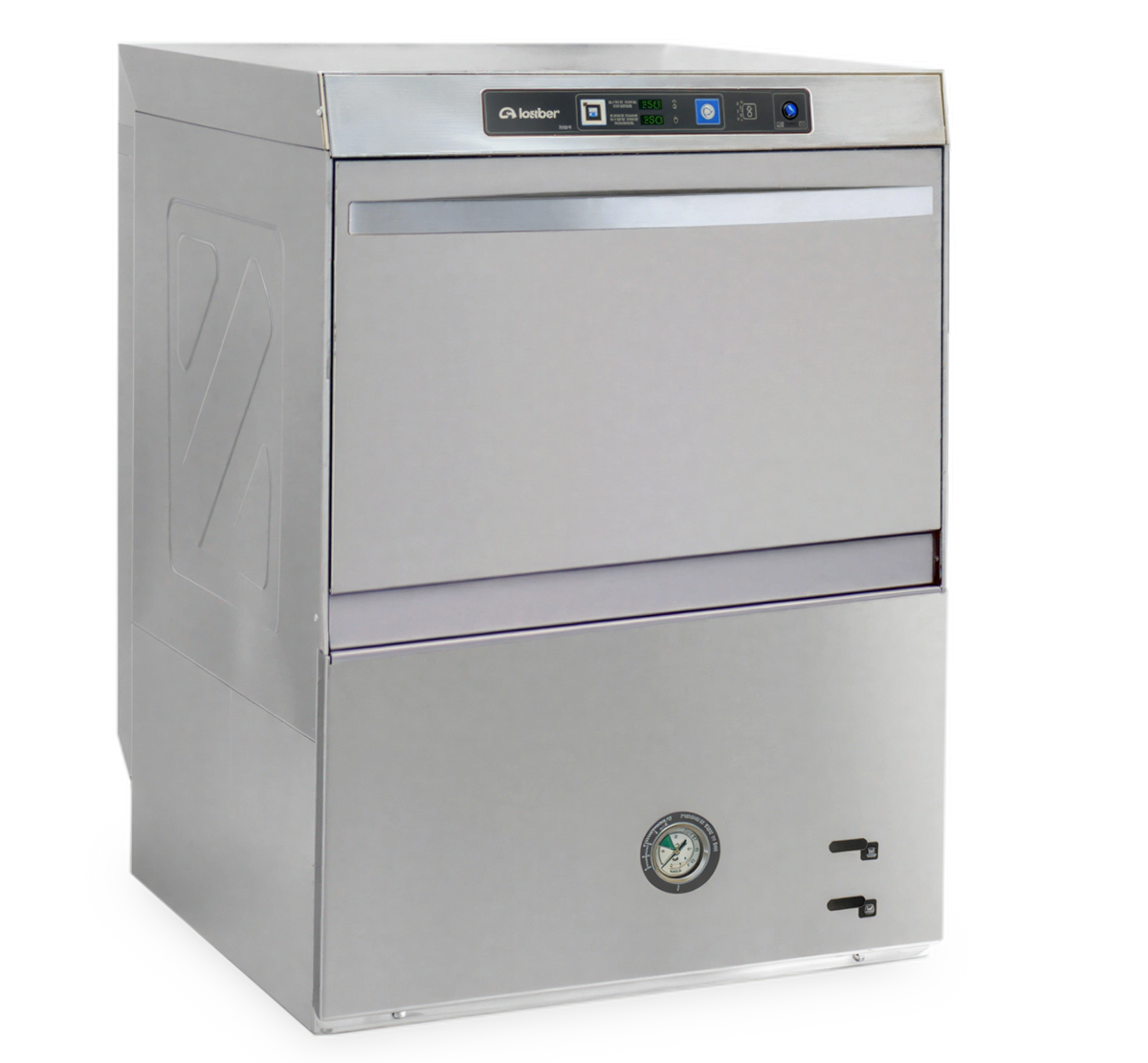

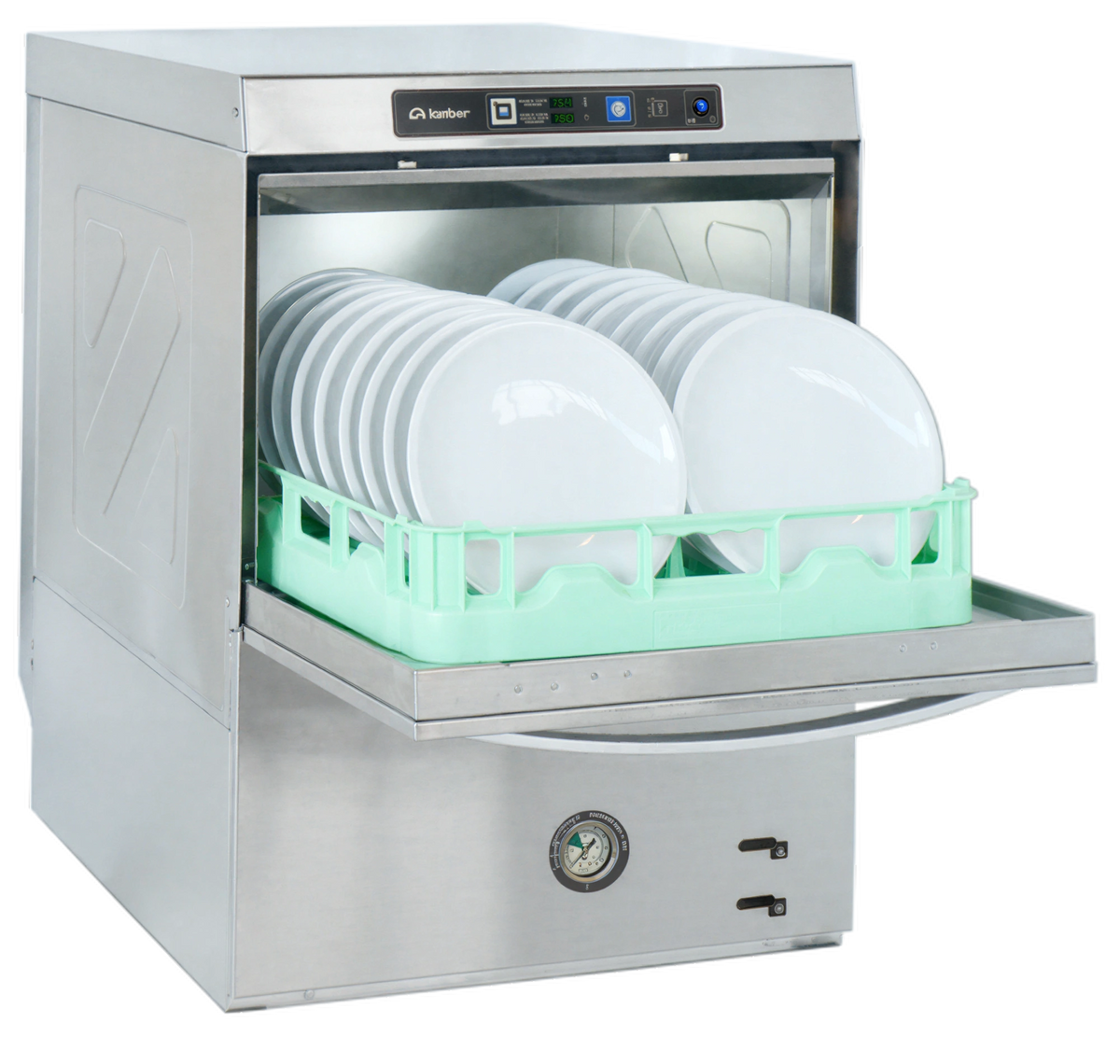

The Lamber DSP4EKDPS is a high-temperature undercounter dishwasher with electric tank heat, a 20 x 20 in rack, and a stainless steel cabinet configured without side panels and top.

Four wash cycles, automatic tank loading, soft-start operation, integrated detergent and rinse-aid dispensing, and thermostatic control support commercial dishwashing operations.

  • Wash cycles: 2, 3, 4, and 15 minutes
  • Tank capacity: 4 gal (15 L)
  • Water consumption: 0.6 gal (2 L) per cycle
  • Electrical: 3.5 kW, 208 V, 60 Hz, single phase, 17 A, hardwired

Overall Dimensions:

23.7"W x 25.6"D x 32.2"H

Product Weight:

70.0 lb

Four wash cycles

Provides 2-, 3-, 4-, and 15-minute cycle options.

Soft-touch electronic control panel

The dishwasher uses a soft-touch electronic control panel.

Soft-start system

The unit is equipped with a soft-start system.

Thermostatic control

Thermostatic control maintains selected wash and rinse temperatures throughout each cycle.

Automatic tank loading

The tank loads automatically.

Integrated detergent and rinse-aid dispensing

Includes a detergent pump and rinse-aid dispenser.

Wash and rinse arms

Includes lower wash and rinse arms, along with a top rotating rinse arm.

Tank filtration

Includes two integral tank filters.

Built-in drain pump

The integrated drain pump supports installations where gravity drainage is not available.

Stainless steel construction

The cabinet is constructed from stainless steel and configured without side panels and top.

Documentation

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Frequently Asked Questions

It offers four wash cycles of 2, 3, 4, and 15 minutes.
It uses a 20 x 20 in rack.
The dishwasher is rated at 3.5 kW, 208 V, 60 Hz, single phase, and 17 A, with a hardwired connection.
Water consumption is 0.6 gal (2 L) per cycle.
The tank capacity is 4 gal (15 L).
The product measures 23.7 in wide, 25.6 in deep, and 32.2 in high.
Yes. The tank heat is electric.
Yes. It includes a built-in drain pump.
