Key specifications

Amps
22-36 Amps
Phase
1-Phase / 3-Phase
Dimensions
24.0"W × 26.75"D × 29.87"H
Type
Dishwasher
Style
ADA Compliant
Installation Type
Undercounter
Spec sheet
Champion SKU: UH330ADA

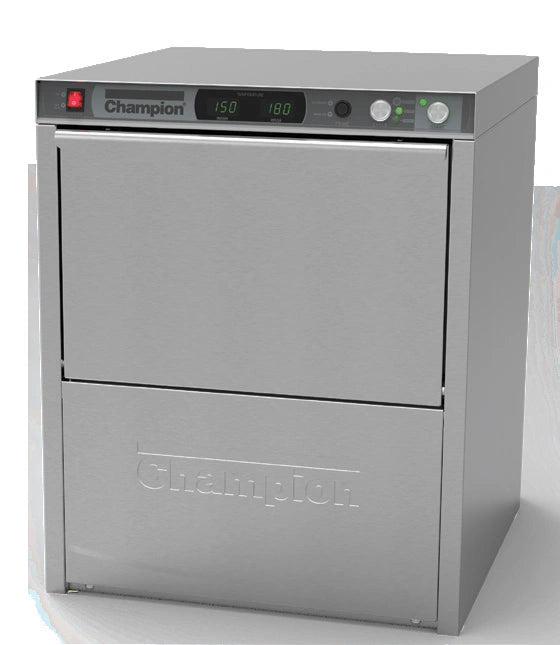

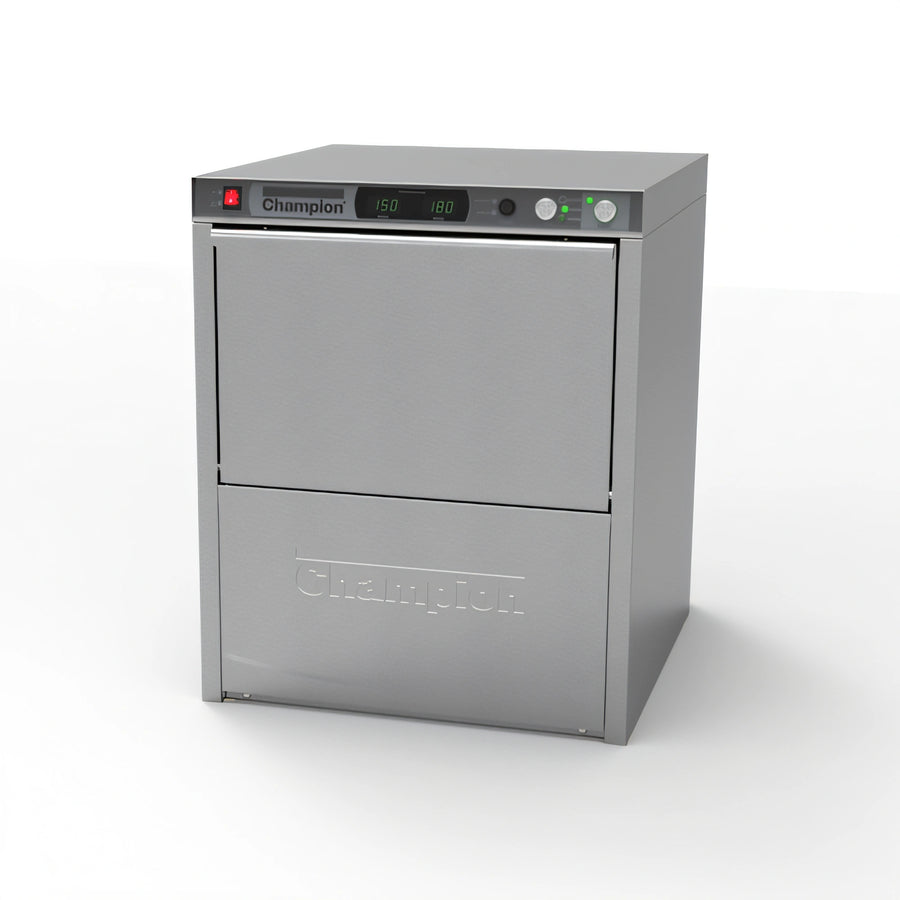

Champion UH330ADA ADA Undercounter Dishwasher, 30 Racks/Hour

$10,144.58
/each
Estimated to ship in 21–24 business days Free Shipping
ElectricalRequired
Finish
Stands
Included: Champion warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $938/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Dishwasher
Style ADA Compliant
Installation Type Undercounter
Material Stainless Steel
Cabinet Base Fully Enclosed
Tank Material 316 Stainless Steel
Capacity 30 racks/hour
Rack Size 20 in x 20 in
Interior Clearance 12 in
Door Opening 12 in
Tank Heat Electric
Tank Heating Power 2.0 kW
Booster Power 4.3 kW
Voltage 208-240 Volts
Amps 22-36 Amps
Hertz 60 Hz
Phase 1-Phase / 3-Phase
Controls Digital Temperature Display, Vari-Cycle
Wash Temperature 150°F
Rinse Temperature 180°F
Water Consumption 0.54-0.65 gal/rack
Water Supply 1/2 in
Drain Type Pumped
Wash Pump Motor 1 HP

Description

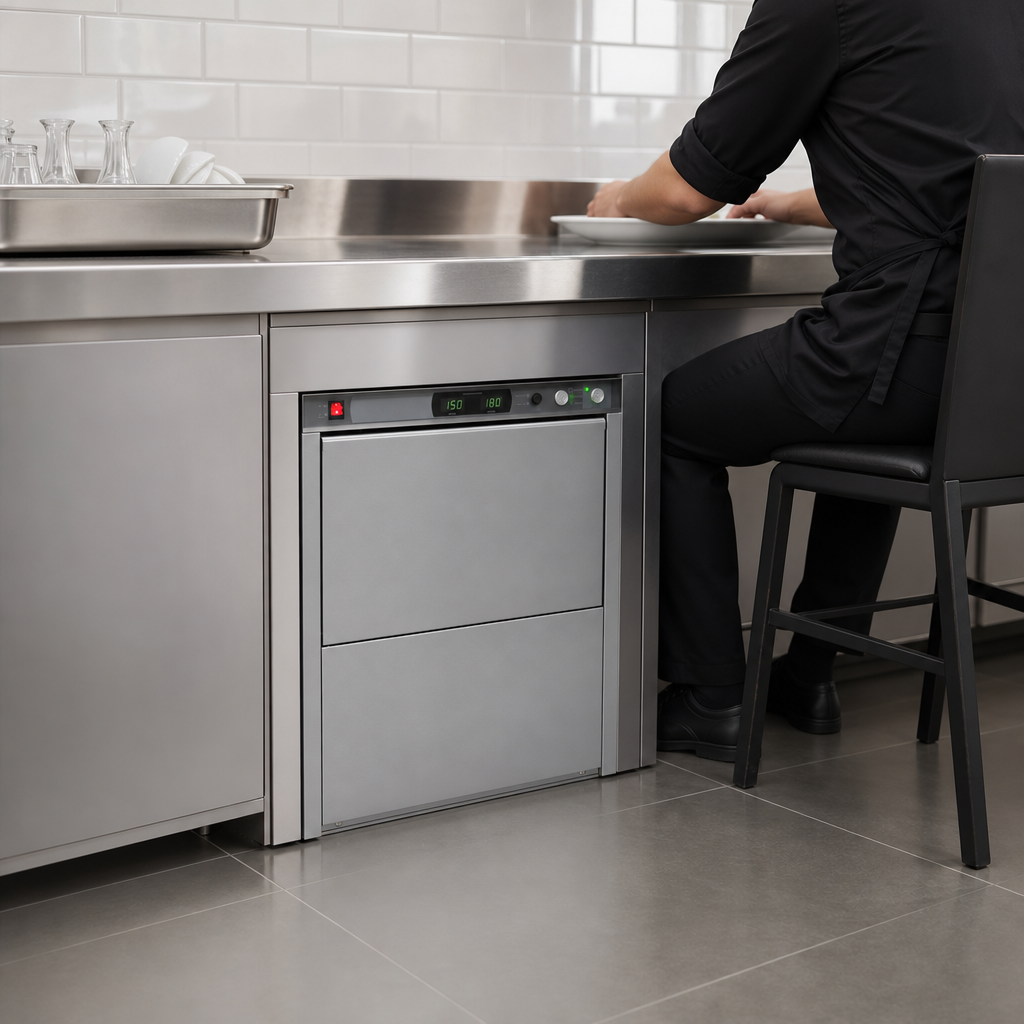

The Champion UH330ADA is an ADA-compliant, high-temperature undercounter dishwasher with a 29-7/8 in height, stainless steel construction, and a built-in electric booster for a 180°F final rinse.

Heat Recovery Condensate Removal, Dry Assist, and StemSure soft start support drying performance and help protect glasses and dishes from chipping and breaking. The unit includes multi-cycle controls, a digital temperature display, detergent and rinse-aid pumps, automatic drain, and pumped drain.

  • 30 racks per hour capacity
  • 20 in x 20 in rack size
  • 12 in internal clearance and 12 in door opening
  • Includes one peg rack and one flat rack
  • 208-240 volt, 60 Hz electrical service with field conversion between single-phase and three-phase power
  • ENERGY STAR qualified, NSF, cETLus, and ADA Compliant

Overall Dimensions:

24.0"W x 26.75"D x 29.87"H

Product Weight:

215.0 lb

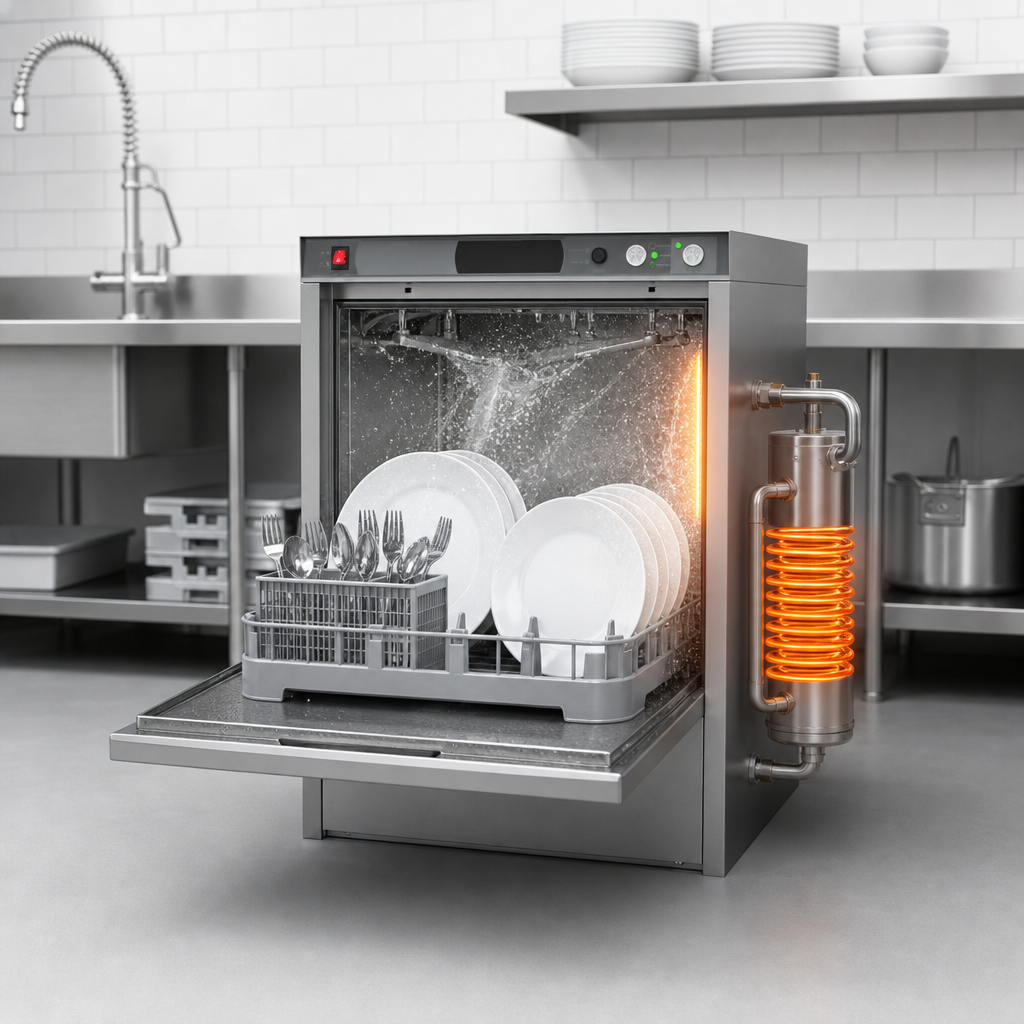

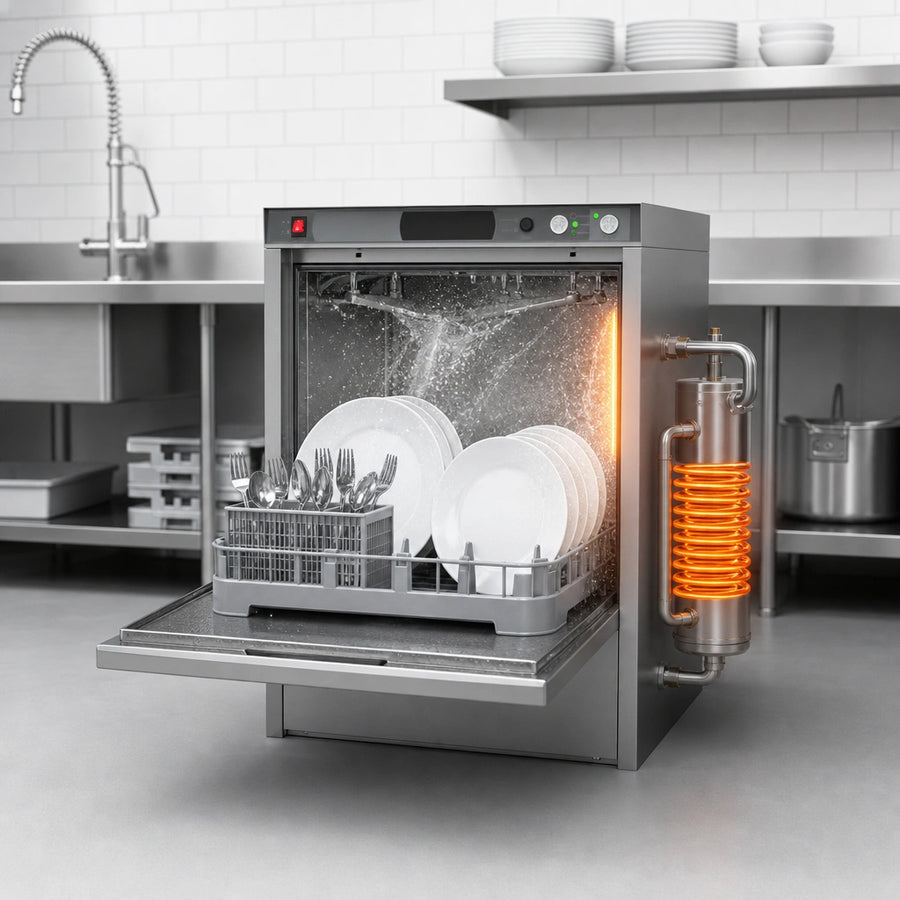

High-Temperature Sanitizing

The built-in electric booster provides 180°F final rinse water, while Rinse Sentry extends the cycle to ensure the final rinse reaches 180°F.

Heat Recovery Condensate Removal

Heat recovery uses a cold-water feed and removes condensation.

Dry Assist

The Dry Assist feature supports improved and quicker drying of wares.

StemSure Soft Start

Soft-start operation helps protect glasses and dishes from chipping and breaking.

Multi-Cycle Controls

Three cycle options are provided for cleaning flexibility.

Digital Temperature Display

Top-mounted digital temperature display and vari-cycle controls provide temperature monitoring and cycle control.

Detergent and Rinse-Aid Pumps

Standard liquid detergent and rinse-aid pumps are included.

Drain System

The dishwasher includes an automatic drain cycle and pumped drain.

Field-Convertible Electrical Supply

Multi-Power supports field conversion to 208-240 volts and between single-phase and three-phase operation.

Rack Complement

Includes one peg rack and one flat rack.

316 Stainless Steel Tank

The tank is constructed from 316 stainless steel.

Frequently Asked Questions

The built-in electric booster provides a 180°F final rinse, and Rinse Sentry extends the cycle to ensure that temperature.
It is rated for 208-240 volts at 60 Hz and can be field-converted between single-phase and three-phase power.
The dishwasher includes one peg rack and one flat rack.
It provides 12 in of internal clearance and a 12 in door opening.
The product includes a 1-year parts and labor warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
