Key specifications

Phase
1-Phase or 3-Phase
Dimensions
24.0"W × 25.0"D × 33.75"H
Type
Dishwasher
Style
High Temperature
Installation Type
Undercounter
Material
Stainless Steel
Spec sheet
Champion SKU: UH130B

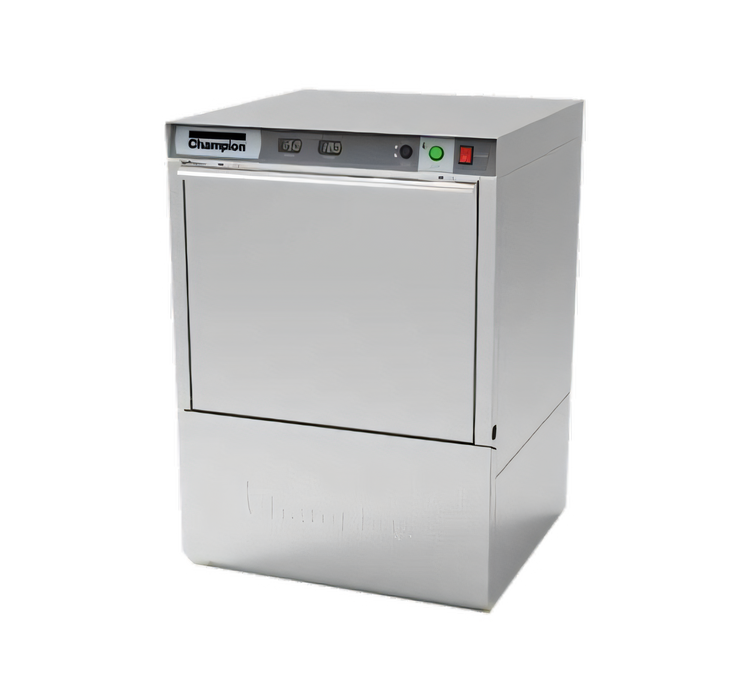

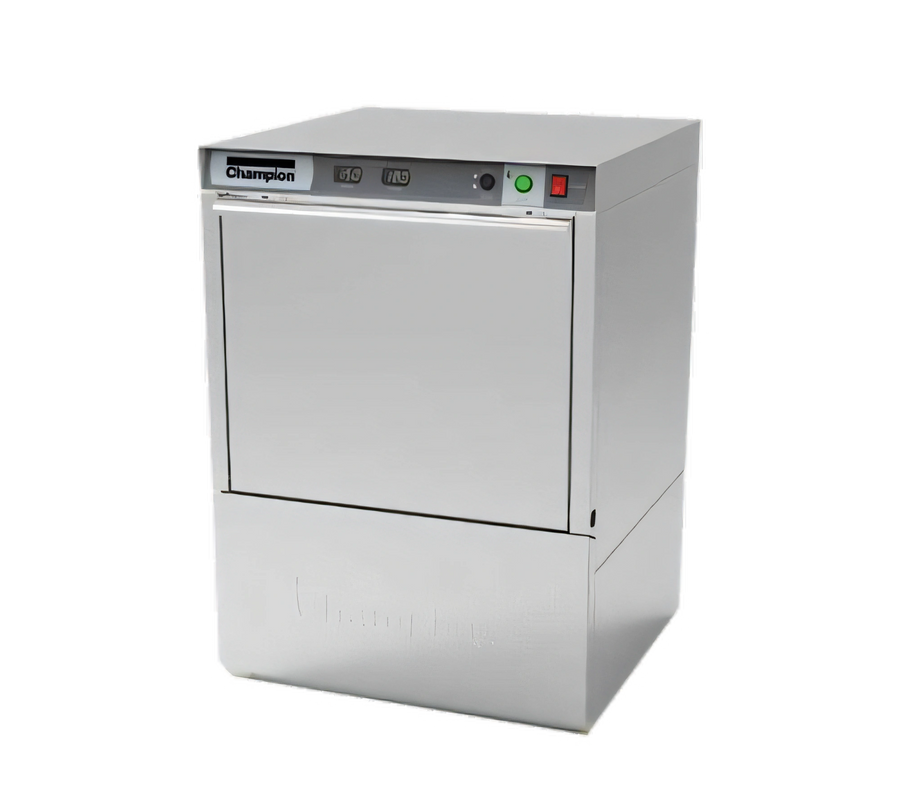

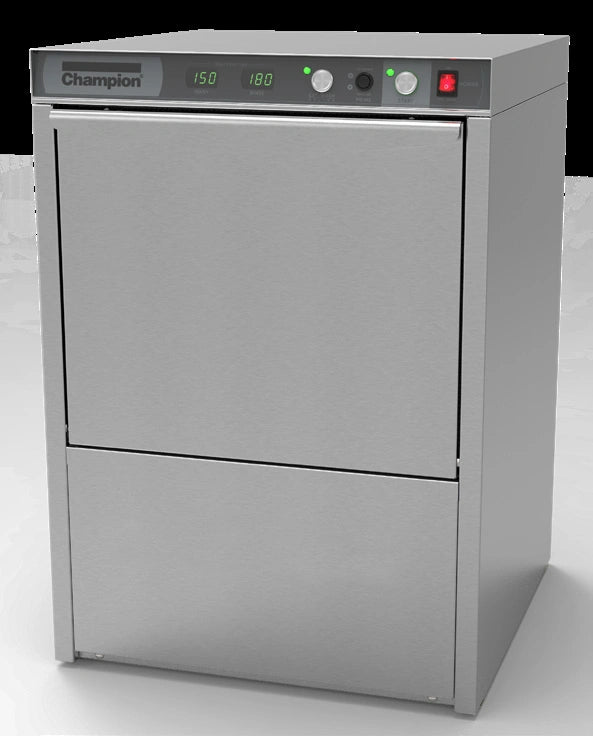

Champion UH130B High-Temperature Undercounter Dishwasher

$7,237.86
/each
Estimated to ship in 21–24 business days Free Shipping
ElectricalRequired
Booster
Exterior finish
Stands
Included: Champion warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $670/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Dishwasher
Style High Temperature
Installation Type Undercounter
Material Stainless Steel
Capacity 25 Racks/Hour
Size 20 x 20 Inches
Tank Heat Electric
Rinse Temperature 180°F
Wash Temperature 150°F
Cycle Time 141 Seconds
Door Opening 15-3/4 Inches
Controls Top Mounted
Booster Type Built-In Electric
Booster Rise 70°F / 39°C
Wash Pump Motor 1 HP
Cabinet Base Fully Enclosed
Drain Type Pumped Drain
Voltage 208/240 Volts
Hertz 60 Hz
Phase 1-Phase or 3-Phase

Description

The Champion UH130B is a high-temperature undercounter dishwasher with a built-in electric booster for 180°F final-rinse water and capacity for 25 racks per hour.

It features stainless steel top and side panels, quiet double-wall construction, top-mounted controls, pumped drain, automatic tank fill, detergent and rinse-aid pumps, and advanced digital temperature monitoring.

  • Includes one peg rack and one flat rack for 20 x 20 inch racks.
  • StemsSure™ soft start helps protect glasses and dishes from chipping and breaking.
  • Rinse Sentry extends the cycle when needed to ensure a 180°F final rinse.
  • Multi-Power supports in-field conversion to 208-240 volts and single- or three-phase power.

Overall Dimensions:

24.0"W x 25.0"D x 33.75"H

Product Weight:

215.0 lb

High-Temperature Sanitizing

Built-in electric booster provides 180°F final-rinse water with a standard 70°F/39°C rise.

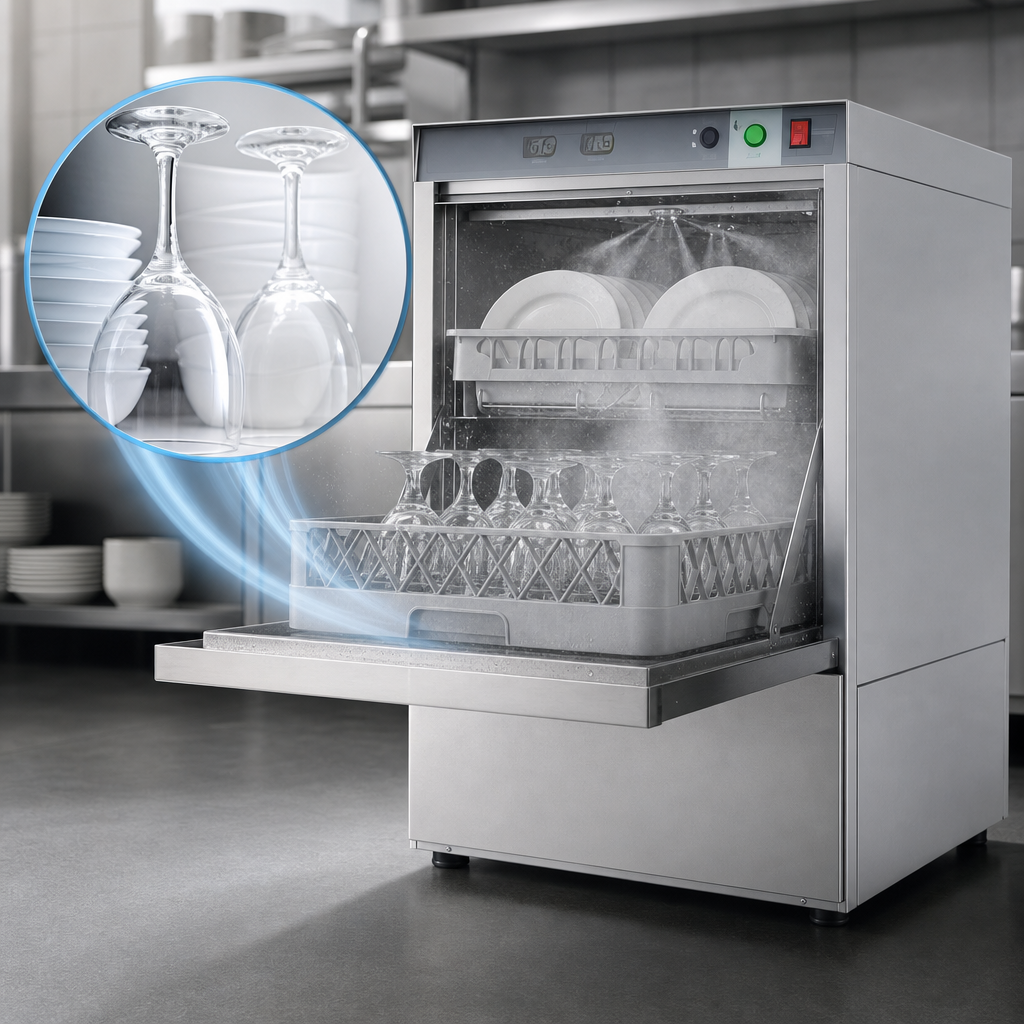

StemsSure™ Soft Start

Soft start helps protect glasses and dishes from chipping and breaking.

Rinse Sentry

Extends the cycle time to ensure a 180°F final rinse.

Multi-Power

Allows in-field conversion to 208-240 volts and between single- and three-phase power.

Temperature Monitoring

Advanced digital thermometer monitoring tracks operating temperatures.

Wash and Rinse Aid System

Includes detergent and rinse-aid pumps.

Quiet Double-Wall Construction

Double-wall construction is specified for quieter operation.

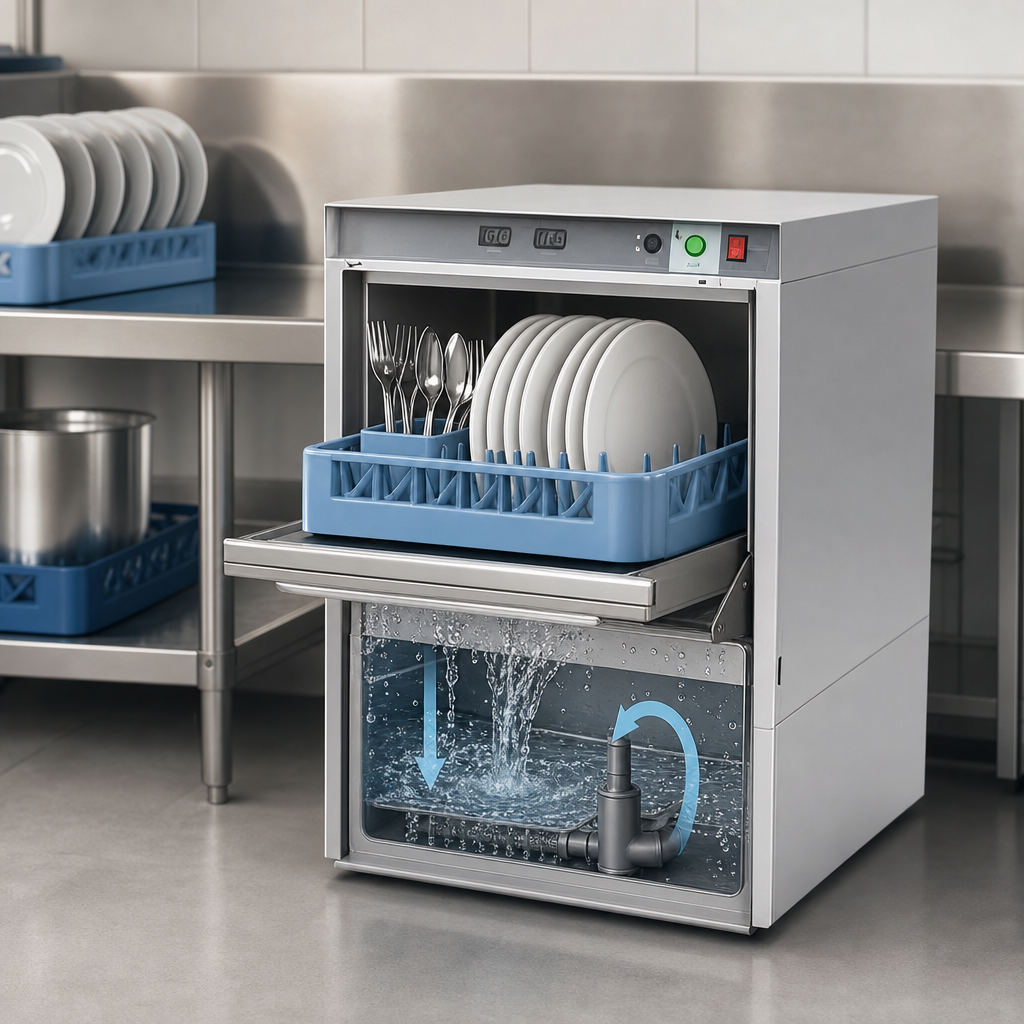

Wash Refresh™

Automatically drains the water for the next cycle so heavily soiled items are washed with new wash water.

Protection and Drainage

Includes low-water tank heat protection and a pumped drain.

Frequently Asked Questions

The UH130B accommodates 25 racks per hour.
It uses 20 x 20 inch racks and includes one peg rack and one flat rack.
The built-in electric booster provides 180°F final-rinse water.
Multi-Power allows in-field conversion to 208-240 volts and between single- and three-phase power.
The dishwasher is 24 inches wide, 25 inches deep, and 33-3/4 inches high.
