Key specifications

Phase
1-Phase / 3-Phase
Dimensions
24.0"W × 25.0"D × 33.75"H
Type
Dishwasher
Style
High Temperature
Installation Type
Undercounter
Material
Stainless Steel
Spec sheet
Champion SKU: UH130B MAX

Champion UH130B MAX High-Temp Undercounter Dishwasher, 25 Racks/Hour

$7,956.73
/each
Estimated to ship in 21–24 business days Free Shipping
Electrical
Booster heater
Finish
Stands
Included: Champion warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $736/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Dishwasher
Style High Temperature
Installation Type Undercounter
Material Stainless Steel
Tank Material 316 Stainless Steel
Cabinet Base Fully Enclosed
Capacity 25 Racks/Hour
Rack Size 20 x 20 Inches
Cycle Time 288 Seconds
Door Opening 15-3/4 Inches
Temperature High Temperature With Booster
Wash Temperature 150°F / 66°C
Final Rinse Temperature 180°F / 82°C
Tank Heat Electric
Tank Heater 2 kW
Booster Heater 6 kW
Booster Temperature Rise 70°F / 39°C
Wash Pump Motor 1 HP
Controls Digital
Control Location Top Mounted
Operation Fill And Dump
Drain Type Pumped
Included Racks 1 Peg Rack, 1 Flat Rack
Voltage 208/240 Volts
Hertz 60 Hz
Phase 1-Phase / 3-Phase
Water Connection 1/2 Inch
Minimum Water Temperature 110°F

Description

Champion UH130B MAX is a high-temperature undercounter dishwasher with a built-in electric booster for 180°F final rinse water and a standard 70°F/39°C rise.

It provides a 288-second cycle, capacity for 25 racks per hour, Multi-Level Rack System, StemSure™ soft start, digital thermometer monitoring, detergent and rinse aid pumps, and a pumped drain.

  • Stainless steel construction with stainless steel top and side panels
  • Quiet double-wall construction and top-mounted digital controls
  • Includes one peg rack and one flat rack

Overall Dimensions:

24.0"W x 25.0"D x 33.75"H

Product Weight:

215.0 lb

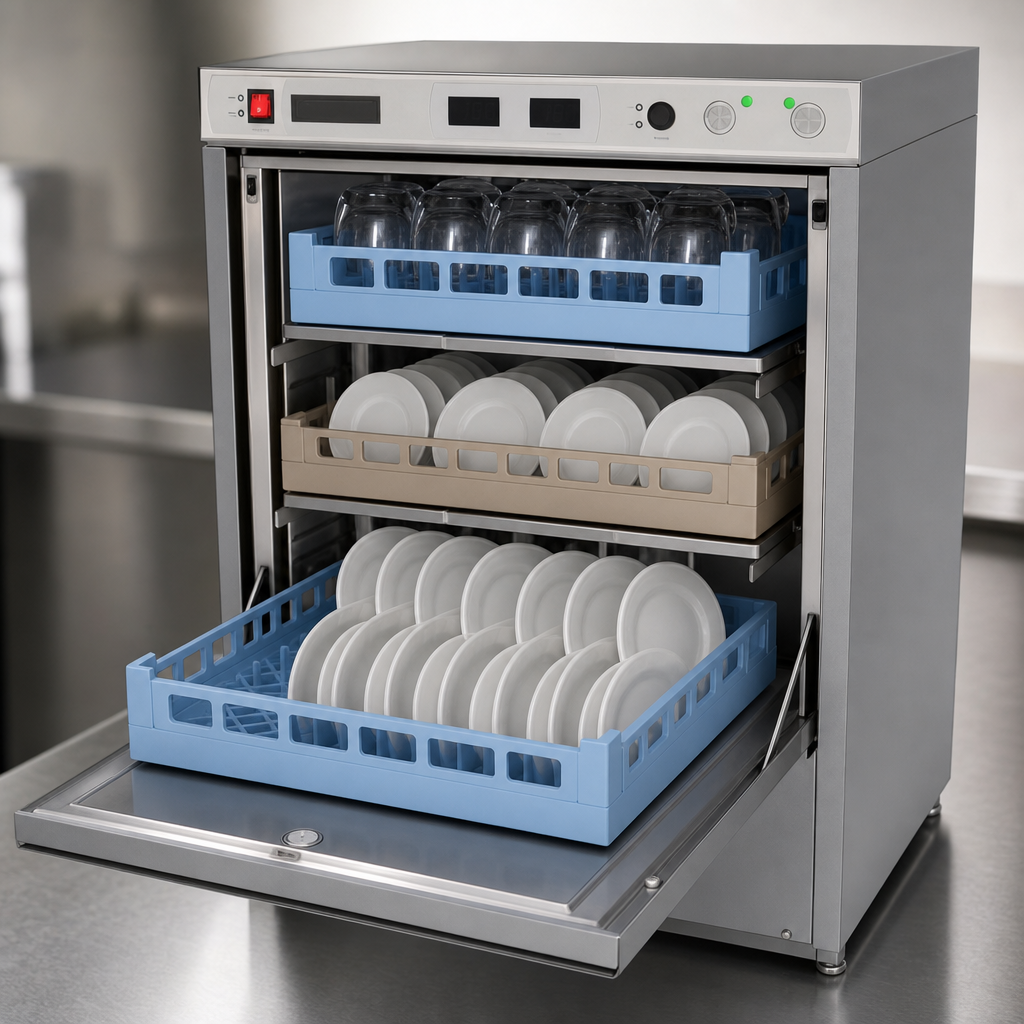

Multi-Level Rack System

Allows simultaneous washing of dishes, cutlery, and utensils.

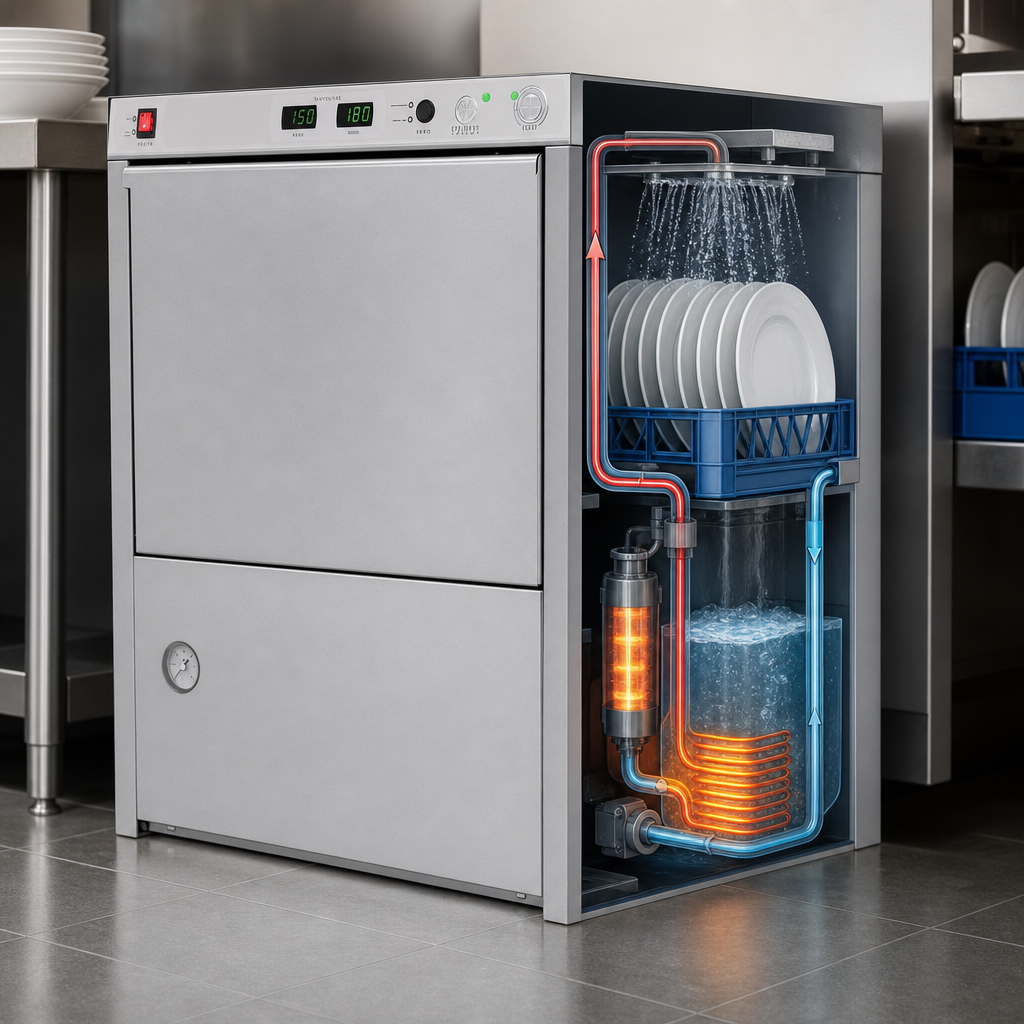

Built-In Electric Booster

Provides 180°F final rinse water with a standard 70°F/39°C rise.

StemSure™ Soft Start

Helps protect glasses and dishes from chipping and breaking.

Rinse Sentry

Extends cycle time to ensure a 180°F final rinse.

Digital Thermometer Monitoring

Monitors operating temperature digitally.

Chemical Pumps

Includes detergent and rinse aid pumps with control-mounted prime switches.

Pumped Drain

Uses a pumped drain system.

Quiet Double-Wall Construction

Features double-wall construction for quieter operation.

Frequently Asked Questions

The UH130B MAX has a 288-second total cycle and a capacity of 25 racks per hour.
Yes. It includes a built-in electric booster for 180°F final rinse water with a standard 70°F/39°C rise.
It supports 208/240-volt, 60 Hz, single- or three-phase electrical service and is field convertible between single and three phase.
It includes one peg rack and one flat rack for the standard 20 x 20-inch rack complement.
The dishwasher measures 24 inches wide by 25 inches deep by 33-3/4 inches high.
