Key specifications

Amps
35 Amps
Phase
3-Phase
Dimensions
75.0"W × 42.5"D × 52.0"H
Type
Deck Oven
Style
Single Deck
Installation Type
Floor Model
Spec sheet
BakeMax SKU: BMTD001

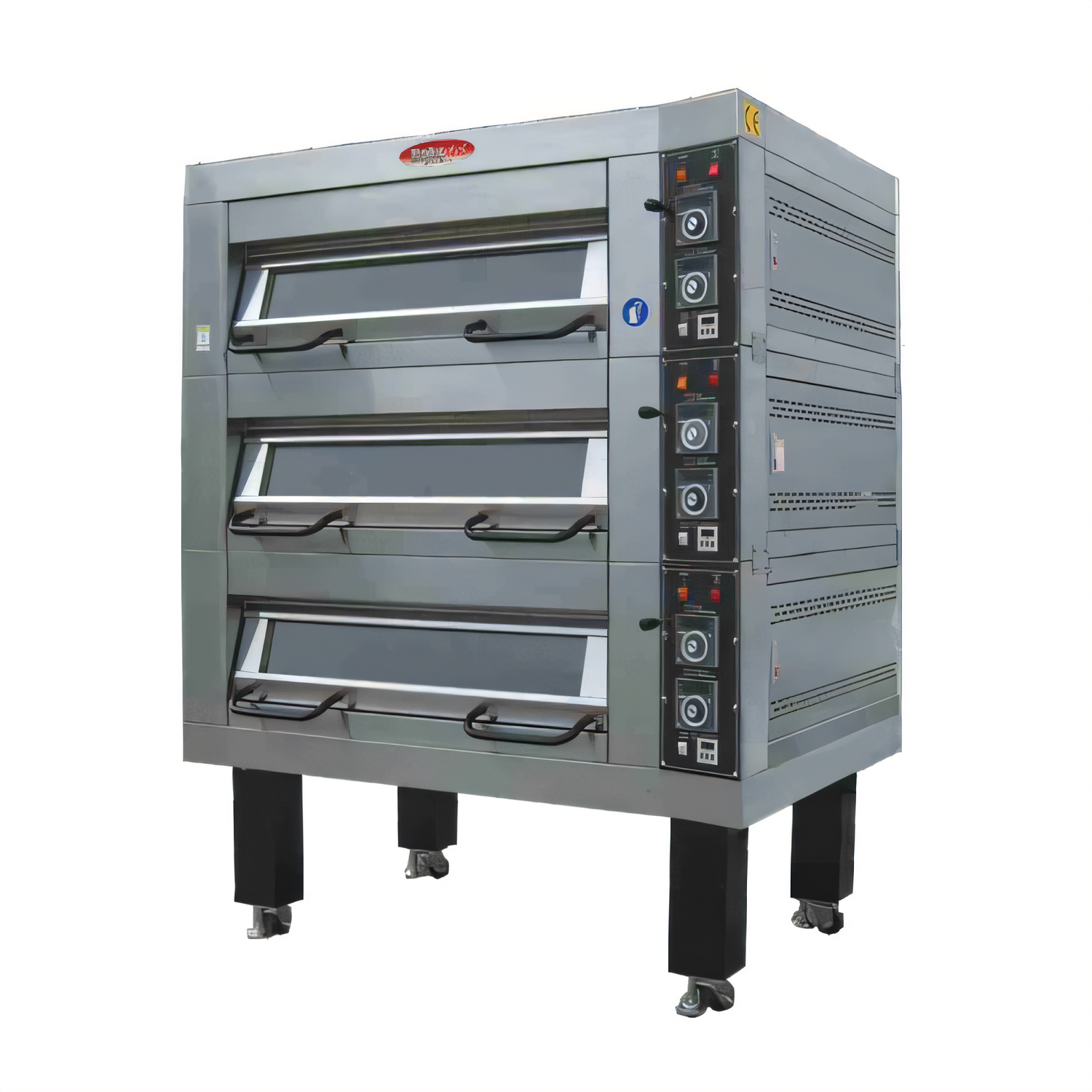

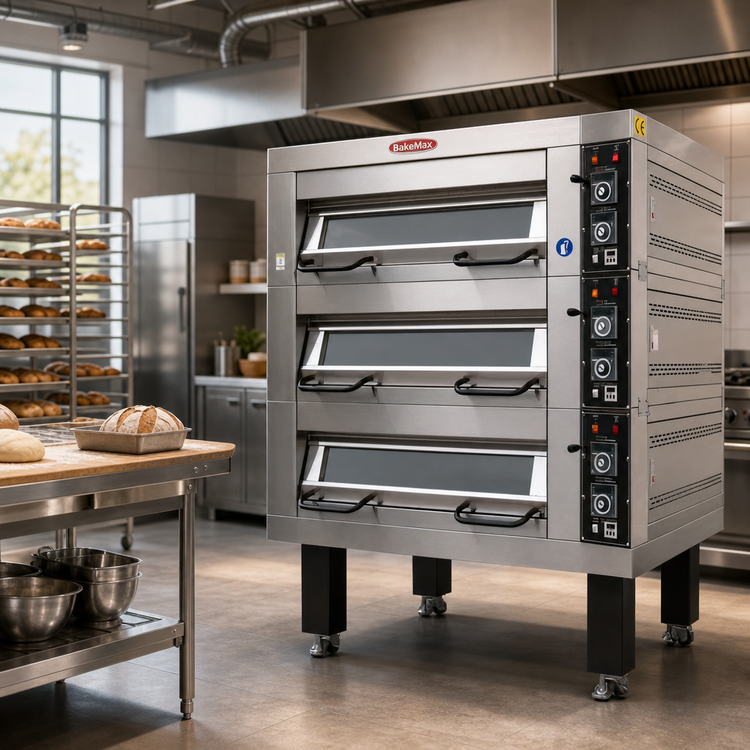

BakeMax BMTD001 Single-Deck Three-Pan Electric Deck Oven

$17,365.31
/each
Estimated to ship in 11–14 business days Free Shipping
Decks
Pan capacity
Proofers
Storage Cabinets
Included: BakeMax warranty 1-year limited warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,606/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Deck Oven
Style Single Deck
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Deck Count 1
Pan Size 18 x 26 Inches
Pan Capacity 3 Pans
Voltage 220 Volts
Amps 35 Amps
Watts 9 kW
Hertz 60 Hz
Phase 3-Phase
Controls Digital Temperature Controls
Maximum Temperature 572°F
Timer 99 Minutes
Heating Elements Top and Bottom
Window Type Tempered Glass
Steam Injection Included

Description

The BakeMax BMTD001 is a single-deck electric stone deck oven that accommodates three 18 x 26-inch full-size pans. It features steam injection, an artisan stone hearth, digital temperature controls, and independently controlled top and bottom heating elements.

  • Stainless steel exterior and interior with full insulation
  • Tempered glass viewing windows and interior light
  • Digital timers with audible alarm
  • Separate controls for top and bottom heating elements

Overall Dimensions:

75.0"W x 42.5"D x 52.0"H

Product Weight:

728.0 lb

Three-Pan Capacity

Accommodates three 18 x 26-inch full-size pans.

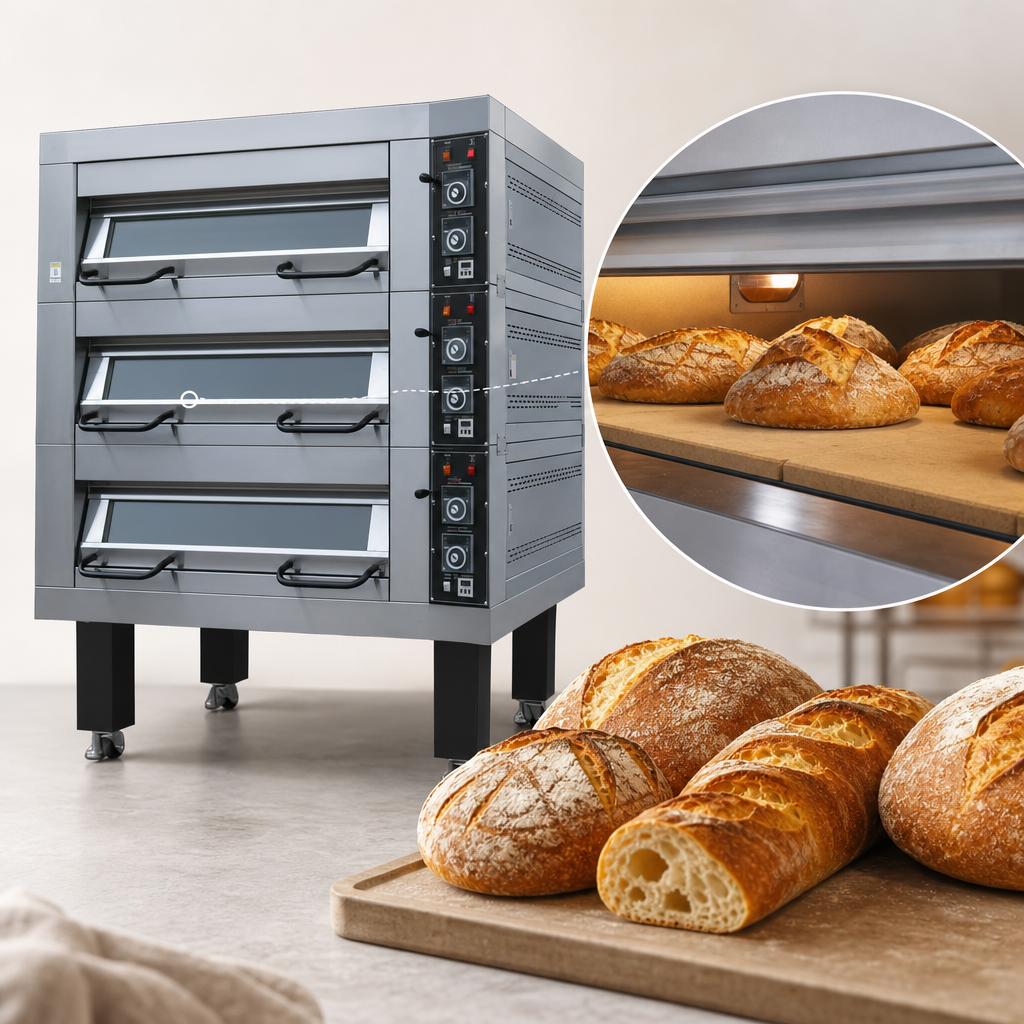

Artisan Stone Hearth

Includes a stone hearth for baking.

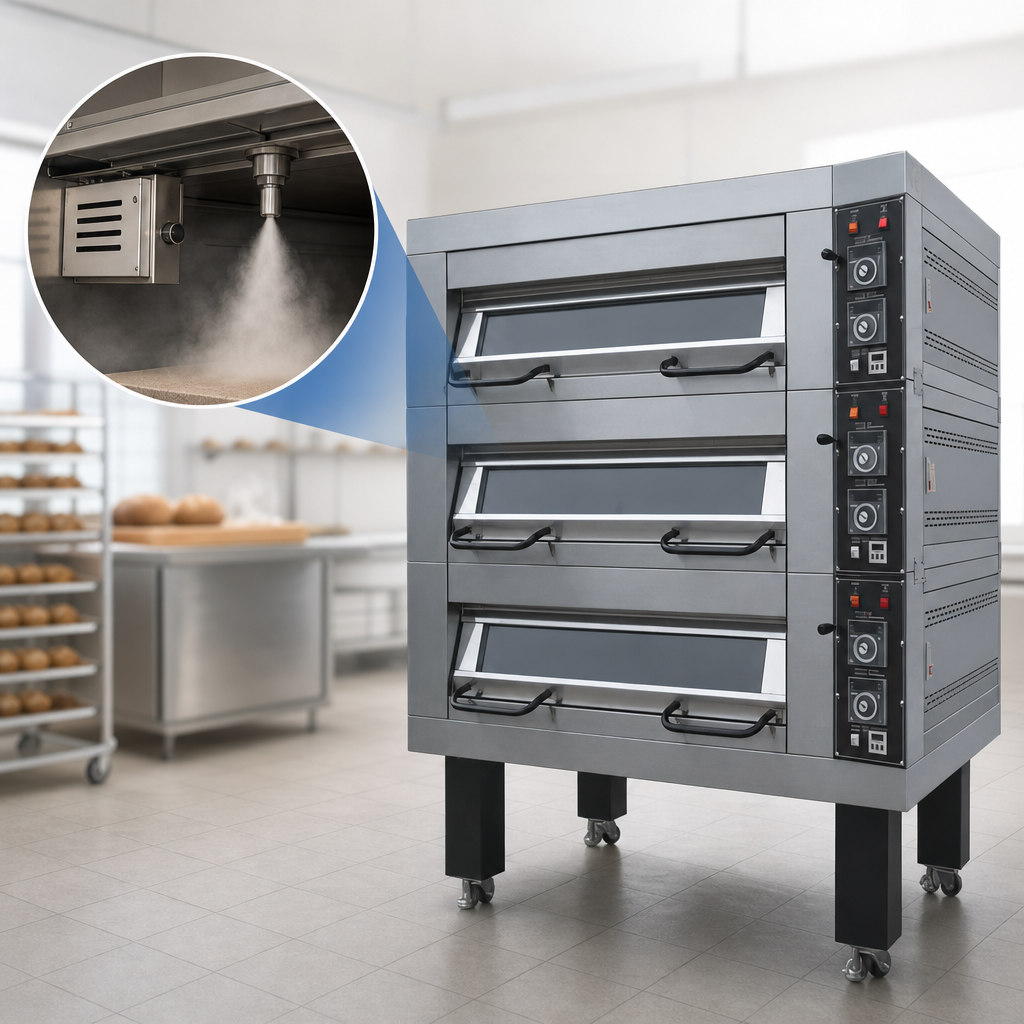

Steam Injection

Compartment steam generator produces steam when water is injected.

Independent Heating Elements

Separate operator-controlled top and bottom electric heating elements.

Digital Controls

Digital temperature display with temperature-ready indicators and digital timers.

Audible Timer Alarm

99-minute digital timers with continuous ring alarm.

Viewing Windows and Interior Light

Tempered glass windows and a chamber interior light provide product visibility during cooking.

Stainless Steel Construction

Stainless steel exterior and interior with full insulation.

Frequently Asked Questions

The BMTD001 has one deck.
It accommodates three 18 x 26-inch full-size pans.
The oven is rated for 220 Volts, 35 Amps, 9 kW, 60 Hz, and 3-Phase operation.
Yes. It includes a compartment steam generator for steam injection.
The listed dimensions are 75 inches wide, 42.5 inches deep, and 52 inches high.
The maximum baking temperature listed is 572°F.
A 1-year limited warranty is listed for the oven.
It is a floor model supported by heavy-duty legs with lockable casters.
