BakeMax (TVI)

Four-Deck Electric Artisan Stone Deck Oven

SKU: BMSD004
$22,387.21
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Four-Deck Electric Artisan Stone Deck Oven

4 x 18" x 26" Pan Capacity, 220V/3-Phase, Digital Controls, Steam Injection

Built for high-volume artisan baking, this four-deck oven gives each deck independent heat, steam, and timing control for consistent results.

  • Four independent decks help maximize throughput and allow multiple batches to bake at once.
  • Each deck accommodates a full-size 18" x 26" pan for breads, pastries, pizza, and more.
  • Digital temperature displays, timers, and on/off rocker switches are provided for every deck.
  • Separate top and bottom heating element controls let operators fine-tune browning and heat balance.
  • Steam injection and artisan stone hearths support crisp crusts and even baking results.
  • Tempered glass windows, chamber lights, and moisture control dampers improve visibility and baking control.
  • Fully insulated stainless steel construction helps retain heat, and lockable casters make positioning easier.

Overall Dimensions:

47.0"W x 34.5"D x 83.0"H

Product Weight:

1389.0 lb

Four Independent Decks

Four separate baking decks support high-volume production and flexible batch scheduling.

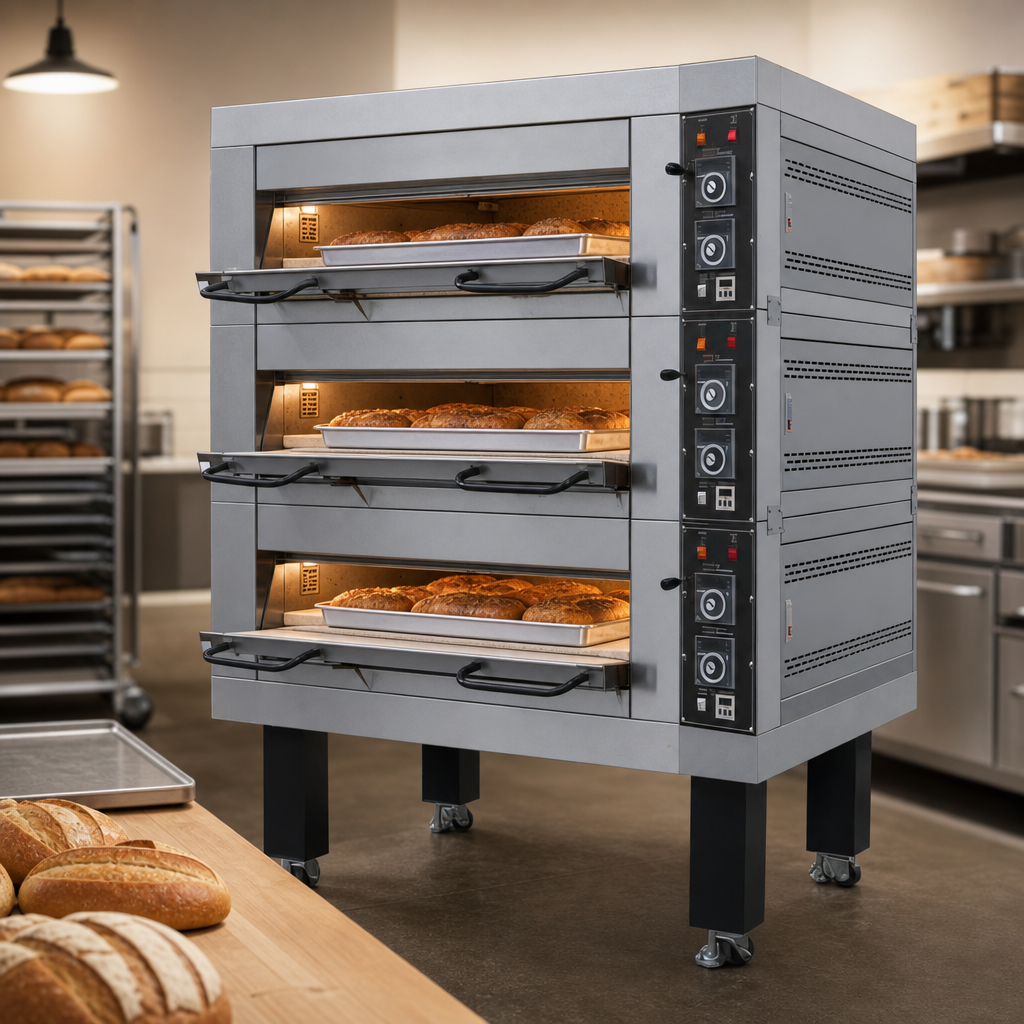

Full-Size Pan Capacity

Each deck holds an 18" x 26" full-size pan.

Digital Controls Per Deck

Each deck includes an on-off rocker switch, digital temperature display, and digital timer with audible alarm.

Independent Top And Bottom Heat

Separate top and bottom element switches on each deck allow precise heat balancing for different products.

Steam Injection System

A compartment steam generator provides steam for better crust development and baking recovery.

Artisan Stone Hearths

Stone hearths help create a crispier bottom crust and more even color.

Tempered Glass Windows And Interior Light

Large tempered glass windows and chamber lighting let operators monitor product without opening the doors.

Fully Insulated Stainless Steel Construction

Stainless steel exterior and interior with full insulation helps reduce heat loss and improve performance.

Heavy-Duty Legs With Lockable Casters

The oven is mounted on sturdy legs with lockable castors for easier placement and stability.

Moisture Control Dampers

Adjustable dampers support baking control and product finish.

Deck Qty 4
Type Deck Oven
Style Artisan Stone
Installation Type Floor Model (With Legs And Casters)
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel & Glass
Pan Capacity 4 Full-Size Pans
Pan Size 18 Inches x 26 Inches
Controls Digital
Voltage 220 Volts
Amps 40 Amps
Watts 16 kW
Hertz 60 Hz
Phase 3-Phase
Shipping Width 47 Inches
Shipping Depth 35 Inches
Shipping Height 83 Inches
Shipping Weight 1,389 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It has four independent decks.
Each deck accommodates one full-size 18" x 26" pan.
Yes. Each deck has its own on-off rocker switch, digital temperature display, digital timer, steam injection, and separate top and bottom element switches.
The oven requires 220V, 60 Hz, 3-phase power at 40 amps and 16 kW.
Yes. Each deck has a tempered glass window and an interior light for product visibility.
Yes, the cutsheet lists a 1-year limited warranty.
