Key specifications

Amps
32 Amps
Phase
3-Phase
Dimensions
47.0"W × 34.5"D × 73.0"H
Type
Deck Oven
Style
Artisan Stone
Installation Type
Floor Model
Spec sheet
BakeMax SKU: BMSD003

BakeMax BMSD003 3-Deck Stone Deck Oven, 18 x 26-Inch Pans

$16,930.69
/each
Estimated to ship in 11–14 business days Free Shipping
Decks
Pan capacity
Proofers
Storage Cabinets
Included: BakeMax warranty 1-year limited warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,566/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Deck Oven
Style Artisan Stone
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel & Glass
Interior Finish Stainless Steel
Deck Count 3
Pan Size 18 x 26 Inches
Pan Capacity 3 Pans
Temperature Range Up To 572°F
Controls Digital Temperature Controls And Timers
Steam Injection Per Deck
Heating Element Configuration Top And Bottom
Timer Duration 99 Minutes
Alarm Continuous Ring
Window Type Tempered Glass
Lighting Interior Light
Insulation Rock Wool
Voltage 220 Volts
Amps 32 Amps
Watts 12 kW
Hertz 60 Hz
Phase 3-Phase

Description

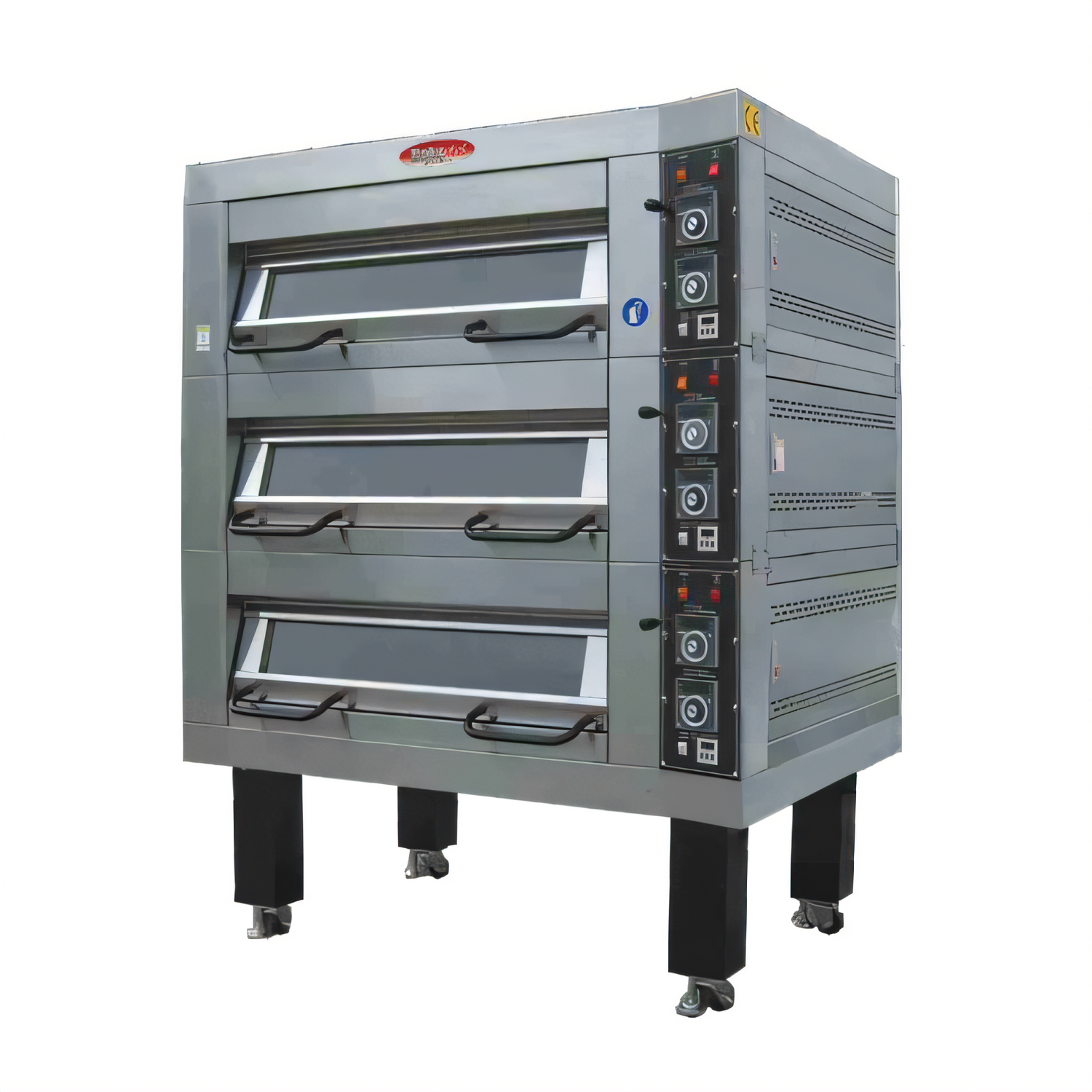

BakeMax BMSD003 is a three-deck electric artisan stone deck oven that accommodates three 18 × 26-inch pans and provides steam injection on each deck.

Each deck includes digital temperature controls, a digital timer with audible alarm, an on-off rocker switch, separate top and bottom element switches, an artisan stone hearth, a tempered glass window, and an interior light.

The oven has a stainless steel exterior and interior, full insulation, and legs with casters. It measures 47 inches wide by 34.5 inches deep by 73 inches high and operates at 220 volts, 32 amps, 12 kW, 60 Hz, and 3-phase.

The stone hearth must be seasoned before use.

Overall Dimensions:

47.0"W x 34.5"D x 73.0"H

Product Weight:

1125.0 lb

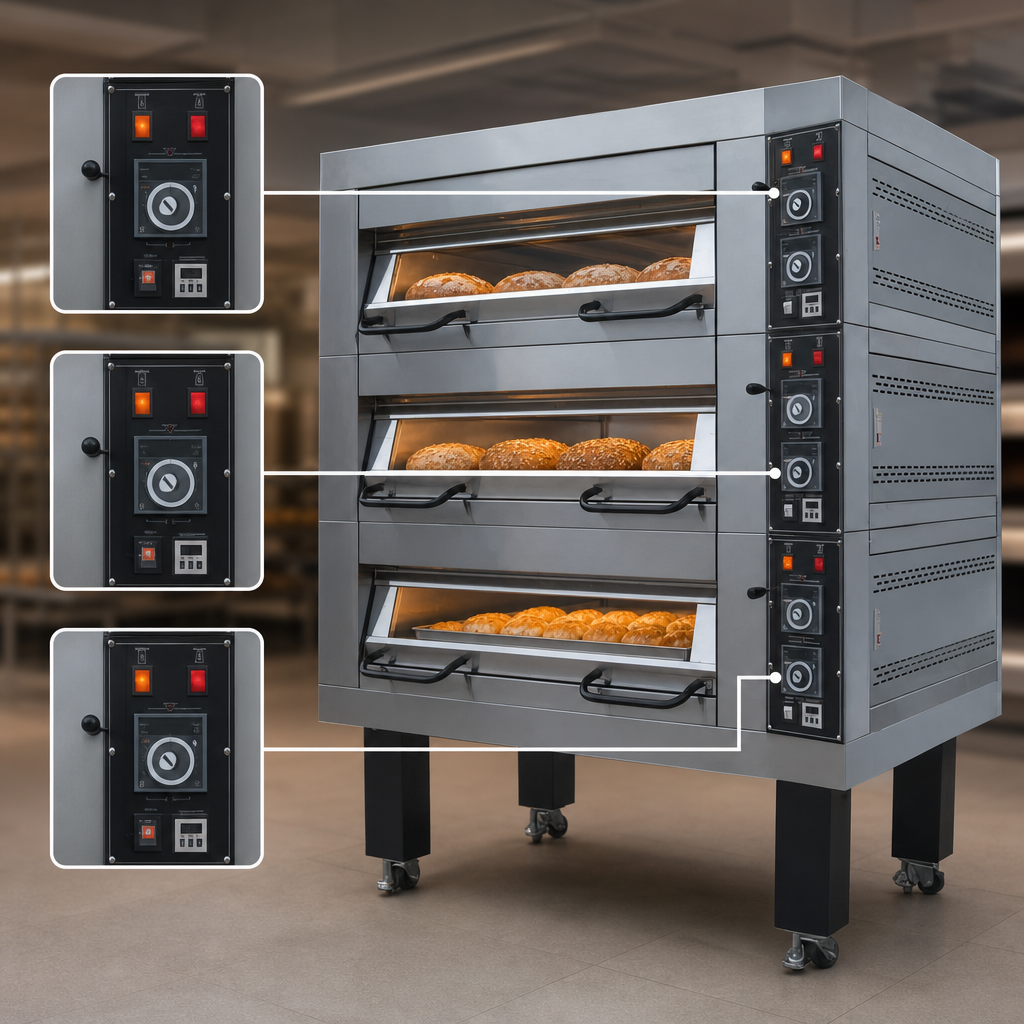

Three-Deck Configuration

Each deck has separate power, temperature, timer, steam, and top and bottom element controls.

Artisan Stone Hearths

Each deck includes an artisan stone hearth.

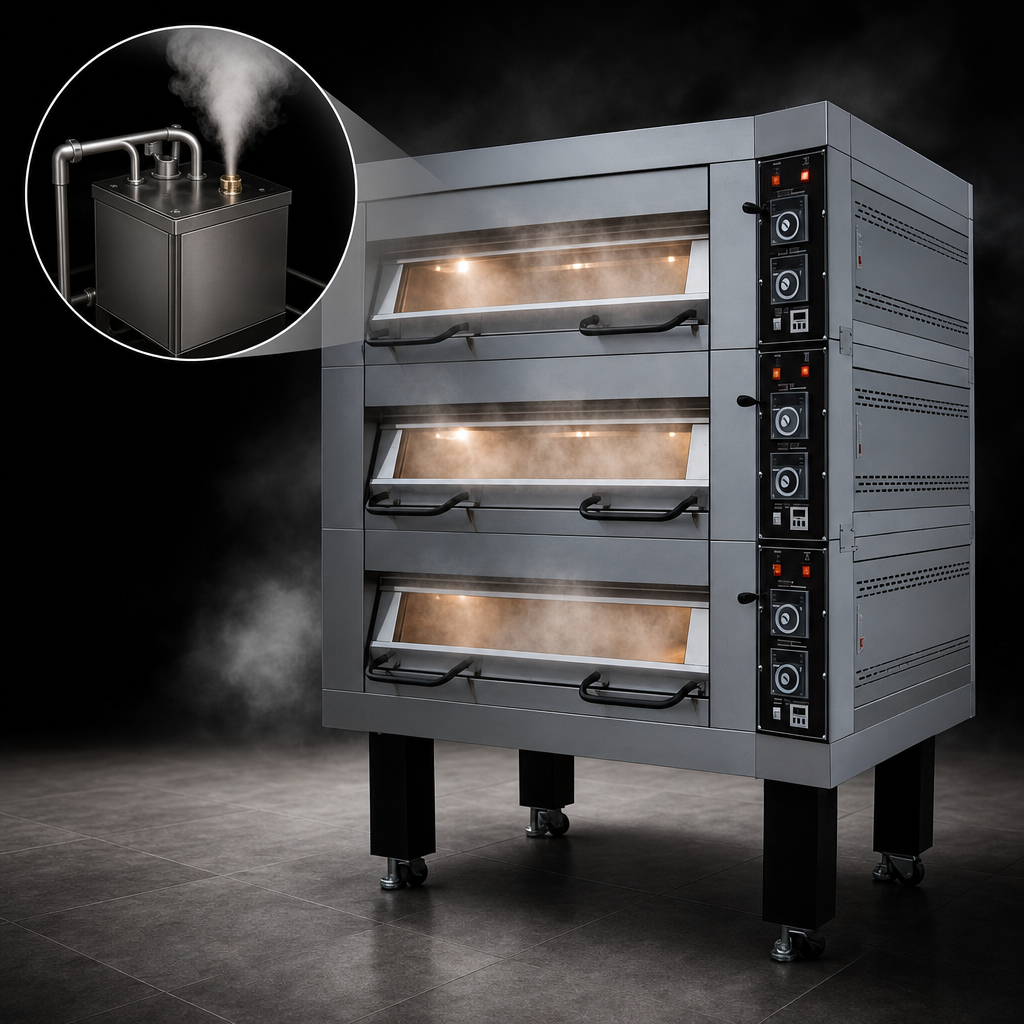

Steam Injection

Steam injection is provided on each deck.

Digital Controls and Timers

Each deck includes a digital temperature display and a 99-minute digital timer with audible alarm.

Pan Capacity

Accommodates three 18 × 26-inch pans.

Viewing and Lighting

Each deck has a tempered glass window and interior light.

Insulated Stainless Steel Construction

The oven has a stainless steel exterior and interior and is fully insulated with rock wool.

Caster-Equipped Legs

The oven is mounted on legs with casters, with lockable castors specified by the manufacturer.

Frequently Asked Questions

The BMSD003 has three decks.
It accommodates three 18 x 26-inch pans.
Yes. Steam injection is provided on each deck.
The oven is rated at 220 Volts, 32 Amps, 12 kW, 60 Hz, and 3-Phase.
The oven measures 47 inches wide by 34.5 inches deep by 73 inches high.
Yes. The manufacturer states that the stone hearth must be seasoned before use.
