Key specifications

Amps
80 Amps
Phase
3-Phase
Dimensions
92.0"W × 42.5"D × 73.0"H
Type
Deck Oven
Style
Triple Deck
Installation Type
Floor Model
Spec sheet
BakeMax SKU: BMFD003

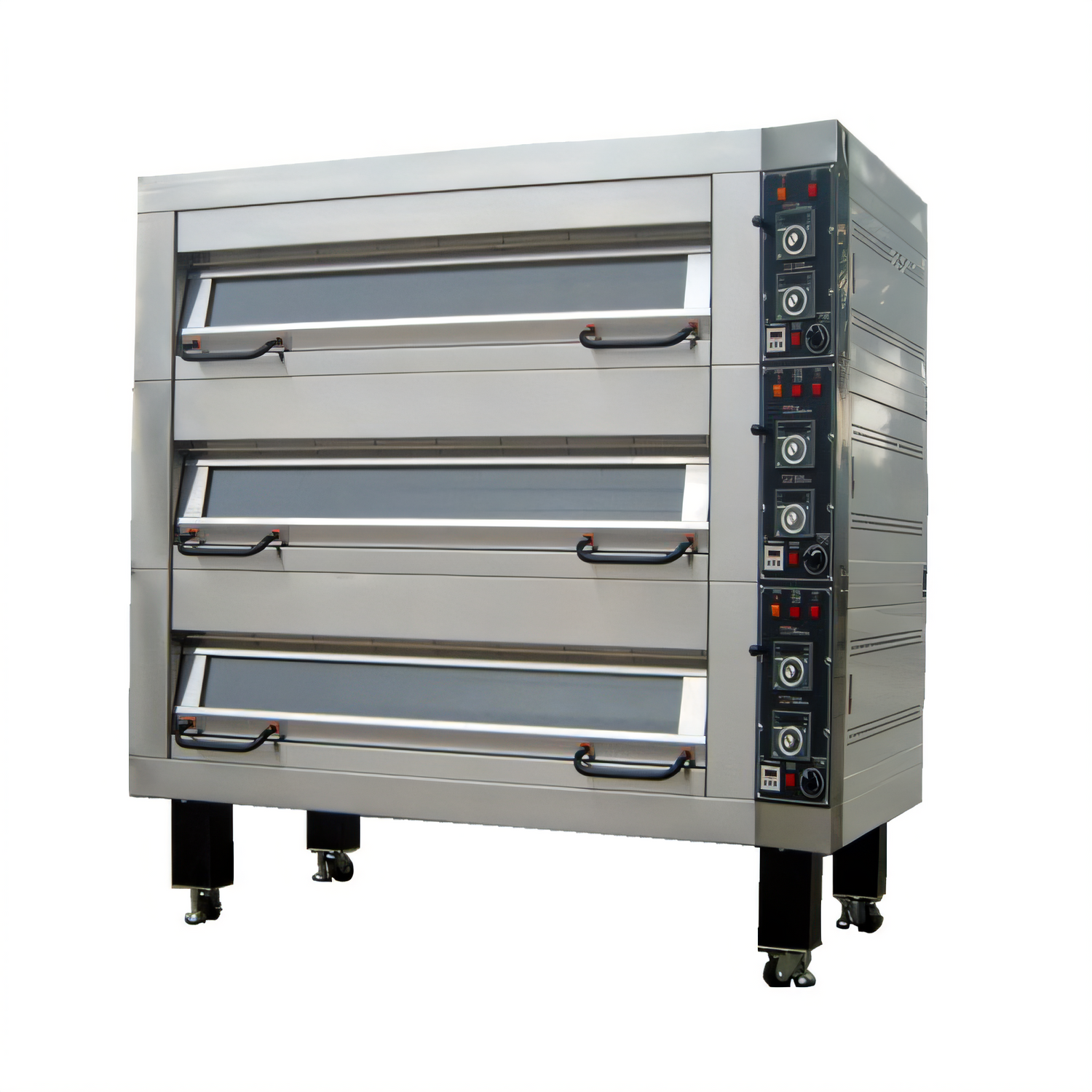

BakeMax BMFD003 Triple-Deck Electric Stone Hearth Oven

$42,269.98
/each
Estimated to ship in 11–14 business days Free Shipping

Ships by freight. At about 2,822 lb it’s too heavy for a liftgate, so delivery needs a loading dock or a forklift rated for at least 6,000 lb with 6-ft forks.

Pan capacity
Decks
Included: BakeMax warranty 1-year limited warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $3,910/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Deck Oven
Style Triple Deck
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Deck Count 3
Capacity 12 Full-Size Pans
Pan Size 18 in x 26 in
Chamber Dimensions 74.6 in x 31 in x 7 in
Voltage 220 Volts
Amps 80 Amps
Watts 30 kW
Hertz 60 Hz
Phase 3-Phase
Controls Digital Temperature Display
Timer Duration 99 Minutes
Maximum Temperature 572°F
Steam Injection Included
Window Type Tempered Glass
Net Weight 2,425 lb
Weight 2,822 lb

Description

The BakeMax BMFD003 is a triple-deck electric stone hearth deck oven with capacity for twelve 18 in x 26 in full-size pans.

  • Steam injection supports baking operations requiring added moisture.
  • Separate top and bottom heating element switches provide independent operator control.
  • Digital temperature display and 99-minute digital timers include audible alarms.
  • Stone hearth, tempered glass windows, interior light, moisture control dampers, and stainless steel interior and exterior.
  • The oven is fully insulated and mounted on heavy-duty legs with lockable casters.

Important: The stone hearth must be seasoned before use.

Overall Dimensions:

92.0"W x 42.5"D x 73.0"H

Product Weight:

2822.0 lb

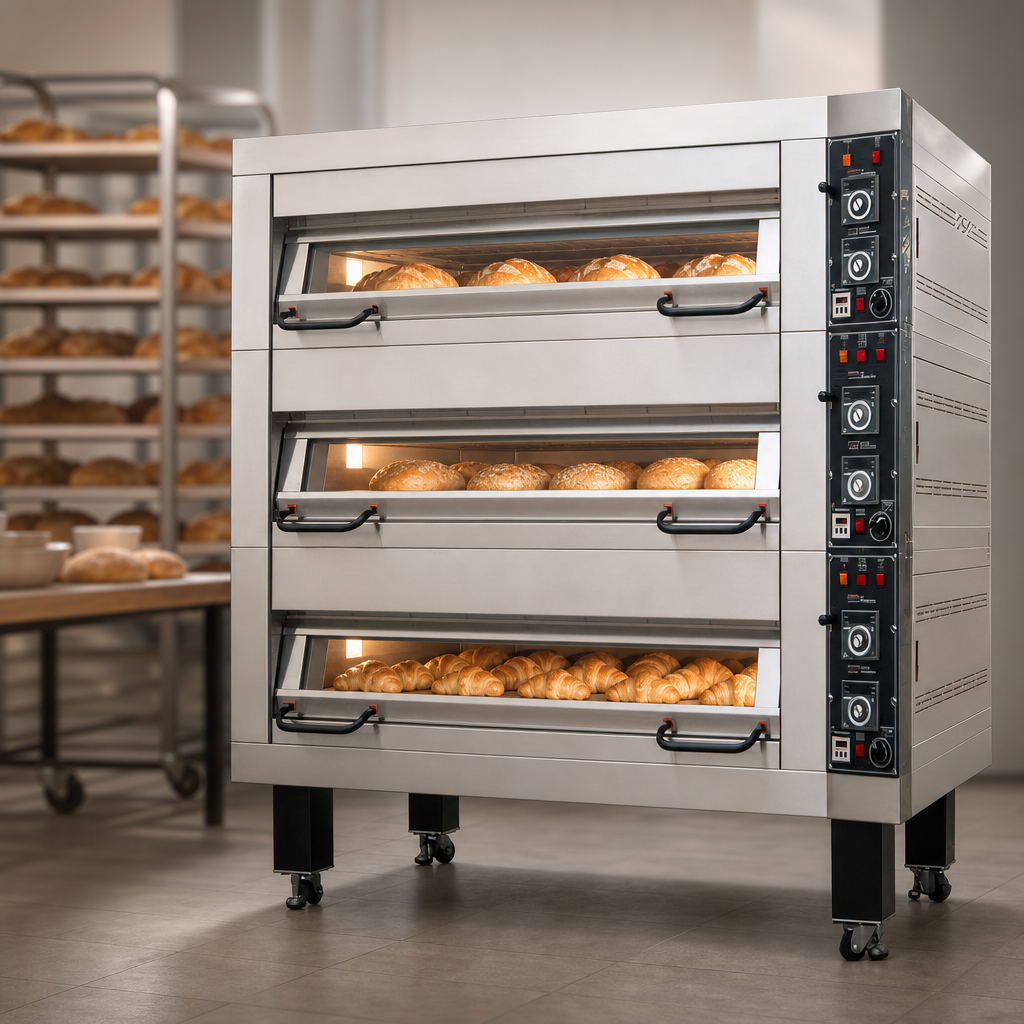

Triple-Deck Format

Provides three separate oven decks.

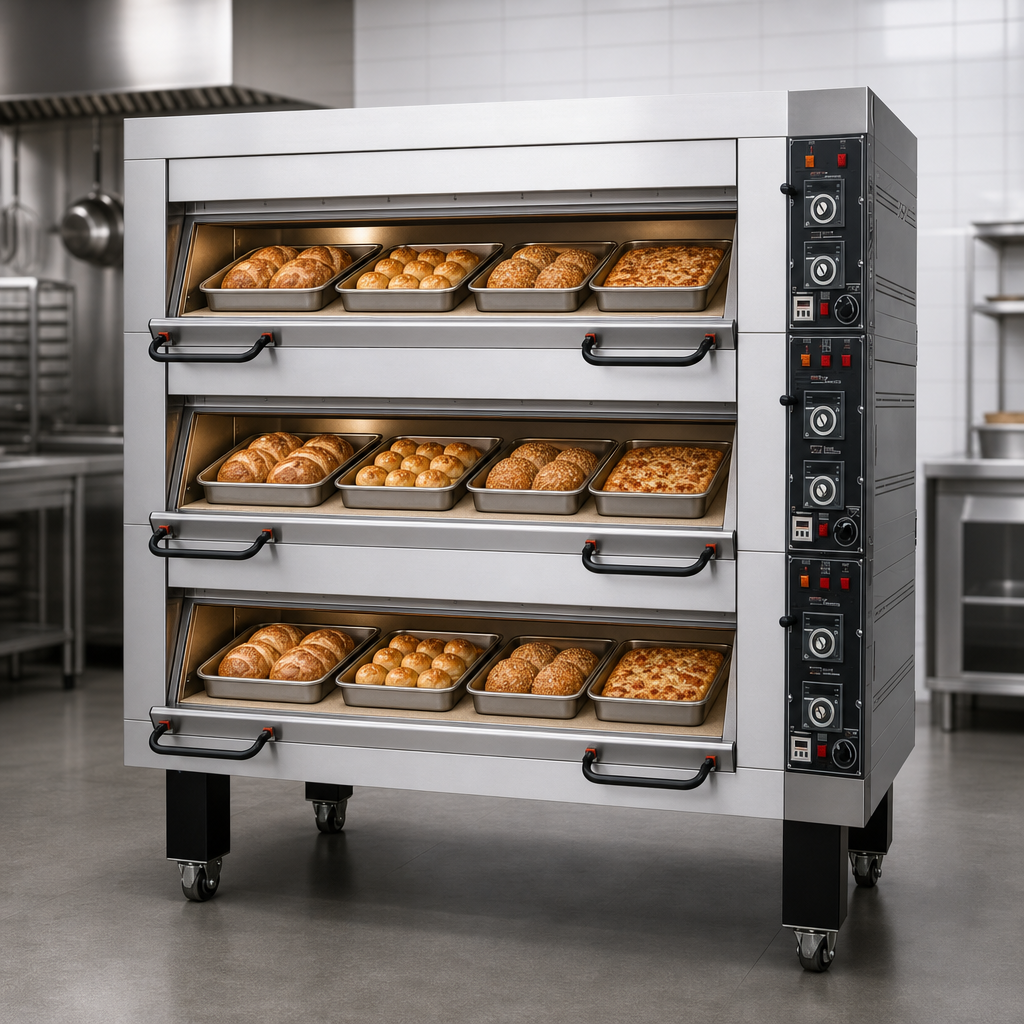

Full-Size Pan Capacity

Accommodates 12 pans measuring 18 in x 26 in.

Steam Injection

Includes steam injection for baking applications.

Stone Hearth

Includes an artisan stone hearth; the stone must be seasoned before use.

Independent Heating Elements

Separate top and bottom electric heating elements have independent operator controls.

Digital Controls and Timers

Features a digital temperature display and 99-minute digital timers with audible alarms.

Viewing and Interior Lighting

Tempered glass windows and an interior light provide visibility into the baking chambers.

Stainless Steel Construction

Uses stainless steel for the exterior and interior and is fully insulated.

Frequently Asked Questions

The BMFD003 has three decks.
It accommodates 12 full-size pans measuring 18 in x 26 in.
Yes. Steam injection is included.
The oven is rated at 220 Volts, 80 Amps, 30 kW, 60 Hz, and 3-Phase.
The external dimensions are 92 in wide, 42.5 in deep, and 73 in high.
The maximum baking temperature is 572°F.
Yes. The stone hearth must be seasoned before use.
