BakeMax (TVI)

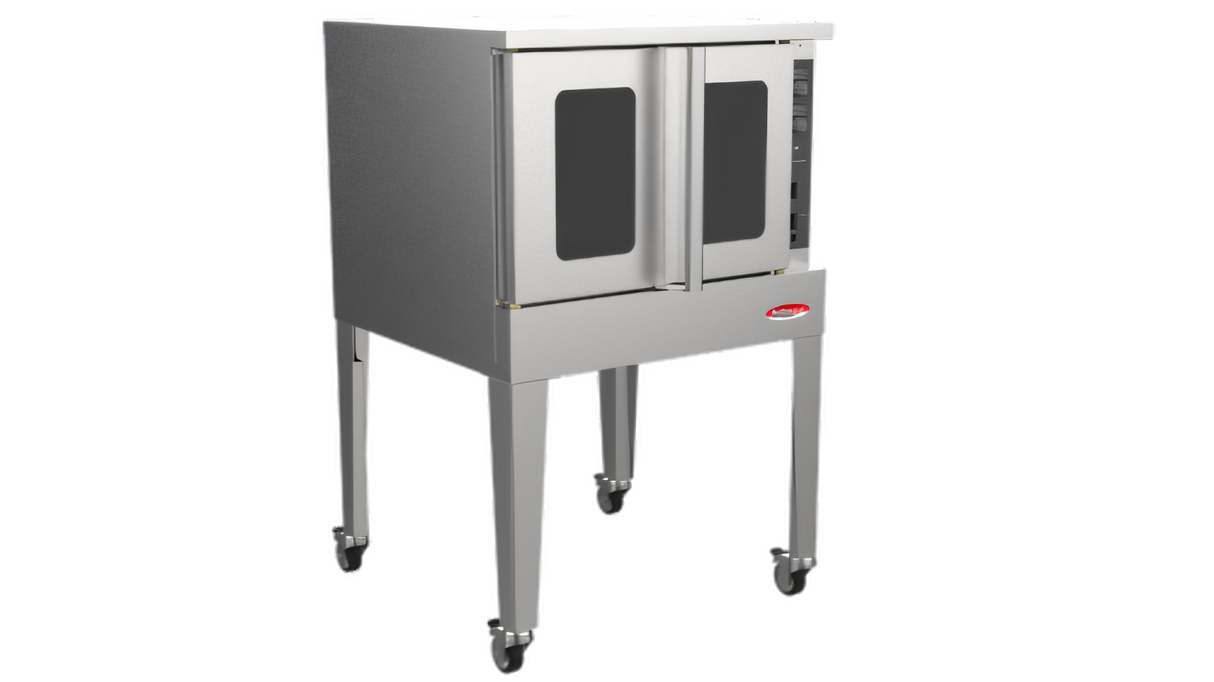

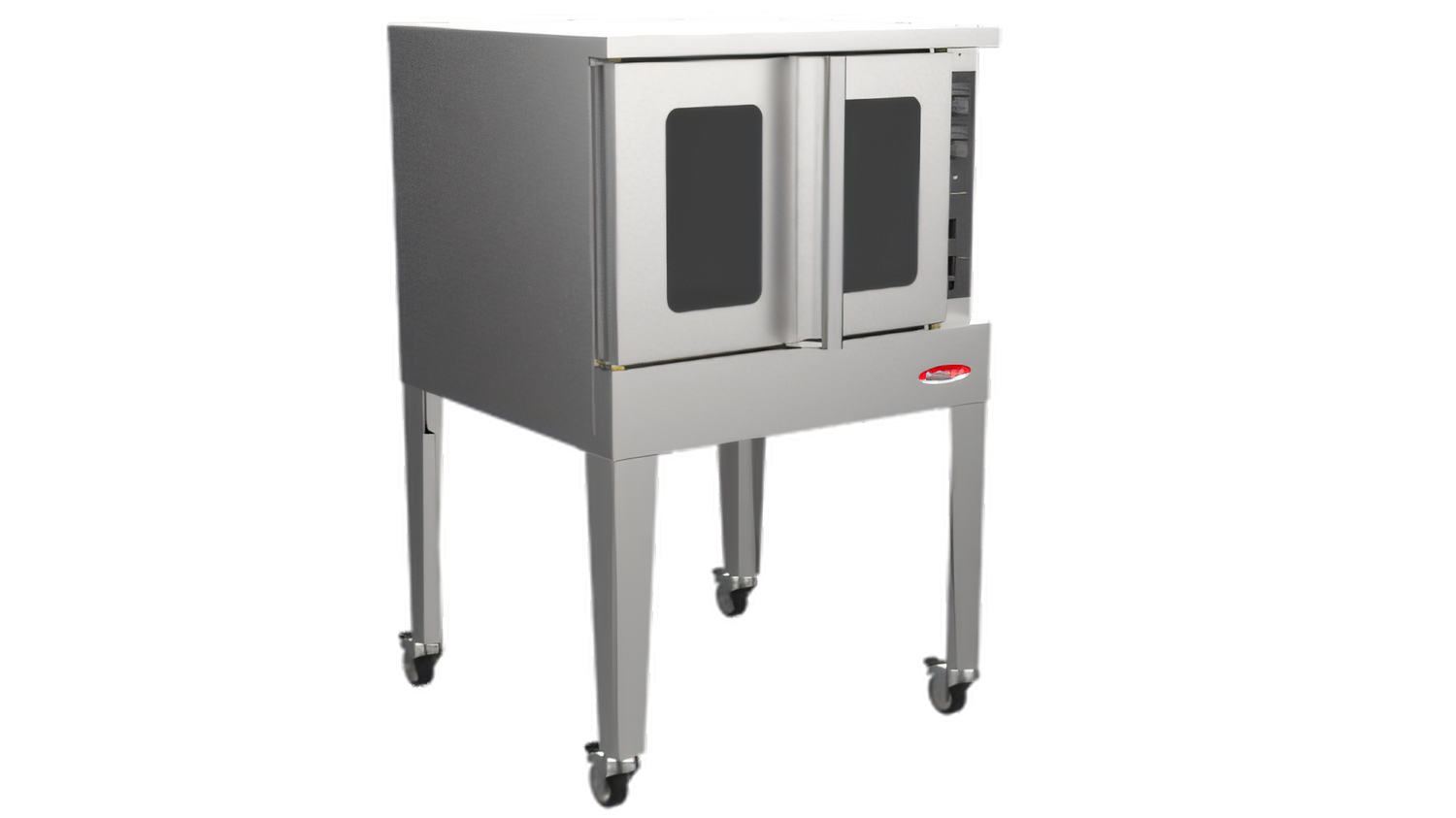

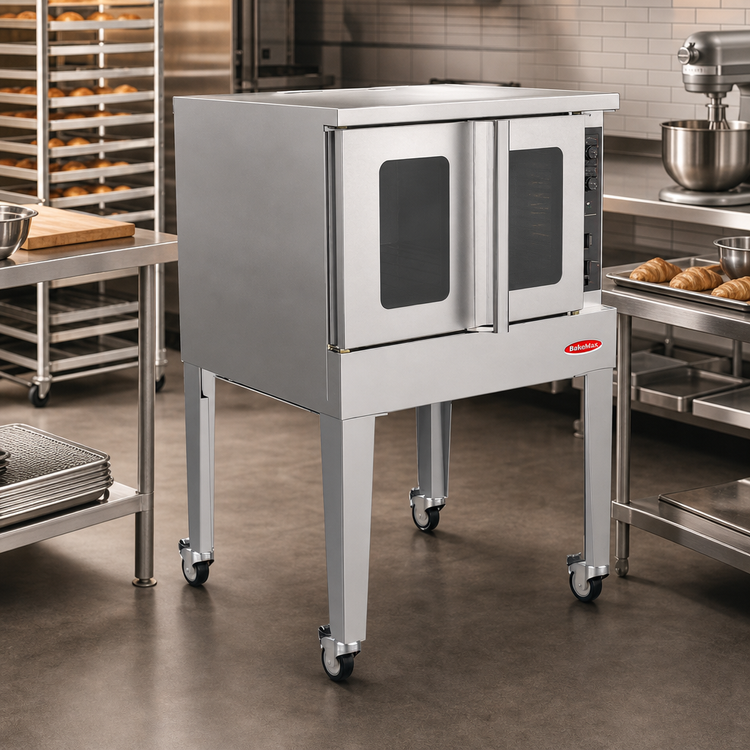

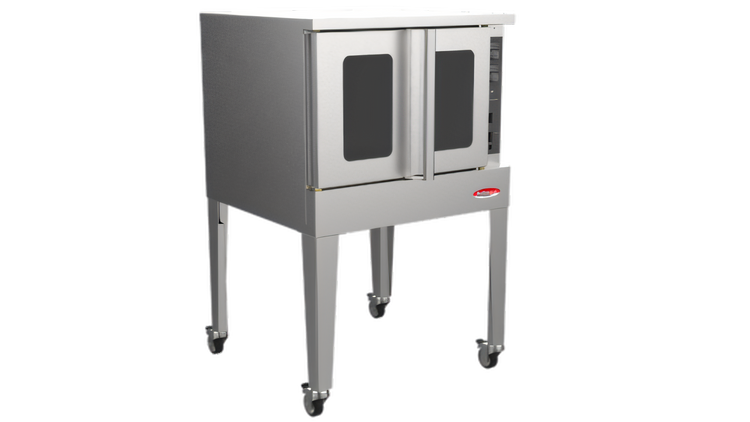

BakeMax BASCO5E Electric Full-Size Single-Deck Convection Oven, 9-Pan Capacity

SKU: BASCO5E
$6,130.07
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

BakeMax (TVI) Best Sellers Commercial Convection Ovens Commercial Ovens Convection Ovens New Arrivals Ovens Restaurant Equipment

BakeMax BASCO5E Electric Full-Size Single-Deck Convection Oven, 9-Pan Capacity

240V, 11 kW, Solid State Thermostat, 4-Inch Locking Casters

Built for busy bakeries and restaurants, this electric full-size convection oven combines 9-pan capacity, 11 kW heating, and forced-air circulation for fast, even baking.

  • Holds 9 full-size pans in a single-deck footprint.
  • 11 kW electric heating with 240V/1-phase/60Hz power.
  • Solid state thermostat with a 150°F to 500°F temperature range.
  • Two fan speeds and a reversible blower motor help promote even baking.
  • Stainless steel exterior with a double-glass front door and halogen interior lighting.
  • Easy-clean design includes a removable front door, removable rack supports, and rounded cavity corners.
  • Features Hold and Pulse cooking modes plus a safety switch that shuts off fan power when the door opens.

Overall Dimensions:

44.0"W x 55.0"D x 40.0"H

Product Weight:

509.0 lb

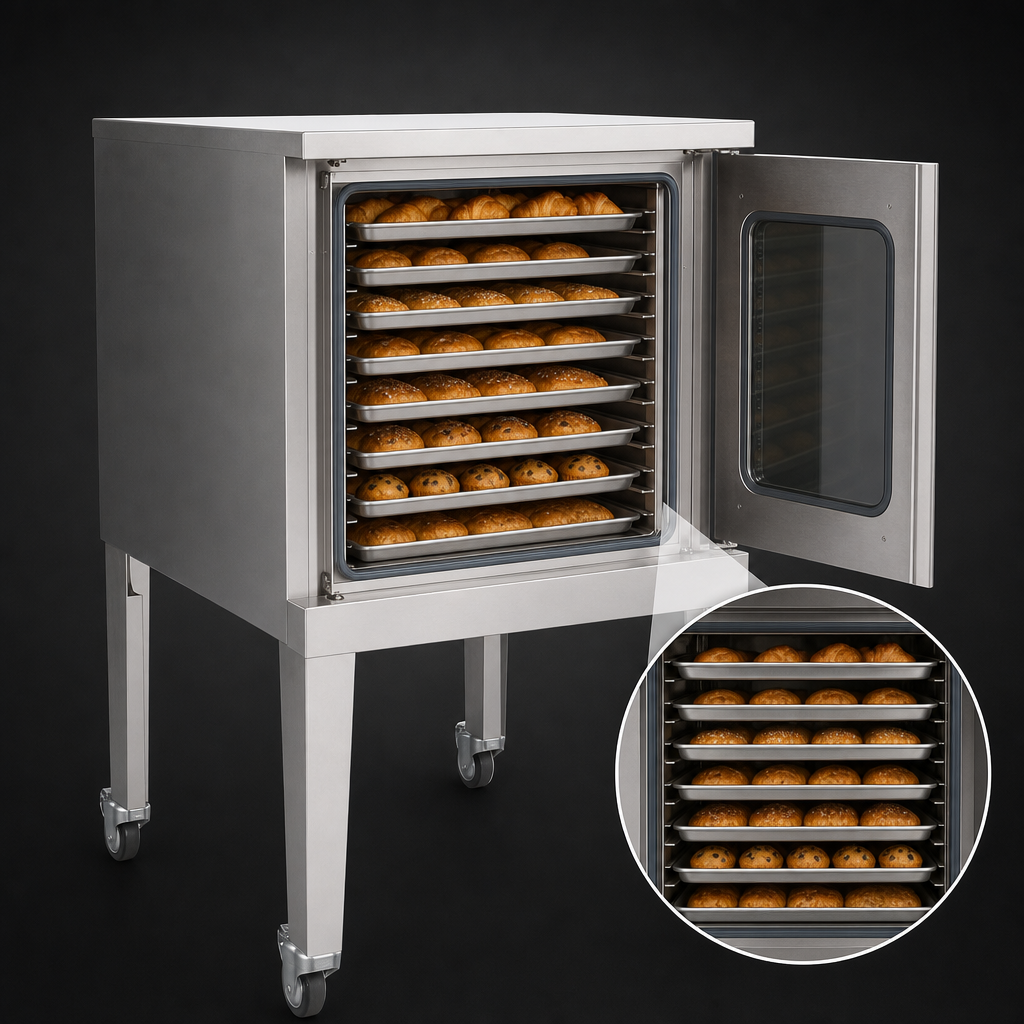

9-Pan Capacity

Single-deck oven cavity holds up to 9 full-size pans or trays.

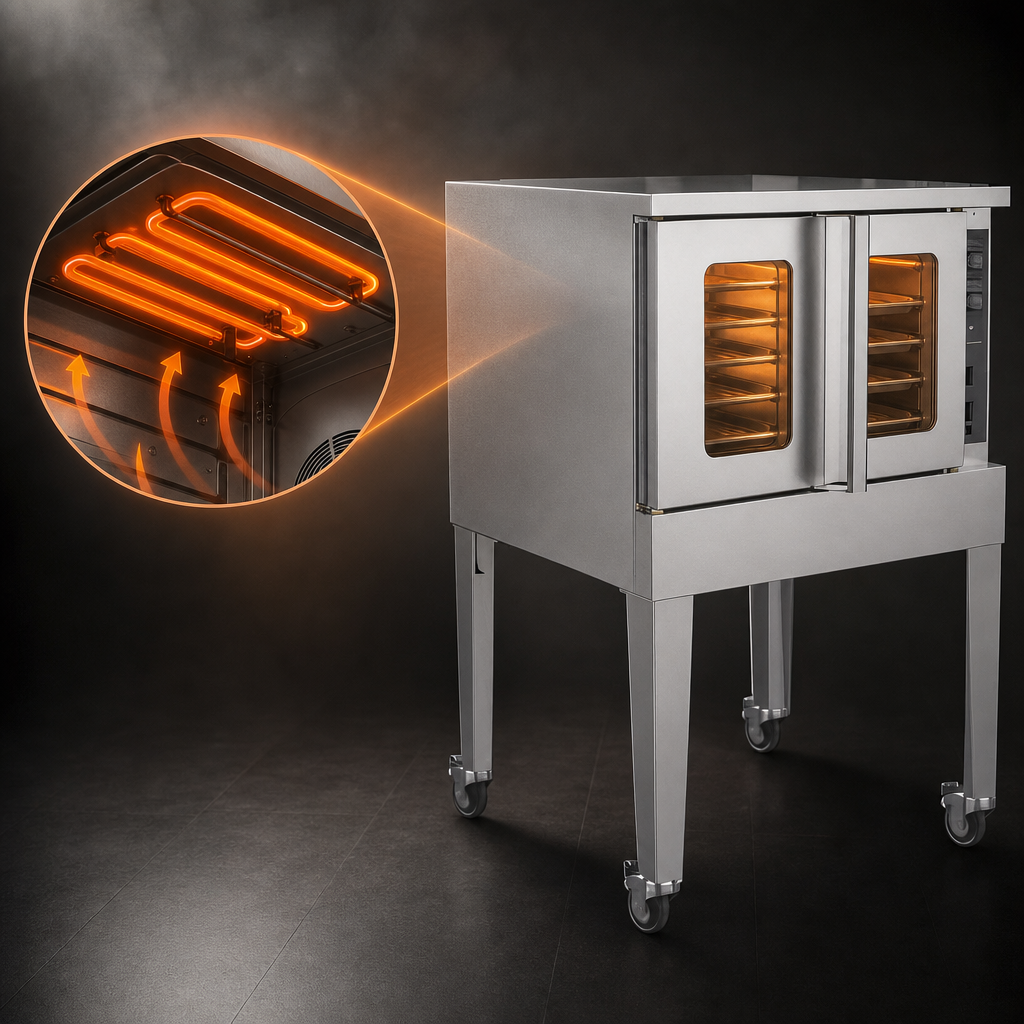

11 kW Electric Heating

High-output electric element supports fast heat-up and efficient production.

Solid State Thermostat

Thermostatic control provides an operating range of 150°F to 500°F.

Two Fan Speeds

High and low fan settings help match airflow to different baking needs.

Reversible Blower Motor

Reverse-rotation blower improves circulation and baking consistency.

Double Glass Front Window

Lets operators monitor product without opening the door.

Removable Front Door

Heavy-duty door removes for easier cleaning and maintenance.

Porcelain-Enameled Cavity

Rounded interior corners and porcelain-enameled surfaces help simplify cleanup and support better heat circulation.

Safety Door Switch

Shuts off fan power when the oven door is opened.

Halogen Interior Lighting

Interior lights improve visibility inside the oven cavity.

Hold And Pulse Functions

Auxiliary cooking modes add flexibility during production.

4-Inch Locking Casters

Casters make the oven easier to position while helping keep it stable in use.

Manual Heating Element Shut-Off

Dedicated shut-off switch adds control during operation and service.

Type Convection Oven
Style Standard
Installation Type Floor Model
Pan Capacity 9 Full-Size Pans
Pan Size Full Size
Compartments 1
Controls Solid State Thermostat
Voltage 240 Volts
Amps 51 Amps
Watts 11 kW
Hertz 60 Hz
Phase 1-Phase
Material Stainless Steel
Interior Finish Porcelain Enameled
Finish Stainless Steel
Shipping Width 43.3 Inches
Shipping Depth 55 Inches
Shipping Height 39.4 Inches
Shipping Weight 509 lb.
Country of Origin Brazil
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The BASCO5E holds 9 full-size pans in a single deck.
It operates on 240V, single-phase, 60Hz power and draws 51 amps.
The solid state thermostat controls temperatures from 150°F to 500°F.
Yes. It includes a double-glass front window and halogen interior lighting.
The oven has a removable front door, removable rack supports, and rounded cavity corners for easier cleaning.
Yes. The fan power shuts off automatically when the oven door is opened.
