Avtec SimpleSpec 72-Inch Square Type I Exhaust-Only Island Display Cooking Hood

SKU: SSA-ISLE72
$10,592.56
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Avtec Best Sellers Commercial Kitchen Hoods Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

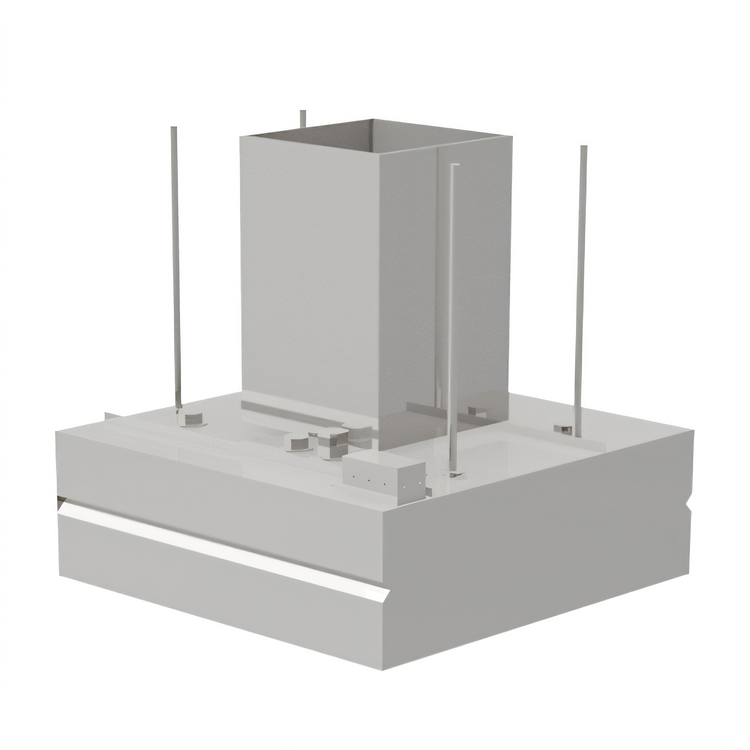

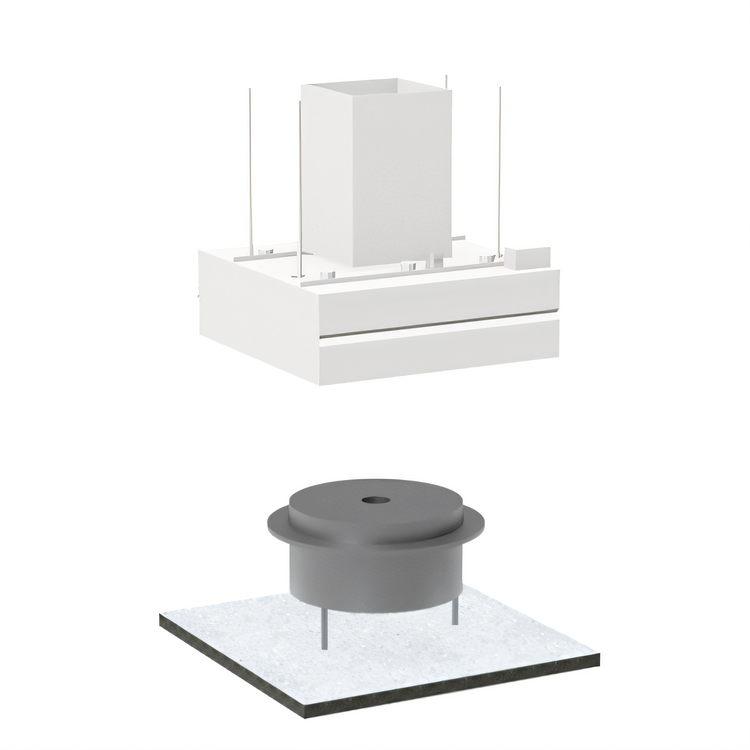

Avtec SimpleSpec 72-Inch Square Type I Exhaust-Only Island Display Cooking Hood

201 Stainless Steel, 3000 CFM, For Mixed-Use Medium-Duty Equipment

Built for island cook lines, this hood combines stainless construction, integrated lighting, and easy-clean grease management in a display-ready exhaust system.

  • Exhaust-only Type I island canopy designed for a single bank of cooking equipment.
  • 201 stainless steel construction with stainless steel baffle filters for durability and grease capture.
  • Includes globe lights, removable grease trough and cup, and an auto start temp sensor fan-delay interlock.
  • Duct enclosure reaches 120-inch ceilings and includes a 4-piece chrome sleeve to conceal the hanger rod.
  • Sized for 3000 CFM and up to 48-inch square cooking equipment.
  • Recommended for light and medium-duty mixed-use equipment; contact the factory for heavy-duty CFM applications.

Overall Dimensions:

72.0"W x 72.0"D x 24.0"H

Product Weight:

600.0 lb

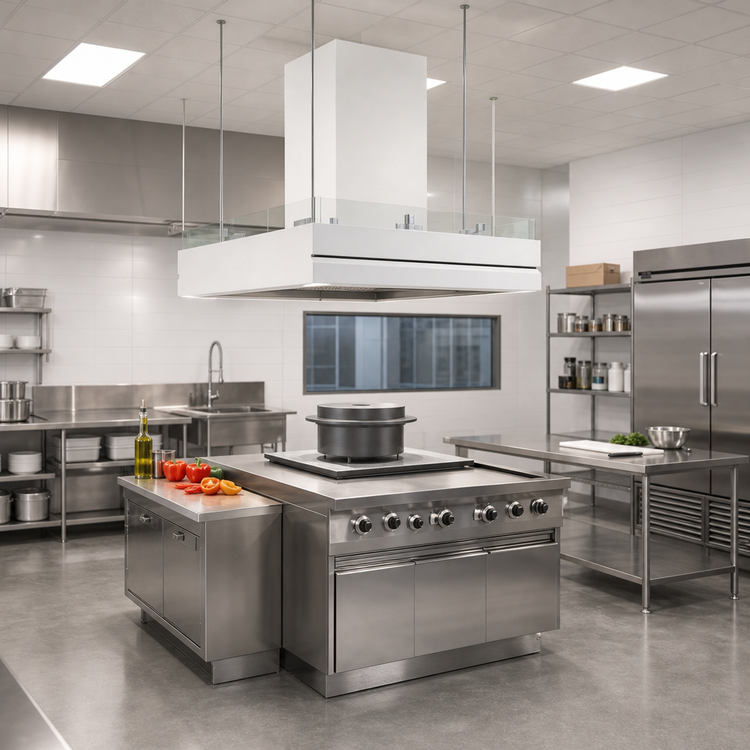

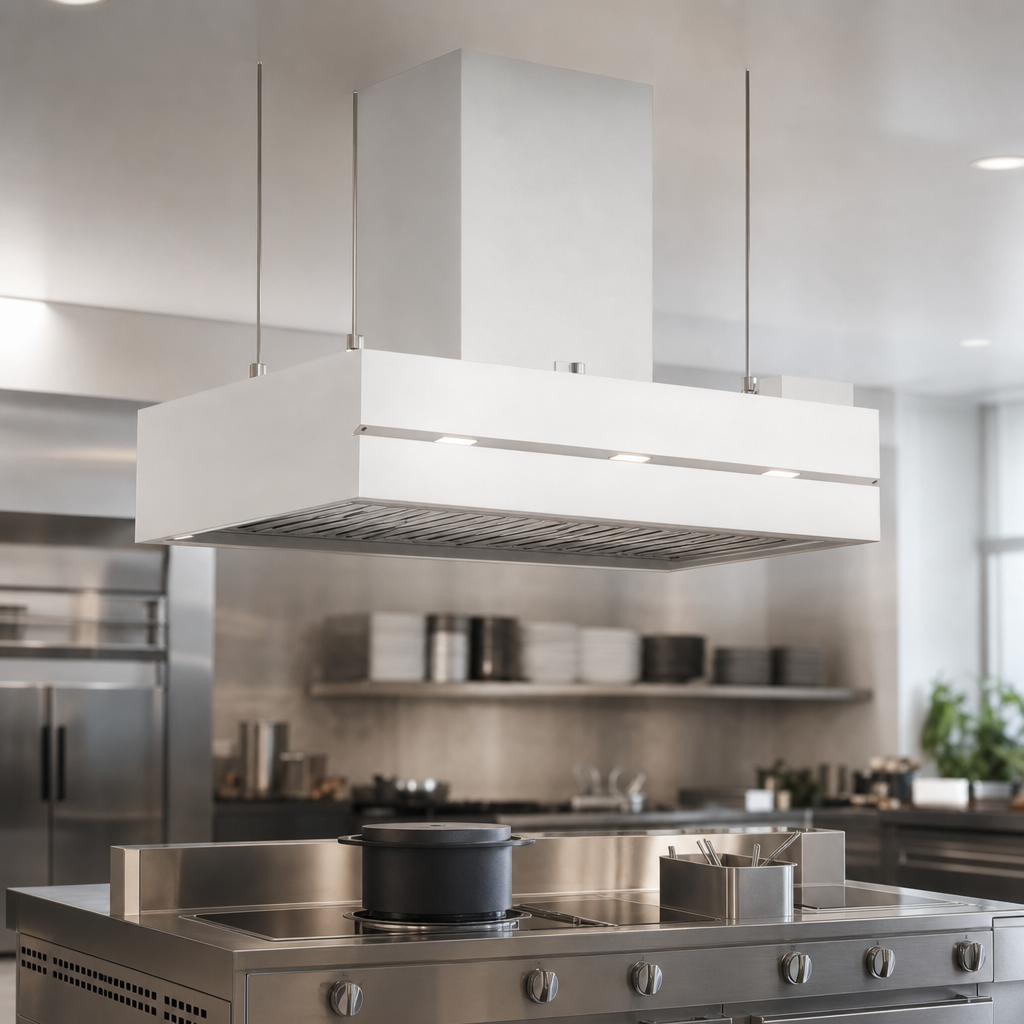

Island Canopy Design

Single-shell, exhaust-only Type I canopy built for island applications over a single bank of cooking equipment.

Island Canopy Design

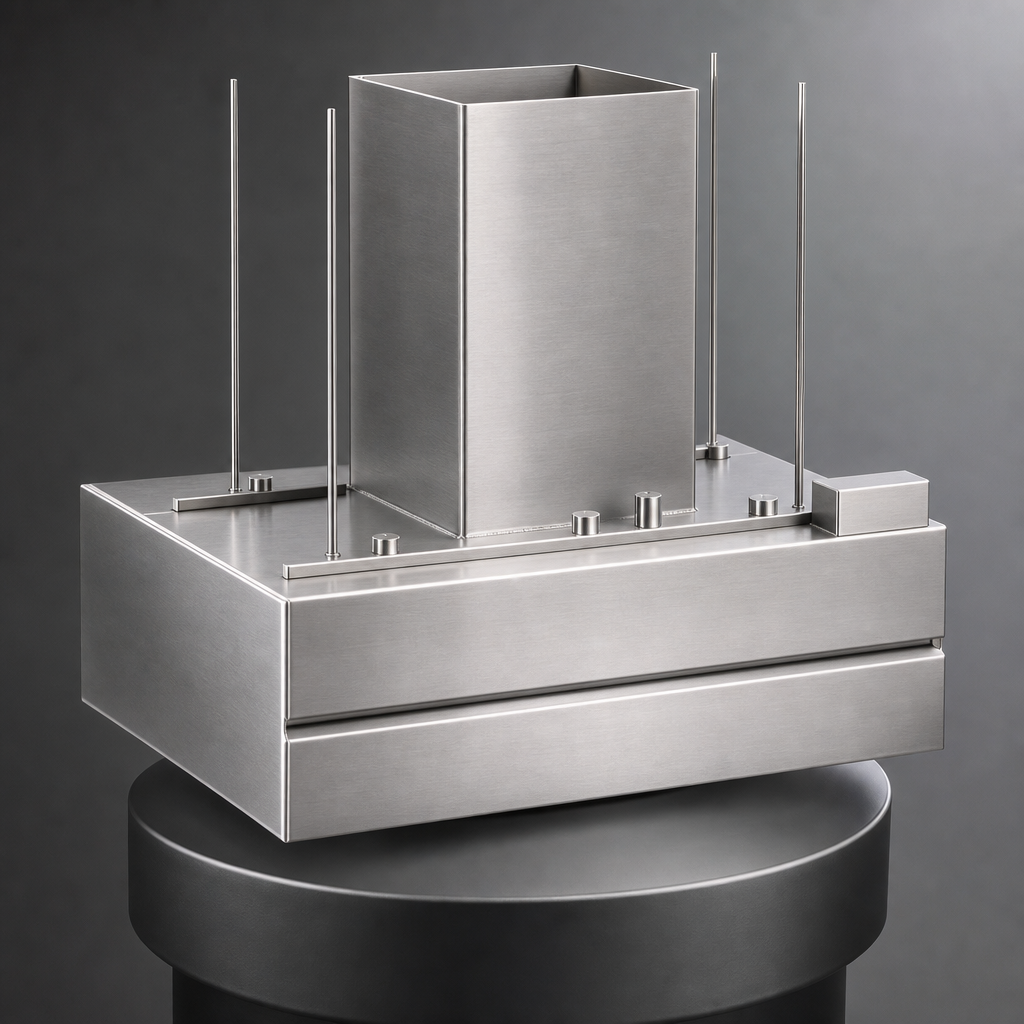

201 Stainless Steel Construction

All 18-gauge 201 stainless steel construction with welded exterior joints and seams for long-term durability.

201 Stainless Steel Construction

Stainless Baffle Filters

Full-length stainless steel baffle filters help capture grease and are removable for cleaning.

Globe Lighting

UL-listed globe light fixtures illuminate the cook line and are mounted on 36-inch center lines.

Removable Grease Management

Grease troughs and cups are removable and sloped to the cups for easier maintenance.

Auto Start Temp Sensor

IMC 2006 auto start temperature sensor fan-delay interlock is prewired with the lights to a single connection box.

Ceiling Duct Enclosure

Includes a duct enclosure to a 120-inch ceiling plus a 4-piece chrome sleeve to conceal the hanger rod.

Medium-Duty Sizing

Sized for 3000 CFM and recommended for light to medium-duty mixed-use equipment; contact the factory for heavy-duty applications.

Type Type I Exhaust Only
Style Island
Make-Up Air Non-Compensating
Material 201 Stainless Steel
Exhaust CFM 3000 CFM
Exhaust Collar (1) 10 x 24 Inches @ 0.675 SP
Max Square Cooking Equipment Size 48 Inches
Maximum Ceiling Height 120 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is sized for up to 48-inch square cooking equipment and is intended for single-depth mixed-use cooking lines.
Standard items include globe lights, stainless steel filters, a removable grease trough and cup, an auto start temp sensor, a duct enclosure to a 120-inch ceiling, and a 4-piece chrome sleeve.
The hood is sized for 3000 CFM with one 10 x 24 exhaust collar at 0.675 SP.
It is recommended for light and medium-duty appliances; contact the factory for heavy-duty CFM applications.
The hood is constructed from 18-gauge 201 stainless steel.
