Key specifications

Dimensions
64.0"W × 48.0"D × 24.0"H
Type
Canopy Hood
Style
Type II
Installation Type
Ceiling Mounted
Material
201 Stainless Steel
Country of Origin
USA
Spec sheet
Avtec SKU: SSA-DISH48064

Avtec SimpleSpec SSA-DISH48064 Type II Dishwasher Hood 64x48

$4,381.27
/each
Estimated to ship in 31–34 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Width
Included: Avtec warranty 1-year parts and labor coverage for parts found defective in material or workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $405/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Canopy Hood
Style Type II
Installation Type Ceiling Mounted
Material 201 Stainless Steel
Country of Origin USA
Finish Stainless Steel
Compatible Equipment 44 in Conveyor Dish Machines
Exhaust CFM 1,100 CFM
Collar Count 1
Exhaust Collar Size 10 x 10 in
Static Pressure 0.25 SP
Perimeter Gutter 2 in
Drain Size 1/2 in
Top Trim 18 in
Duct Screen Perforated Stainless Steel
Width 64 in
Depth 48 in
Height 24 in
Weight 300 lb

Description

The Avtec SimpleSpec SSA-DISH48064 is a Type II exhaust-only condensate canopy designed for steam-producing equipment and recommended for use over automatic dishwashers and other steam- or heat-producing cooking equipment.

It features 201 stainless steel construction with a duct collar, 2 in perimeter gutter with 1/2 in drain, 18 in top trim, and perforated stainless steel duct screen.

  • Fits 44 in conveyor dish machines
  • Ceiling-mounted installation
  • Exhaust sizing of 1,100 CFM
  • NSF certified

Overall Dimensions:

64.0"W x 48.0"D x 24.0"H

Product Weight:

300.0 lb

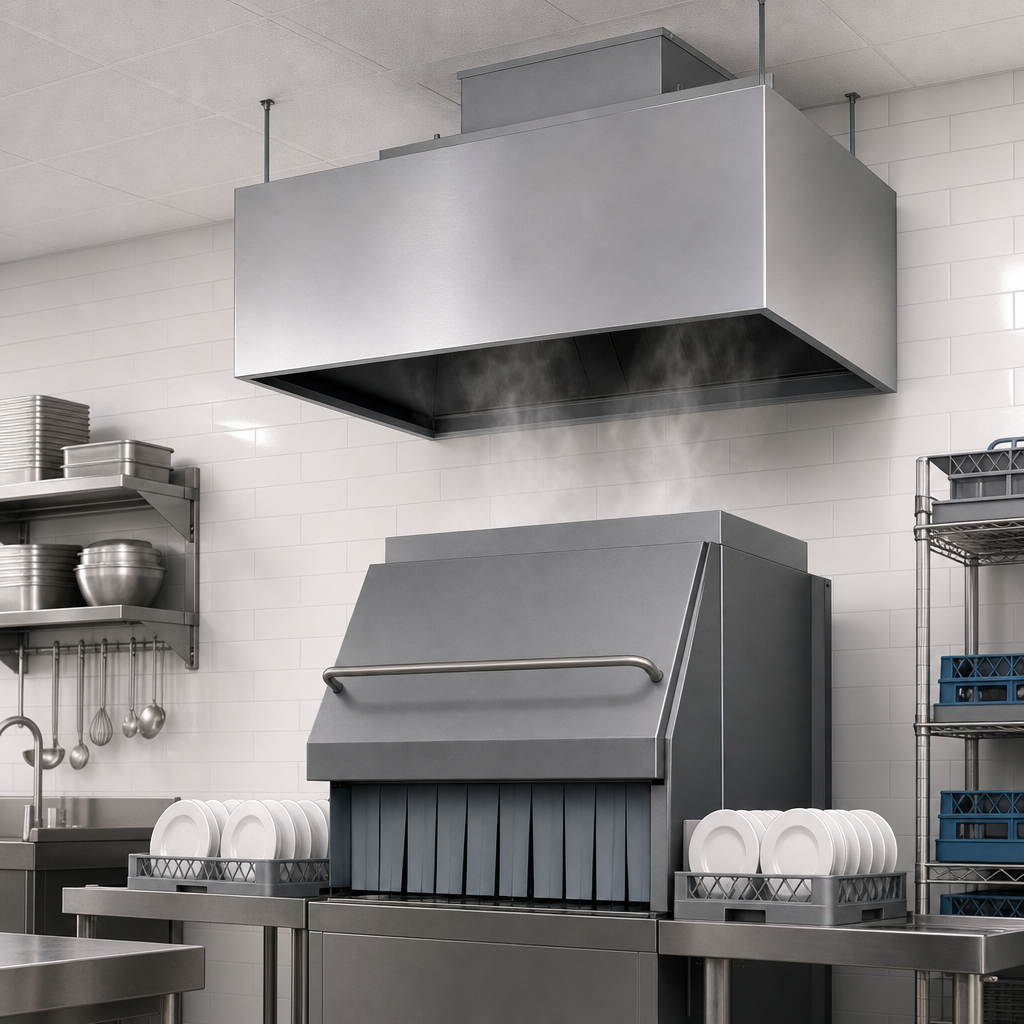

Type II Exhaust-Only Design

Designed to ventilate steam-producing cooking equipment and recommended for automatic dishwashers and other steam- or heat-producing equipment.

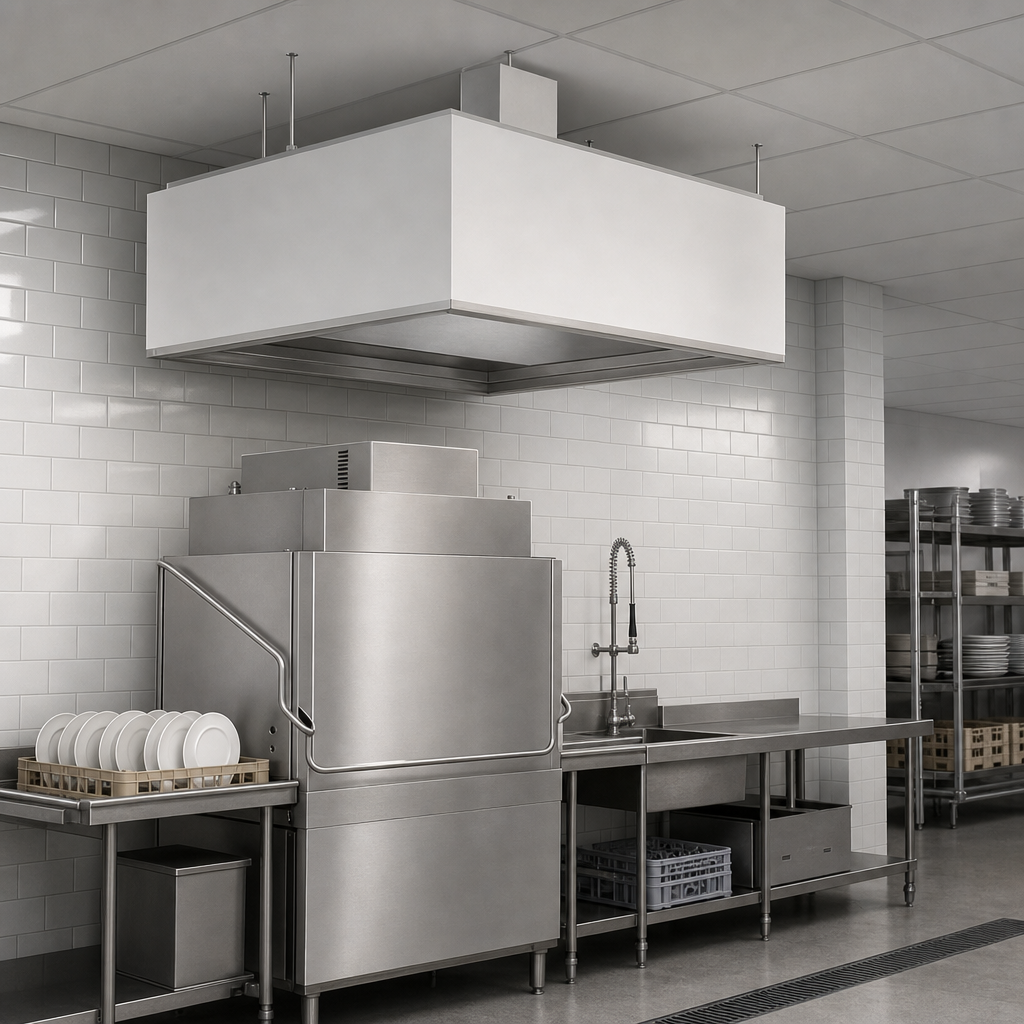

Ceiling Mount

Configured for ceiling-mounted installation.

201 Stainless Steel Construction

Constructed of 18 gauge 201 stainless steel.

Perimeter Gutter and Drain

Includes a 2 in perimeter gutter with a 1/2 in drain.

Duct Collar and Screen

Includes a duct collar and perforated stainless steel duct screen.

Top Trim

Includes 18 in top trim.

Frequently Asked Questions

It is a Type II exhaust-only condensate canopy designed to ventilate steam-producing cooking equipment and recommended for use over automatic dishwashers and other steam- or heat-producing equipment.
It fits 44 in conveyor dish machines.
It is configured for ceiling-mounted installation.
The hood measures 64 in wide by 48 in deep by 24 in high.
It is sized for 1,100 CFM with one 10 x 10 in collar at 0.25 SP.
