Key specifications

Dimensions
72.0"W × 60.0"D × 24.0"H
Type
Box Canopy Hood
Installation Type
Wall Mounted
Material
430 Stainless Steel
Hood Classification
Type I
Exhaust Airflow
1,800 CFM
Spec sheet
Avtec SKU: SSA-BOX72

Avtec SimpleSpec SSA-BOX72 72-Inch Type I Wall Canopy Hood

$7,316.10
/each
Estimated to ship in 31–34 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Width
End Wall Panels
Make-Up Air Plenums
Included: Avtec warranty 1 year parts and labor coverage for parts found defective in material or workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $677/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Box Canopy Hood
Installation Type Wall Mounted
Material 430 Stainless Steel
Hood Classification Type I
Exhaust Airflow 1,800 CFM
Make-Up Air Non-Compensating
Exhaust Collar 1 x 10 x 15 Inches at 0.675 SP
Maximum Equipment Footprint 60 x 50 Inches
Rear Air Space 3 Inches
Top Enclosure Height 18 Inches
Controls Auto Start Temperature Sensor
Filter Material Stainless Steel
Light Type Globe
Country of Origin USA

Description

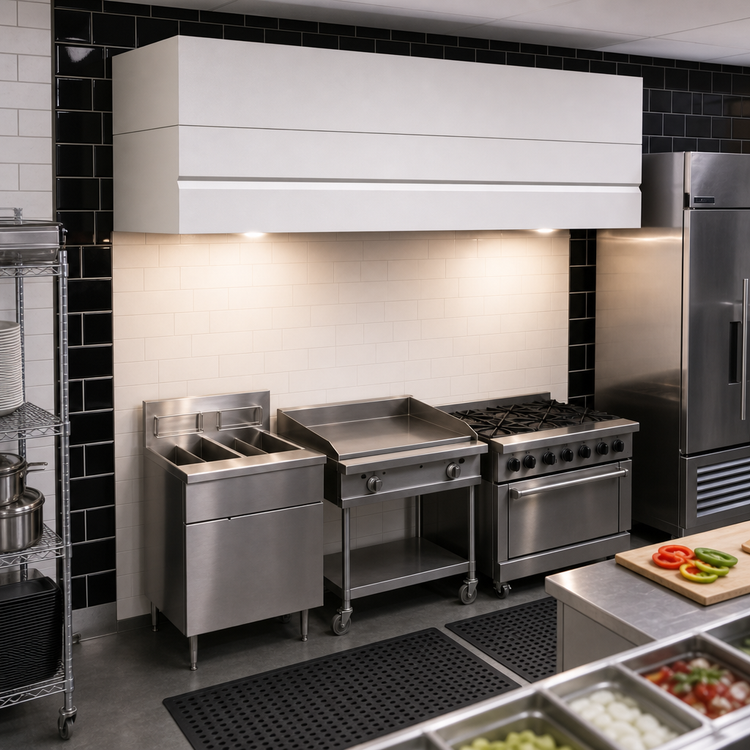

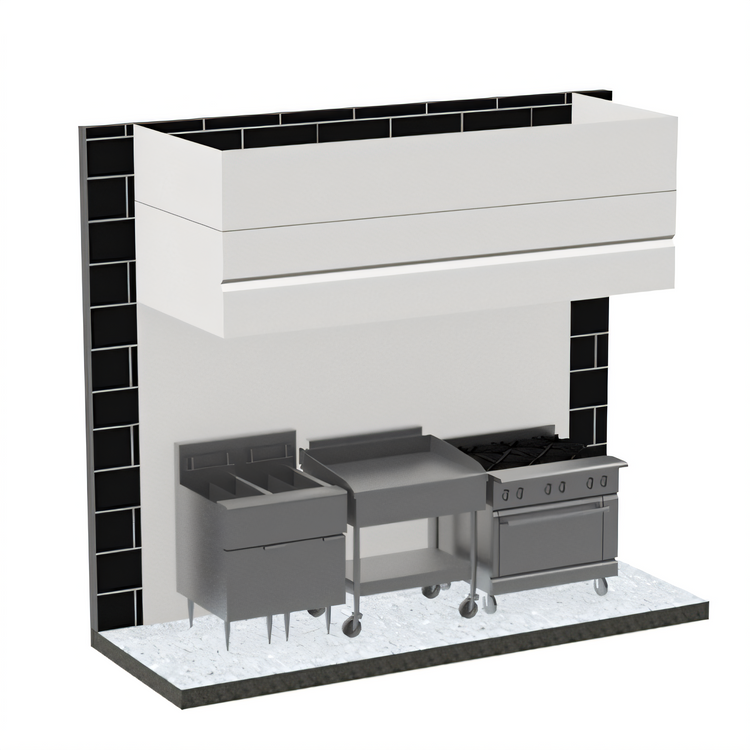

The Avtec SimpleSpec SSA-BOX72 is a Type I wall-mounted box canopy hood with 430 stainless steel construction, non-compensating make-up air, and sizing for 1,800 CFM.

  • Includes stainless steel filters, globe lights, a removable grease trough and cup, a 3-inch rear air space, and an auto-start temperature sensor.
  • Includes stainless steel wall panels below the hood and an 18-inch top enclosure.

Overall Dimensions:

72.0"W x 60.0"D x 24.0"H

Product Weight:

425.0 lb

Type I Construction

Identified as a Type I commercial kitchen ventilation canopy.

Wall-Mounted Installation

Designed as a wall-mounted canopy hood.

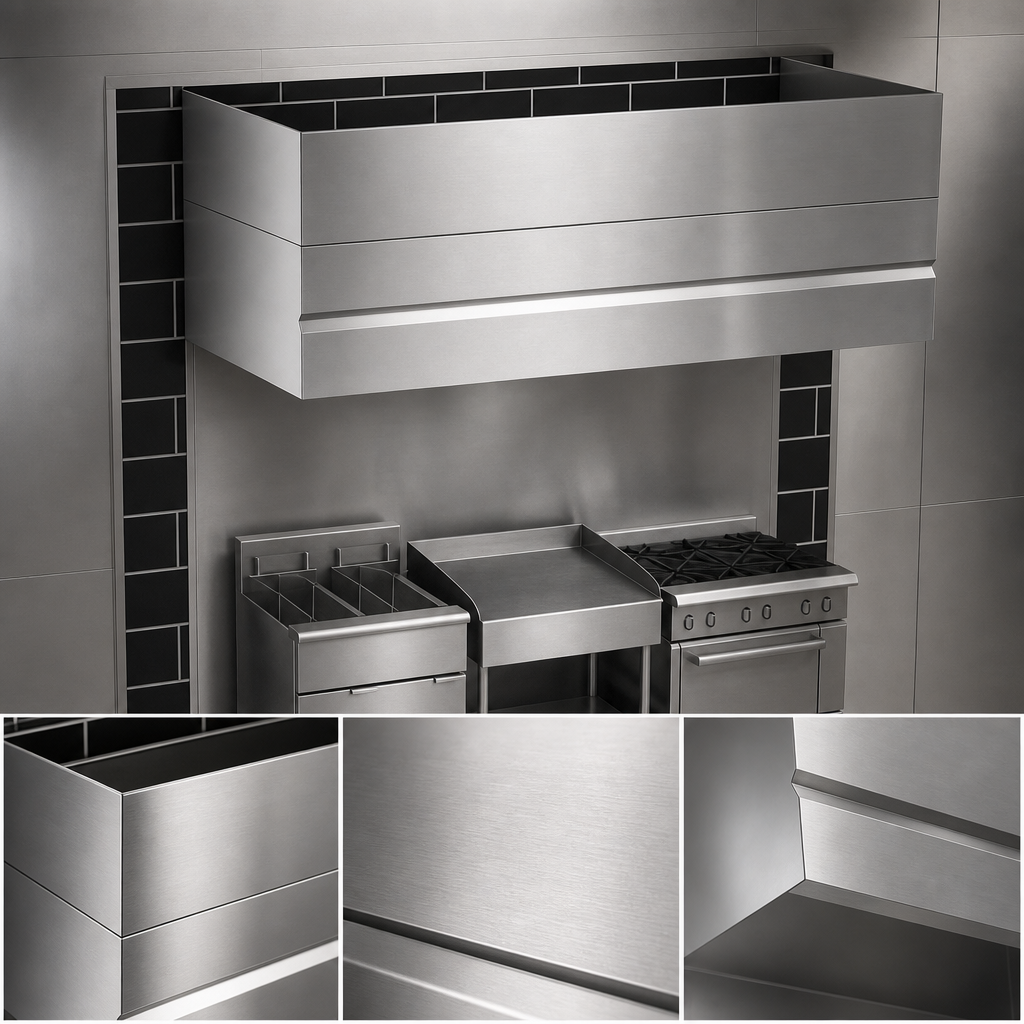

430 Stainless Steel Construction

The hood system uses 430 stainless steel construction.

1,800 CFM Exhaust Sizing

Sized for 1,800 CFM with one 10 x 15-inch exhaust collar at 0.675 SP.

Non-Compensating Make-Up Air

The catalog identifies the make-up air as non-compensating.

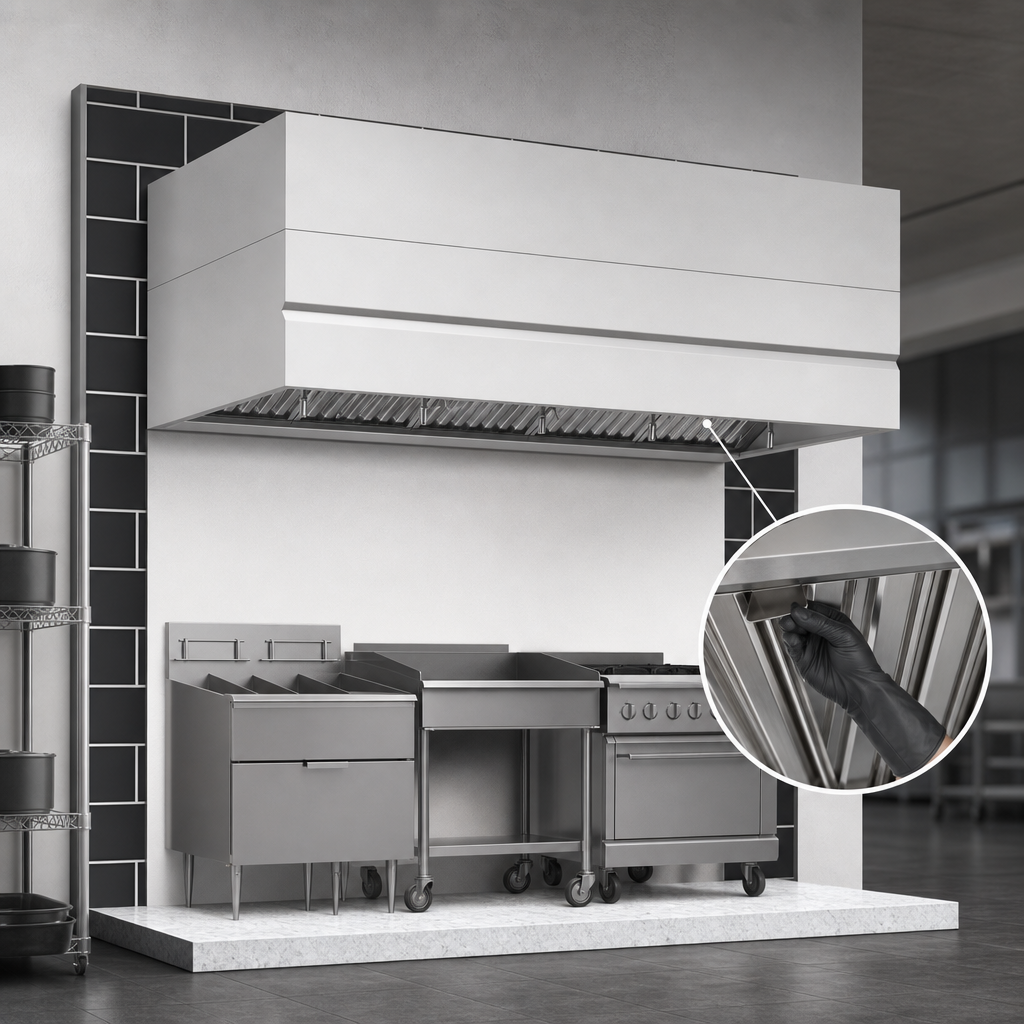

Stainless Steel Filters

Includes stainless steel filters.

Grease Collection

Includes a removable grease trough and cup.

Lighting and Temperature Sensor

Includes globe lights and an auto-start temperature sensor.

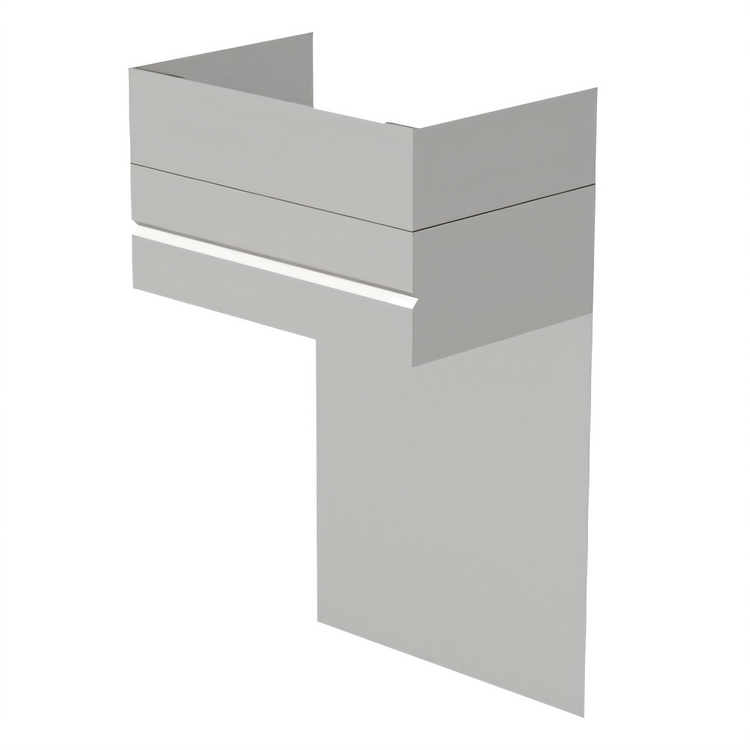

Wall Panels and Top Enclosure

Includes stainless steel wall panels below the hood and an 18-inch top enclosure.

Frequently Asked Questions

The hood is 72 inches wide, 60 inches deep, and 24 inches high, with a listed weight of 425 pounds.
It is sized for 1,800 CFM with one 10 x 15-inch exhaust collar at 0.675 SP.
It is a Type I box canopy hood designed for wall-mounted installation.
It includes 430 stainless steel construction, stainless steel filters, globe lights, a removable grease trough and cup, a 3-inch rear air space, an auto-start temperature sensor, stainless steel wall panels below the hood, and an 18-inch top enclosure.
The listed maximum equipment footprint is 60 x 50 inches.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
