Advance Tabco DTU-U60-72R-X Special Value Series Compartment Sinks
Description

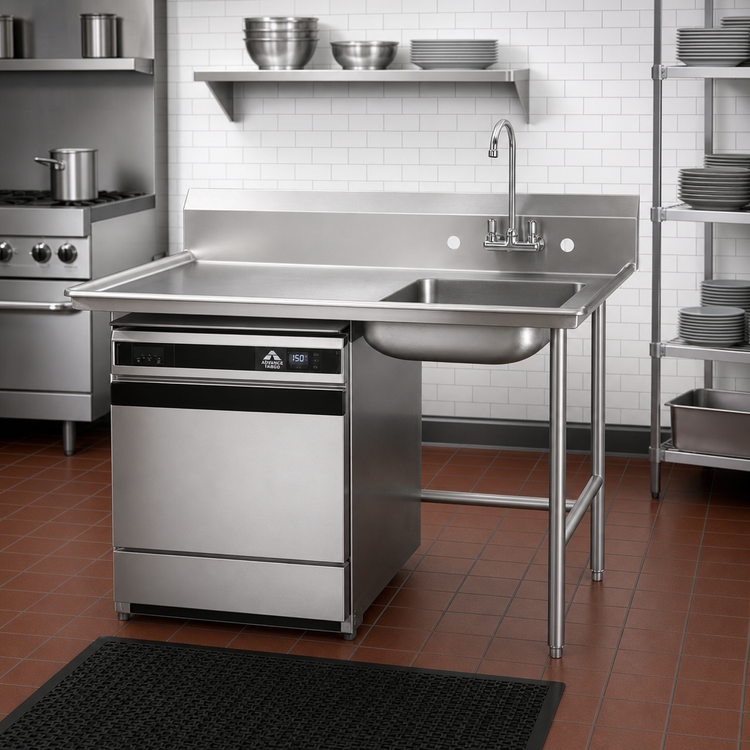

Advance Tabco Special Value Series Undercounter Dishtable – 72" W (Right-Hand Sink)
Model DTU-U60-72R | NSF Listed 304 Stainless SteelCompact, efficient, and economical—this 72-inch undercounter dishtable gives your ware-washing area the rugged performance of 16 gauge type 304 stainless steel without stretching your budget. A right-hand 20" × 20" × 5" sink bowl, generous drainboard, and 10-1/2" backsplash create a seamless work flow when paired with almost any undercounter dish machine.
Key Features

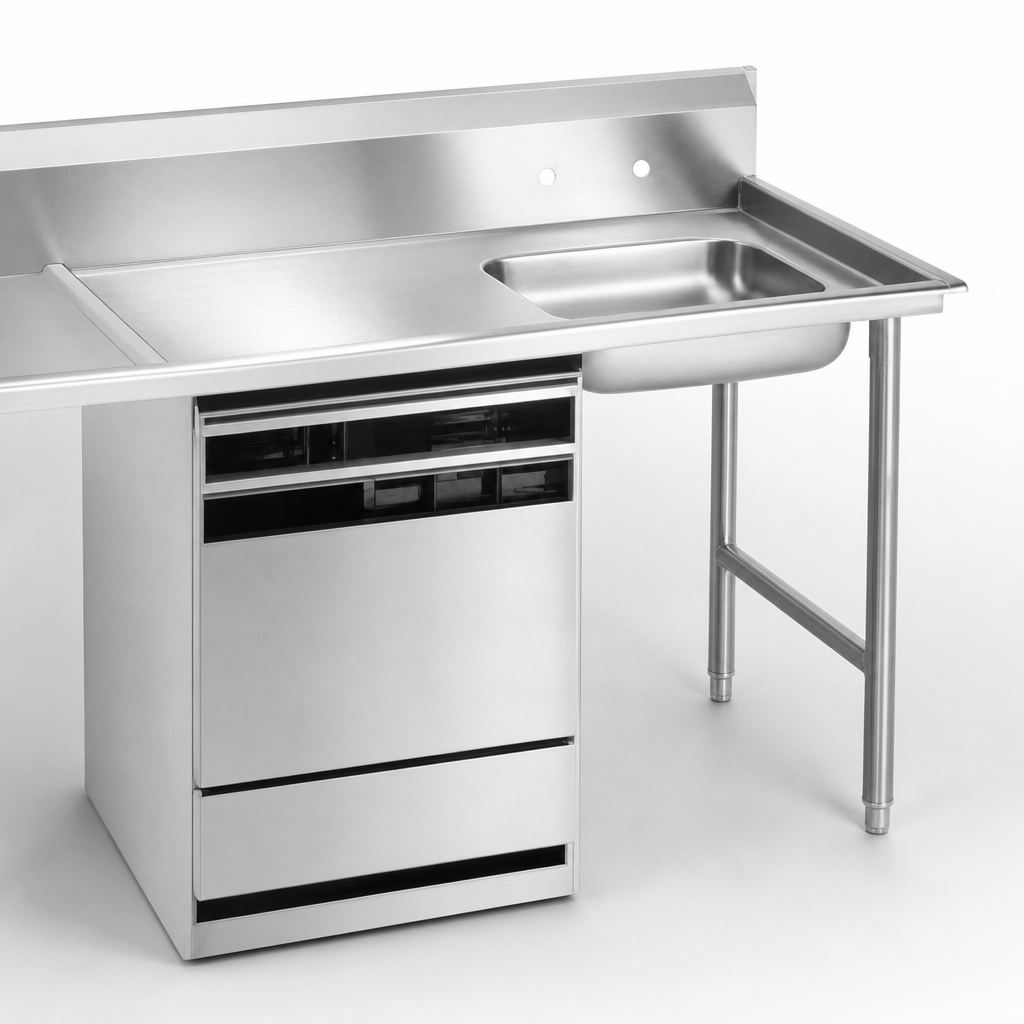

- 16 ga. type 304 stainless steel top, drainboard, backsplash & rolled rims
- 20" × 20" × 5" deep sink bowl on the right side with 3-1/2" waste drain included
- 10-1/2" high backsplash with 2" return and pre-punched 8"-on-center faucet holes
- Tile-edge perimeter simplifies installation against tiled walls
- All TIG-welded; welds are blended to a smooth satin finish
- 1-5/8" Ø 16 ga. stainless steel legs with welded cross-bracing for extra rigidity
- Stainless steel adjustable bullet feet level the table on uneven floors
- NSF certified for food-service sanitation standards
Specifications
| Series / Model | Special Value DTU-U60-72R |
|---|---|
| Overall Width | 72" (1829 mm) |
| Overall Depth | 30" (762 mm) |
| Working Height | 34" to tabletop | 44-1/2" to top of backsplash |
| Sink Bowl | 20" W × 20" L × 5" D (right-hand) |
| Backsplash | 10-1/2" H with 2" return |
| Top / Bowl Gauge | 16 ga. (1.5 mm) 304 stainless steel |
| Legs & Bracing | 1-5/8" Ø 16 ga. 304 SS legs with welded cross-bracing |
| Feet | Stainless steel adjustable bullet feet |
| Drain Opening | 3-1/2" NPS (basket strainer included) |
| Approx. Weight | 115 lb (52 kg) |
| Certifications | NSF |
Optional Accessories (sold separately)
- 8" OC splash-mount faucet
- DTA-100 20" × 20" basket with welded slide bar
- Pre-rinse basket
- SMART FABRICATION™ dish-machine specific modifications
Left or right orientation is determined by sink location when facing the table. Undercounter dish machine furnished by others.
