Advance Tabco DTC-3-2020-144L Compartment Sinks
Advance Tabco DTC-3-2020-144L Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTC-3-2020-144L Compartment Sinks
Description

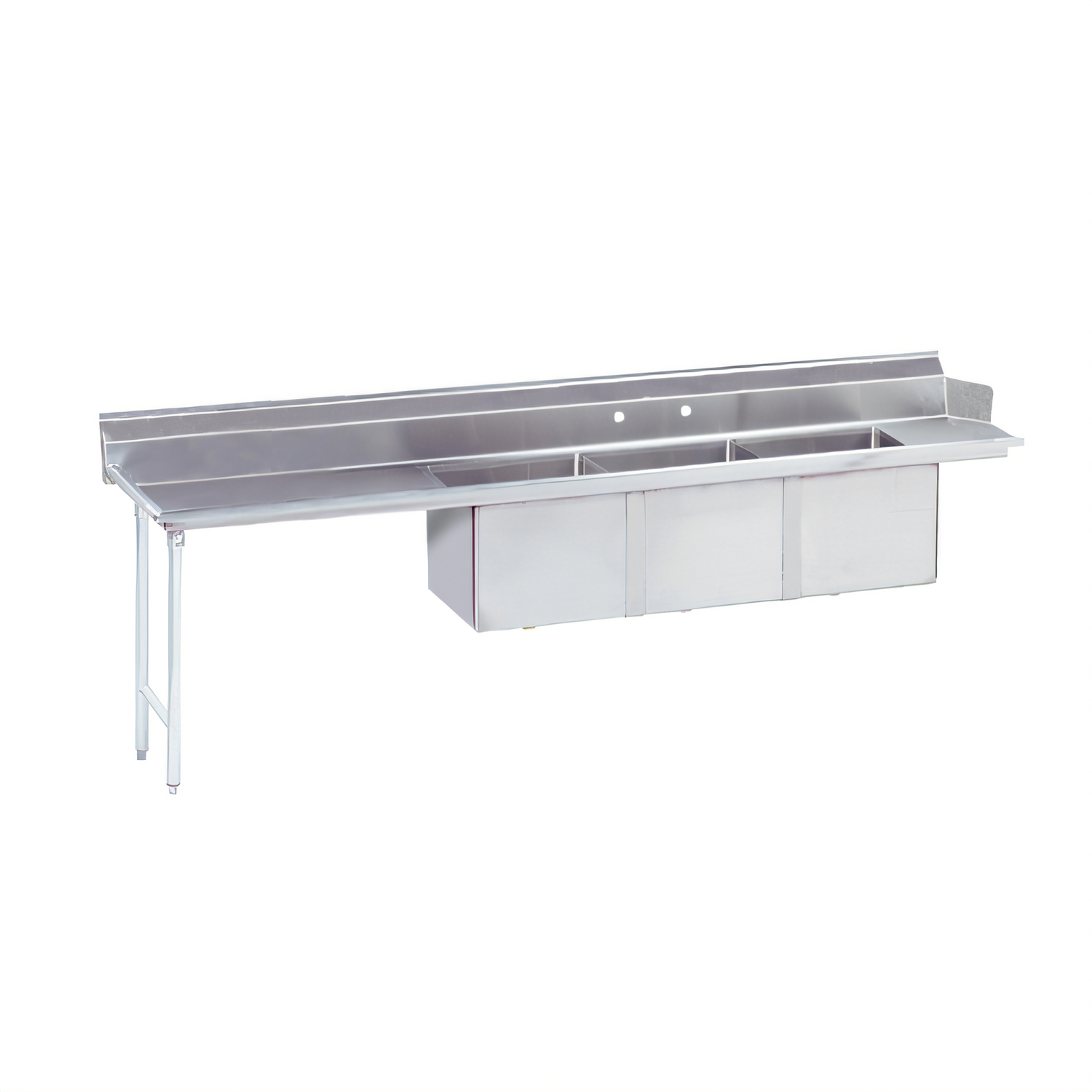

Advance Tabco DTC-3-2020-144L 3-Compartment Dishtable – 143" W
71" Left Drainboard • 20" × 20" × 14" Bowls • 16-Gauge 304 SSStreamline soil-side warewashing with this 143 inch Advance Tabco dishtable. A spacious 71 inch drainboard, rugged 16-gauge 304 stainless steel work surface and three full-size sink bowls give your crew the room and durability they need to keep dishes moving toward the machine all shift long.
Why You’ll Love It

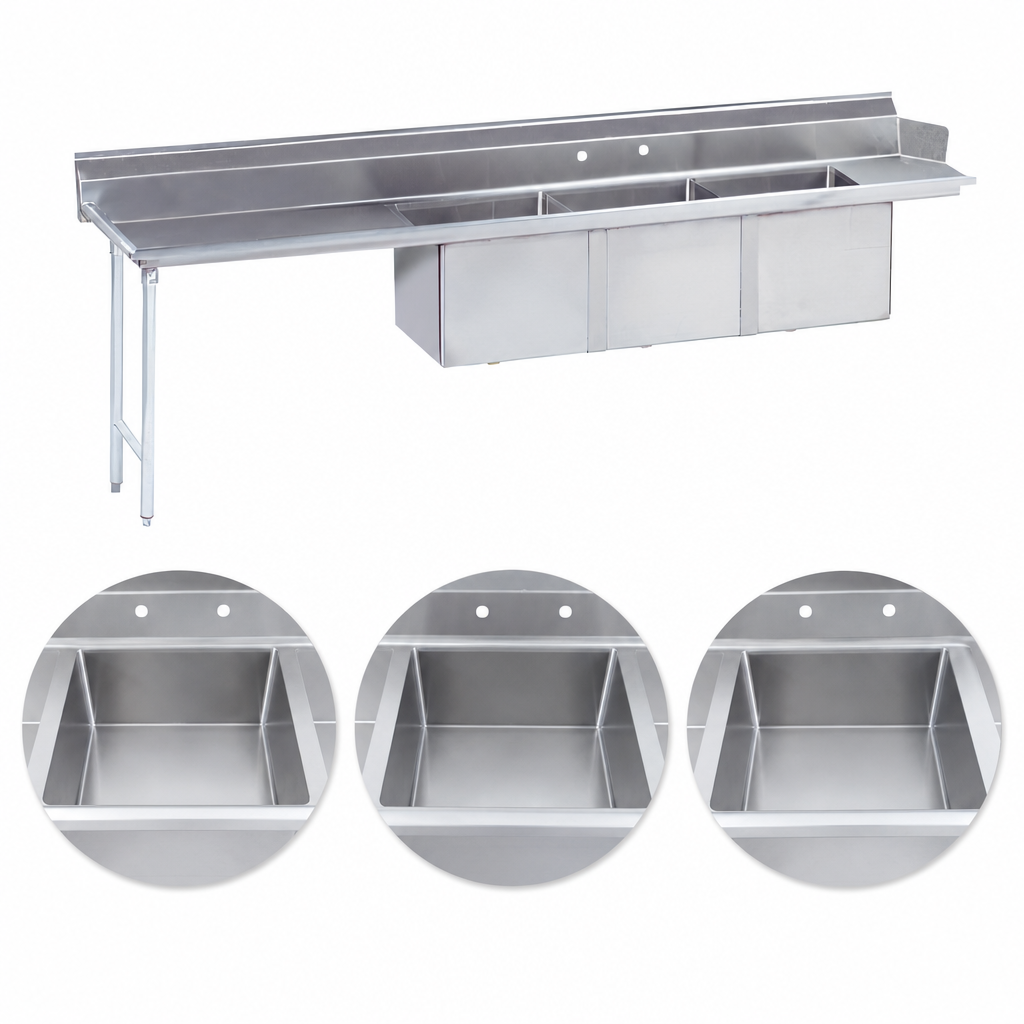

- (3) 20" × 20" × 14" fabricated sink bowls provide separate wash, rinse and sanitize sections.
- Bowls are factory-positioned 12" from the dish machine opening to satisfy most manufacturer clearance requirements.
- Heavy-duty 16-gauge, type 304 stainless steel top resists corrosion, dents and chemicals.
- 71" left-hand drainboard lets pre-scrapped wares drip directly into the first bowl, reducing mess.
- 10-1/2" backsplash with 2" return & tile edge for a tight, sanitary wall seal.
- All TIG-welded construction; welded seams are ground and polished to a matching satin finish.
- 1-5/8" O.D. stainless steel legs with front-to-back cross-rails and adjustable stainless steel bullet feet.
- Pre-punched 8" on-center faucet holes; 1-1/2" IPS drains supplied (faucet & basket strainer sold separately).
- NSF listed for safe, code-compliant installation in any commercial kitchen.
At-a-Glance Specs
| Model | DTC-3-2020-144L |
|---|---|
| Overall length | 143" |
| Overall depth | 30" |
| Working height | 34" – 37" (adjustable bullet feet) |
| Sink bowls | (3) 20" W × 20" L × 14" D |
| Drainboard length | 71" (left side) |
| Backsplash | 10-1/2" H with 2" return & tile edge |
| Material / gauge | 16-ga 304 stainless steel top & bowls Stainless steel legs, gussets & cross-rails |
| Waste connections | 1-1/2" IPS drains (included) |
| Faucet holes | (2) Ø1-1/8" holes on 8" centers |
| Shipping weight | ≈ 340 lb |
| Orientation | Left – attaches to the left side of the dish machine (operator facing machine front) |
What’s Included
- Dishtable with integrated 3-compartment sink & left drainboard
- (3) 1-1/2" IPS basket drains
- Stainless steel legs, gussets & cross-rails (pre-assembled)
You May Also Need
- 8"-center splash-mount faucet(s)
- Prerinse basket or slide bars (see Advance Tabco accessories DTA-60, DTA-100, etc.)
- Smart Fabrication™ modifications for specialty dish machines (consult chart)
Questions about compatibility or installation? Call Advance Tabco customer service at 800-645-3166 or email customer@advancetabco.com.
