Advance Tabco DTU-U60-72R Compartment Sinks
Advance Tabco DTU-U60-72R Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

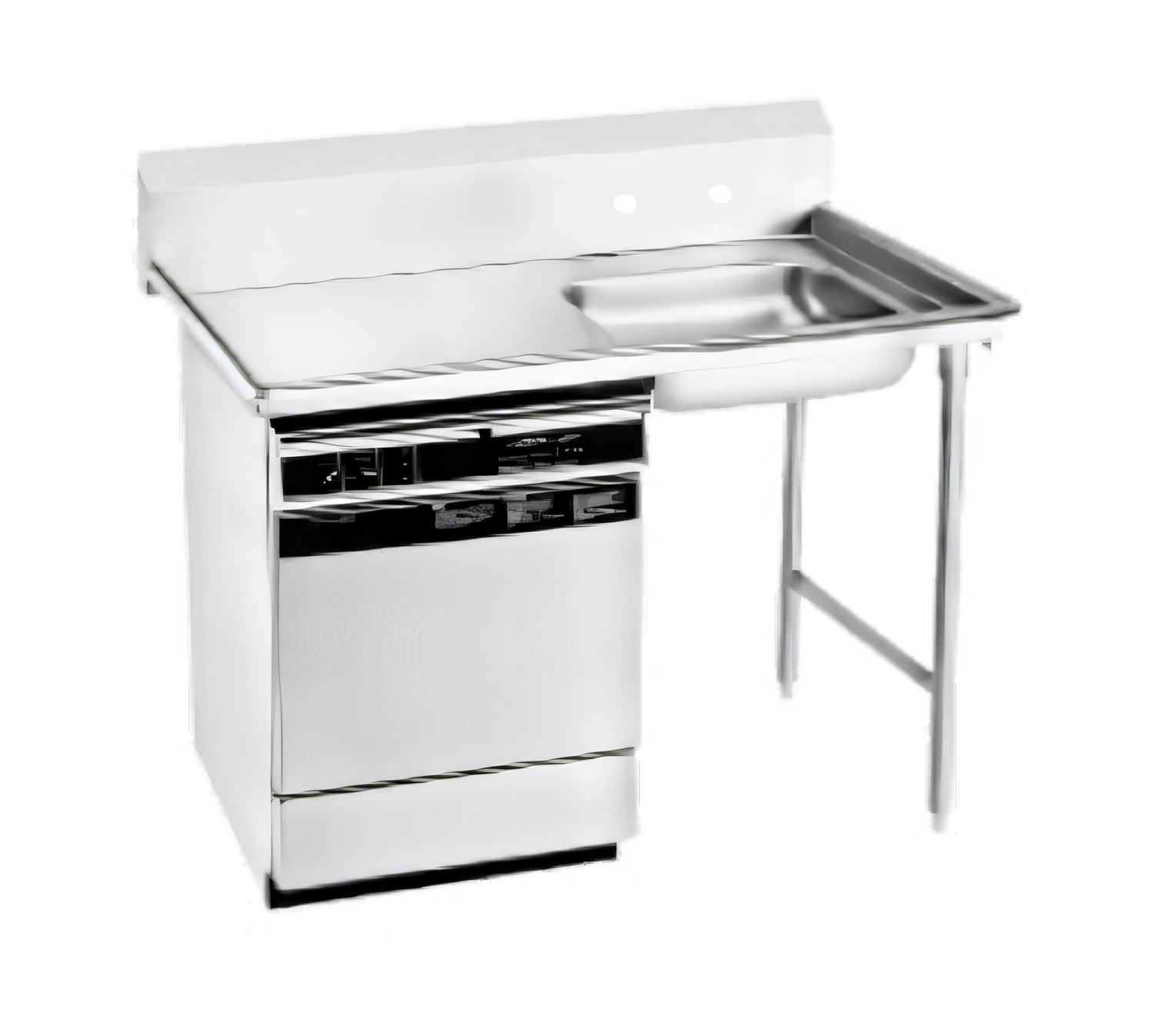

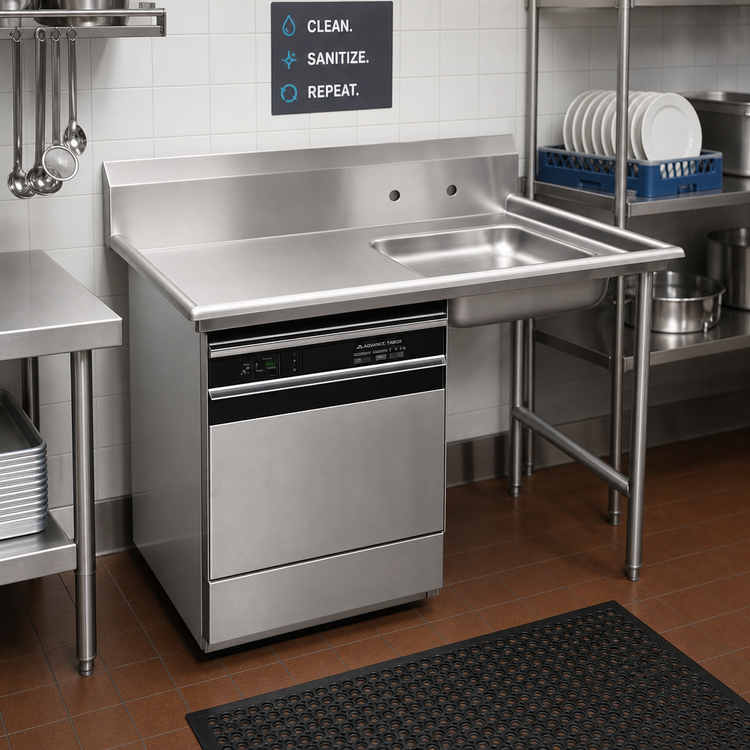

Advance Tabco 72" Undercounter Dishtable – Right Sink
Model DTU-U60-72R | NSF Certified 304 Stainless SteelEngineered for busy commercial kitchens, this 72 inch undercounter dishtable pairs seamlessly with most undercounter or door-type dish machines, giving staff a spacious landing area and a built-in sink for efficient pre-rinse, soak or scrap work.
Key Features

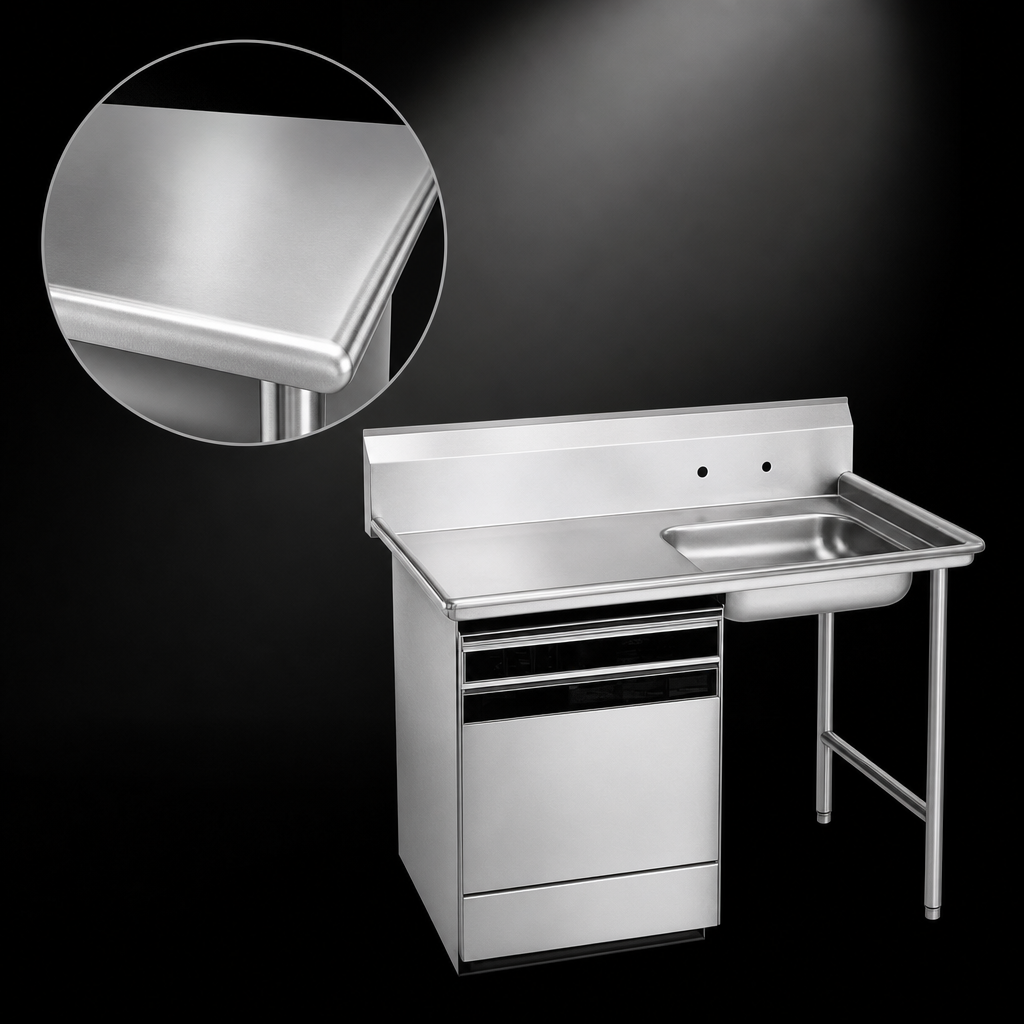

- Heavy-duty 16 ga type 304 stainless steel top with sanitary rolled rims.
- 20" × 20" × 5" deep fabricated sink bowl welded on the right side.
- 10-1/2" high backsplash with 2" return keeps walls protected from overspray.
- Tile-edge perimeter simplifies a flush, professional installation.
- All TIG-welded construction; welds are blended to a smooth satin finish.
- 16 ga 304 stainless steel legs with welded cross-bracing for exceptional rigidity.
- Stainless steel adjustable bullet feet level the table on uneven floors.
- Faucet holes pre-punched on 8" centers (faucet not included).
- 1-1/2" IPS waste drain furnished.
- NSF listed for food-service sanitation.
Specifications
Model | DTU-U60-72R |
---|---|
Overall length | 72" (1829 mm) |
Overall depth | 30" (762 mm) |
Overall height | 44-1/2" (to top of backsplash) |
Work height | 34" |
Sink location | Right hand |
Sink bowl size | 20" × 20" × 5" deep |
Backsplash | 10-1/2" H with 2" return |
Top & bowl material | 16 ga 304 stainless steel |
Legs & bracing | 16 ga 304 stainless legs with welded cross-bracing |
Feet | Stainless steel adjustable bullet feet |
Faucet holes | 2 on 8" centers |
Drain | 1-1/2" IPS waste drain included |
Certifications | NSF |
Perfect For
- Restaurants, cafés, bars and hotels with undercounter or door-type dish machines
- Compact dishrooms that need maximum landing space in a small footprint
- Operators who demand long-term durability and easy sanitation
Compatible Accessories (sold separately)
- DTA-100 20" × 20" basket with welded slide bar
- Wall- or deck-mount faucet (8" center)
- Prerinse baskets and scrap blocks
