Advance Tabco DTU-U60-72L Compartment Sinks
Description

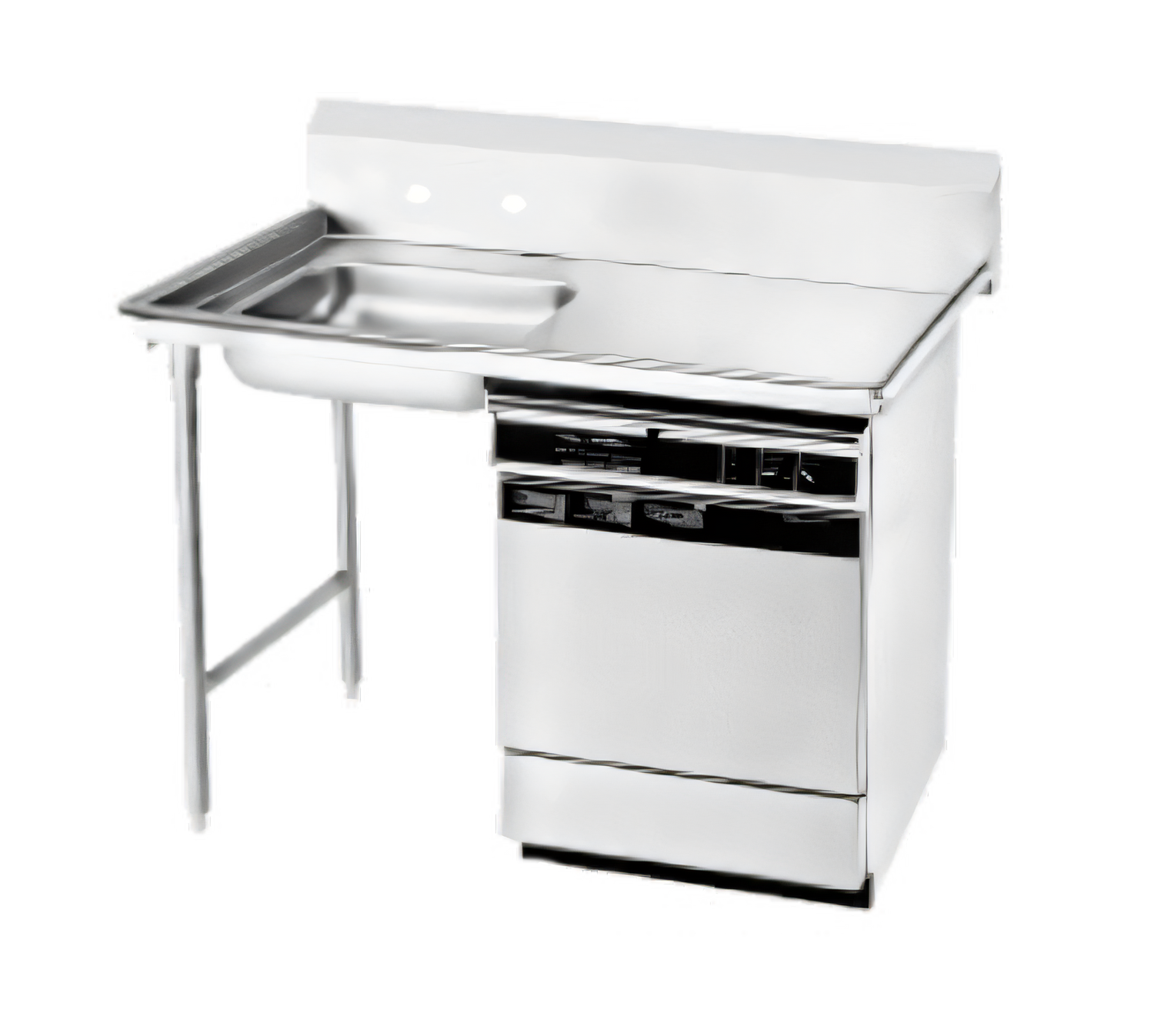

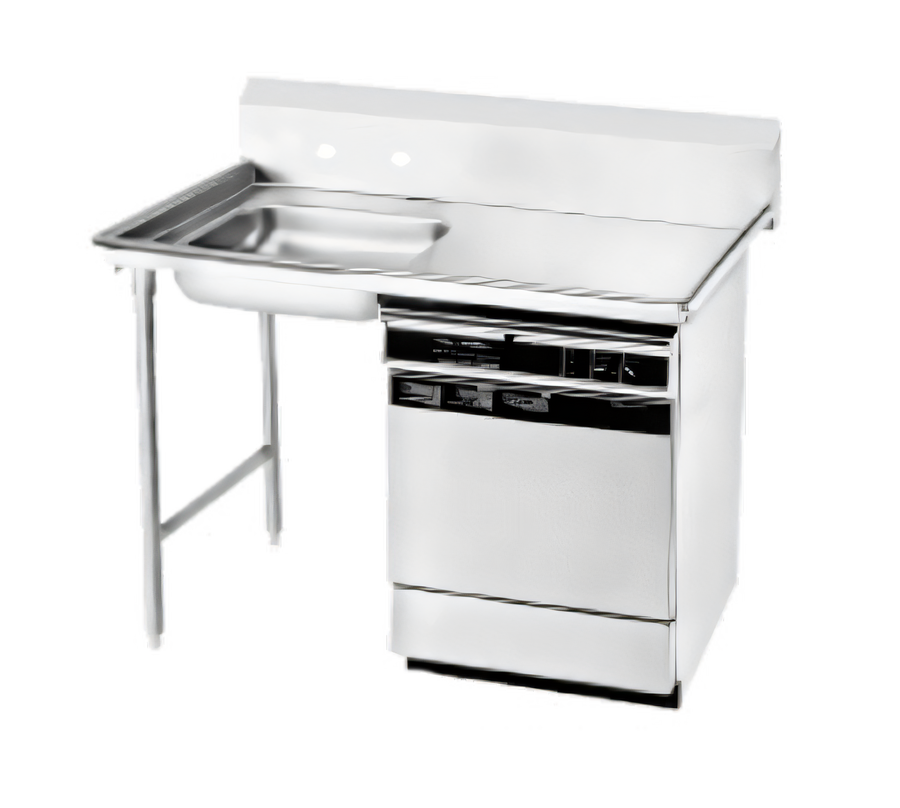

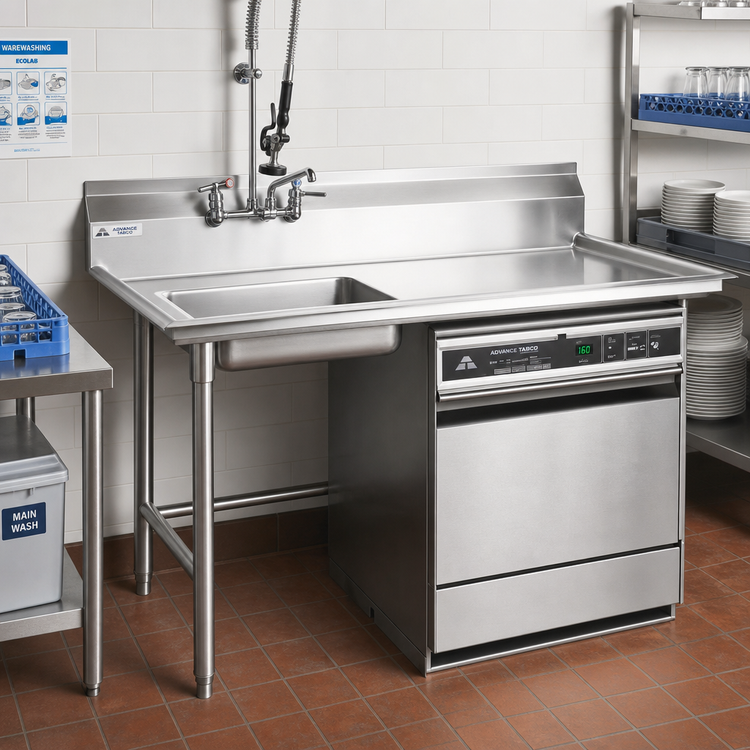

Advance Tabco DTU-U60-72L Undercounter Dishtable – 72" Left Sink
Heavy-duty stainless solution for compact, high-volume warewashingStreamline your dishroom workflow without sacrificing durability. Built from rugged 16 gauge 304 stainless steel, this 72" Advance Tabco undercounter dishtable slides neatly over most commercial undercounter dish machines while adding a roomy 20" × 20" pre-rinse sink, high backsplash and rock-solid leg frame. NSF certification means it is ready for the most demanding food-service environments straight out of the box.
Key Features & Benefits

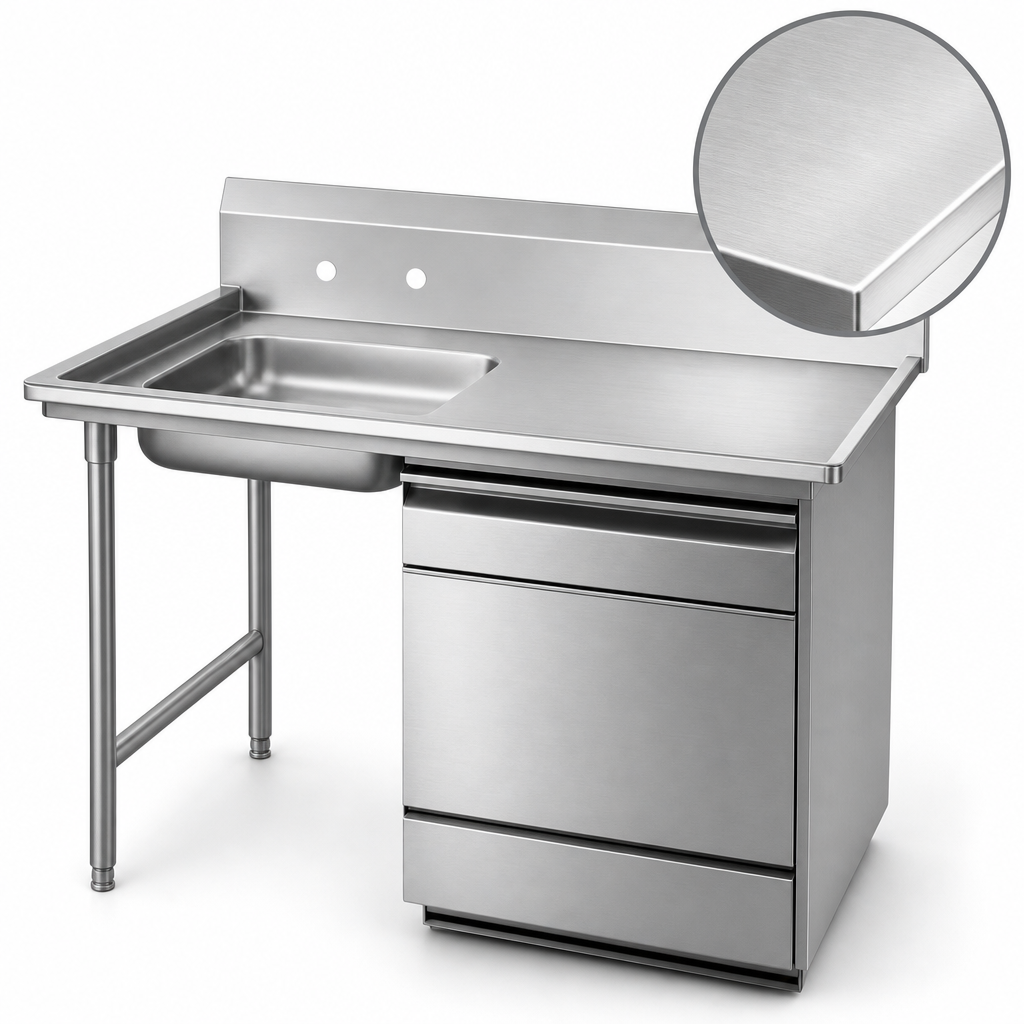

- One-piece top fabricated from 16 ga. type 304 stainless steel with sanitary rolled rims
- 20" × 20" × 5" deep welded sink bowl on the left—ideal for scrap, soak or pre-rinse
- 10-1/2" high backsplash with 2" return & tile edge for fast, watertight wall installation
- Sturdy 16 ga. stainless legs with welded cross bracing for exceptional rigidity
- Adjustable stainless steel bullet feet level the table on uneven floors
- TIG-welded construction; welds are ground smooth to a satin finish for easy cleaning
- Faucet holes pre-punched on 8" centers (faucet sold separately)
- 1-1/2" IPS waste drain included
- NSF listed for superior sanitation compliance
Technical Specifications
| Model | DTU-U60-72L |
|---|---|
| Orientation | Left sink (dish machine mounts to right) |
| Overall Width | 72" / 1829 mm |
| Overall Depth | 30" / 762 mm |
| Overall Height | 44-1/2" to top of backsplash |
| Working Height | Approx. 34" |
| Sink Bowl Size | 20" × 20" × 5" deep |
| Backsplash | 10-1/2" H with 2" return |
| Top Material / Gauge | 16 ga. type 304 stainless steel |
| Legs & Bracing | 16 ga. 304 SS legs with welded cross bracing |
| Feet | Stainless steel adjustable bullet feet |
| Faucet Punching | 8" centers (faucet not included) |
| Drain | 1-1/2" IPS waste drain (included) |
| Shipping Weight | 115 lb. / 52 kg |
| Certifications | NSF |
Perfect For
- Restaurants, cafés & bars
- Hotels & resorts
- School & university kitchens
- Catering & banquet facilities
- Healthcare & senior-living foodservice
Optional accessories such as faucets or a 20" × 20" prerinse basket (Model DTA-100) are available separately.
