Advance Tabco DTS-U30-96R Compartment Sinks

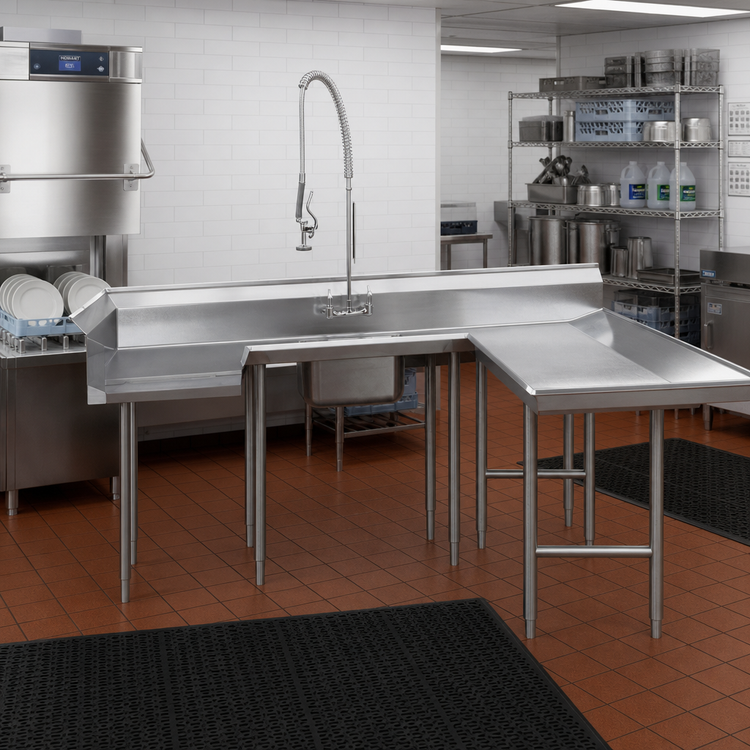

Advance Tabco U-Shaped Soiled Dishtable – Right Side, 108" × 59" × 95"

Engineered for heavy-duty, high-volume warewashing, this Advance Tabco U-shaped soiled dishtable streamlines the scrape-and-load process on the right-hand side of your dish machine. Rugged 14-gauge 304 stainless steel construction, an extra-large backsplash, and an integrated pre-rinse sink deliver the durability and workflow efficiency today’s kitchens demand.

Key Features

• U-shaped layout with 8" deep dish-landing for fast rack staging.
• 10-1/2" high, bold backsplash with 2" return & sanitary tile edge—ideal for a watertight wall seal.
• 20" × 20" × 8" pre-rinse sink bowl with basket; slide bar ships when K-461/K-461A disposer adapter is selected.
• All TIG-welded, 14 ga. 304 SS top; 16 ga. 304 SS legs with front-to-back crossrails for maximum rigidity.
• Adjustable stainless steel bullet feet for perfect leveling on uneven floors.
• 1-1/2" I.P.S. basket-type waste drain included.
• Faucet holes pre-punched 8" on-center (faucet sold separately).
• NSF Listed and Smart Fabrication™ ready for further customization.

Dimensions & Construction

What’s Included

• U-shaped dishtable in two sections
• K-57 welded field joint (field welding by others)
• Pre-rinse sink basket
• Slide bar (with K-461 or K-461A adapter)
• 1-1/2" basket-type waste drain

Installation Notes

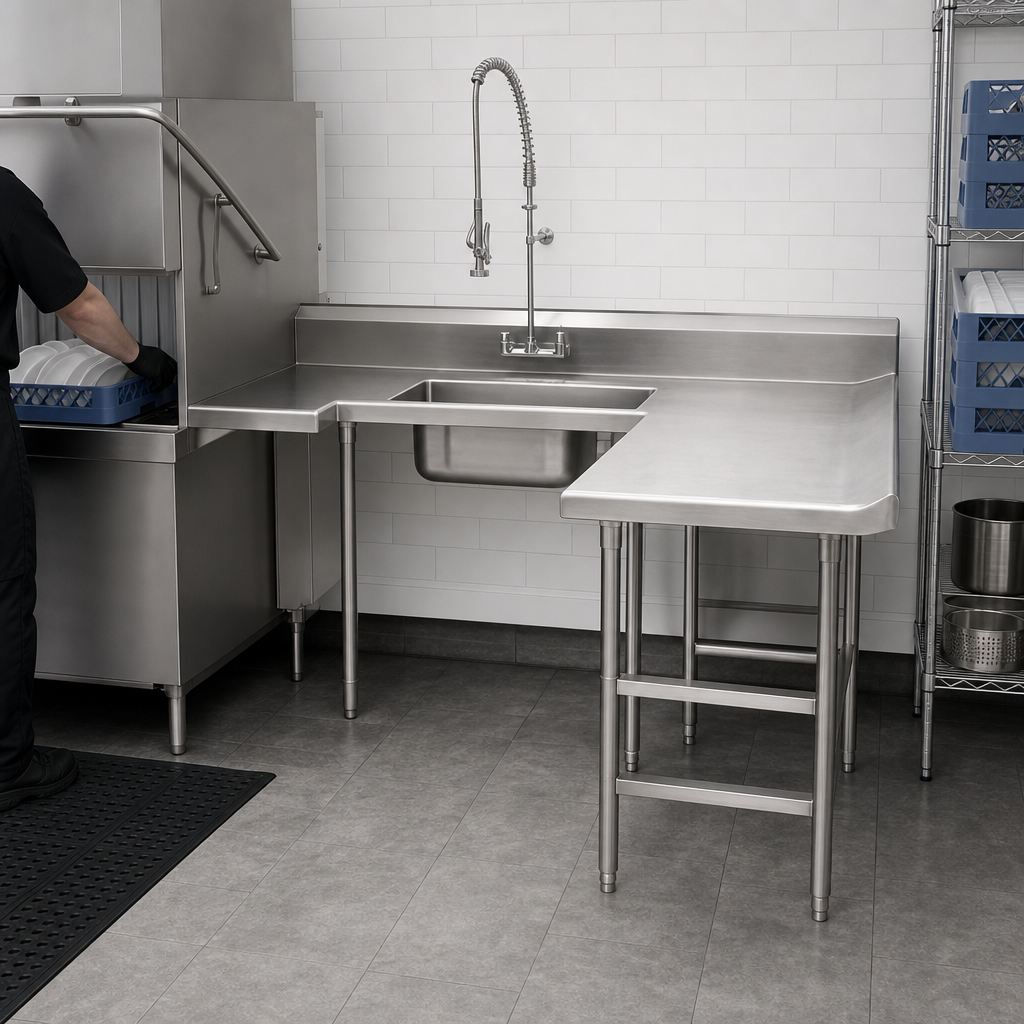

• Designed to attach to the right of the dish-machine operator.
• Verify dish-machine clearance using the Advance Tabco Dish-Machine Compatibility Chart.
• Field welding of the K-57 joint must be performed by qualified personnel.
• Faucet, disposer adapter, and pre-rinse spray assembly are sold separately.

Specifications are subject to change without notice. © Advance Tabco
