Advance Tabco DTS-U30-72R Compartment Sinks

Advance Tabco U-Shaped Soiled Dishtable – Right Hand, 59″ × 108″ × 71″

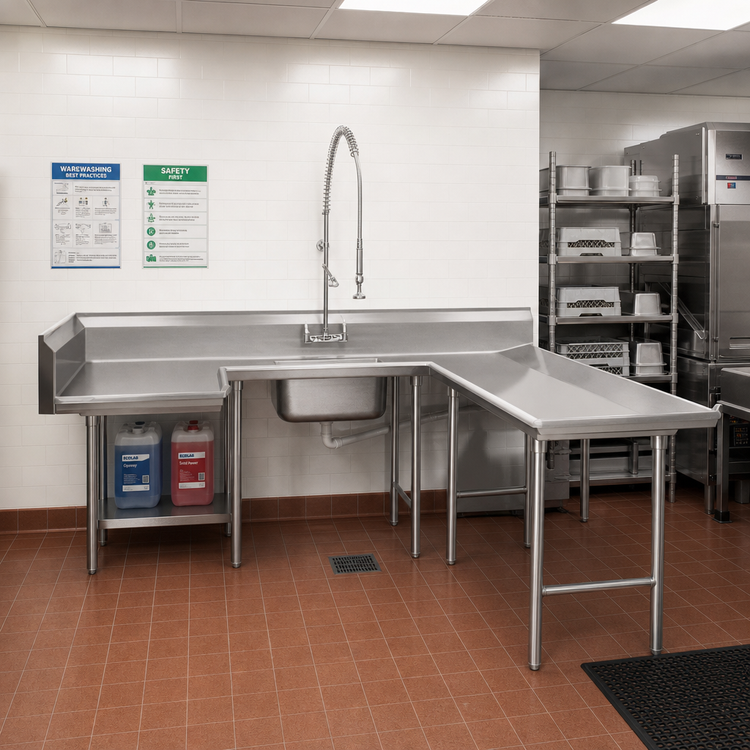

Purpose-built for busy commercial dish rooms, this right-hand Advance Tabco U-shaped soiled dishtable delivers rock-solid durability, effortless installation and a continuous workflow from landing area to pre-rinse sink. The 59″ entry section, 108″ front section and 71″ exit section wrap around the operator, feeding dishes directly into the right side of the dish machine while keeping dirty ware, water and scraps fully contained.

Key Features

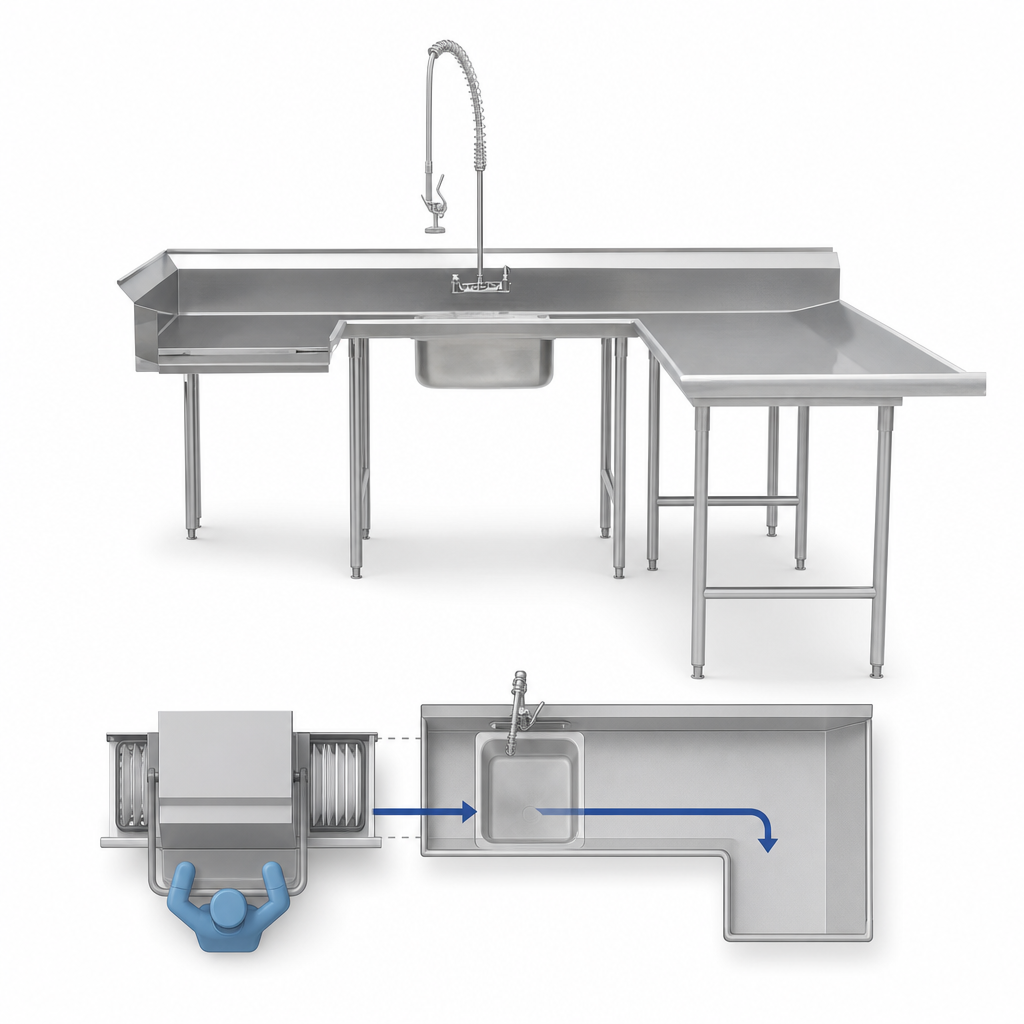

• U-shaped design attaches to the right side of the dish-machine operator for a smooth, ergonomic load sequence.
• 10-1/2″ high backsplash with 2″ return and extra-large tile edge speeds wall sealing and protects surrounding surfaces.
• Integrated 20″ × 20″ × 8″ deep pre-rinse sink supplied with 1-1/2″ IPS basket waste drain.
• Pre-rinse basket included; slide bar ships only when K-461 or K-461A disposer adapter is specified.
• Generous dish-landing shelf keeps racks level while excess water drains back to the sink.
• Rugged 14 ga type 304 stainless steel top; all TIG-welded, gusset-reinforced channels, satin-finished welds.
• 16 ga type 304 legs with front-to-back crossrails and adjustable stainless bullet feet for rock-steady support.
• Field joint provided for 108″ front run; weld in place on site for a seamless NSF finish (welding by others).
• 8″-on-center faucet holes pre-punched in backsplash – ready for your choice of pre-rinse faucet (faucet not included).

Technical Specifications

Verify dish-machine compatibility before ordering. Consult the Advance Tabco Dish Machine Compatibility Chart or call 1-800-645-3166 for assistance. Faucet, disposer adapter and slide bar (when no disposer is specified) sold separately.
