Advance Tabco DTS-U30-72L Compartment Sinks
Advance Tabco DTS-U30-72L Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTS-U30-72L Compartment Sinks
Description

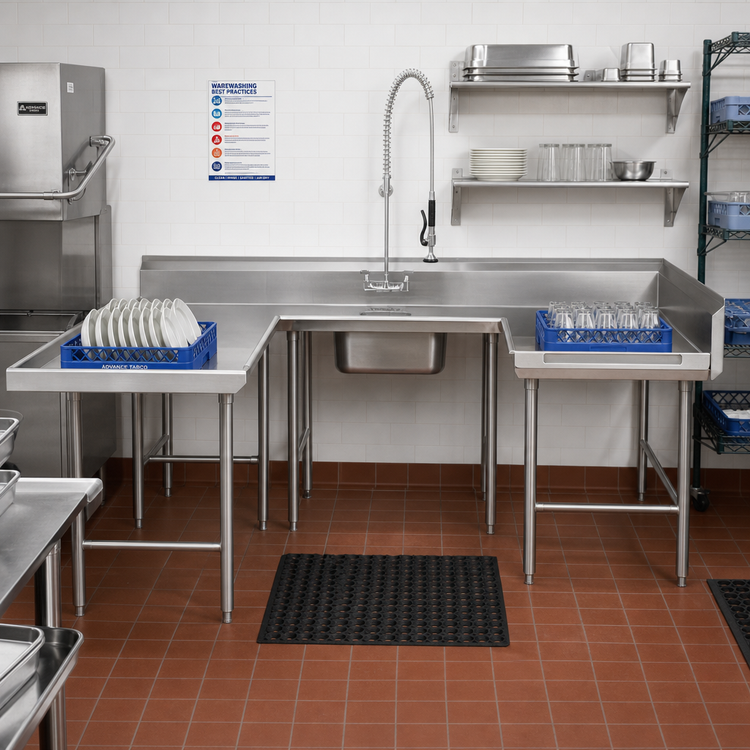

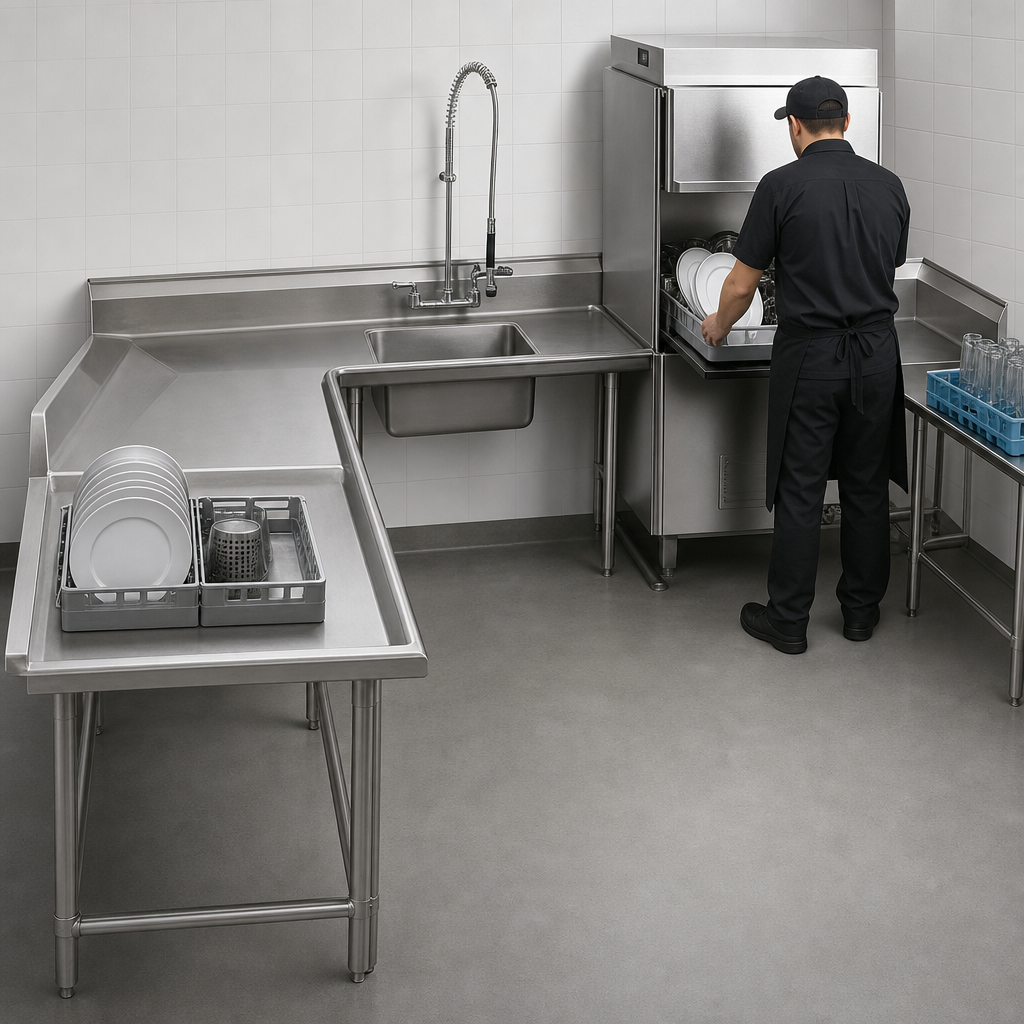

Advance Tabco U-Shaped Soiled Dishtable – Left Hand Operator
59" x 108" x 71" footprint | 14-gauge 304 Stainless Steel | NSF CertifiedPurpose-built for high-volume ware-washing lines, this U-shaped soiled dishtable delivers a smooth, ergonomic workflow from scrape to rack. Heavy-duty 14-gauge 304 stainless steel, an extra-tall 10-½" tile-edge backsplash, and a built-in pre-rinse sink make it the perfect companion for any commercial dish machine positioned to the operator’s right.
Key Benefits
- Left-hand configuration – table attaches to the left of the dish-machine operator for seamless entry flow.
- 20" x 20" x 8" deep pre-rinse sink complete with 1-½" IPS basket-type waste drain.
- Includes removable pre-rinse basket; slide bar supplied when disposer adapter K-461 or K-461A is selected.
- Generous 10-½" high, 2" returned tile-edge backsplash contains splashes and simplifies wall installation.
- Dedicated dish-landing area speeds loading while keeping racks within easy reach.
- All TIG-welded construction delivers maximum strength; welds are blended to a sanitary satin finish.
- 16-gauge 304 stainless steel legs with front-to-back crossrails and adjustable stainless bullet feet for rock-solid support.
- Faucet holes punched 8" on-center in backsplash; compatible with most commercial pre-rinse assemblies (faucet not included).
- NSF listed & ready for Smart Fabrication™ modifications to fit nearly any commercial dish machine.
Construction & Materials
- Top & Sink Bowl: 14-ga 304 stainless steel
- Legs & Crossrails: 16-ga 304 stainless steel
- Feet: Stainless steel, adjustable bullet style
- Finish: Satin polish, easy-clean surface
- Welds: Full TIG welds, gusset-reinforced channels
Dimensional Data
| Overall Footprint (L × W × H) | 59" × 108" × 71" |
|---|---|
| Working Height | 34" to tabletop |
| Backsplash Height | 10-½" |
| Sink Bowl Size | 20" × 20" × 8" deep |
| Dish-Landing Length | approx. 9-⅜" |
| Gauge / Material | 14-ga 304 (top) | 16-ga 304 (legs) |
| Drain Connection | 1-½" IPS basket-type waste |
| Approx. Shipping Weight | ~525 lb (varies with options) |
What’s Included
- U-shaped soiled dishtable (left-hand)
- 20" × 20" pre-rinse sink with basket drain
- Prerinse rack basket & slide bar*
- Stainless legs with crossrails & bullet feet
- Field joint kit for sections over 90" (welded on-site by others)
*Slide bar ships only when disposer adapter K-461 or K-461A is specified.
