Advance Tabco  |  SKU: DTS-U30-108L  |  UPC: 747545122797

Advance Tabco DTS-U30-108L Compartment Sinks

$8,460.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

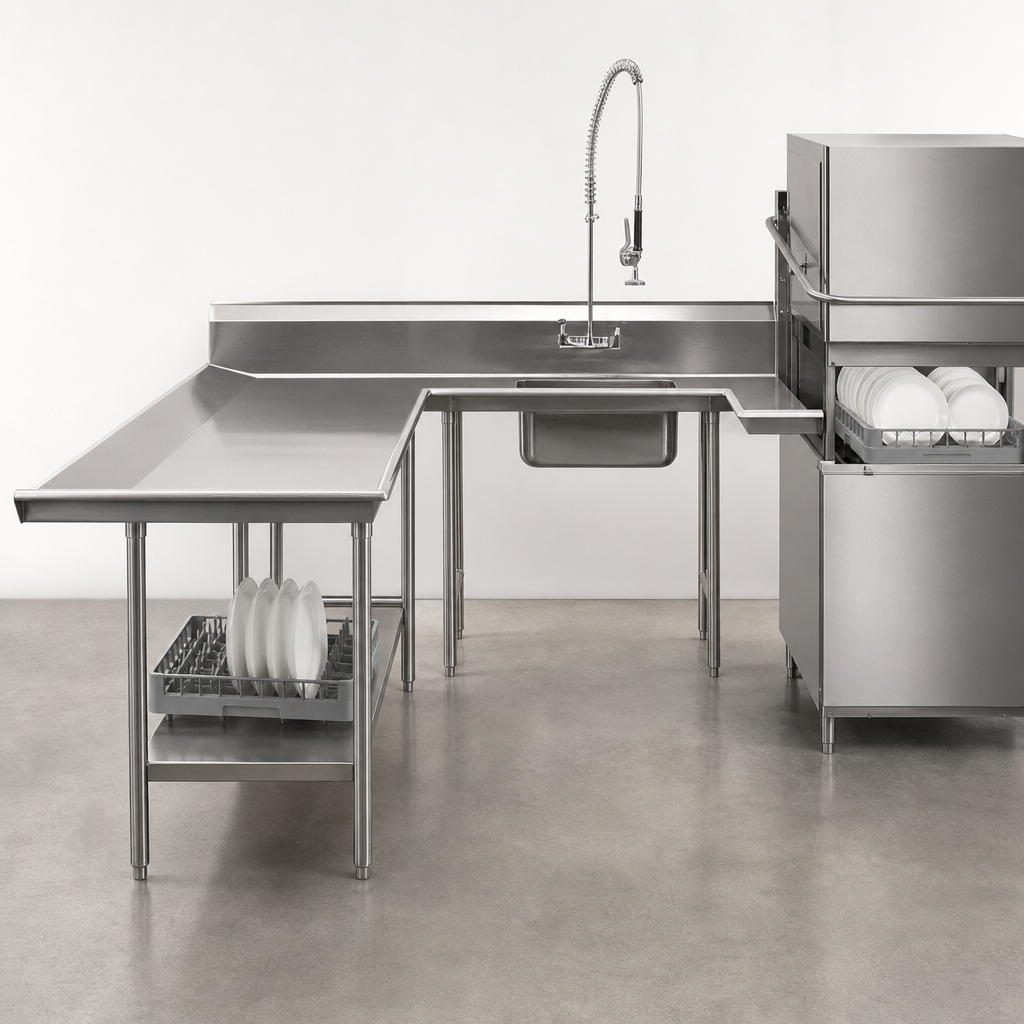

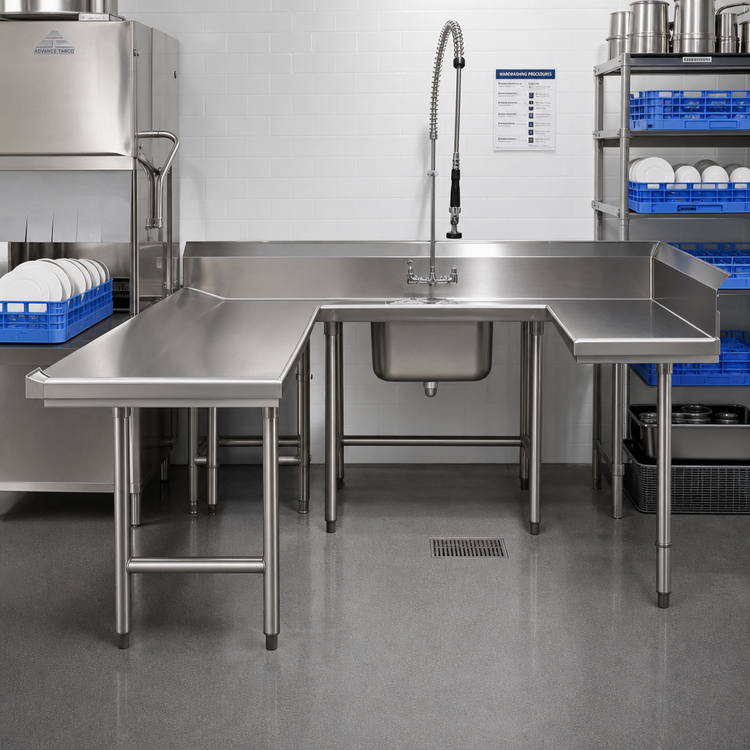

Advance Tabco DTS-U30-108L U-Shaped Soiled Dishtable

Left-hand entry • 108" with landing • 14-gauge 304 stainless steel

Built to tame the toughest warewashing traffic, this NSF-listed U-shaped soil table attaches to the left side of your dishmachine operator station and delivers a seamless scrape-and-rinse workflow. Heavy-duty 14-gauge 304 stainless construction, an extra-large backsplash, and an integrated pre-rinse sink make it the all-in-one solution for busy kitchens that demand durability and speed.

Key Features

  • U-shaped configuration (59" D x 108" W x 107" L) maximizes soil-side staging and ergonomics.
  • 10-1/2" high tile-edge backsplash with 2" return contains splashes and speeds installation.
  • 20" x 20" x 8" deep pre-rinse sink includes 1-1/2" IPS basket-type waste drain.
  • Stainless pre-rinse basket with slide bar included (slide bar ships only when K-461 or K-461A disposer adapter is ordered).
  • 8" on-center faucet holes punched in backsplash; compatible with most commercial pre-rinse faucets (faucet not included).
  • Dedicated dish landing keeps racks moving smoothly toward the machine.
  • All TIG-welded 14-gauge 304 stainless steel top with satin finish.
  • 16-gauge 304 stainless steel legs with front-to-back crossrails for rock-solid support.
  • Adjustable stainless steel bullet feet level the table on uneven floors.
  • Ships in two sections; K-57 welded field joint supplied at no extra cost (field welding by others).

Specifications

Model DTS-U30-108L (Left-hand entry)
Overall Dimensions 59" D x 108" W x 107" L
Backsplash 10-1/2" H, tile edge, 2" return
Sink Bowl 20" x 20" x 8" deep, 14-ga 304 SS
Top Thickness 14-ga 304 stainless steel
Legs / Bracing 16-ga 304 SS legs with front-to-back crossrails
Feet Adjustable stainless steel bullet feet
Drain 1-1/2" IPS basket-type waste
Faucet Holes 8" on center (faucet not included)
Shipping Configuration Ships in two pieces; K-57 field joint provided (weld by others)
Certifications NSF

Verify dishmachine compatibility with Advance Tabco’s online chart or contact us before ordering.

Important: Dishwasher, disposer adapter, and faucet shown in photos are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Height

44.5in

Width

108.0in

Depth

108.0in

Shipping Weight

525.0lbs

Shape

u-shaped

Width (side - side) OA

97" - 108"

Splash Height

10"H splash

Stainless Series

300 series

Direction

left to right

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Specifications

Dishtable, soiled, u-shaped, attaches to left of dish machine operator, 59" x 108" x 107" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others)
