Advance Tabco  |  Special Value Series  |  SKU: DTS-S70-96L-X  |  UPC: 747545122766

Advance Tabco DTS-S70-96L-X Special Value Series Compartment Sinks

$1,342.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

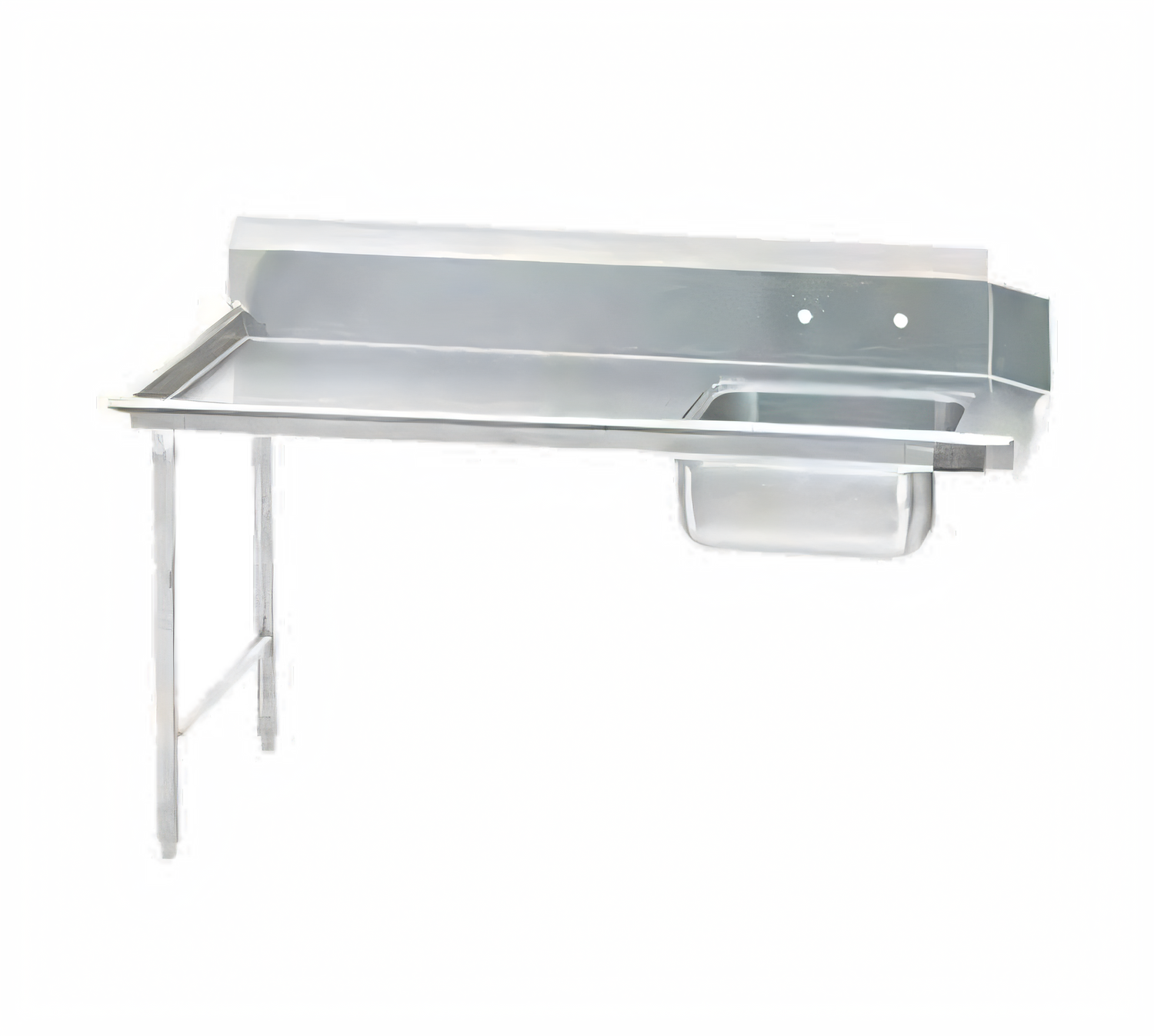

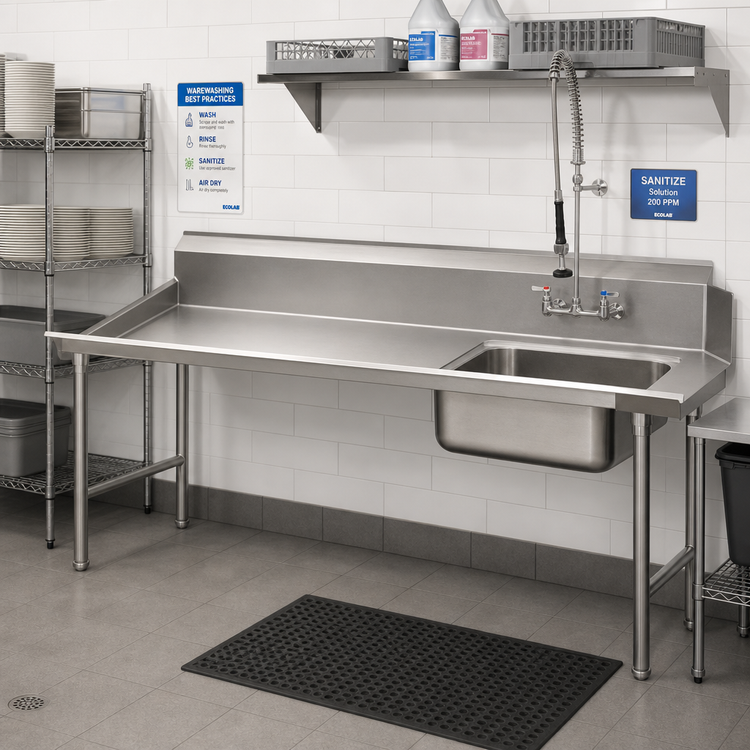

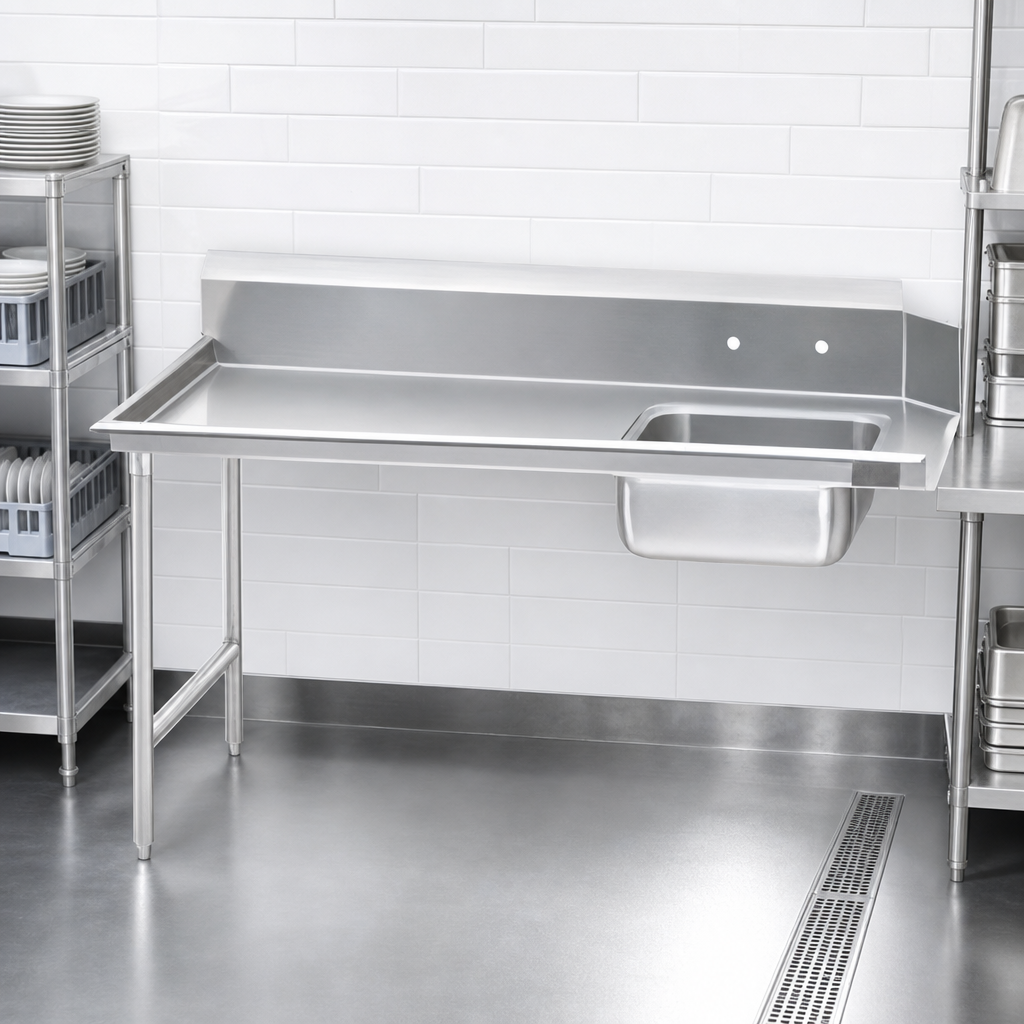

Special Value Series Straight Soil Dishtable – 95"W, Left Side

Advance Tabco • Model DTS-S70-95L | 16 ga 304 Stainless Steel

Built for busy dish rooms that need rock-solid performance without the custom price tag, the Advance Tabco Special Value Series straight soil dishtable delivers NSF-ready durability, quick installation, and the ergonomic features operators ask for.

Key Features
  • Left-hand straight soil table – mounts to the entry side of your dish machine for efficient scrap & pre-rinse workflow.
  • Heavy-duty 16 ga 304 stainless steel top with tile edge for fast, sanitary field installation.
  • Integrated 20" × 20" pre-rinse sink (5" deep) supplied with 1 ½" IPS basket drain.
  • 10 ½" backsplash with 2" return stops overspray; pre-punched (8" O.C.) for a splash-mount faucet (faucet sold separately).
  • TIG-welded seams blended to a satin finish for easy wipe-down and long service life.
  • 1 ⅝"-diameter 304 stainless steel legs with welded crossrails & adjustable bullet feet keep the table rock solid on uneven floors.
  • NSF listed and ready for demanding commercial kitchens.
Specifications
Overall width 95" / 241.3 cm
Depth (front → back) 30" / 76.2 cm
Working height 34" to tabletop
Backsplash height 10 ½" with 2" return
Sink bowl size 20" × 20" × 5" deep
Top material 16 ga 304 stainless steel
Legs / bracing 16 ga 304 stainless steel, TIG welded with crossrails
Drain 1 ½" IPS basket (included)
Faucet holes (2) – 8" centers on backsplash
Approx. weight 135 lb / 61.2 kg
NSF listed Yes
Dish machine compatibility: This table accommodates most 44- and 66-series conveyor & door-type machines. Certain brands may require a bowl relocation (DTA-76), backsplash notch (DTA-78), or other Smart Fabrication™ modifications. Always verify your machine using the Advance Tabco Compatibility Chart before ordering.
Popular Accessories (sold separately)
  • 8" center splash-mount pre-rinse faucet
  • Stainless steel wall shelf for rack storage
  • Stainless undershelf for bus tubs & trays

Need a different length, sink location, or a matching clean dishtable? Ask about Advance Tabco Smart Fabrication™ for fast custom quotes.

All dimensions are typical; manufacturing tolerance is ±0.5".

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Special Value Series

Height

44.0in

Width

95.0in

Depth

30.0in

Shipping Weight

115.0lbs

Splash Height

10"H splash

Width (side - side) OA

85" - 96"

Direction

left to right

Stainless Series

300 series

Shape

straight

Leg Type

stainless steel legs

Stainless Gauge

16 gauge

Specifications

Special Value Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 95"W, 16/304 stainless steel (Special Value NET Pricing)
