Advance Tabco Special Value Series Straight Soil Dishtable – 71"W (Right-Side)
DTS70 Series | 16 Gauge 304 Stainless SteelEngineered for high-volume warewashing lines, this Special Value Series straight soil dishtable attaches to the operator’s right side of your dish machine, channeling soiled wares through a rugged 71-inch work surface with a built-in pre-rinse sink and extra-high backsplash. All-stainless construction, TIG-welded seams, and welded cross rails deliver long-term durability at an unbeatable value.
Key Features

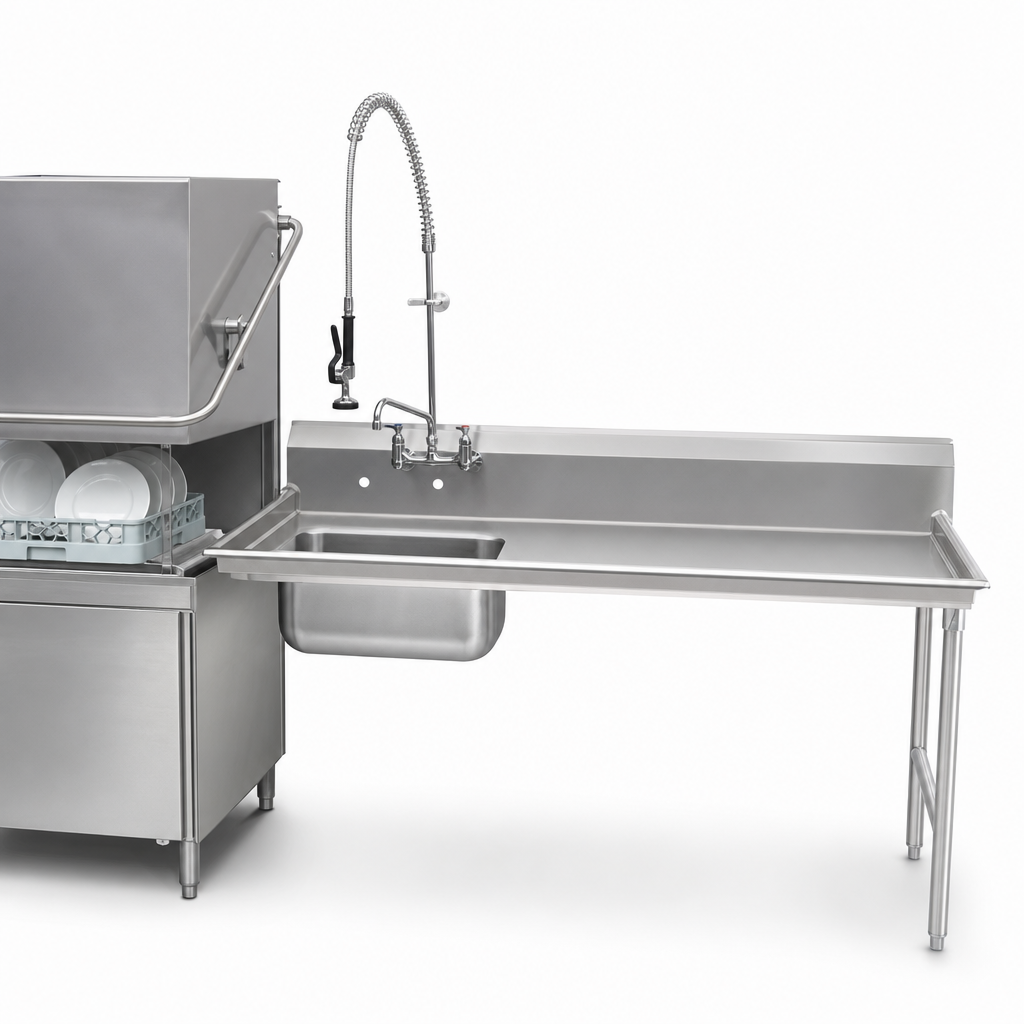

- Right-hand straight soil configuration feeds directly into the dish machine.
- Tile-edge rim for fast, flush installation against tiled walls.
- Pre-rinse sink: 20" × 20" × 5" deep with 1 ½" IPS basket drain (included).
- 10 ½" backsplash with 2" turndown and wall clips keeps splashes off surrounding surfaces.
- Faucet punchings on 8" centers (faucet sold separately).
- 16 ga 304 stainless steel top, legs, and welded cross bracing for maximum strength.
- All TIG-welded seams ground and polished to a sanitary satin finish.
- Adjustable stainless steel bullet feet level the table on uneven floors.
- NSF listed and ready for commercial food-service use.
Specifications
Series / Type | DTS70 Special Value – Straight Soil |
---|---|
Overall Width | 71" |
Mounting Orientation | Right of dish-machine operator |
Top Material | 16 ga 304 stainless steel |
Legs & Bracing | 16 ga 304 stainless steel legs with welded cross rails |
Sink Bowl Size | 20" × 20" × 5" deep |
Backsplash Height | 10 ½" |
Faucet Centers | 8" O.C. |
Drain | 1 ½" IPS basket-type (included) |
Feet Adjustment | 1" range – stainless steel bullet feet |
NSF Certification | Yes |
Perfect For
- Restaurants, hotels, and banquet halls
- Institutional & healthcare kitchens
- School and university dining services
- Any operation seeking an economical, heavy-duty soil table
Looking for a different length or a left-hand configuration? Ask about additional DTS70 models or Advance Tabco’s Smart Fabrication™ custom options.
