Advance Tabco  |  Special Value Series  |  SKU: DTS-S70-72L-X  |  UPC: 747545122704

Advance Tabco DTS-S70-72L-X Special Value Series Compartment Sinks

$1,066.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

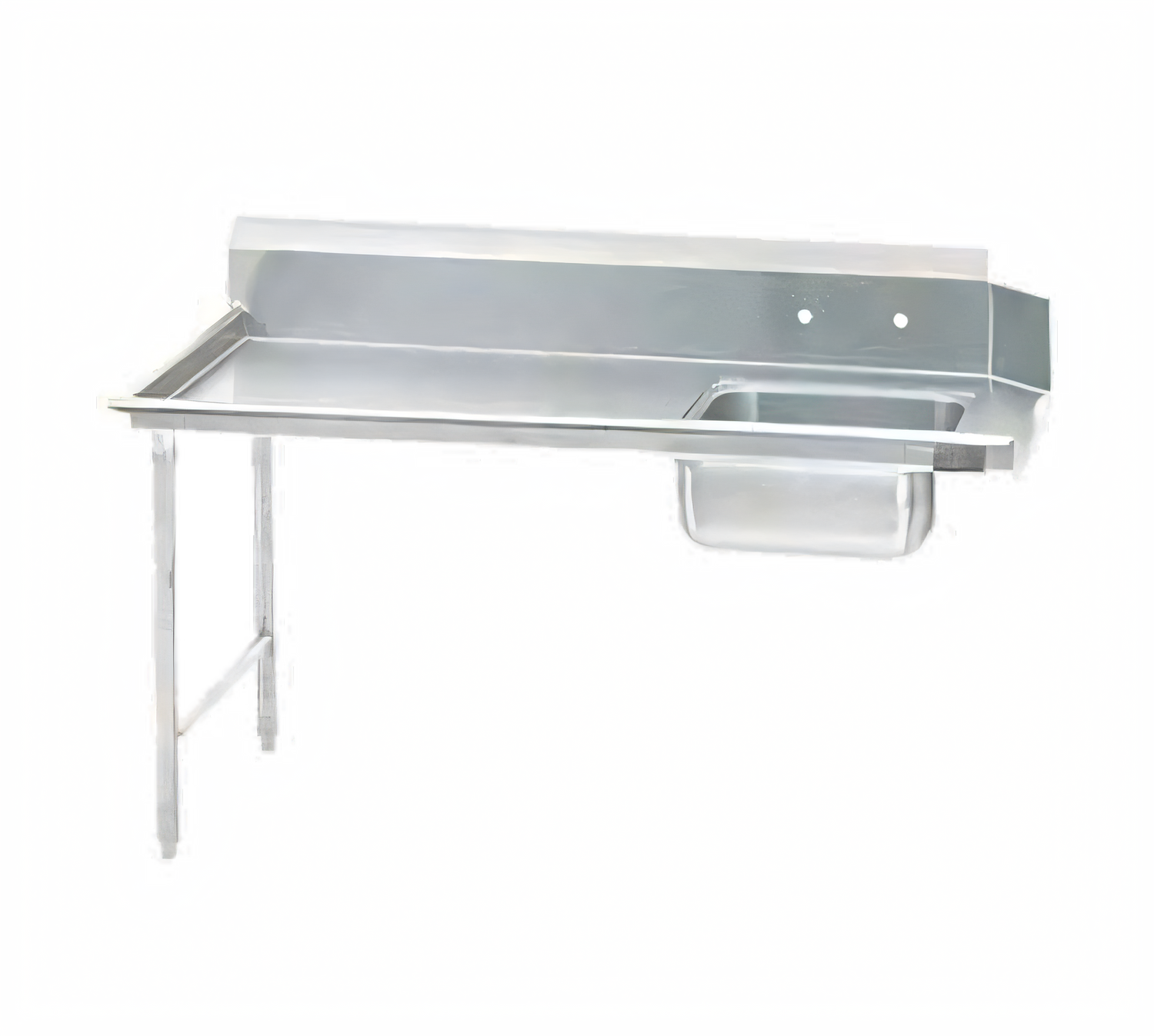

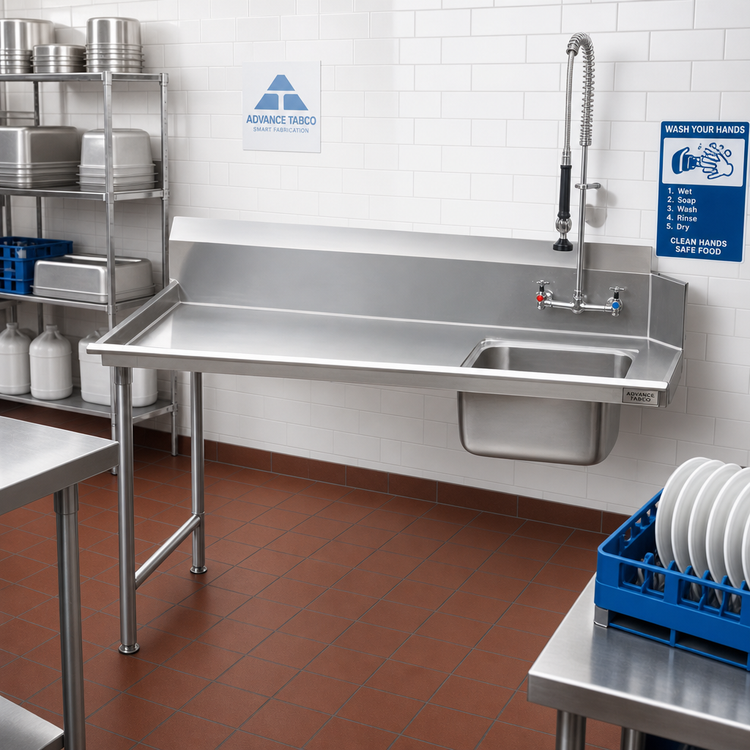

Special Value Series 71" Soil Straight Dishtable – Left Side

Advance Tabco Model DTS-S70-72L

Boost ware-washing throughput without busting the budget. This Special Value Series soil table mounts directly to the left side of your dish machine, giving staff a rugged pre-rinse station and ample landing space for soiled wares—all in one NSF-listed unit.

Why It Belongs In Your Dish Room
  • Heavy-duty 16 ga. type 304 stainless steel top stands up to constant banging, scraping & chemicals.
  • 5" deep 20" × 20" pre-rinse sink bowl with 1 ½" IPS basket drain (included).
  • 10 ½" high tile-edge backsplash with 2" return and wall clips for a watertight, grout-free seal.
  • Faucet holes punched on 8" centers—just add your choice of pre-rinse faucet (sold separately).
  • All TIG-welded; seams are ground & polished to a smooth satin finish for easy cleaning.
  • 1 ⅝" O.D. stainless steel legs with welded crossrails and 1" adjustable bullet feet for rock-solid stability.
  • Ships fully assembled—uncrate, level, and you’re ready to rinse.
Specifications
Overall length 71" (1803 mm)
Front-to-back depth 30" (762 mm)
Work height 34" to deck; 44 ½" to top of backsplash
Backsplash height 10 ½" with 2" return
Sink bowl size 20" × 20" × 5" deep
Material 16 ga. 304 stainless steel (top & legs)
Mount orientation Soil table – attaches to left side of dish machine (operator facing)
Drain 1 ½" IPS basket type (included)
Faucet holes (2) Ø1 ¼" on 8" centers
Approx. ship weight 115 lb (52 kg)
Certifications NSF
Optional Accessories
  • Deck-mount pre-rinse faucet
  • Stainless steel wall shelf
  • Stainless steel undershelf
Important: Verify dish machine compatibility before ordering. Consult the Advance Tabco Dish Machine Compatibility Chart or call 1-800-645-3166.

Faucet and accessories shown in photos are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Special Value Series

Height

44.0in

Width

71.0in

Depth

30.0in

Shipping Weight

95.0lbs

Leg Type

stainless steel legs

Direction

left to right

Stainless Series

300 series

Splash Height

10"H splash

Stainless Gauge

16 gauge

Shape

straight

Width (side - side) OA

61" - 72"

Specifications

Special Value Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 71"W, 16/304 stainless steel
