Advance Tabco DTS-S30-72R Compartment Sinks
Description

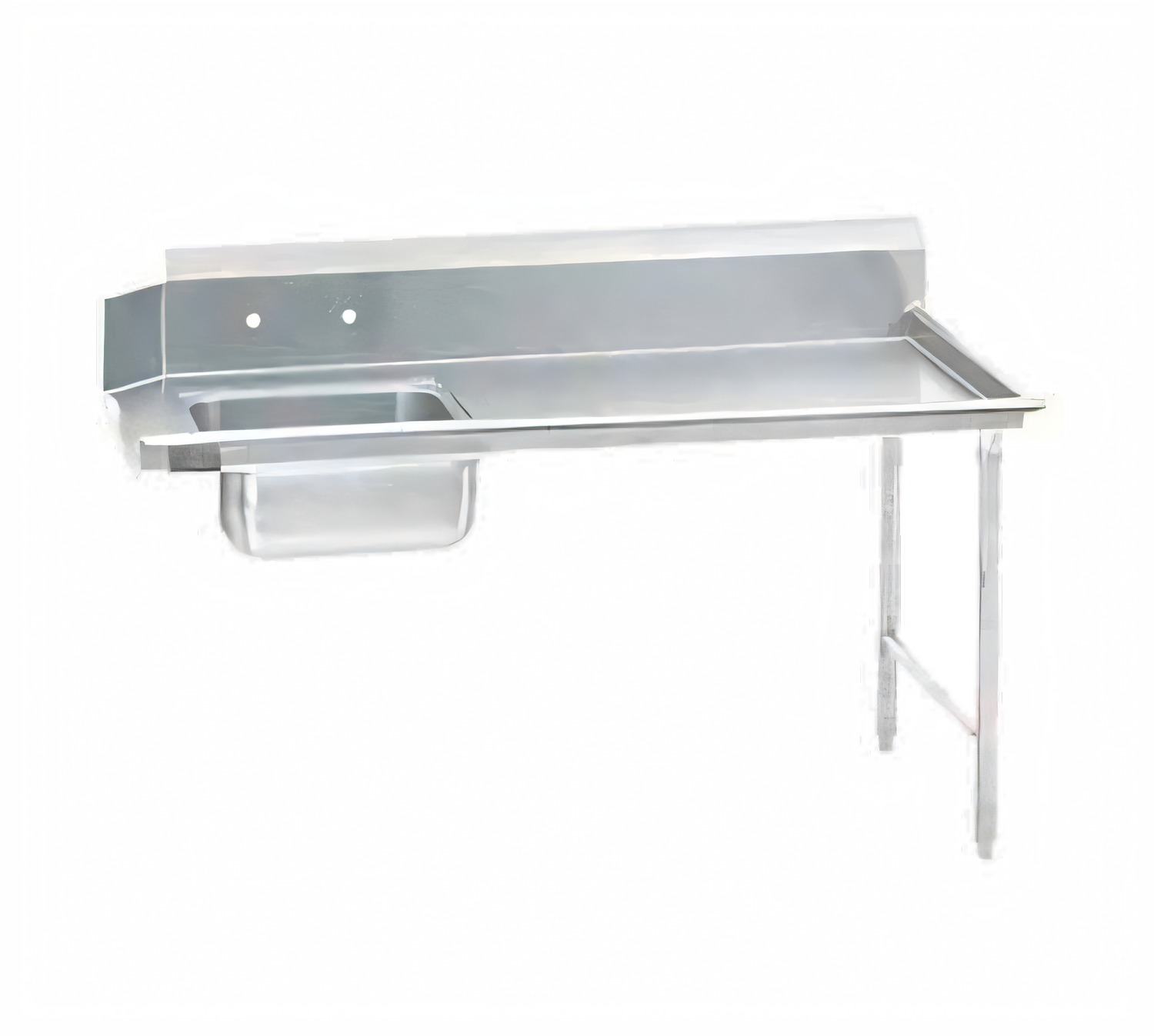

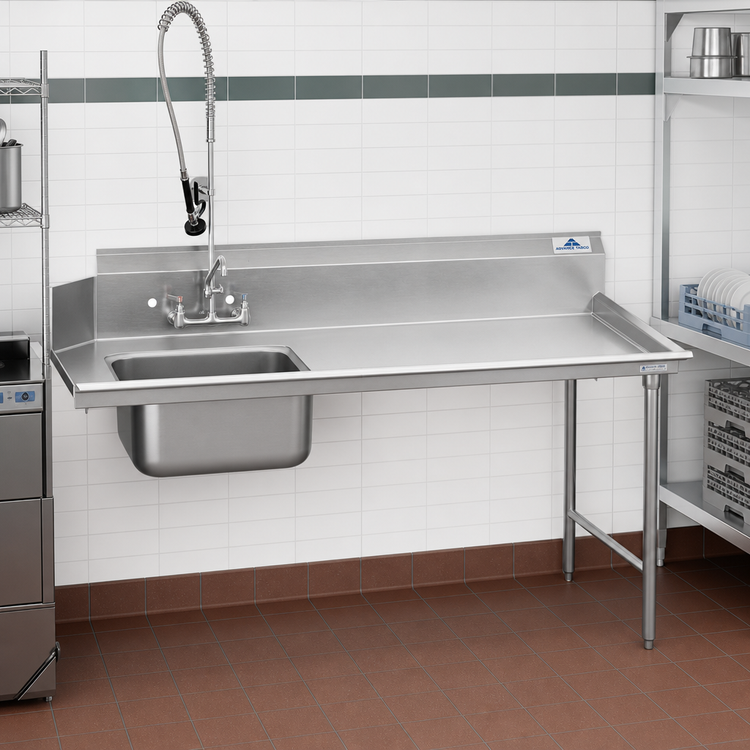

Advance Tabco DTS-S30-72R Spec-Line Straight Soil Dishtable
71 in. long • right-hand attachment • 14 ga 304 stainless steelEngineered for high-volume warewashing, this heavy-duty Spec-Line soil table bolts directly to the operator’s right side of your dish machine, creating a seamless scrape-and-load workflow. A rugged 14 ga. 304 stainless work surface, extra-large backsplash, and integrated pre-rinse sink keep mess contained and your line moving.
Key Benefits
- 14 ga. 304 SS top withstands constant pan banging and harsh chemicals.

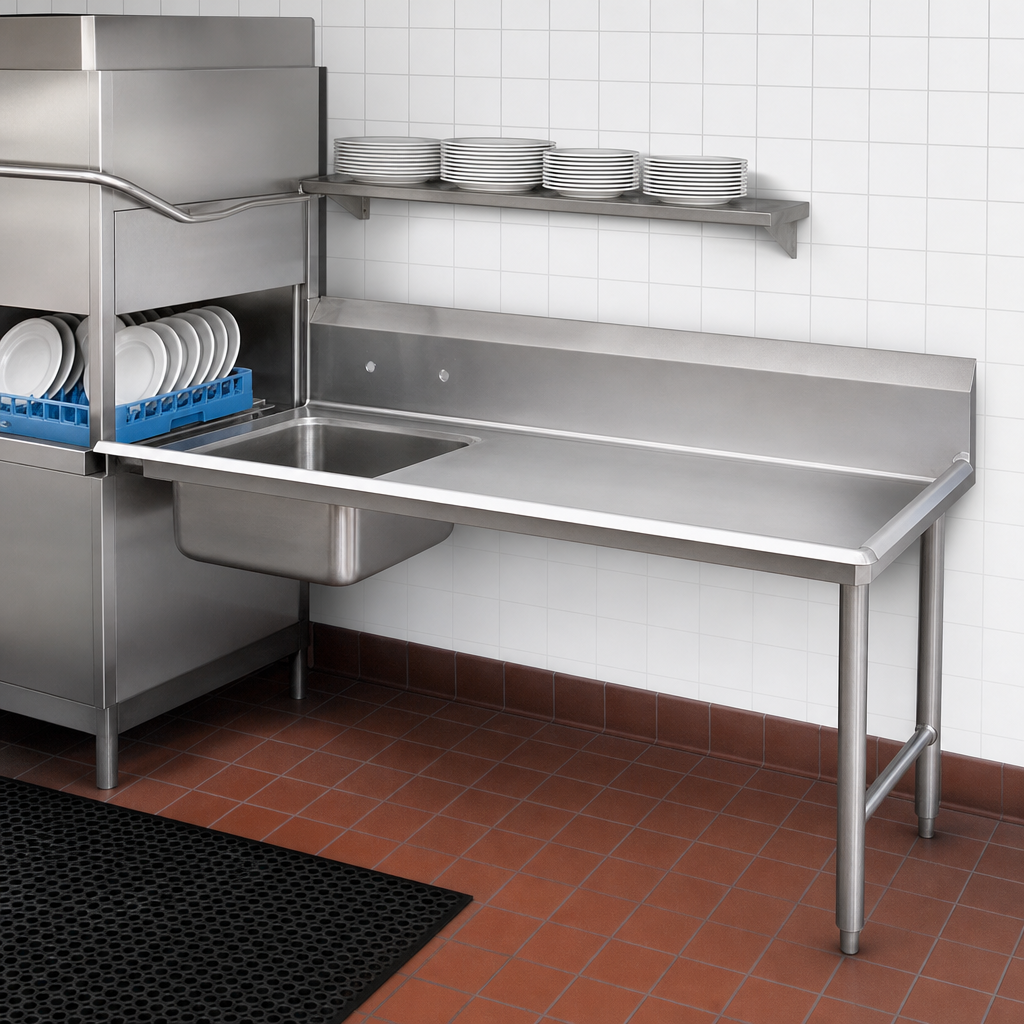

- Right-hand configuration aligns with straight-through dish machines for efficient traffic flow.
- 20" × 20" × 8" deep pre-rinse sink speeds scraping and reduces food solids entering the washer.
- 10-1/2" high backsplash with 2" return and tile edge protects walls and simplifies sealing.
- Includes stainless pre-rinse basket and slide bar* to capture flatware and debris.
- 1-5/8" Ø 16 ga. 304 SS legs with welded crossrails front-to-back maximize stability.
- Stainless bullet feet adjust 1" for quick leveling on uneven floors.
- TIG-welded seams are blended to a sanitary satin finish; NSF listed.
Dimensions & Construction
| Overall length | 71" (nominal 6 ft) |
|---|---|
| Front-to-back depth | 30" |
| Working height | 34" (bullet feet closed) |
| Backsplash height | 10-1/2" with 2" return |
| Sink bowl size | 20" × 20" × 8" deep (welded) |
| Top material | 14 ga. 304 stainless steel |
| Leg / bracing material | 16 ga. 304 stainless steel |
| Drain connection | 1-1/2" IPS basket-type waste (included) |
| Faucet holes | (2) holes on 8" centers (faucet not included) |
| Approx. weight | 115 lb |
What’s Included
- DTS-S30-72R soil dishtable (right-hand)
- 20" × 20" × 8" welded sink bowl
- Stainless pre-rinse basket
- Slide bar*
- Basket-type waste drain kit
- (4) 1-5/8" Ø stainless legs with welded crossrails & adjustable bullet feet
Perfect For
- High-volume restaurants & cafeterias
- Hotels, resorts, convention centers
- Catering & banquet kitchens
- School, hospital & institutional foodservice
* Slide bar ships only when disposer adapter K-461 or K-461A is specified.
Faucet, disposer, and dish machine sold separately. Confirm dish machine compatibility before ordering—
Advance Tabco offers Smart Fabrication™ modifications when required.
