Advance Tabco DTS-D70-96L Compartment Sinks
Description

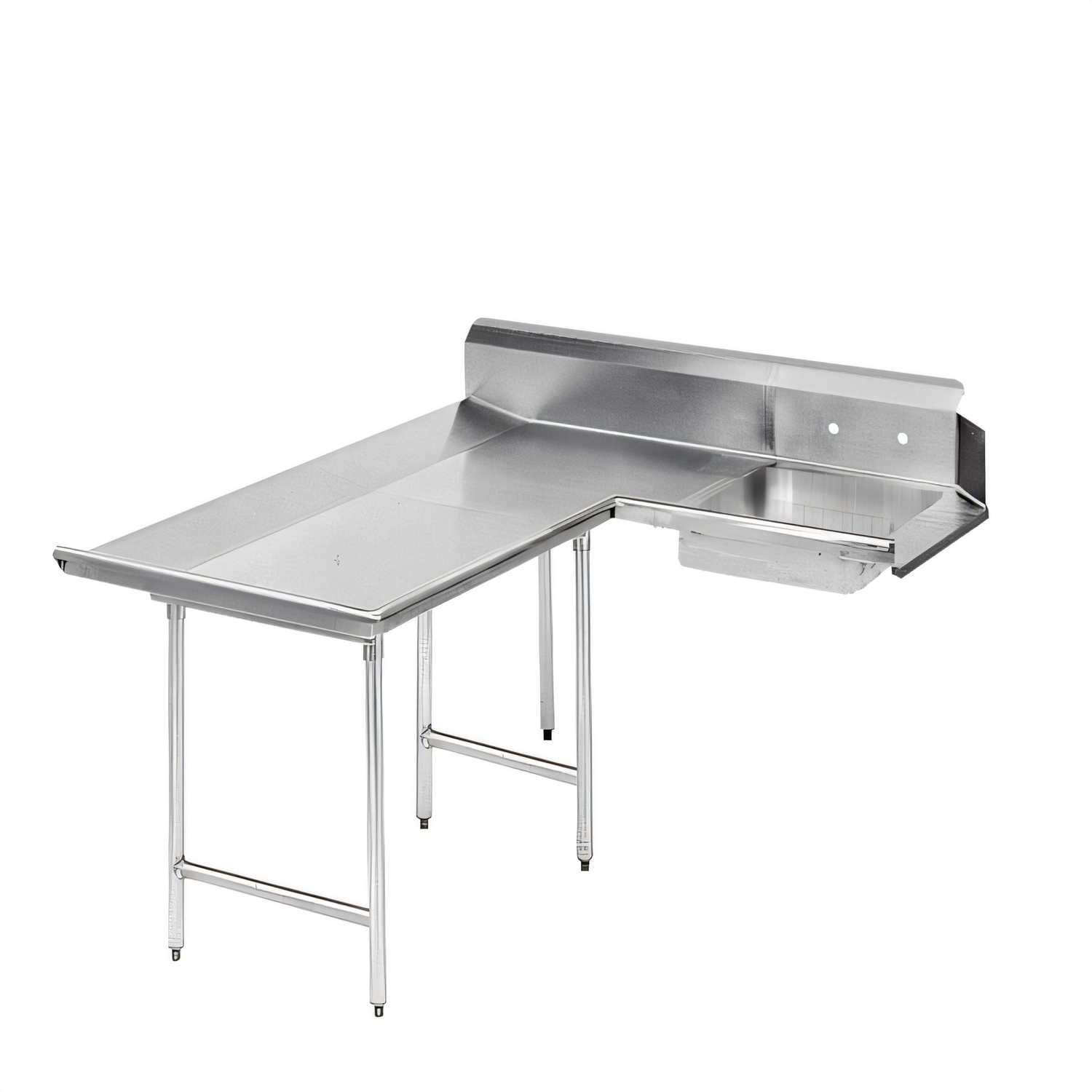

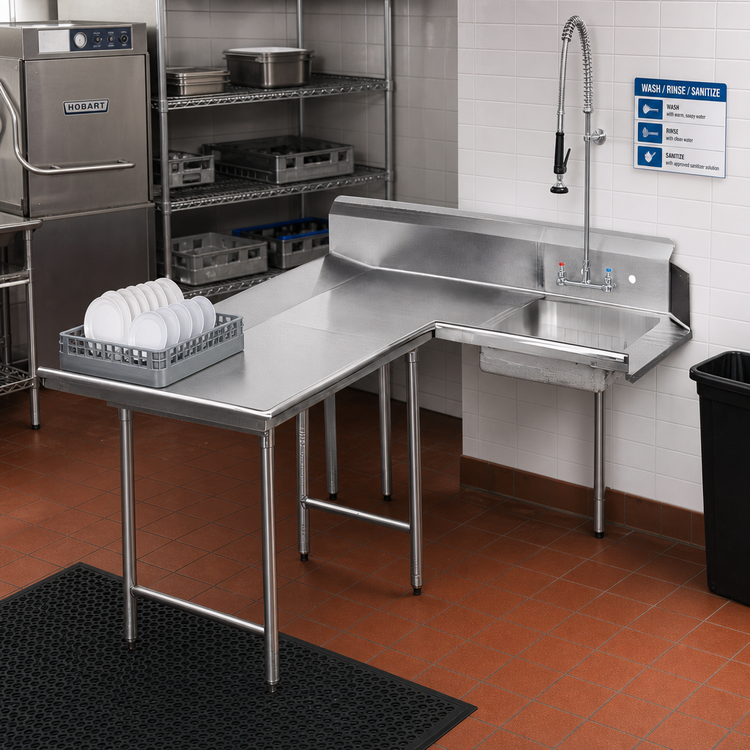

Advance Tabco 95" L-Shaped Dishlanding Soil Dishtable – Left Side
Model: DTS-D70-96L • Standard Series (16 ga 304 SS)Built for high-volume dish rooms, this 95 inch soil dishtable bolts directly to the left side of your dish machine, giving staff a generous landing area plus an integrated pre-rinse sink to keep the scrape-and-soak process moving fast. 100 % TIG-welded 304 stainless steel construction means years of trouble-free, corrosion-resistant service.
Key Features
- 16-gauge 304 stainless steel top with satin finish—NSF approved & built to endure harsh ware-washing chemicals.
- Extra-large 10 ½" backsplash with 2" return and new tile-edge design for a quick, sanitary wall seal.

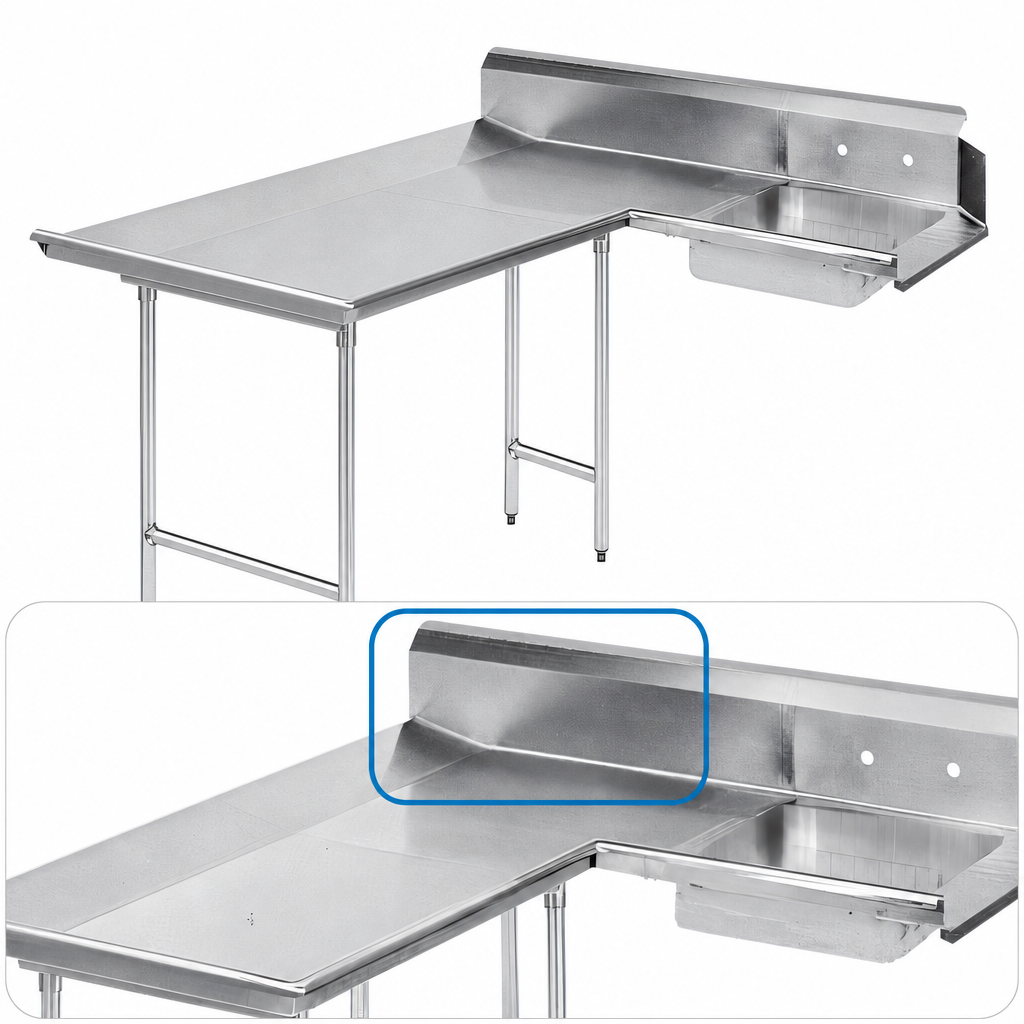

- L-shaped “dishlanding” shelf keeps racks at the perfect height for smooth loading into the machine.
- Integrated 20" × 20" × 5" pre-rinse sink speeds up scraping and rinsing; 1 ½" IPS basket drain included.
- Faucet holes on 8" centers—ready for your choice of pre-rinse faucet (sold separately).
- Heavy-duty 1 ⅝" Ø, 16-ga 304 SS legs with welded crossrails and adjustable stainless bullet feet for rock-solid stability.
- All TIG-welded; gussets fully welded to a stainless support channel and blended for a seamless look.
- Compatible with most 44" & 66" conveyor or door-type dish machines—see compatibility chart or call us to confirm.
Specifications
| Overall length (nominal) | 95" (8 ft) |
|---|---|
| Configuration | L-shaped, soil side, attaches to dish machine’s left (operator) side |
| Top material / gauge | 304 stainless steel / 16 ga |
| Backsplash | 10 ½" H with 2" return & tile edge |
| Sink bowl size | 20" W × 20" F-B × 5" D (pre-rinse) |
| Drain | 1 ½" IPS basket-type (included) |
| Faucet holes | Drilled on 8" centers (faucet not included) |
| Legs & bracing | 1 ⅝" Ø 304 SS, 16 ga with welded crossrails & adjustable SS bullet feet |
| Shipping weight | Approx. 255 lb |
| Certifications | NSF, Made in USA |
Popular Accessories (sold separately)
- Pre-rinse faucet assemblies
- Stainless steel wall shelves for chemical storage
- Undershelves for rack storage
Dimensions are ±0.5". Custom modifications available through Advance Tabco Smart Fabrication™.
