Advance Tabco DTS-D70-72L Compartment Sinks

$4,591.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

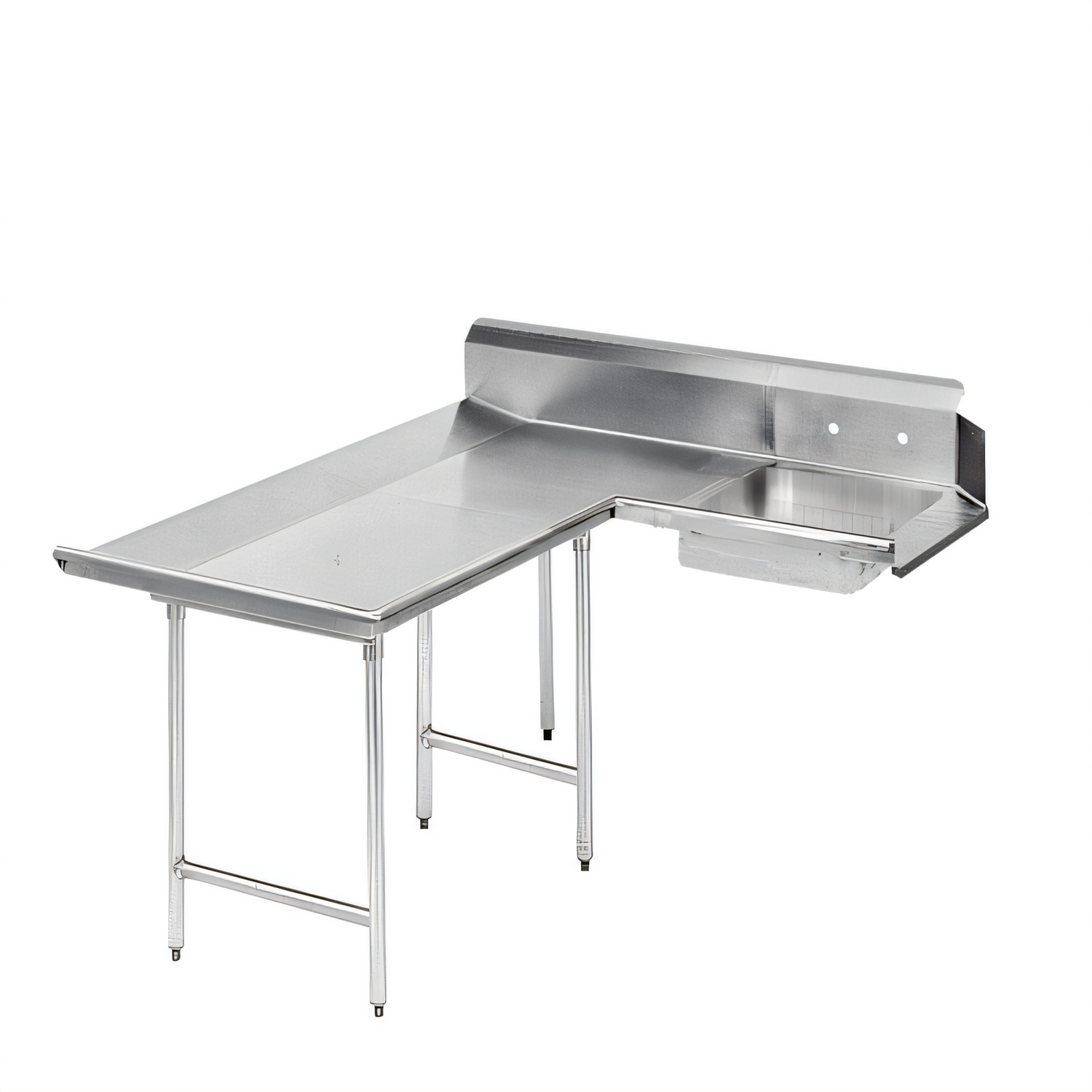

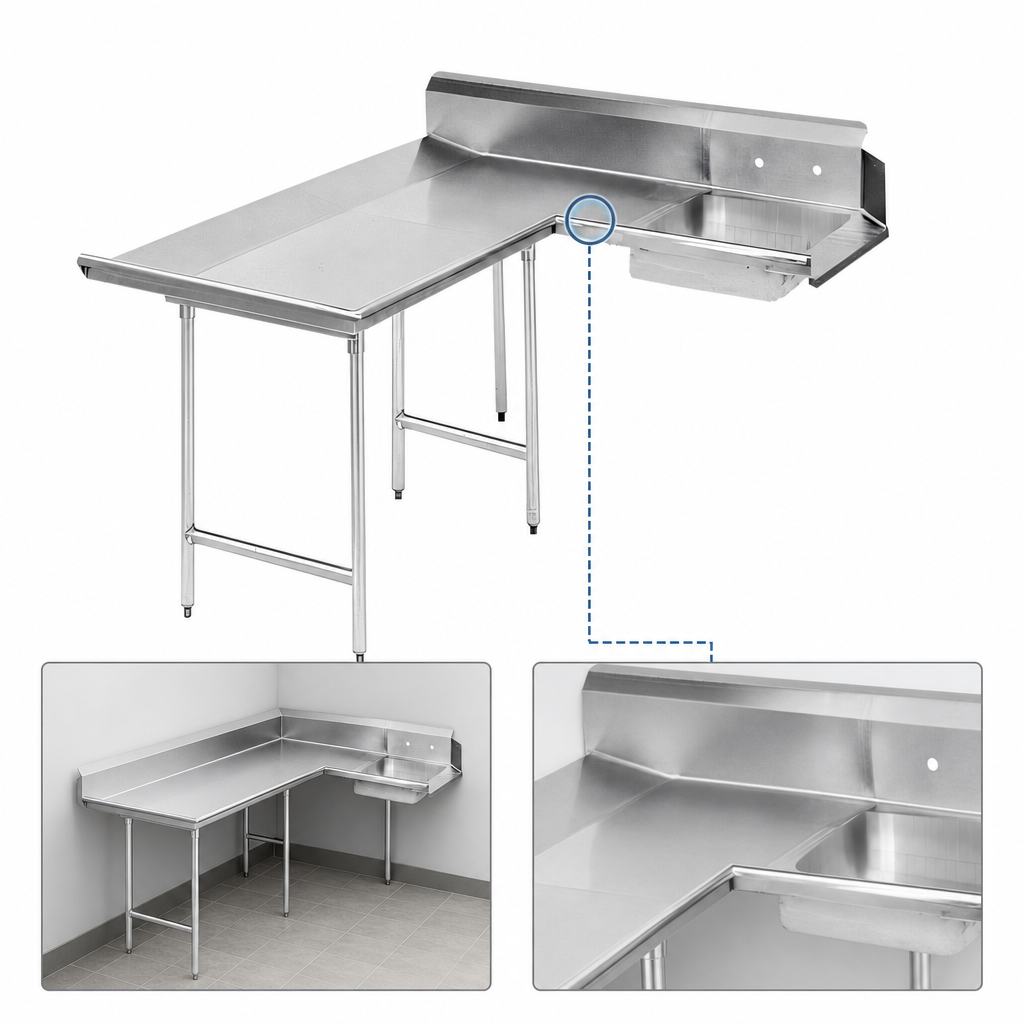

71" L-Shaped Dishlanding Soil Dishtable – Left Side

Advance Tabco | Standard Series | Model DTS-D70-72L

Streamline scrap, sort and rinse operations with this 6 ft. (nominal 71") Advance Tabco Dishlanding Soil Dishtable. Built for the operator’s left side, it provides a generous landing area, integrated pre-rinse sink and an extra-tall 10 ½" backsplash—giving your dish room a rugged, single-piece workstation that drops perfectly into place next to a commercial dish machine.

Why You’ll Love It

  • 16 ga. 304 series stainless steel top — corrosion-resistant, food-safe and easy to keep sanitary.
  • Tile-edge 10 ½" backsplash with 2" return for a clean, sealed installation against surrounding walls.
  • Integrated 20" × 20" × 5" deep pre-rinse sink bowl speeds up scraping and rinsing before warewashing.
  • Faucet holes pre-punched on 8" centers; accepts most commercial pre-rinse faucets (faucet sold separately).
  • Heavy-duty 1 ⅝"-diameter stainless steel legs with welded cross-rails eliminate wobble and boost load capacity.
  • Adjustable stainless steel bullet feet make it easy to level on uneven floors.
  • All TIG-welded construction; welds are ground and blended to a smooth satin finish for superior hygiene and appearance.
  • NSF certified and ready for demanding, high-volume kitchens.

Technical Specifications

Overall Length 71" nominal (6 ft.)
Configuration L-shaped landing; mounts left of dish machine (operator facing)
Top Material / Gauge 16 ga. 304 SS with satin finish
Backsplash 10 ½" H with 2" tile-edge return
Sink Bowl Size & Depth 20" × 20" × 5" deep (pre-rinse)
Drain 1 ½" IPS basket-type (included)
Faucet Holes 8" centers (faucet not included)
Legs / Supports 1 ⅝"-diameter 16 ga. 304 SS legs with welded stainless gussets & cross-bracing
Feet Stainless steel bullet feet, 1" adjustable
Certifications NSF

Always confirm dish-machine compatibility before ordering. A full compatibility chart is available at advancetabco.com.

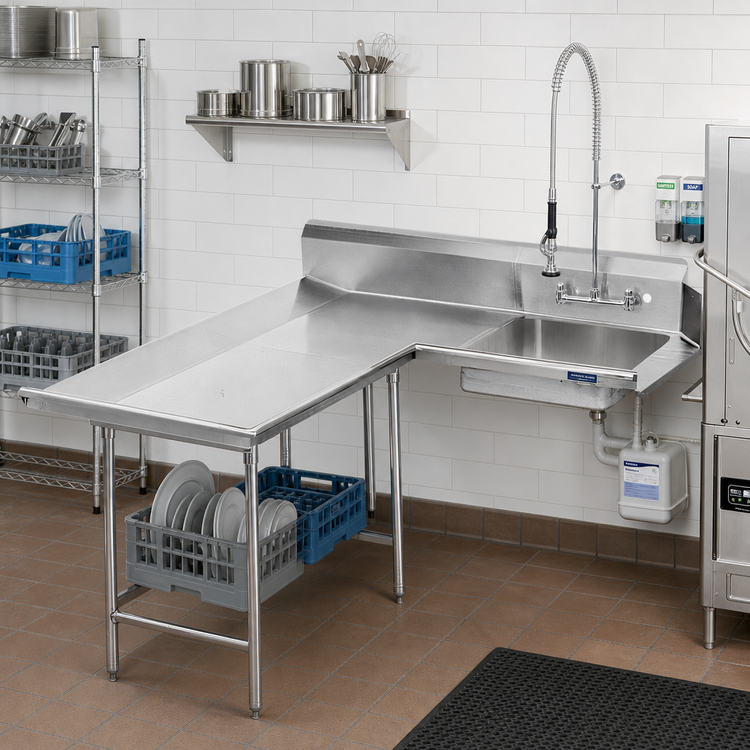

Heads-up: Pre-rinse faucet and scrap basket shown in some images are for demonstration only and are not included unless specifically added to your order.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

230.0lbs

Width (end - corner) OA

61" - 72"

Shape

corner

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Splash Height

10"H splash

Direction

left to right

Stainless Gauge

16 gauge

Leg Type

stainless steel legs

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 71" long, 16/304 stainless steel
