Advance Tabco  |  SKU: DTS-D70-60L  |  UPC: 747545120977

Advance Tabco DTS-D70-60L Compartment Sinks

$4,491.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

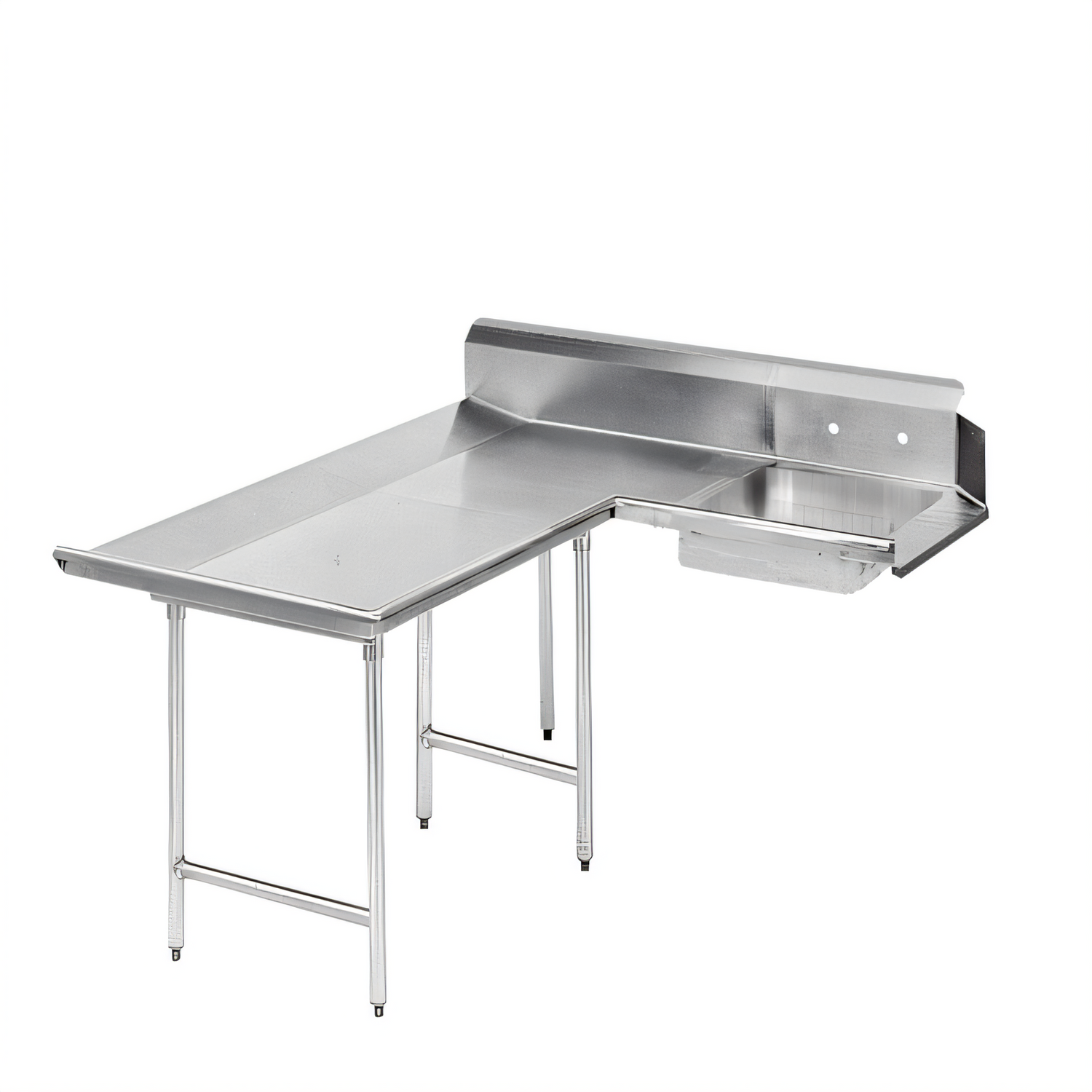

Advance Tabco DTS-D70-60L Dishlanding Soil Dishtable – 59" Left-Hand

L-shaped with landing | 16 ga 304 stainless steel | Pre-rinse sink included

Streamline your warewashing line with a rugged, space-saving dishtable that bolts directly to the left side of your dish machine. Built from heavy-duty 304 stainless steel and finished with an oversized 10-1/2" backsplash, the DTS-D70-60L keeps dirty wares contained while giving staff a generous landing ledge and integrated pre-rinse sink for efficient scraping and rinsing.

  • Upgraded 16 ga type 304 stainless steel top stands up to constant rack impact.
  • Tile-edge design and 2" return simplify installation and seal against the wall.
  • 20" × 20" × 5" pre-rinse sink bowl with 1-1/2" IPS basket drain (included).
  • Backsplash pre-punched on 8" centers for a deck-mount pre-rinse faucet (faucet not included).
  • Flat landing surface keeps racks level for safer loading and unloading.
  • (4) 1 5/8"-diameter 16 ga stainless steel legs with welded crossrails resist wobble.
  • Adjustable stainless bullet feet make fast work of uneven floors.
  • All TIG-welded seams are ground smooth to a sanitary satin finish.
  • NSF listed & proudly fabricated in the USA.

Quick Specs

Model DTS-D70-60L
Overall length 59" (nominal 5 ft)

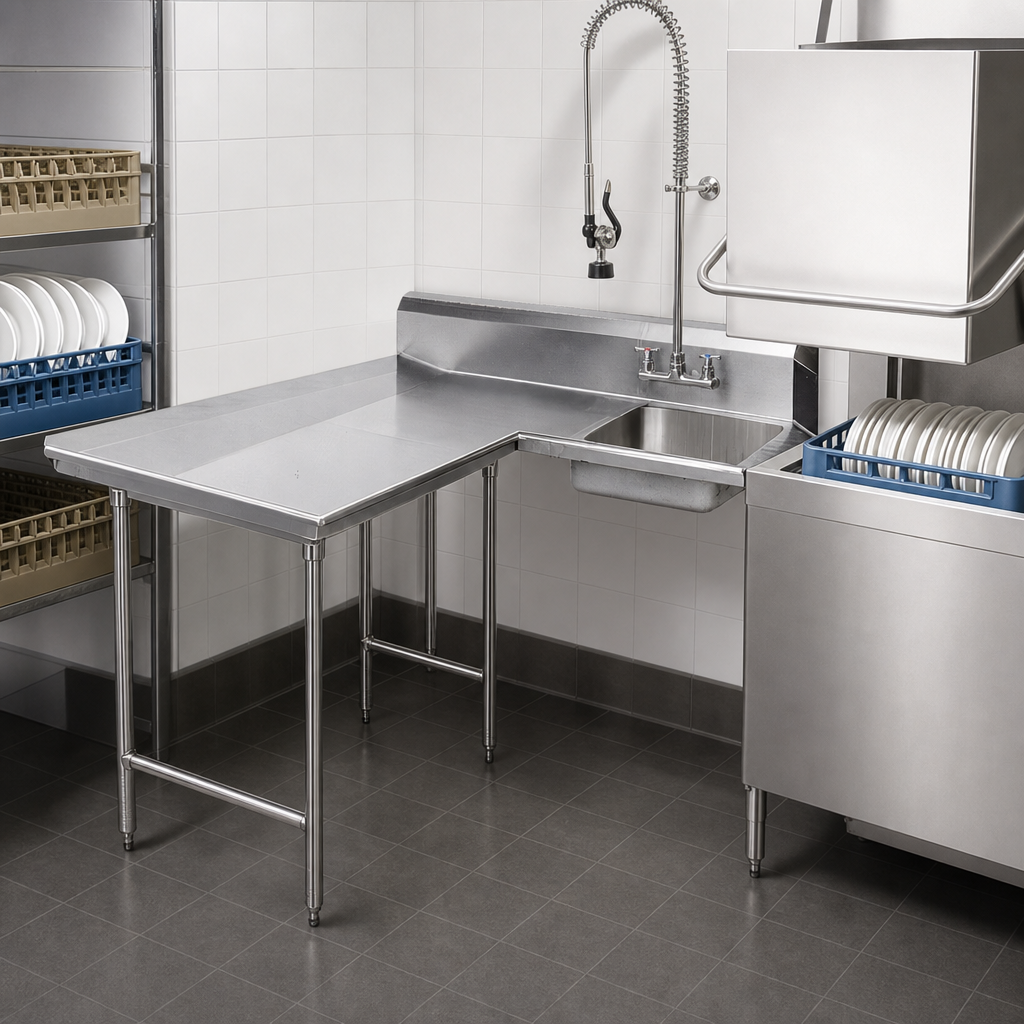

Layout Left-hand soil table (attaches to dish machine entry side)
Top material / gauge 16 ga 304 stainless steel
Backsplash height 10-1/2" H with 2" return, tile edge
Sink bowl size 20" × 20" × 5" deep
Drain connection 1-1/2" IPS basket-type (included)
Legs (4) 1 5/8" O.D. 16 ga 304 stainless steel
Bracing Welded stainless steel crossrails
Feet Adjustable stainless bullet feet, 1" height range
Shipping weight Approx. 205 lb

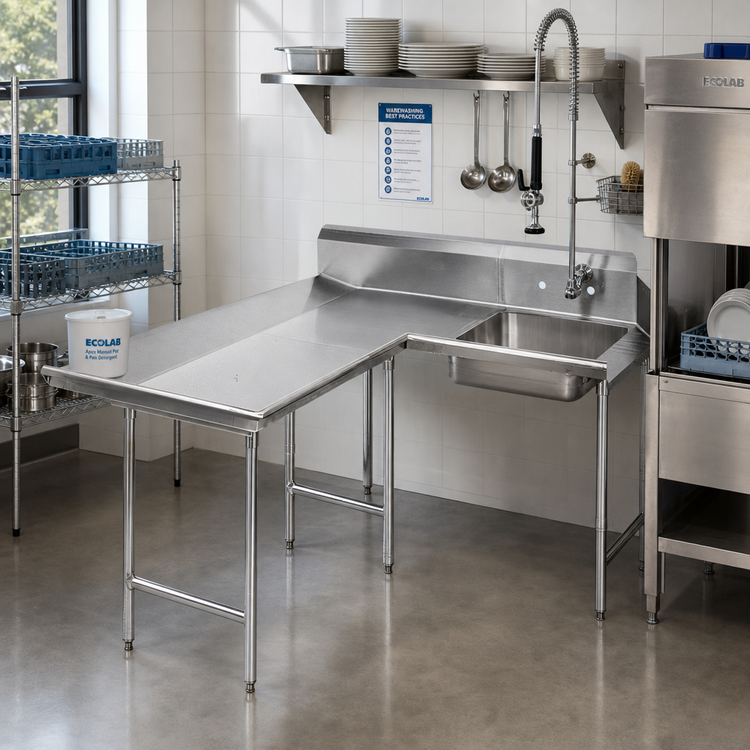

Note: Pre-rinse faucet, scrap basket, and dish machine are shown for reference only and are sold separately. Always verify dish machine compatibility before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

215.0lbs

Splash Height

10"H splash

Width (end - corner) OA

49" - 60"

Width (machine - corner) OA

61" - 72"

Shape

corner

Stainless Gauge

16 gauge

Stainless Series

300 series

Direction

left to right

Leg Type

stainless steel legs

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 59" long, 16/304 stainless steel
