Advance Tabco  |  SKU: DTS-D70-120L  |  UPC: 747545120915

Advance Tabco DTS-D70-120L Compartment Sinks

$5,191.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

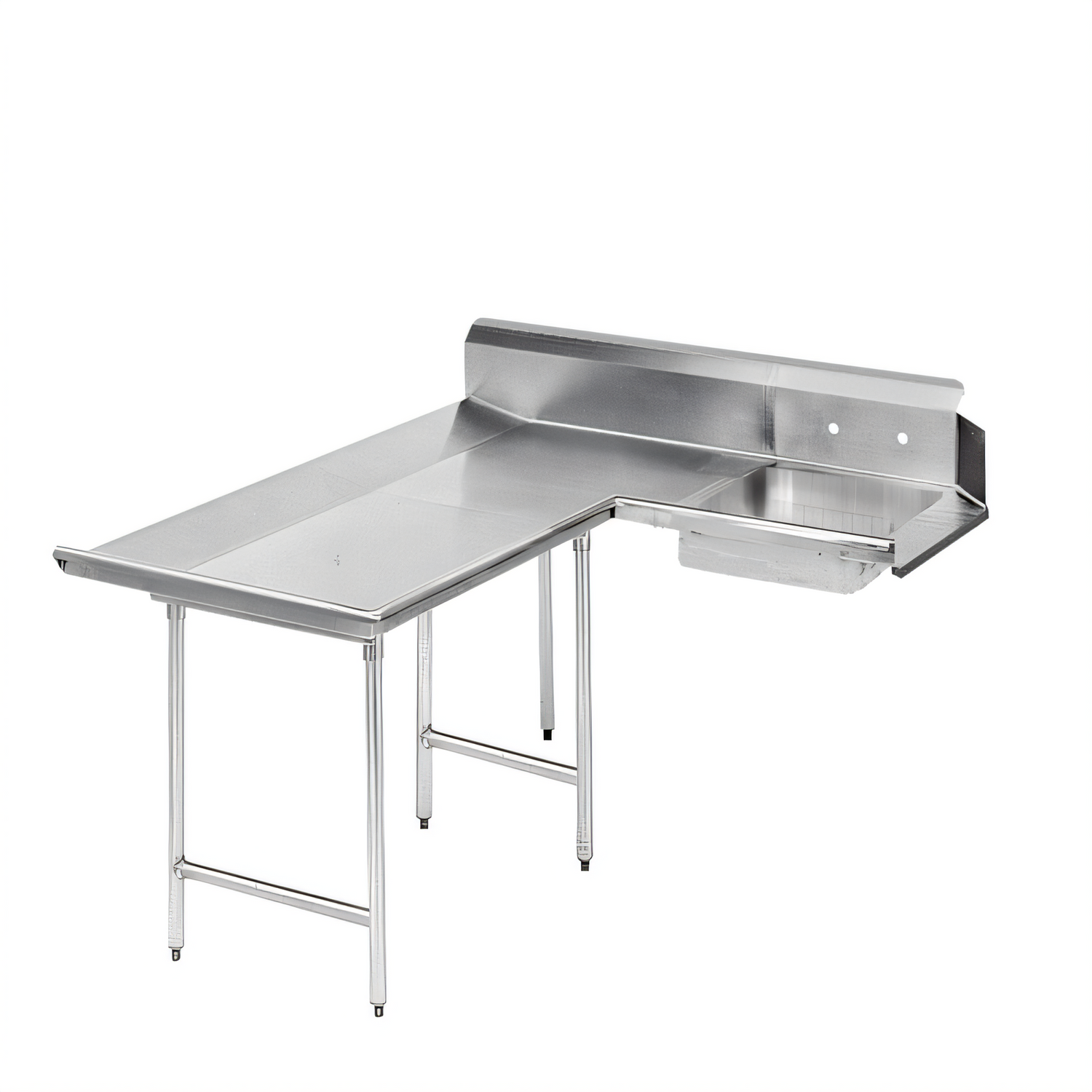

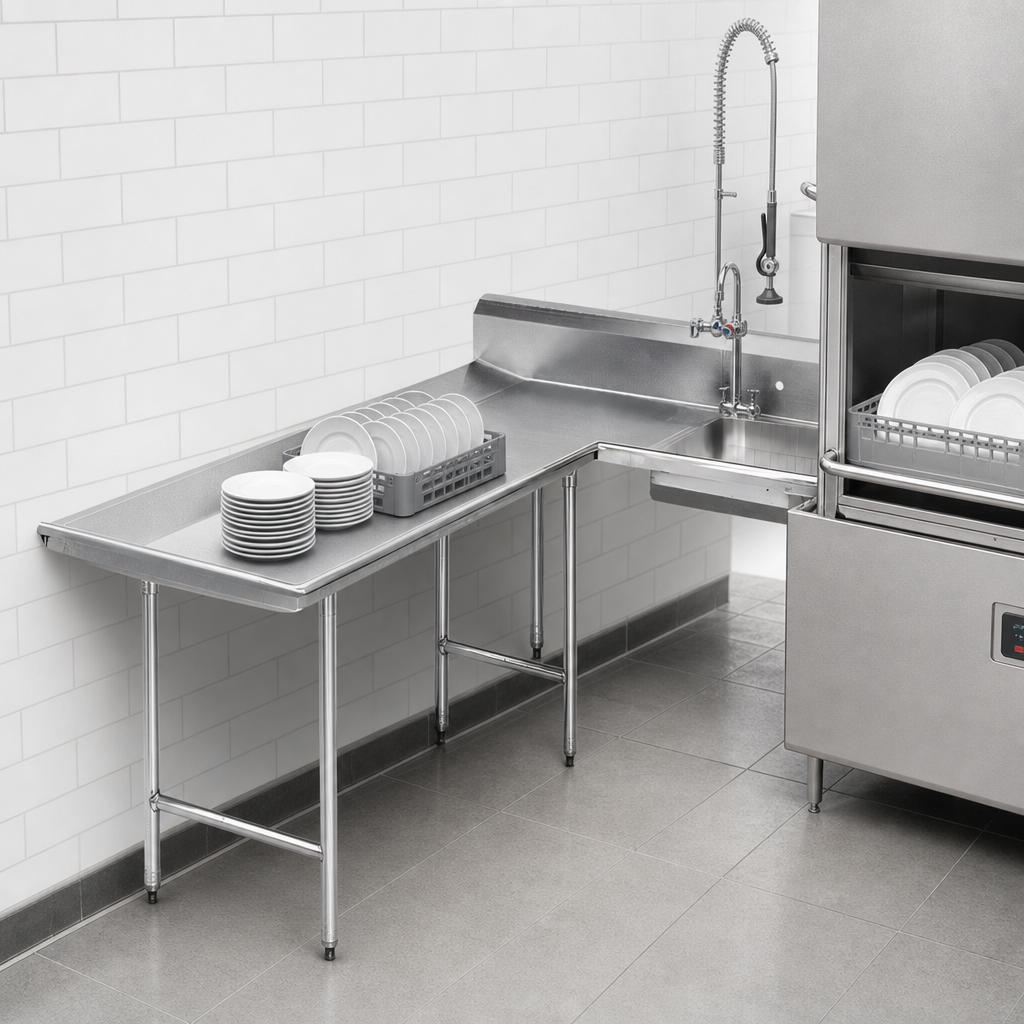

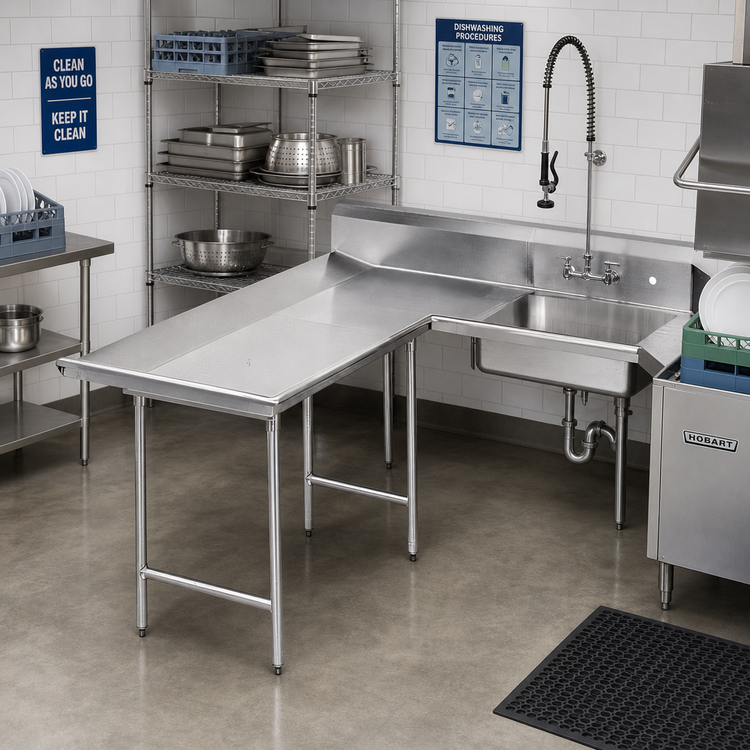

Advance Tabco Dishlanding Soil Dishtable – 10 ft Left-Hand Landing

Model DTS-D70-120L  |  119" L-Shaped Soil Table with Pre-Rinse Sink

Engineered for busy commercial kitchens, this left-side Dishlanding Soil Dishtable streamlines the flow of dirty ware into your dish machine while protecting walls and work areas from splashes and debris.

Key Features

  • Left-hand configuration – mounts to the operator’s left side of compatible dish machines.
  • 119" overall length with generous rack landing area for easy loading and staging.
  • Heavy-duty 16 ga, 304 series stainless steel top resists corrosion, dents and daily abuse.
  • 10-1/2" high “extra-large” backsplash with 2" tile-edge return for quick, watertight installation.
  • 20" × 20" × 5" pre-rinse sink bowl complete with 1-1/2" IPS basket drain.
  • 1-5/8" O.D. stainless steel legs with welded crossrails and adjustable stainless bullet feet for rock-solid stability.
  • All TIG-welded construction; welds are blended to a smooth, sanitary satin finish.
  • Faucet holes pre-punched on 8" centers – ready for your choice of pre-rinse faucet.
  • NSF listed for food-service sanitation.

Specifications

Overall length 119" (nominal 10 ft)
Configuration L-shaped soil table, left-hand landing
Top material / gauge 16 ga 304 stainless steel
Backsplash height 10-1/2" with 2" tile-edge return
Sink bowl size 20" W × 20" L × 5" D
Drain 1-1/2" IPS basket-type (included)
Leg construction 1-5/8" O.D. 16 ga 304 stainless steel
Reinforcement Welded stainless gussets & crossrails
Approx. weight 380 lb
Compatibility Fits most high- & low-temperature dish machines (see Advance Tabco compatibility chart)

Looking for different lengths, right-hand flow, or added accessories? Ask about Advance Tabco Smart Fabrication™ for custom solutions.

Heads-up: Pre-rinse faucet assembly sold separately. Choose an 8"-center deck-mount unit to complete your station.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

305.0lbs

Shape

corner

Splash Height

10"H splash

Stainless Series

300 series

Width (machine - corner) OA

61" - 72"

Direction

left to right

Stainless Gauge

16 gauge

Width (end - corner) OA

109" - 120"

Leg Type

stainless steel legs

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 119" long, 16/304 stainless steel
