Advance Tabco DTS-D70-108R Compartment Sinks
Description

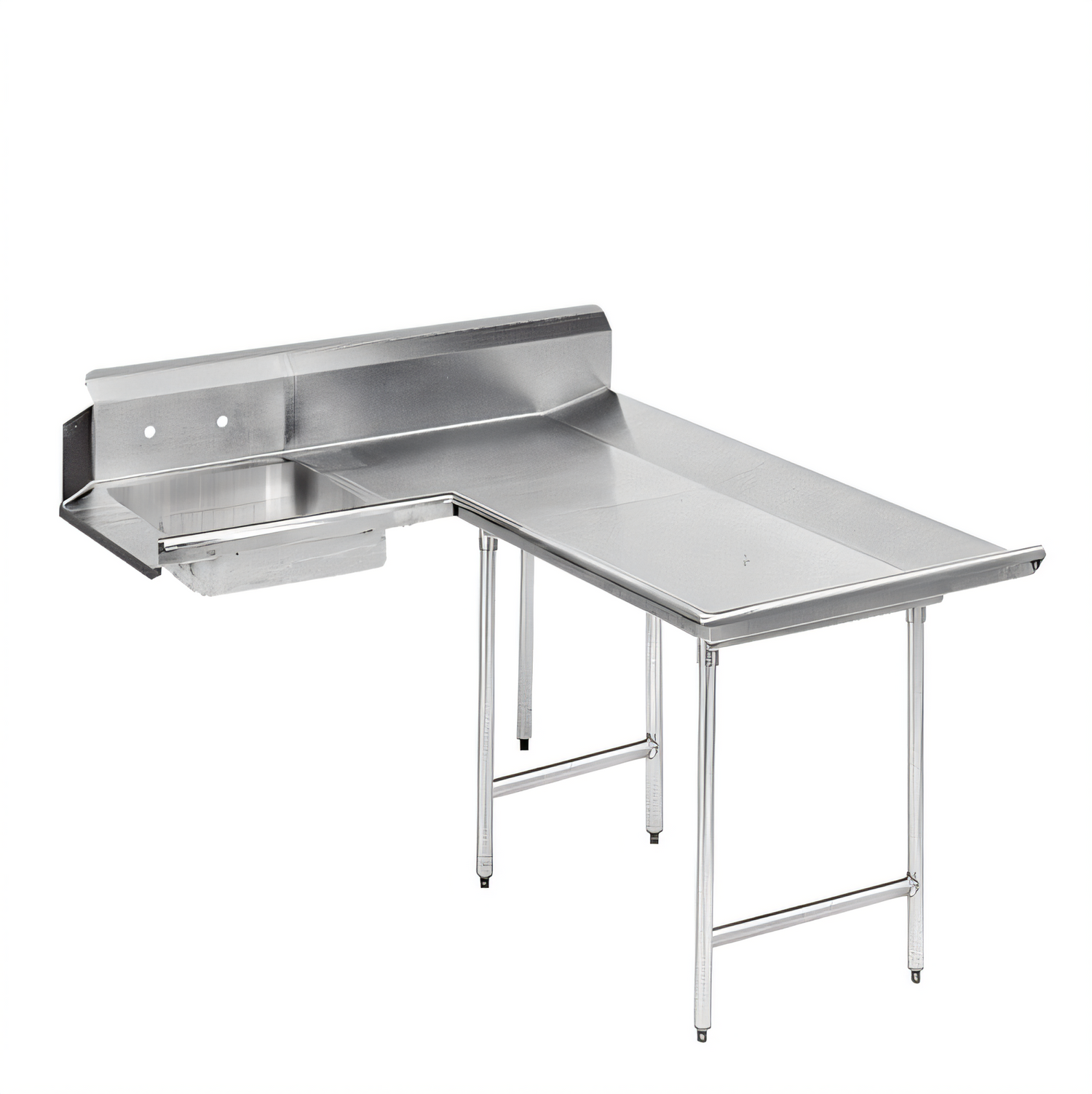

Advance Tabco 107" Dishlanding-Soil Dishtable – Right Attach, L-Shape
16 ga / 304 Stainless Steel • Integrated Pre-Rinse Sink • 10-½" Tile-Edge BacksplashDesigned for demanding commercial warewashing lines, this Advance Tabco Dishlanding-Soil dishtable brings together a space-saving L-shape, heavy-duty 16 gauge stainless construction, and a built-in pre-rinse sink to accelerate dish room throughput while standing up to years of daily abuse.
Key Features
- 107" overall length (nominal 9 ft) with landing on operator’s right-hand side.
- Dishlanding-Soil configuration: accepts soiled racks, then transfers directly into the dish machine.
- 16 ga. 304 series stainless steel top—corrosion-resistant and easy to sanitize.
- Extra-large 10-½" high backsplash with 2" return and NEW tile-edge design for quick, watertight installation.
- 20" × 20" × 5" deep pre-rinse sink bowl with 1-½" IPS basket-type waste drain (included).
- Faucet holes pre-punched on 8" centers in splash (faucet sold separately).
- All TIG-welded seams blended to a uniform satin finish for superior strength and hygiene.
- 1-5/8" Ø 16 ga. stainless steel legs with welded crossrails and adjustable stainless bullet feet for rock-solid support.
- NSF listed & proudly manufactured in the USA.
Specifications
| Model / Series | DTS-D70-108R (Standard Series) |
|---|---|
| Overall Length | 107" (9 ft nominal) |
| Orientation | Attaches to right of dish machine operator |
| Top Material / Gauge | 16 ga. 304 stainless steel |
| Backsplash Height | 10-½" with 2" return, tile-edge |
| Sink Bowl Size | 20" × 20" × 5" deep |
| Drain | 1-½" IPS basket type (included) |
| Faucet Centers | 8" O.C. (faucet not included) |
| Legs / Bracing | 1-5/8" Ø 16 ga. stainless legs with welded crossrails & bullet feet |
| Approx. Weight | 320 lb |
| Compliance | NSF |
Ensure compatibility with your dish machine before ordering. See Advance Tabco’s Dish Machine Compatibility Chart or contact us for a SMART FABRICATION™ quote.
