Advance Tabco  |  SKU: DTS-D30-96L  |  UPC: 747545120717

Advance Tabco DTS-D30-96L Compartment Sinks

$5,253.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

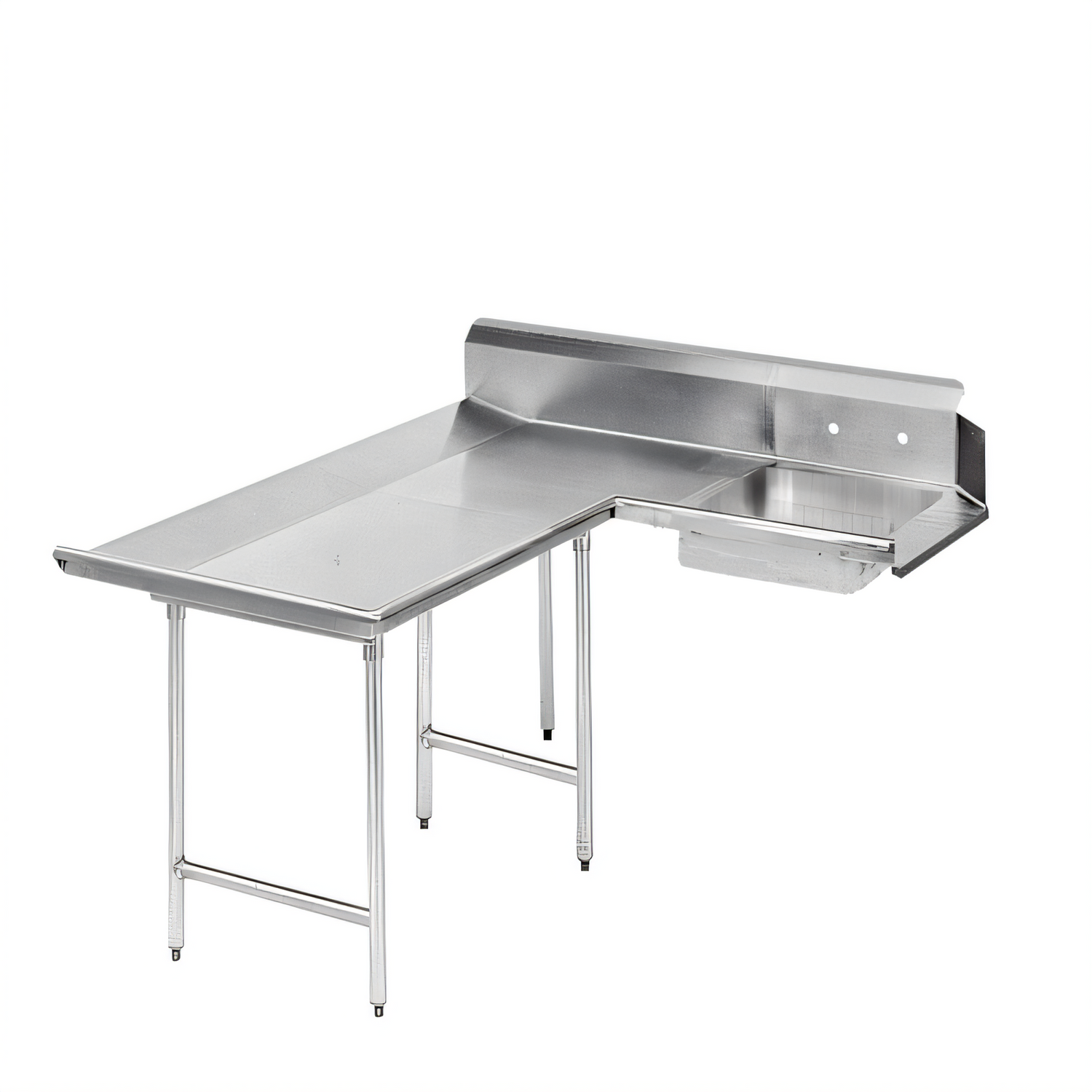

Advance Tabco Spec-Line Dishlanding/Soil Dishtable – 95" L-Shape (Left)

Model series: DTS-D30-96L | 8 ft. nominal length

Engineered for busy commercial dishrooms, this left-hand Dishlanding Soil Dishtable combines an oversized landing area with an integrated pre-rinse sink, making it the perfect entry station for your conveyor or door-type dish machine. The heavy-duty 14 ga. 304 stainless steel top resists corrosion and everyday abuse, while the trademark 10½″ tile-edge backsplash speeds installation and keeps messes contained.

Key Features

  • 95″ overall length (nominal 8 ft.) with space-saving L-configuration that mounts to the left side of the dish-machine operator.
  • Spec-Line construction: 14 ga.
    304 stainless steel work surface, TIG-welded to a satin finish.
  • Extra-large 10½″ backsplash with 2″ return and sanitary tile edge.
  • 20″ × 20″ pre-rinse sink, 8″ deep, with 1½″ IPS basket drain & included prerinse basket.
  • Faucet holes punched on 8″ centers (faucet sold separately).
  • 1 5⁄8″ Ø 16 ga. stainless steel legs with welded crossrails (front-to-back) and 1″ adjustable bullet feet.
  • Slide bar ships only when disposer adapter K-461 or K-461A is specified.
  • NSF listed and proudly made in the USA.

Specifications

Overall length 95″ (241 cm)
Dishmachine side depth 67″ from rear corner to landing edge
Work-surface height 34″ standard
Backsplash height 10½″ with 2″ return
Sink bowl size 20″ × 20″ × 8″ D
Drain connection 1½″ IPS basket type (included)
Top material 14 ga. 304 stainless steel
Legs / bracing 16 ga. 304 stainless steel & welded crossrails
Approx. weight 255 lb. (116 kg)

Ideal For

  • High-volume restaurants & cafeterias
  • Hotels, resorts & banquet facilities
  • Institutional kitchens – hospitals, schools & correctional facilities
  • Any operation requiring rugged, sanitary dishroom workflow
Compatibility Notice: Certain dish machines require spacing or fabrication changes. Always verify with the Advance Tabco Dish-Machine Compatibility Chart or consult our team before ordering.

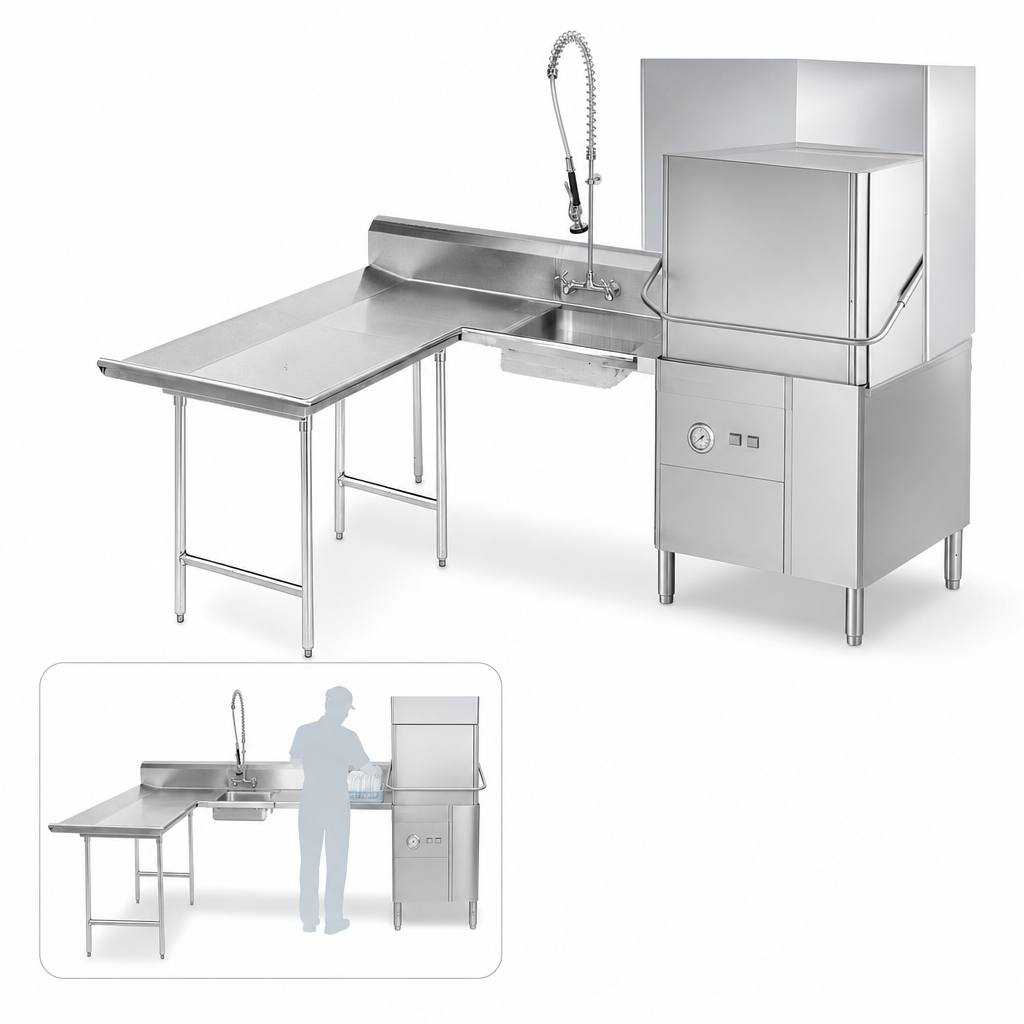

Faucet, disposer and dish machine shown for illustration only and are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

285.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Shape

corner

Width (end - corner) OA

85" - 96"

Stainless Series

300 series

Stainless Gauge

14 gauge

Direction

left to right

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 95" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
