Advance Tabco DTS-D30-84R Compartment Sinks
$4,968.00
Unit price
/
Unavailable
Description

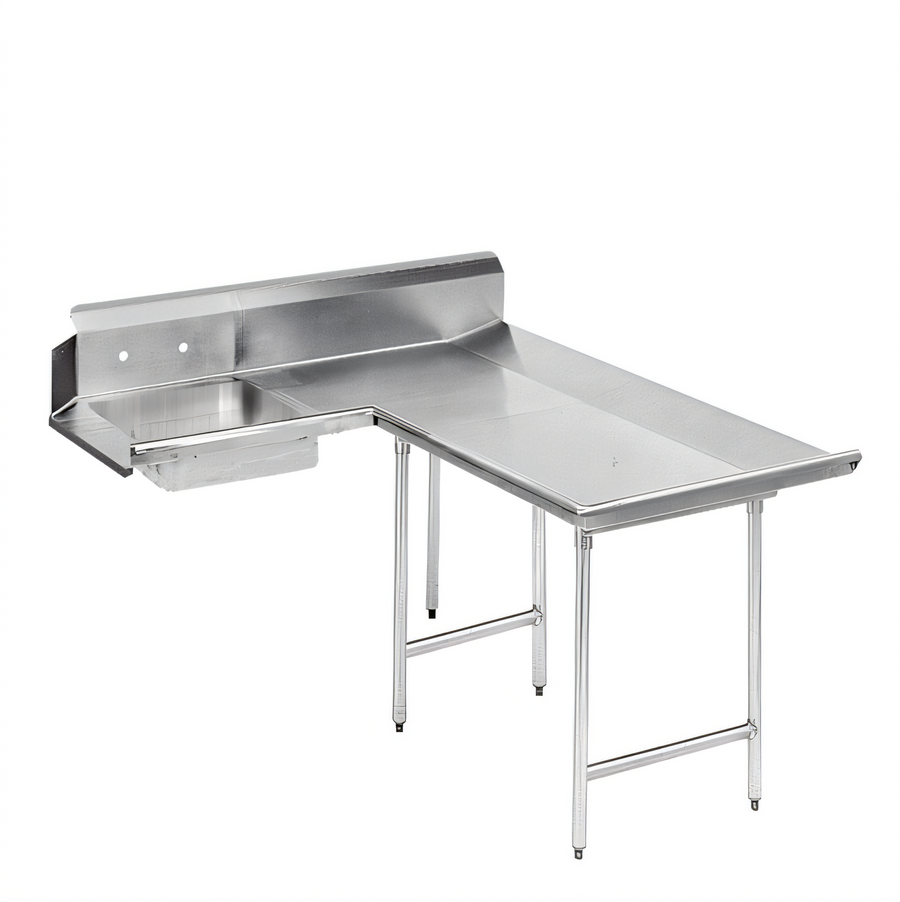

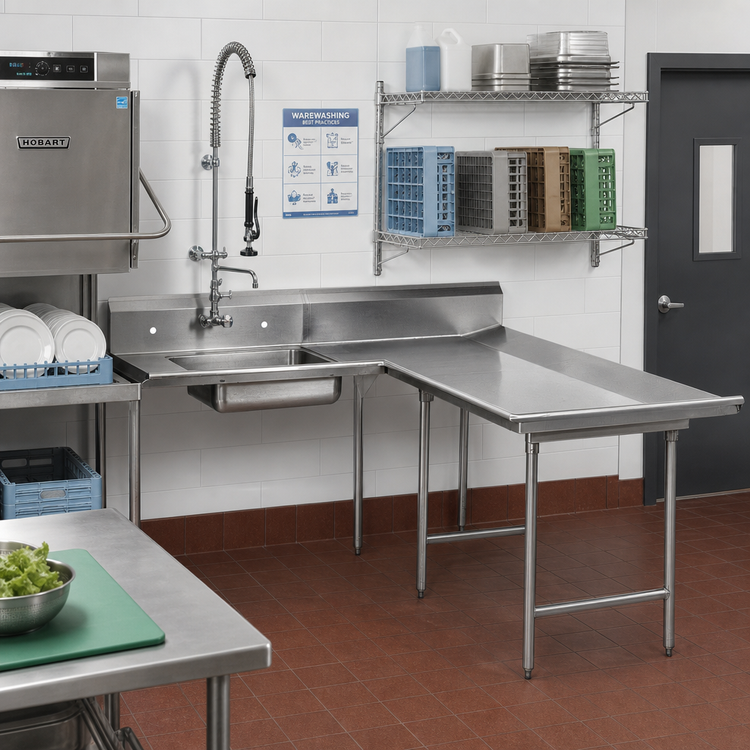

Advance Tabco Dishlanding Soil Dishtable – Right-Hand, 83" L
L-shaped with landing • 14 ga 304 SS top • Integrated pre-rinse sinkPurpose-built for high-volume warewashing, this Spec-Line dishtable mounts to the operator’s right side of a compatible dish machine, giving staff an ergonomic landing area, an extra-deep pre-rinse sink and the rugged durability of all-stainless construction.
Key Features
- Heavy-duty 14-gauge, 304 series stainless steel top with satin finish
- Extra-large 10 ½" backsplash with 2" return & tile-edge design for a watertight, flush installation

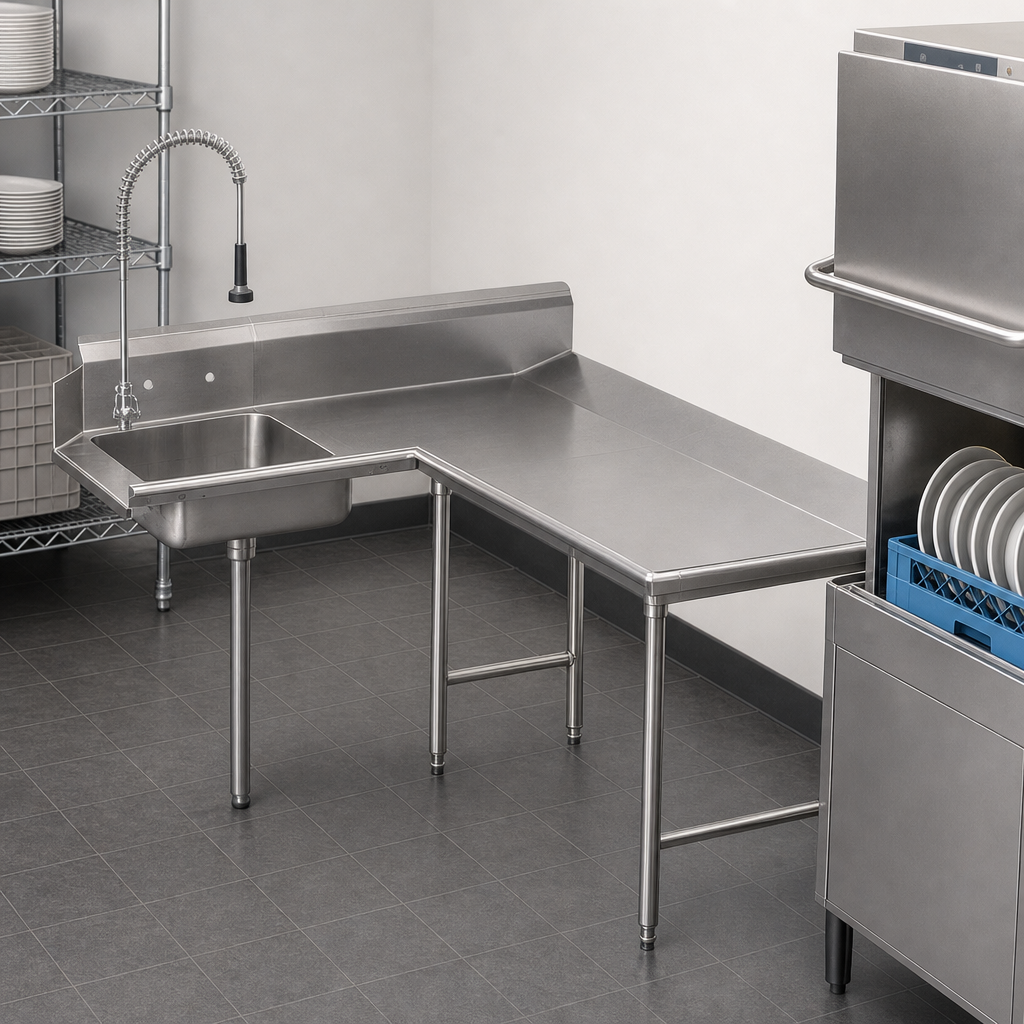

- L-shaped layout with 20" landing ledge for easy rack transfer
- Integrated 20" × 20" × 8" deep pre-rinse sink, 1 ½" IPS basket drain included
- Removable pre-rinse basket plus slide bar (slide bar ships only when K-461 or K-461A disposer adapter is ordered)
- 1 ⅝" Ø 16-gauge 304 SS legs with welded cross-rails front to back & adjustable stainless bullet feet
- All TIG-welded; gussets welded to a full-length support channel for maximum rigidity
- Faucet holes pre-punched on 8" centers - faucet sold separately
- NSF listed & proudly made in the USA
Specifications
| Overall length | 83" (nominal 7 ft) |
|---|---|
| Configuration / flow | Right-hand soil (entry) dishtable, L-shaped with landing |
| Top material | 14 ga 304 stainless steel |
| Legs & bracing | 1 ⅝" Ø 16 ga 304 SS legs with welded cross-rails & stainless bullet feet (1" adjustable) |
| Sink bowl size | 20" × 20" × 8" deep (pre-rinse) |
| Backsplash | 10 ½" H, 2" return, tile-edge |
| Drain connection | 1 ½" IPS basket drain (included) |
| Included accessories | Pre-rinse basket; slide bar (with K-461/K-461A only) |
| Approx. shipping weight | 240 lb |
Important: Dish machine dimensions and clearances vary. Please verify compatibility using the Advance Tabco
Dish Machine Compatibility Chart before ordering.
Want a fully integrated dishroom? Ask us about disposer adapters, overhead shelves and other Smart Fabrication™ options.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
44.0in
Shipping Weight
265.0lbs
Splash Height
10"H splash
Leg Type
stainless steel legs
Width (machine - corner) OA
61" - 72"
Width (end - corner) OA
73" - 84"
Direction
right to left
Stainless Series
300 series
Stainless Gauge
14 gauge
Shape
corner
Specifications
Dishlanding-Soil Dishtable, L-shaped with landing, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 83" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
