Advance Tabco  |  SKU: DTS-D30-60L  |  UPC: 747545120656

Advance Tabco DTS-D30-60L Compartment Sinks

$4,932.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

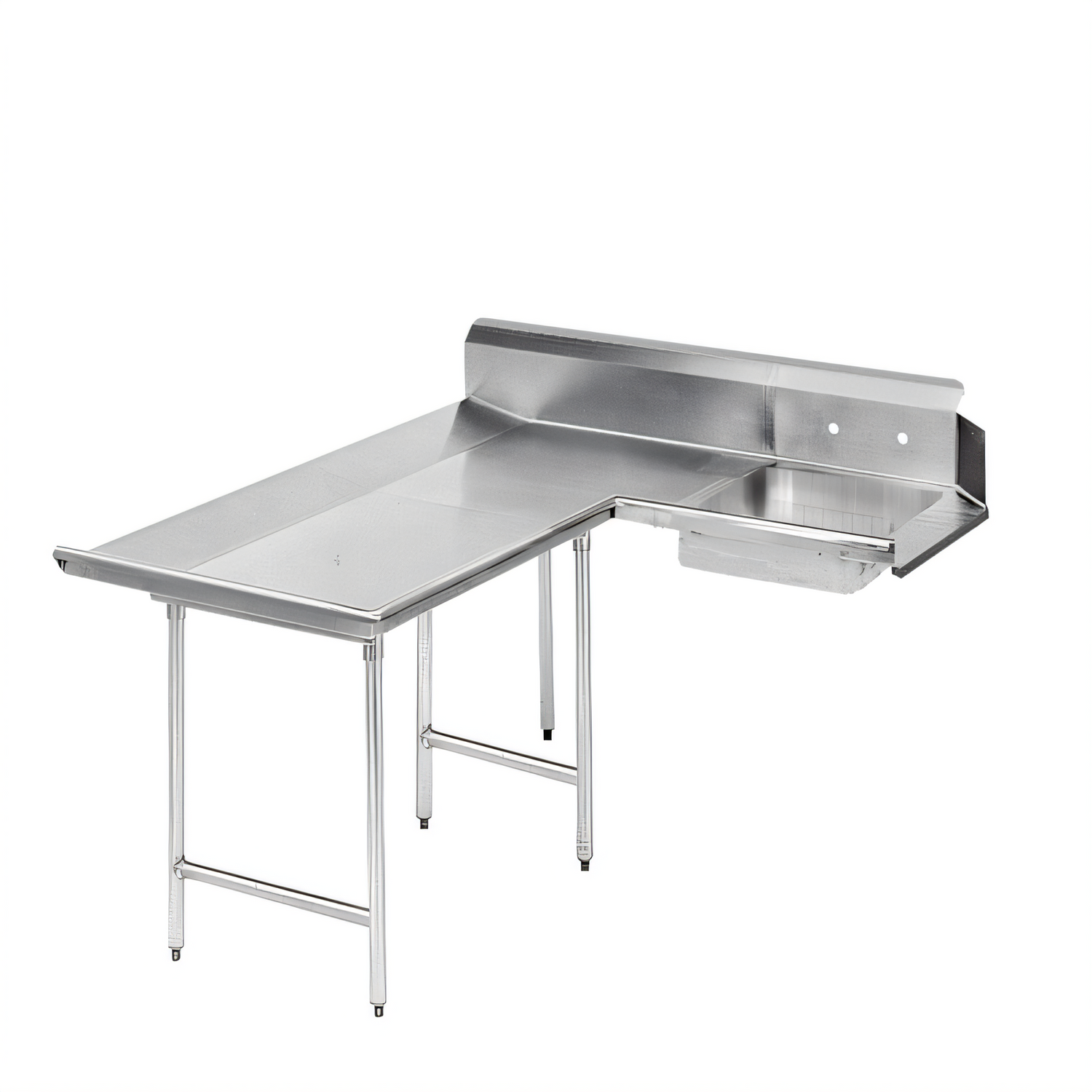

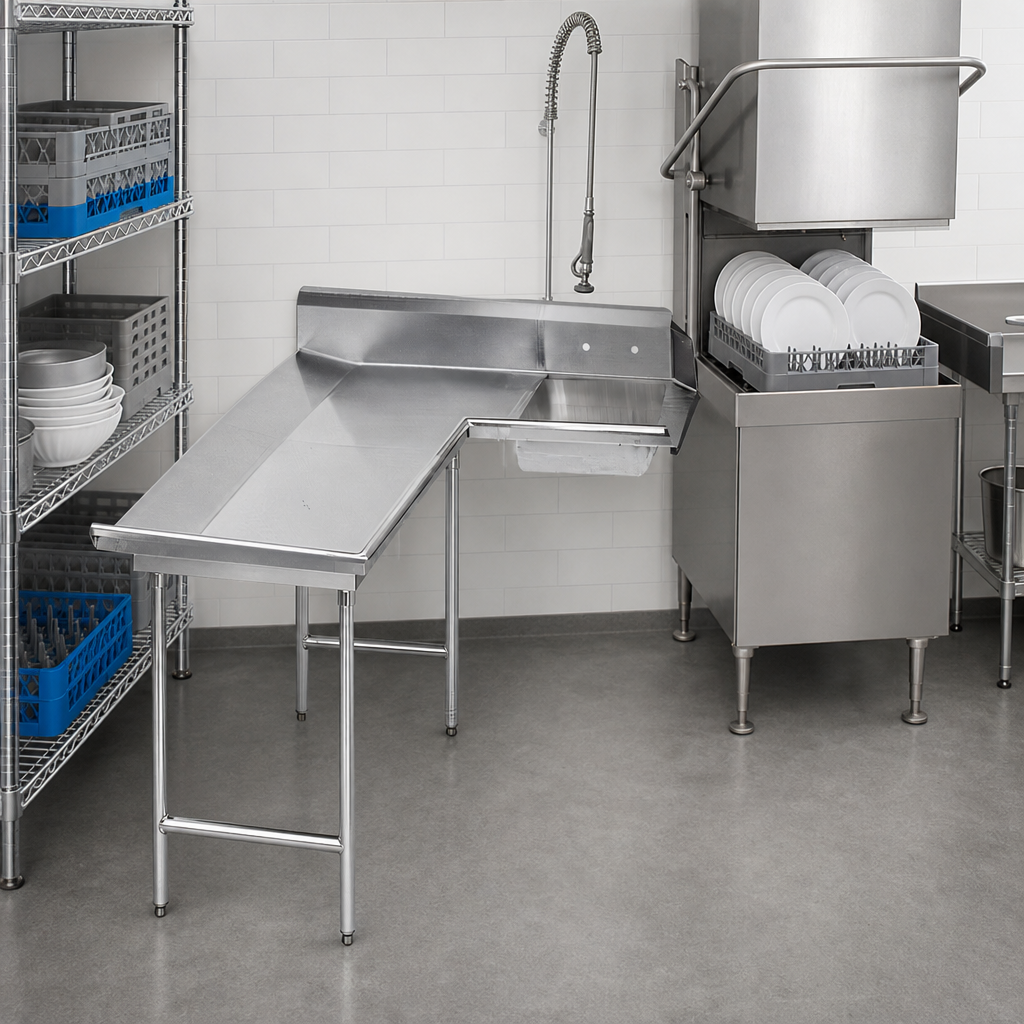

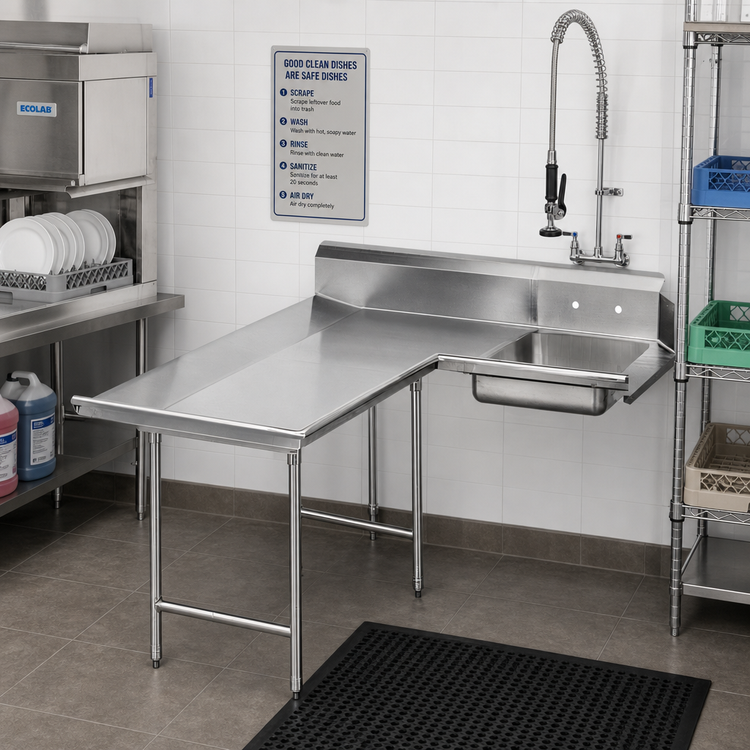

Advance Tabco 59" Dishlanding Soil Dishtable – Left Side, L-Shaped

Spec-Line | 14 Ga. 304 Stainless Steel | Model DTS-D30-60L*

Create a smooth, NSF-approved dish room workflow with this rugged, tile-edge soil dishtable. Designed to mount to the left of your dish machine operator, it combines a generous landing area for racks, an 8"-deep pre-rinse sink, and a towering 10-½" backsplash—everything you need to keep soiled ware contained and moving.

Key benefits

  • Built for decades of service: Heavy 14 ga. 304 stainless steel top resists dents, corrosion and harsh chemicals.
  • Extra-large backsplash: 10-½" high with 2" return and tile edge for a clean, watertight install against any wall or cove base.
  • Integrated pre-rinse sink: 20" × 20" bowl (8" deep) expedites scraping and rinsing before ware enter the machine.
  • Stainless support system: 1 ⅝" O.D. legs, welded front-to-back crossrails, stainless gussets & adjustable bullet feet keep the table rock-solid.
  • Ready for plumbing: 1-½" IPS basket drain and 8" on-center faucet holes pre-punched in the backsplash (faucet sold separately).
  • Includes prerinse basket to keep flatware and smallware from clogging the drain.

What’s included

  • L-shaped soil dishtable (59" nominal length) with landing shelf
  • 20" × 20" × 8" stainless pre-rinse sink bowl
  • Stainless prerinse basket
  • 1-½" IPS basket-type waste drain
  • Adjustable stainless bullet feet (1" range)

Technical specifications

Overall length (wall side) 59" nominal (5 ft)
Configuration L-shaped, attaches to left of dish machine operator
Top material / gauge 304 stainless steel, 14 ga.
Legs & bracing 304 stainless, 1 ⅝" O.D., 16 ga. with welded crossrails front-to-back
Backsplash height 10 ½" with 2" return & tile edge
Sink bowl size (H × W × D) 8" × 20" × 20"
Drain 1 ½" IPS basket-type (included)
Faucet holes (2)   8" on-center punched in backsplash
Certifications NSF
*DTS-D30-60L shown for reference. Nominal sizing is used for quicker installation.
Heads-up: The stainless slide bar ships only when a K-461 or K-461A disposer adapter is added to your order.

Dependable, hygienic and installer-friendly—this Advance Tabco Spec-Line dishtable is the perfect foundation for a high-volume dish room upgrade.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

225.0lbs

Splash Height

10"H splash

Width (end - corner) OA

49" - 60"

Width (machine - corner) OA

61" - 72"

Shape

corner

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Direction

left to right

Stainless Series

300 series

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 59" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
