Advance Tabco  |  SKU: DTS-D30-48L  |  UPC: 747545120632

Advance Tabco DTS-D30-48L Compartment Sinks

$4,831.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

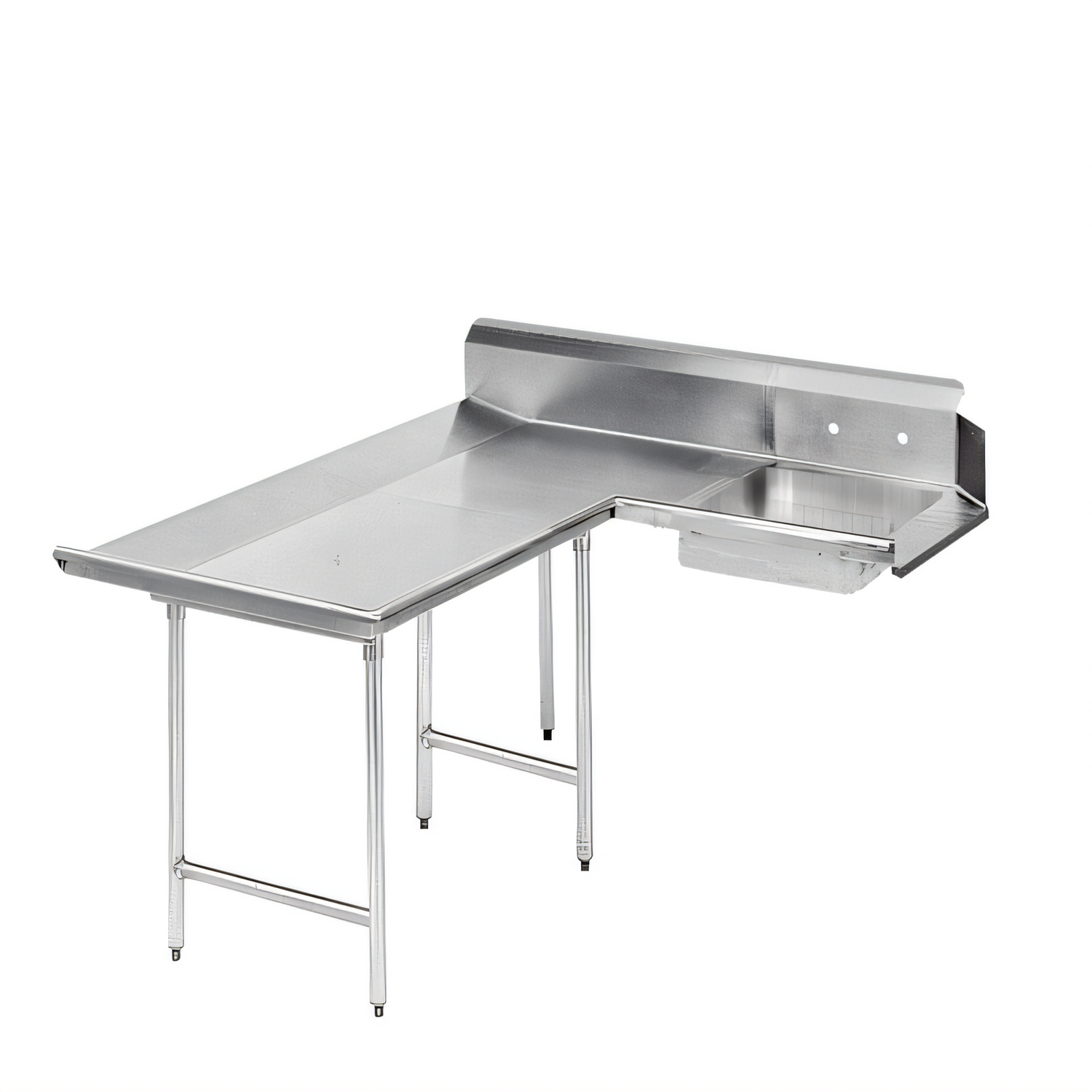

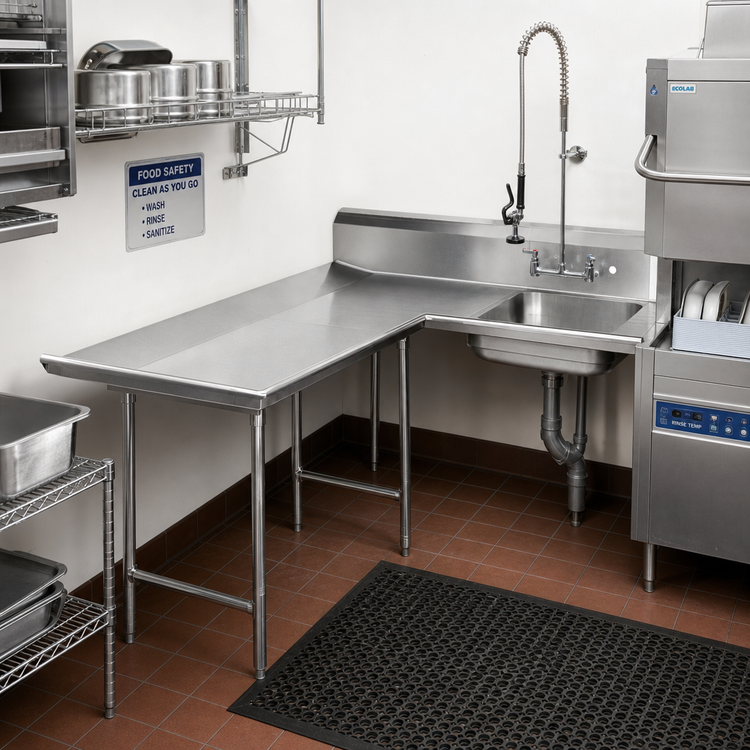

Advance Tabco Dishlanding Soil Dishtable – 47" Left-Hand, L-Shaped

Spec-Line • 14-Gauge 304 Stainless Steel • Integrated Pre-Rinse Sink

Built for demanding commercial kitchens, this Advance Tabco Dishlanding Soil Dishtable delivers a rugged 14-gauge 304 SS work surface, extra-large 10-1/2" backsplash, and an 8" deep pre-rinse sink – all in a compact 47" footprint that mounts to the left side of your dish machine operator.

Key Features

  • Heavy-duty 14-ga. 304 stainless steel top with satin finish resists corrosion & daily abuse.

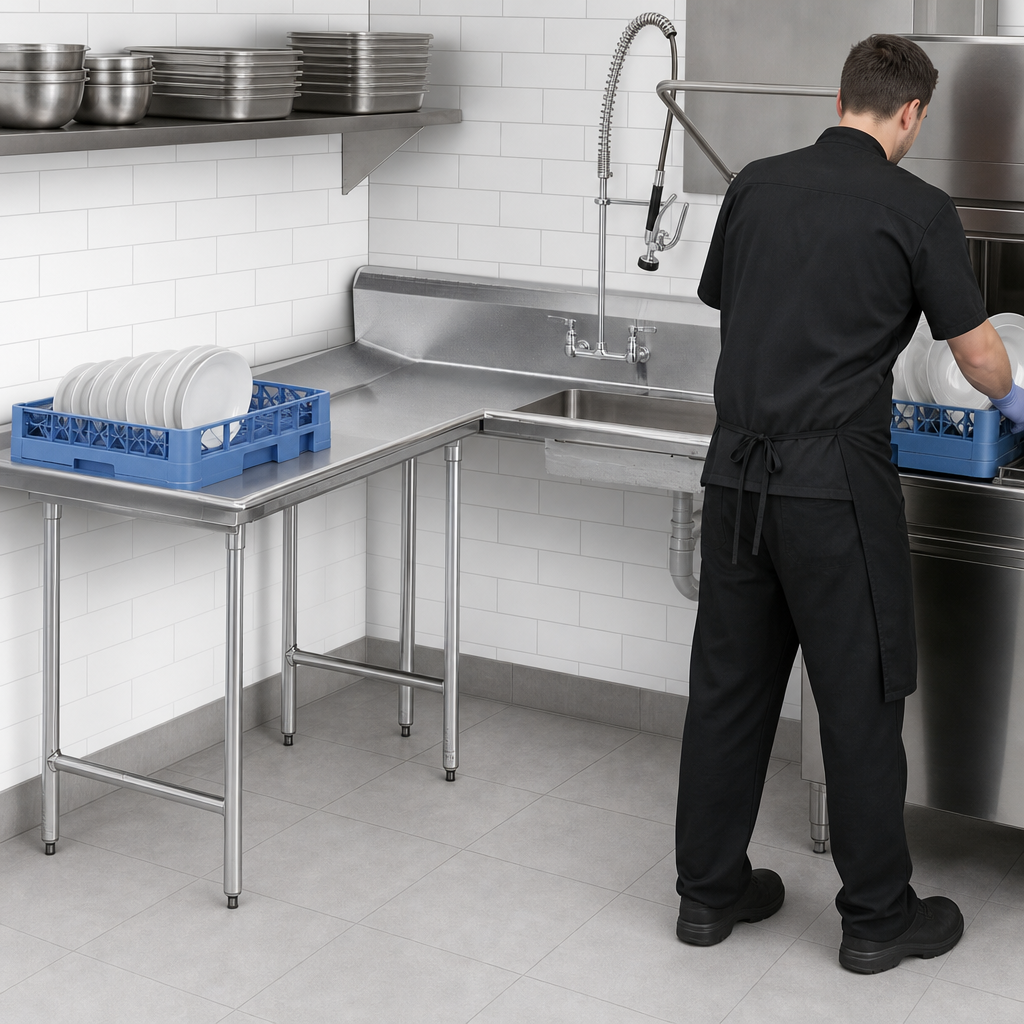

  • L-shaped “landing” design feeds dishes to the operator from the left side for efficient workflow.
  • 20" × 20" × 8" deep pre-rinse bowl speeds soil removal; 1-1/2" IPS basket drain included.
  • 10-1/2" high, tile-edge backsplash with 2" return contains splashes and mates cleanly to wall tile.
  • Faucet holes pre-punched on 8" centers (faucet not included).
  • Includes stainless-steel prerinse basket; slide bar ships automatically when a K-461 or K-461A disposer adapter is ordered.
  • TIG-welded construction; welds blended to match surrounding surfaces.
  • 16-ga. 304 SS legs with welded crossrails front-to-back & adjustable stainless bullet feet ensure rock-solid stability.
  • NSF listed and proudly made in the USA.

Technical Specifications

Nominal length 47" (4 ft)
Orientation Left-hand (mounts on operator’s left)
Overall height 34" working height / 44-1/2" to top of backsplash
Backsplash 10-1/2" H with 2" tile-edge return
Sink bowl size 20" × 20" × 8" deep
Top material 14-ga. 304 stainless steel
Legs / bracing 16-ga. 304 stainless steel legs with welded crossrails; SS bullet feet (1" adjustable)
Drain connection 1-1/2" IPS basket drain (included)
Faucet holes Punched on 8" centers (faucet not included)
Included accessories Prerinse basket; slide bar with K-461 / K-461A disposer adapter
Certifications NSF

Need to verify fit with your dish machine? Consult Advance Tabco’s Dish Machine Compatibility Chart or contact our experts before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

205.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Width (end - corner) OA

37" - 48"

Stainless Gauge

14 gauge

Stainless Series

300 series

Shape

corner

Direction

left to right

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 47" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
