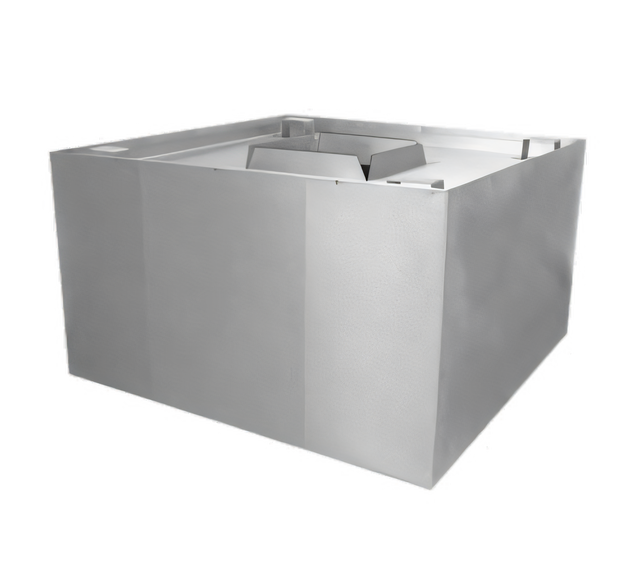

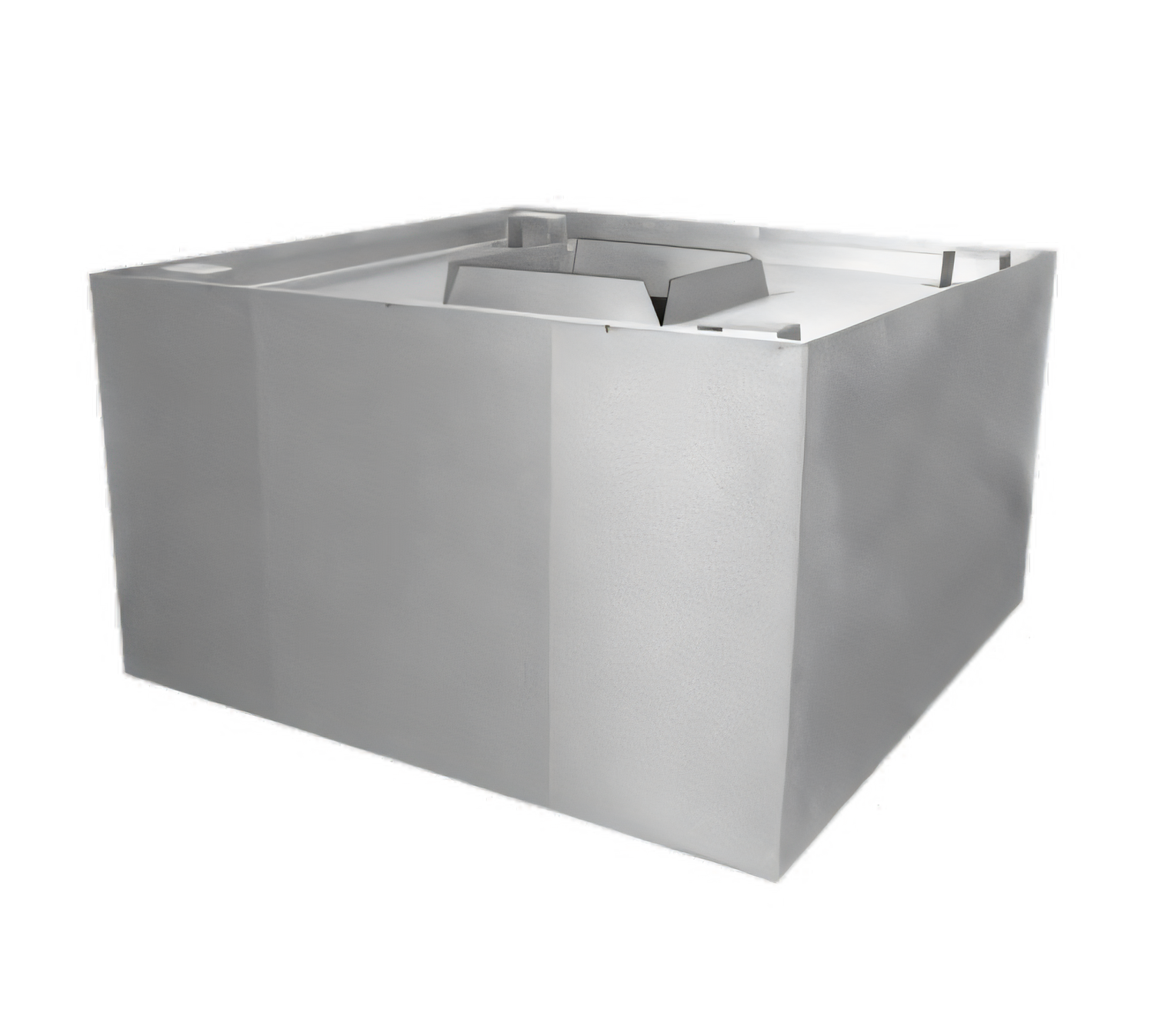

Advance Tabco CH-4242 Stainless Steel Condensate Hood
42" L × 42" D × 20.5" H • No Fan IncludedCapture steam and excess moisture before it damages walls, ceilings, or equipment. Built from heavy-duty 300-series stainless steel, the Advance Tabco CH-4242 condensate hood delivers long-lasting performance for dishrooms, bakeries, and other non-grease-producing applications.
Key Features

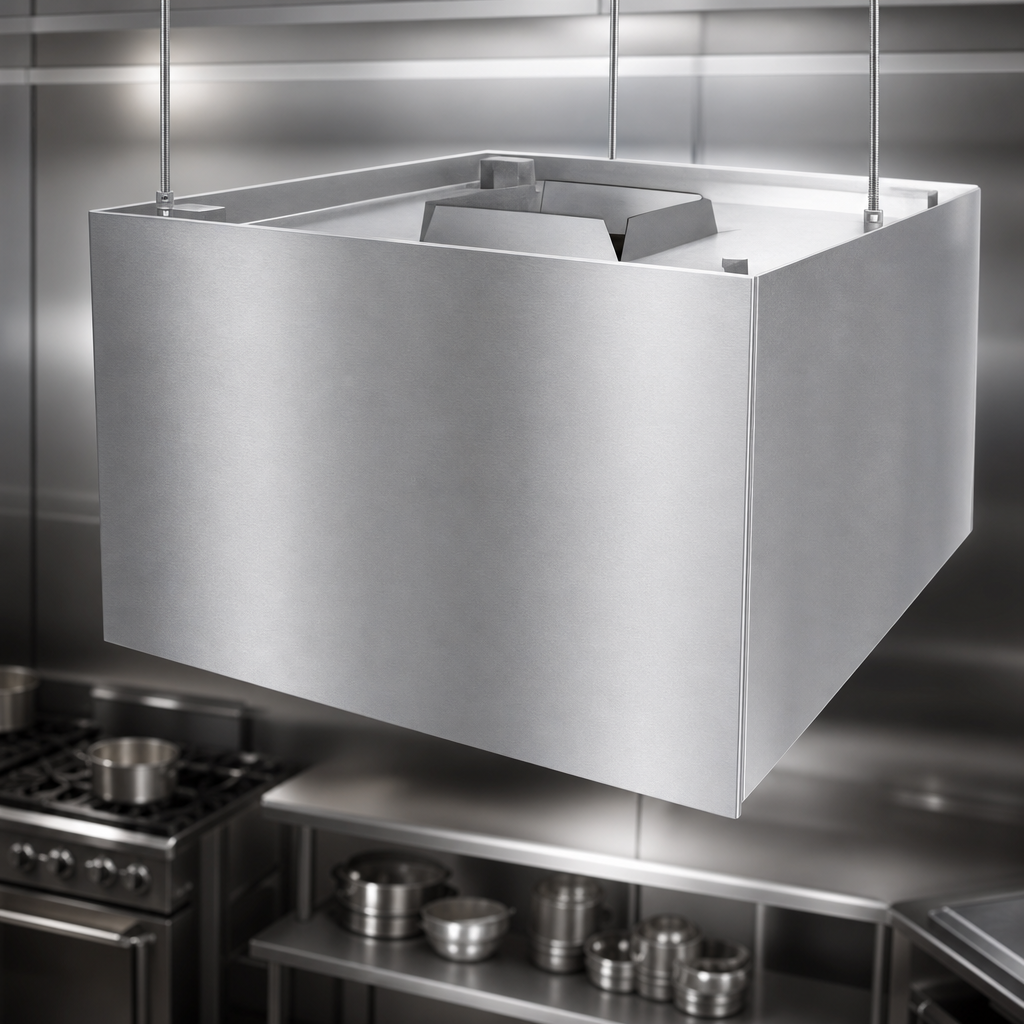

- Rugged 300-series stainless steel resists corrosion in high-humidity environments.
- Flanged, fully welded seams are sealed water-tight to eliminate leaks.
- 1 ½" internal gutter channels condensation to a 3⁄8" rear drain.
- 8" × 10" exhaust opening centered on the top panel for field-supplied conduit.
- Factory-installed 2" high exhaust collar simplifies duct connection.
- Back panel pre-notched to fit a 2" × 4" ledger for quick wall mounting.

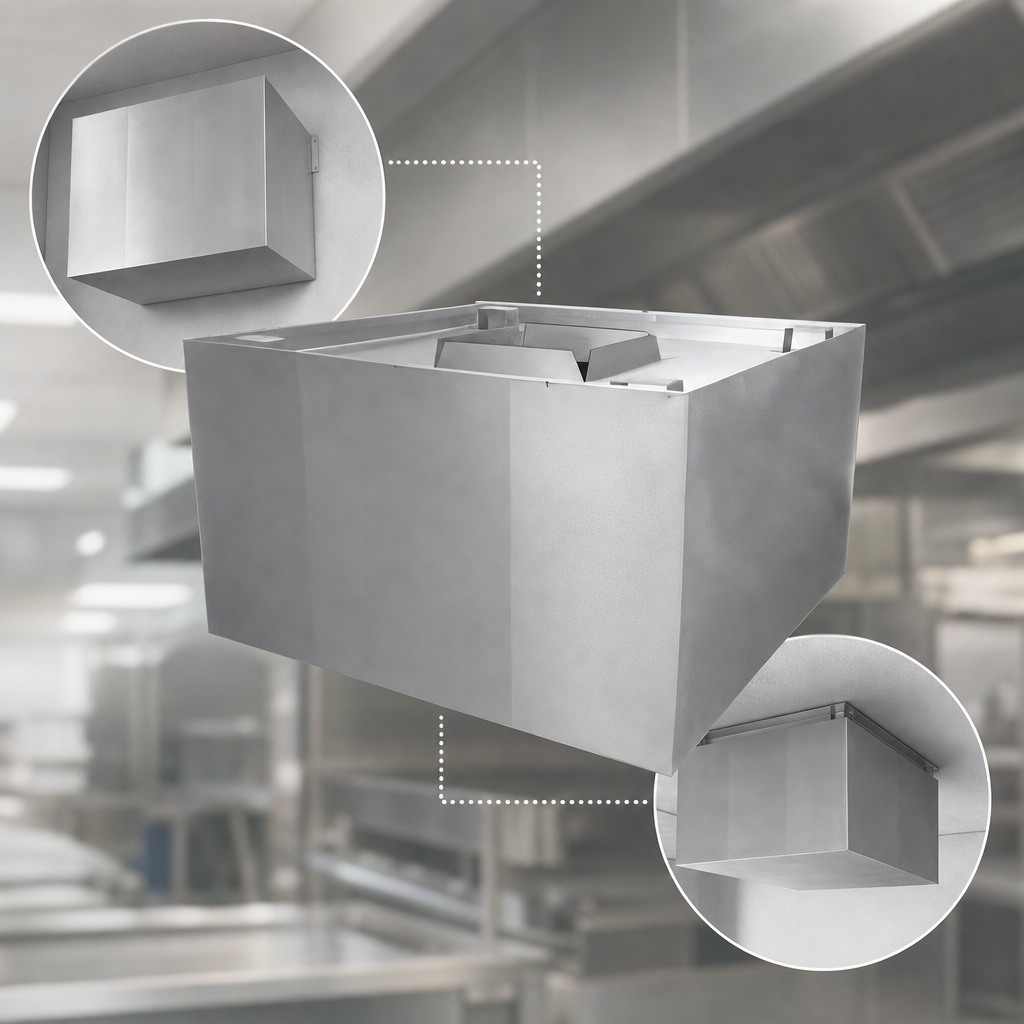

- Wall or ceiling mounting brackets included for flexible installation.
- Overall size: 42" L × 42" D × 20.5" H; approx. 140 lb shipping weight.
- Ships without exhaust fan or motor—ideal for integrating with existing ventilation systems.
Specifications
| Model | CH-4242 |
|---|---|
| Overall Dimensions | 42" L × 42" D × 20.5" H |
| Exhaust Opening | 8" × 10" (centered) |
| Exhaust Collar Height | 2" |
| Drain | 3⁄8" NPT (rear) |
| Internal Gutter | 1 ½" wide, full perimeter |
| Material | Type 300 stainless steel |
| Mounting | Wall or ceiling; back notched for 2" × 4" ledger |
| Approx. Shipping Weight | 140 lb |
| Listings/Approvals | Not UL or NFPA listed |
Important: Fan assemblies, ductwork, and electrical conduit are not included and must be supplied by others.
Need a different size or collar location? Ask about Advance Tabco Smart Fabrication™ for custom condensate hoods built to your exact specifications.
$1,985.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Advance Tabco CH-4242 stainless condensate hood, 42"L x 42"D x 20.5"H with internal gutter, 3/8" rear drain, 8x10 top conduit opening, no fan.
Manufacturer
Advance Tabco
Height
20.0in
Width
42.0in
Depth
42.0in
Shipping Weight
140.0lbs
Hood Finish
stainless steel
Depth (front - back)
42"
Height
20"
Mounting options
ceiling mount
Length
42"
Specifications
Condensate Hood, 20.50"H, 42"L, 42"D, stainless steel, inside bottom gutter with a 3/8" drain at rear, back notched for a 2 x 4 for mounting, 8 x 10 opening for exhaust conduit centered in top (conduit by others) NO FAN
