Key specifications

BTU
108,000 BTU
Dimensions
48.0"W × 31.5"D × 15.25"H
Type
Griddle
Style
Heavy Duty
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Wolf SKU: ASA48

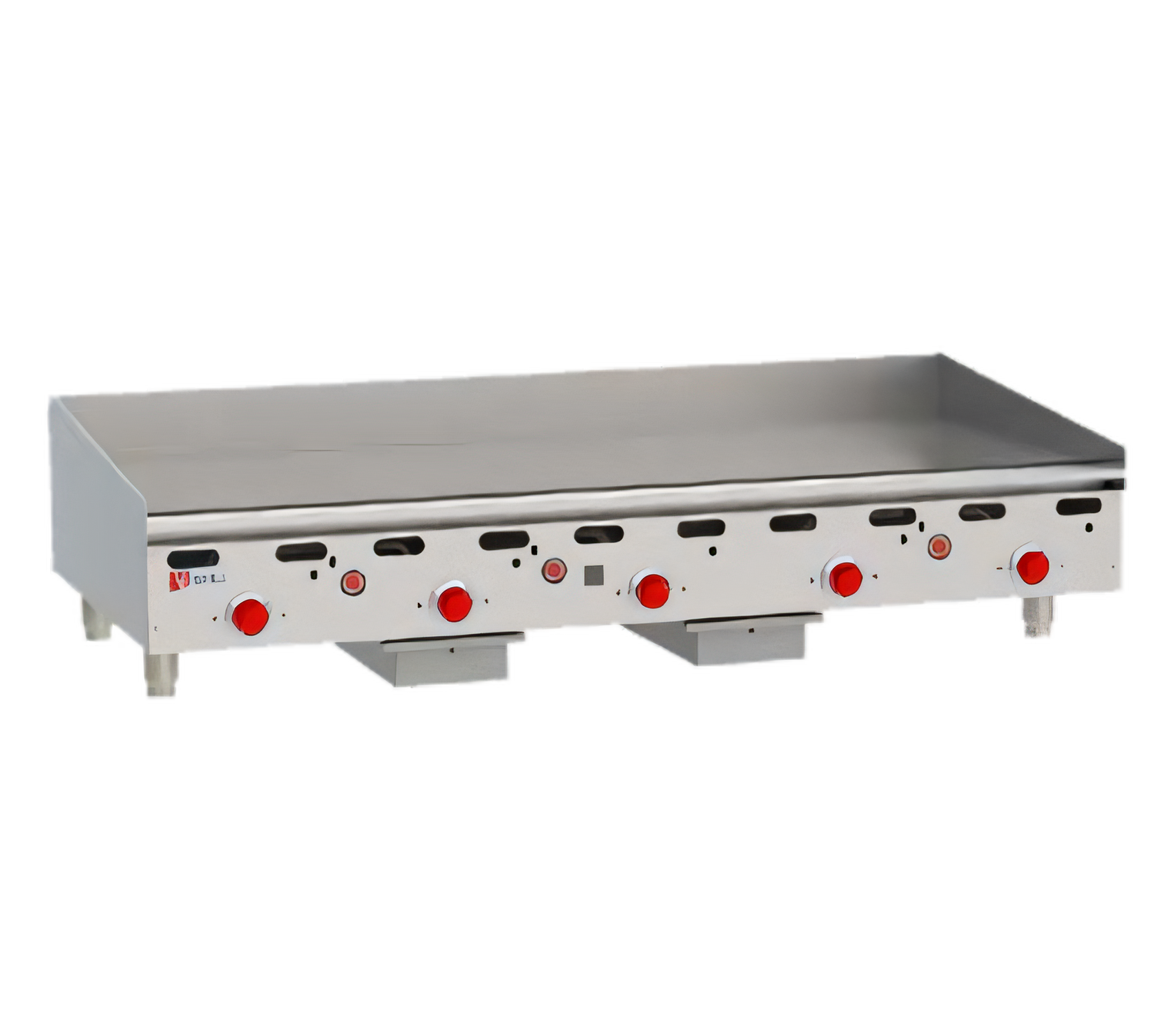

Wolf ASA48 48-Inch Countertop 4-Burner Gas Griddle

$8,820.00
/each
Estimated to ship in 4–7 business days Free Shipping
Width
Gas typeRequired
Griddle plate depth
Gas Connector
Included: Wolf warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $816/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel Front and Sides
Cooking Surface Width 48 inches
Cooking Surface Depth 24 inches
Plate Thickness 1 inch
Plate Finish Polished Steel
Burner Count 4
BTU 108,000 BTU
Controls Mechanical Snap Action Thermostat
Temperature Range 200°F to 550°F
Grease Drawer Capacity 6 quarts
Back and Side Splashes 4 Inch Back and Tapered Sides
Chassis Frame Material Stainless Steel and Aluminized Steel
Leg Type Adjustable
Cooking Height 11-1/8 inches
Gas Connection Rear 3/4 Inch
Ignition Manual

Description

The Wolf ASA48 is a heavy-duty countertop gas griddle with a 48-inch-wide by 24-inch-deep cooking surface and a 1-inch-thick polished steel griddle plate.

Four 27,000 BTU/hr. burners provide 108,000 BTU total output. Each burner has a mechanical snap-action thermostat adjustable from 200°F to 550°F.

  • 4-inch back and tapered side splashes
  • 6-quart grease drawer
  • Stainless steel and aluminized steel chassis frame
  • Manual ignition and pilot safety
  • 4-inch adjustable legs with an 11-1/8-inch cooking height

Overall Dimensions:

48.0"W x 31.5"D x 15.25"H

Product Weight:

480.0 lb

Polished Steel Griddle Plate

The cooking surface is a 1-inch-thick polished steel griddle plate measuring 48 inches wide by 24 inches deep.

Four-Burner Gas System

Four 27,000 BTU/hr. burners provide 108,000 BTU total output.

Per-Burner Thermostatic Control

Each burner has a mechanical snap-action thermostat with temperature adjustment from 200°F to 550°F.

Grease Management

A 6-quart grease drawer collects grease from the griddle.

Splash Protection

The unit includes a 4-inch back and tapered side splashes.

Commercial Construction

The chassis frame uses stainless steel and aluminized steel.

Manual Ignition and Pilot Safety

The griddle uses manual ignition and includes pilot safety.

Adjustable Legs

Four-inch adjustable legs provide an 11-1/8-inch cooking height.

Frequently Asked Questions

Yes. The ASA48 is a countertop gas griddle with a 48-inch-wide cooking surface.
It has four burners with 108,000 BTU total output.
The polished steel griddle plate is 48 inches wide, 24 inches deep, and 1 inch thick.
Each mechanical snap-action thermostat adjusts from 200°F to 550°F.
The grease drawer has a 6-quart capacity.
The overall dimensions are 48 inches wide by 31.5 inches deep by 15.25 inches high.
The ASA48 is CSA design certified and NSF listed.
The griddle includes a one-year limited parts and labor warranty, subject to the manufacturer's warranty terms.
