Key specifications
- Amps
- 30.29/35 Amps
- Phase
- 1-Phase / 3-Phase
- Dimensions
- 36.0"W × 21.75"D × 12.88"H
- Type
- Griddle
- Style
- Manual
- Installation Type
- Countertop
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

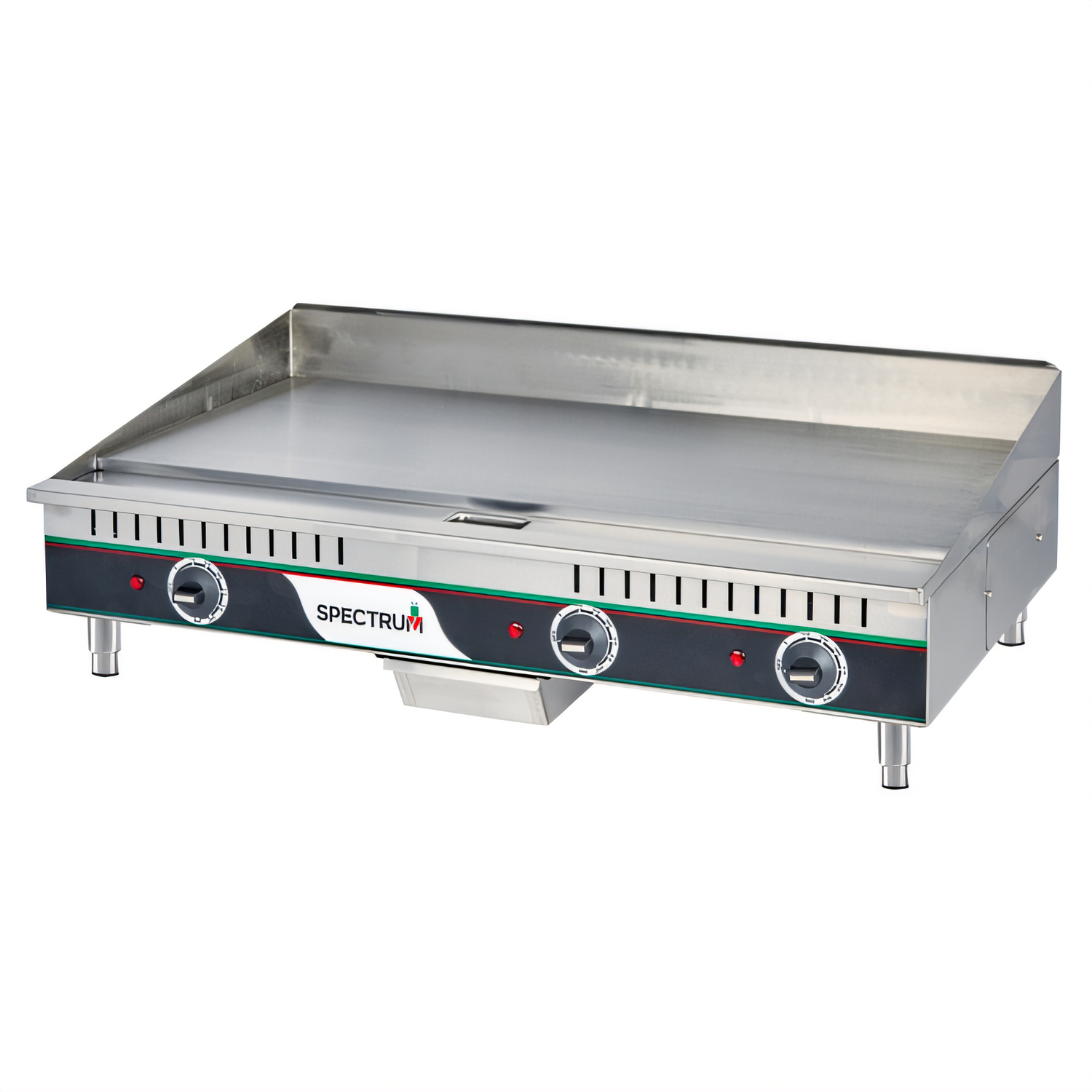

Winco Spectrum EGD-36M is a countertop electric griddle with a 36-inch by 16-1/2-inch cooking surface and a solid 1/2-inch polished steel plate.
- Three independently manually controlled heat zones support separate cooking temperatures.
- The temperature range is 150°–480°F (65°–250°C).
- The stainless steel body includes side and rear backsplash protection, a catch tray, adjustable feet, and grease-management components.
- The unit is rated at 208/240 volts, 6300/8400 watts, and 30.29/35 amps, with a field-wired connection.
Overall Dimensions:
36.0"W x 21.75"D x 12.88"HProduct Weight:

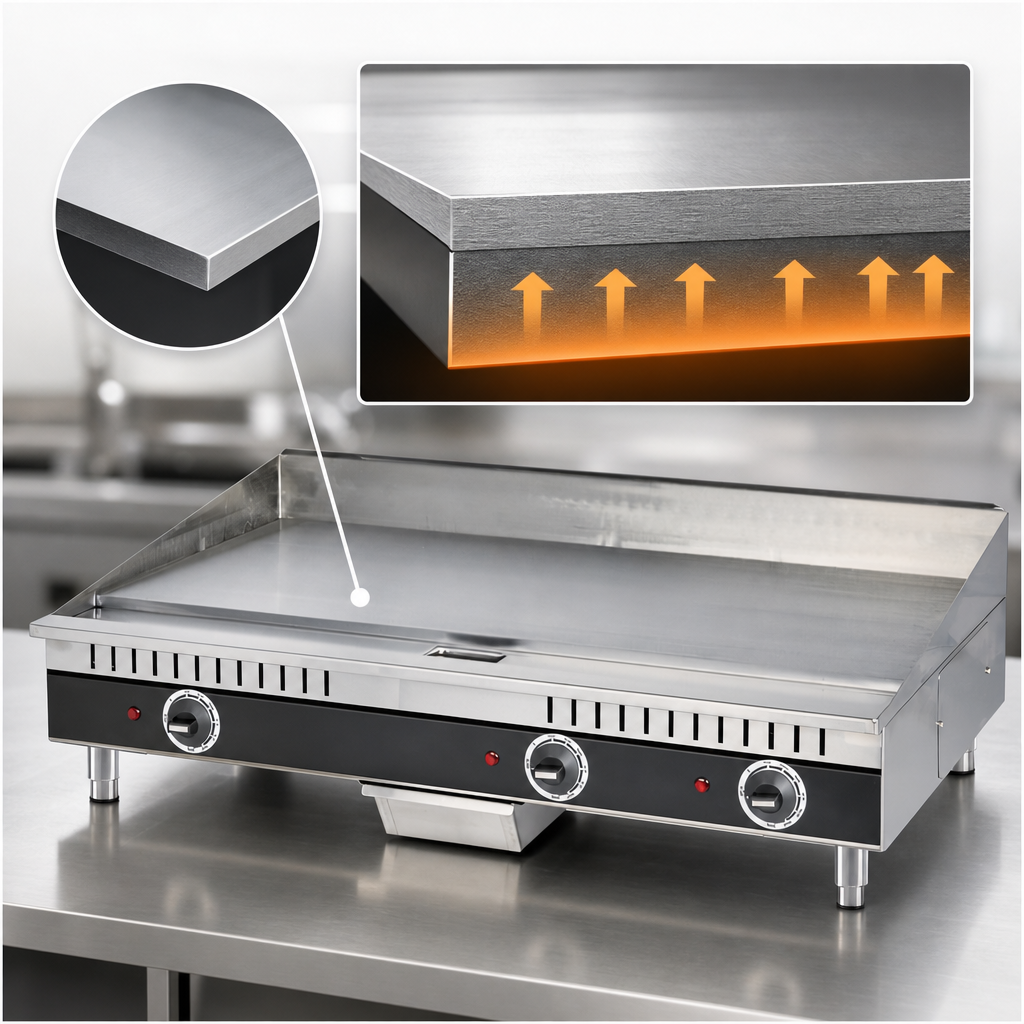

120.15 lbPolished steel cooking plate
The solid steel cooking plate is 1/2 inch thick and provides a 36 x 16-1/2-inch cooking surface.

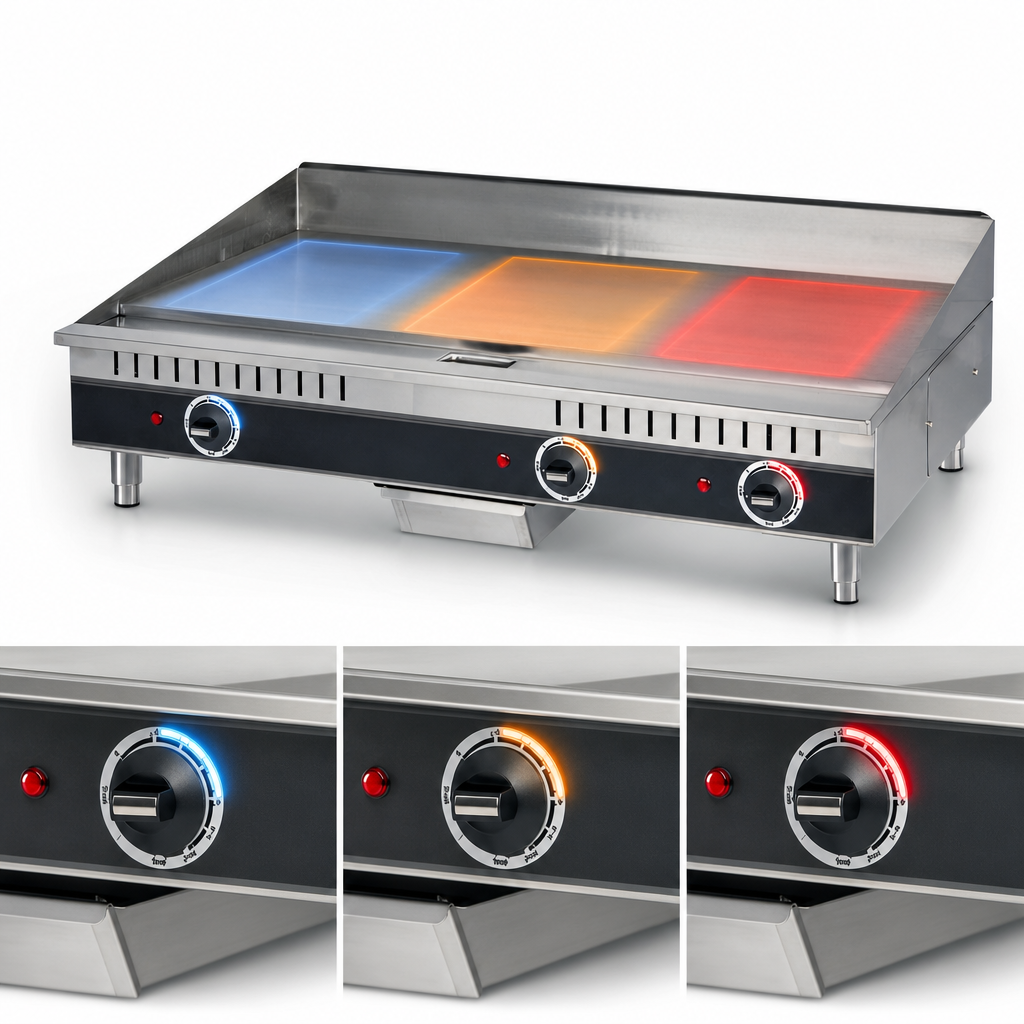

Independent manual heat zones
Three heat zones are independently manually controlled.
Adjustable temperature range
The operating temperature range is 150°–480°F (65°–250°C).
Stainless steel construction
The body, side and rear backsplash, and catch tray are stainless steel.
Grease management
A removable grease drawer with weep hole and baffle works with a 3-1/4-inch full-width grease trough.
Adjustable support
Heavy-duty adjustable feet provide stability.
Electrical configuration
The unit is rated for 208/240 volts, 6300/8400 watts, and 30.29/35 amps, with field-wired connection and compatibility with 1-phase or 3-phase operation.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
