Key specifications

Amps
20.2-23.4 Amps
Phase
1-Phase
Dimensions
24.0"W × 21.75"D × 12.88"H
Type
Griddle
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Winco SKU: EGD-24M UPC: 842169139609

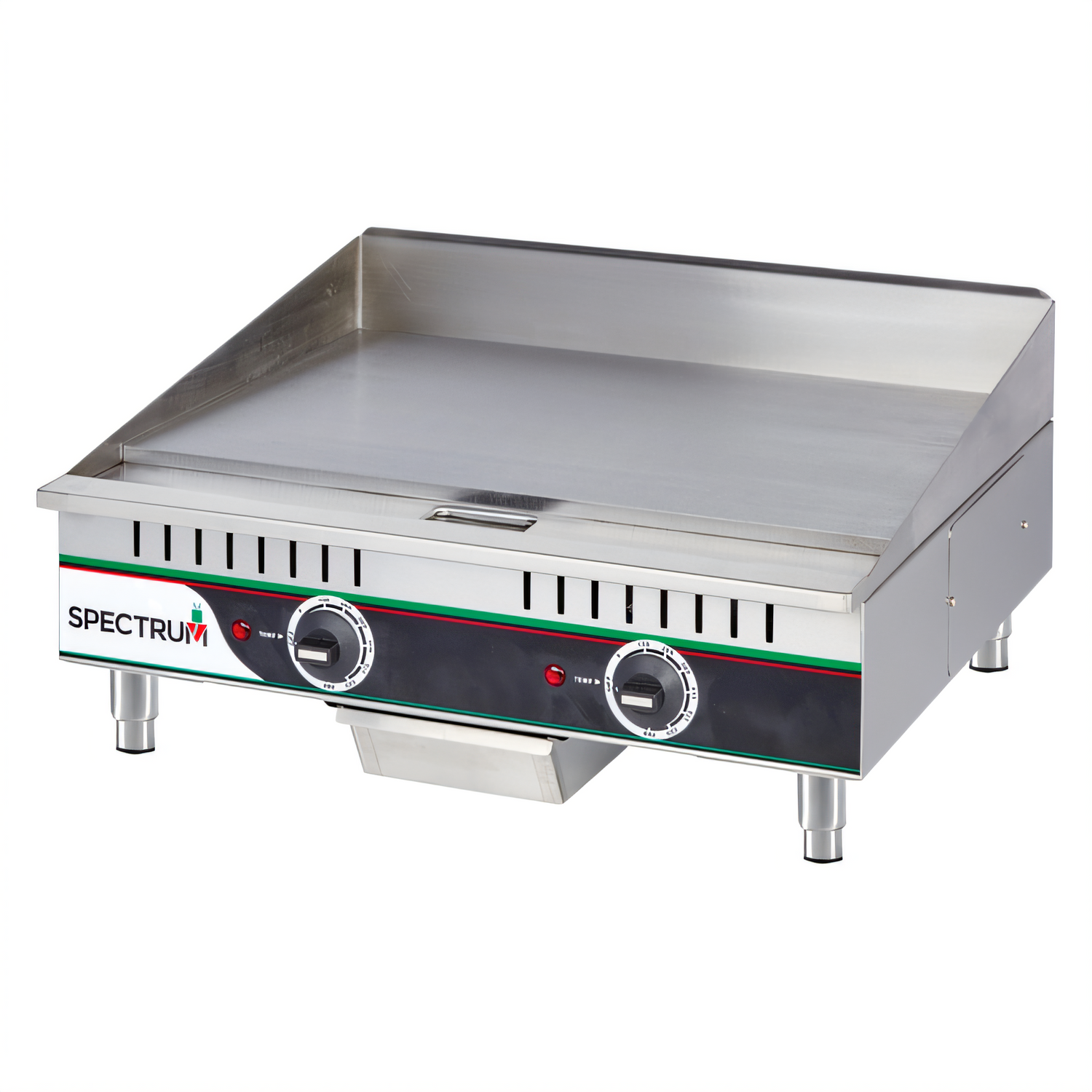

Winco Spectrum™ EGD-24M 24-Inch Electric Countertop Griddle

$766.43
/each
Estimated to ship in 5–8 business days
Width
Griddle cleaning supplies
Included: Winco warranty One-year parts and labor warranty in the United States and Canada

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $71/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Installation Type Countertop
Material Stainless Steel
Size 24 Inch
Finish Smooth Steel
Cooking Surface Size 24 x 16-1/2 Inches
Cooking Surface Material Steel
Plate Thickness 1/2 Inch
Heat Zones 2
Controls Manual
Temperature Range 150-480°F (65-250°C)
Voltage 208-240 Volts
Amps 20.2-23.4 Amps
Watts 4200-5600 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L6-30P
Backsplash Height 3 Inches
Selling Unit Set
Units Per Case 1

Description

The Winco Spectrum EGD-24M is a countertop electric griddle with a 24 x 16-1/2-inch smooth steel cooking surface and two independently manually controlled heat zones.

Its solid 1/2-inch steel plate operates from 150°F to 480°F. The stainless steel body includes a side and rear backsplash, adjustable feet, a stainless steel catch tray, and grease-management components.

  • 208-240 volts, 60 Hz, 1-phase electrical service with a NEMA L6-30P plug
  • Removable grease drawer with weep hole and baffle
  • 3-1/4-inch full-width grease trough

Overall Dimensions:

24.0"W x 21.75"D x 12.88"H

Product Weight:

116.84 lb

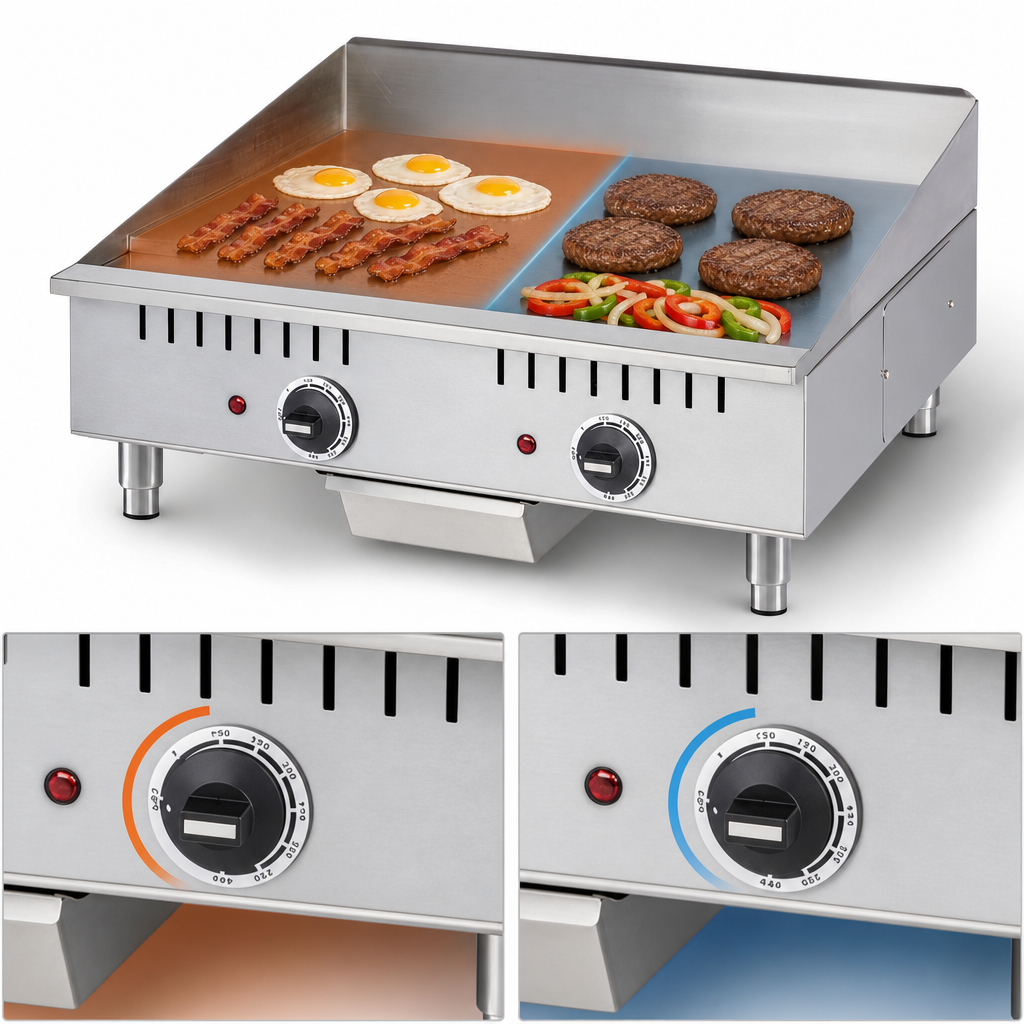

Two Heat Zones

Two independently manually controlled heat zones.

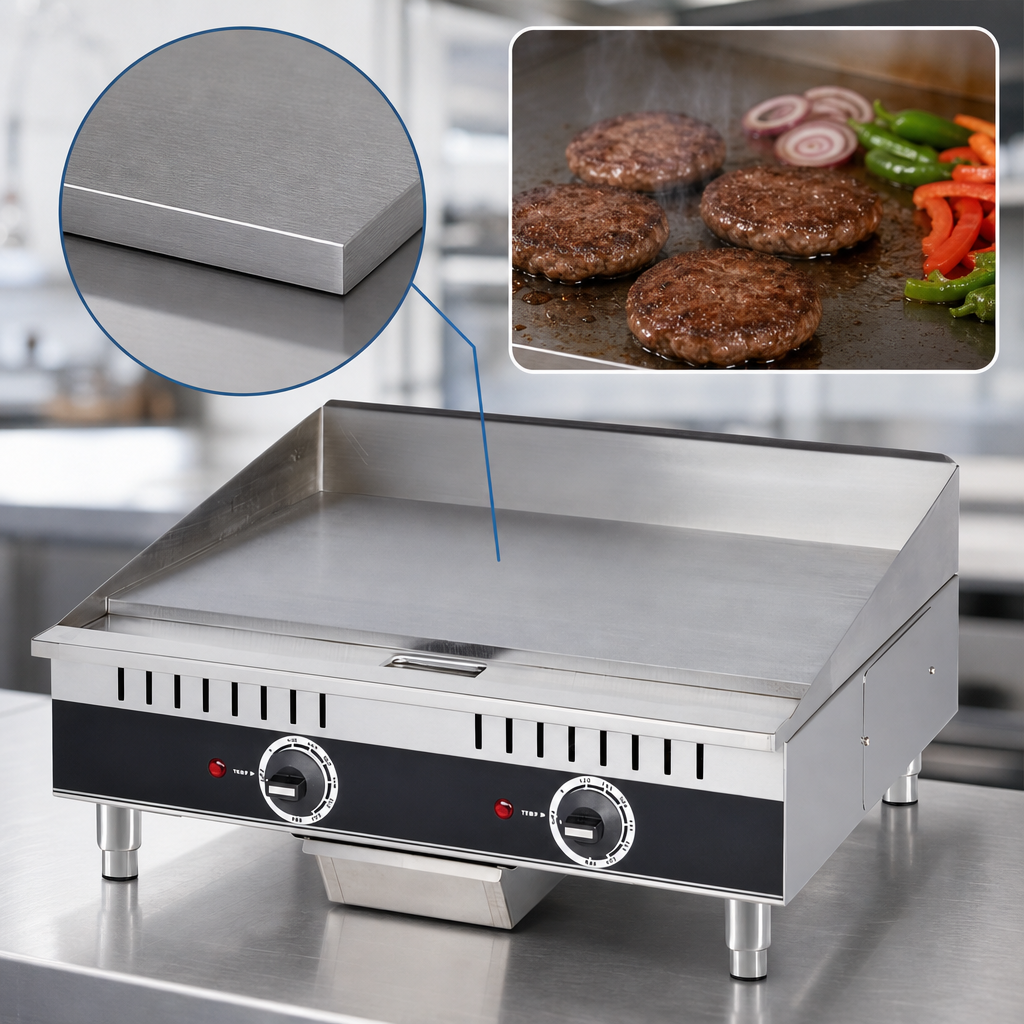

Steel Cooking Plate

Solid 1/2-inch-thick steel plate with a smooth finish.

Temperature Range

Adjustable temperature range from 150°F to 480°F.

Grease Management

Removable grease drawer with weep hole and baffle, plus a 3-1/4-inch full-width grease trough.

Stainless Steel Construction

Stainless steel body with side and rear backsplash and a stainless steel catch tray.

Adjustable Feet

Adjustable feet provide stability.

Phase Conversion

The EGD-24M is field convertible to 3-phase operation.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It has two independently manually controlled heat zones.
The cooking surface is 24 x 16-1/2 inches and uses a solid 1/2-inch-thick steel plate with a smooth finish.
It uses 208-240 volts at 60 Hz and 1-phase operation, with 20.2-23.4 amps, 4200-5600 watts, and a NEMA L6-30P plug.
The overall dimensions are 24 inches wide, 21.75 inches deep, and 12.88 inches high.
The product includes a one-year parts and labor warranty in the United States and Canada.
