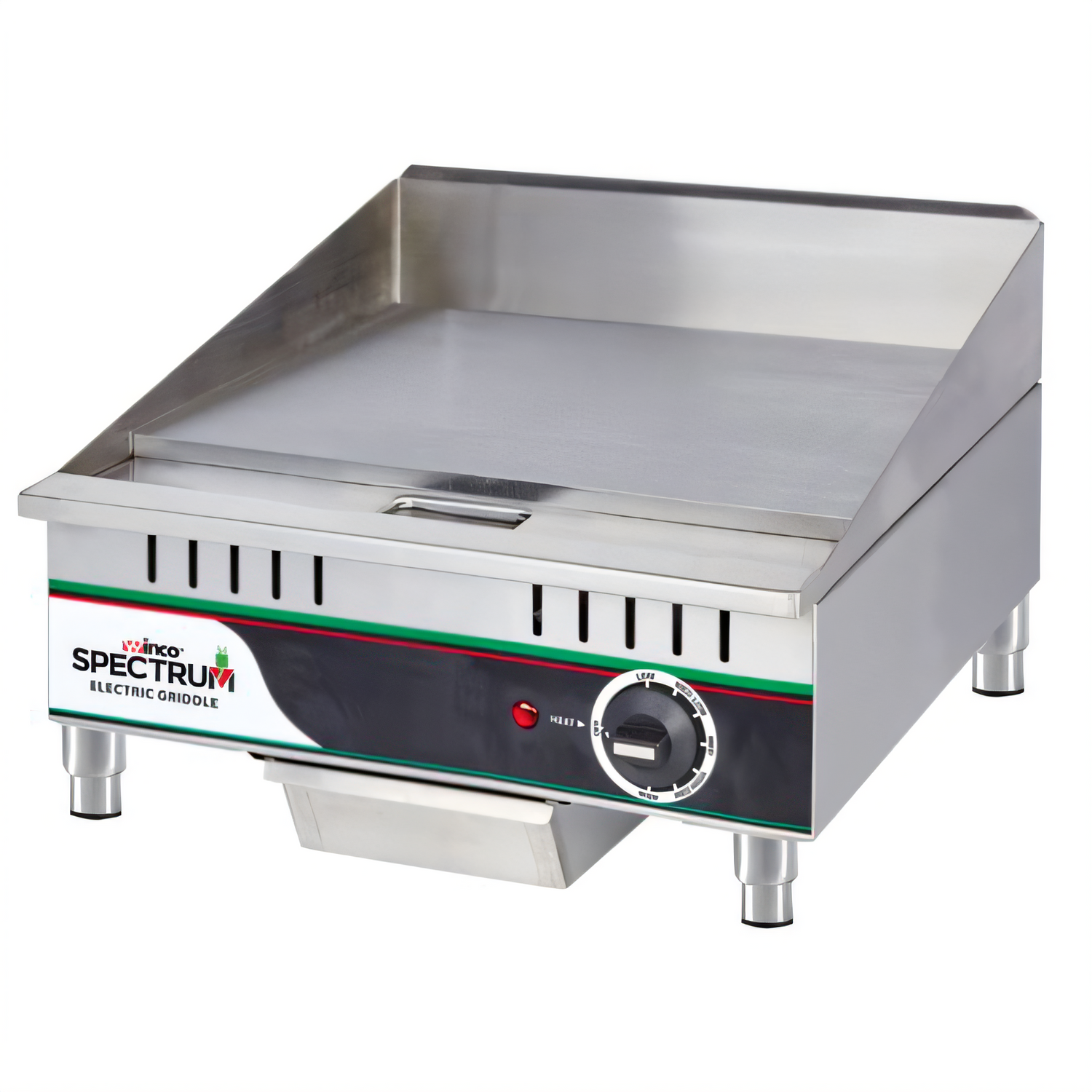

Winco Spectrum 16-Inch Electric Countertop Griddle, Single Zone, 120V

16" x 15-1/8" cooking surface, 1/2" steel plate, NEMA 5-15P

This compact countertop griddle delivers fast heat-up, precise thermostatic control, and easy cleanup in a space-saving footprint.

  • 16" x 15-1/8" cooking surface fits compact prep areas without sacrificing cooking space.
  • Solid 1/2" polished steel plate delivers fast heat-up and strong heat retention.
  • One independently controlled heat zone provides simple, focused temperature control.
  • Wide 150°F to 480°F range handles everything from eggs and pancakes to burgers and sandwiches.
  • Stainless steel body, 3" backsplash, and side/rear enclosure help reduce splatter.
  • Removable grease drawer, full-width trough, and adjustable legs simplify cleanup and daily use.

Overall Dimensions:

16.0"W x 19.13"D x 12.88"H

Product Weight:

52.91 lb

1/2-Inch Polished Steel Plate

Solid 1/2-inch thick polished steel cooking surface for fast heat-up and excellent heat retention.

Single Thermostatic Heat Zone

One independently controlled heat zone gives the operator simple, precise temperature control.

Wide Temperature Range

Operates from 150°F to 480°F (65°C to 250°C) for low- and high-heat cooking.

Stainless Steel Body and Backsplash

Heavy-gauge stainless steel construction with a 3-inch backsplash and side/rear enclosure helps minimize grease splatter.

Grease Management System

Includes a large removable grease drawer with weep hole and baffle, plus a 3-1/4-inch full-width grease trough.

Adjustable Stainless Steel Legs

Heavy-duty adjustable legs provide stability on the countertop.

Standard NEMA 5-15P Plug

Supplied with a NEMA 5-15P plug; a NEMA 5-20P cord/plug is available for Canada.

Type Griddle
Style Countertop
Installation Type Countertop
Controls Manual Thermostatic
Temperature Range 150°F to 480°F (65°C to 250°C)
Cooking Surface Width 16 Inches
Cooking Surface Depth 15-1/8 Inches
Material Stainless Steel
Finish Polished Steel
Voltage 120 Volts
Amps 14.6 Amps
Watts 1.75 kW
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 16 Inches
Shipping Depth 20 Inches
Shipping Height 13 Inches
Shipping Weight 53 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 16 inches wide by 15-1/8 inches deep.
It has one independently controlled thermostatic heat zone.
The unit operates from 150°F to 480°F (65°C to 250°C).
It is rated at 120V, 14.6 amps, 1.75 kW, and comes with a NEMA 5-15P plug; a NEMA 5-20P cord/plug is listed for Canada.
Cleanup is simplified by the removable grease drawer with weep hole and baffle, plus the full-width grease trough.
Winco states a standard one-year parts and labor warranty.
