Key specifications

BTU
150,000 BTU
Amps
2 Amps
Phase
1-Phase
Dimensions
60.0"W × 33.1"D × 18.8"H
Type
Griddle
Style
Heavy Duty
Spec sheet
Vulcan SKU: VCCG60-AS

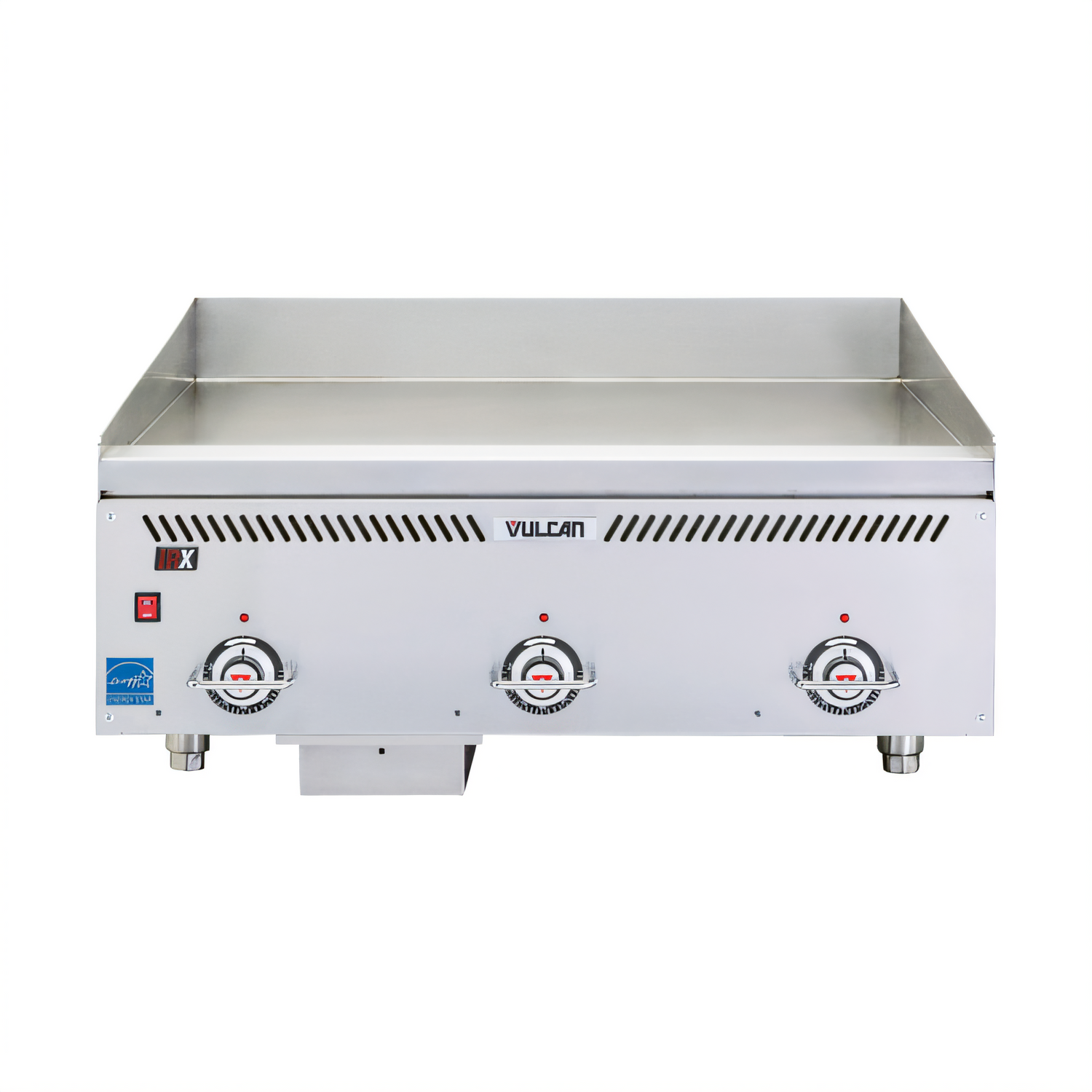

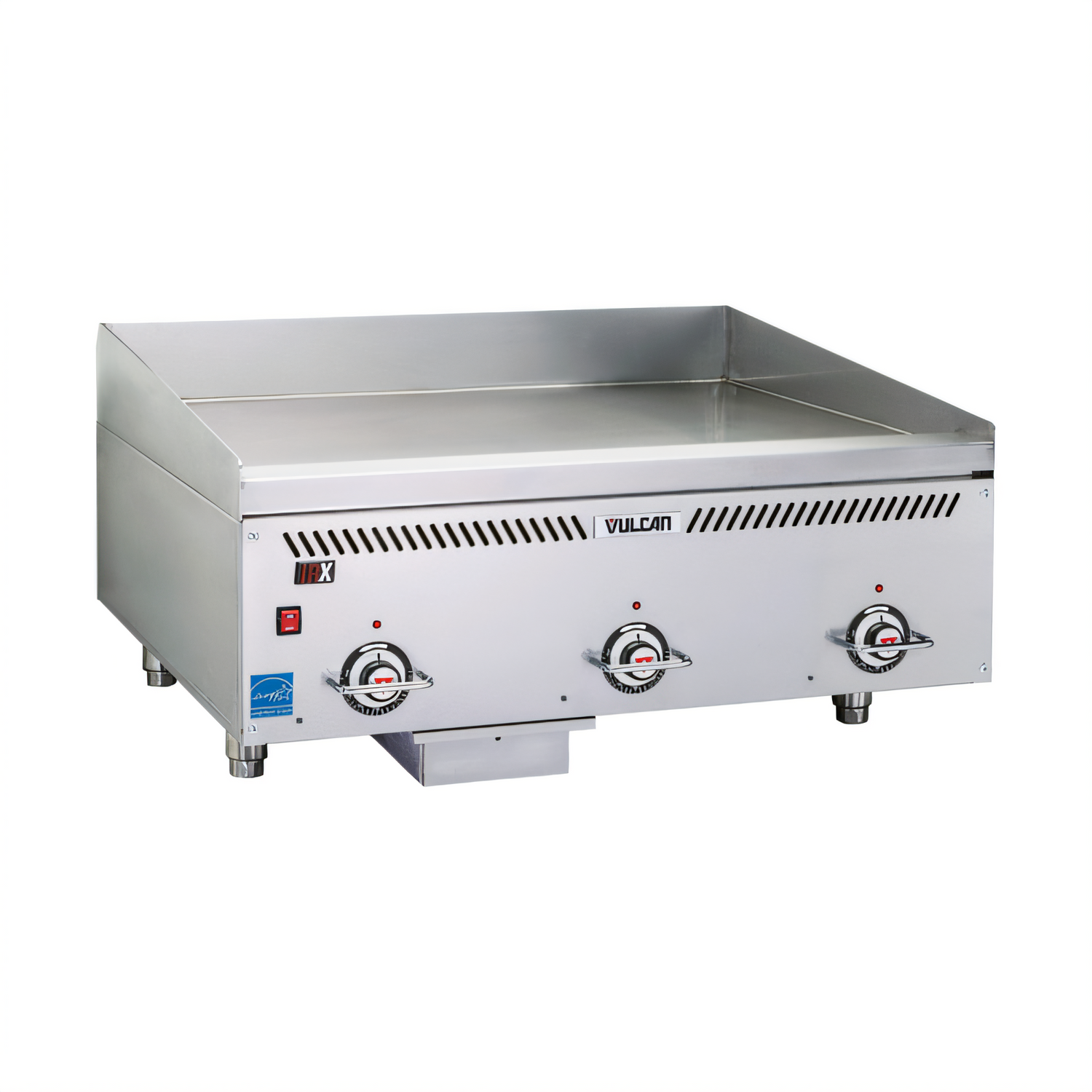

Vulcan VCCG60-AS 60-Inch Gas Griddle, 1-Inch Smooth Plate

$15,540.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Feature
Gas type
Plate surface
Grease configuration
Gas Connector
Included: Vulcan warranty One-year limited commercial equipment warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,437/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel and Aluminized Steel
Finish Stainless Steel Front and Sides
Plate Material Steel
Plate Finish Smooth Steel
Cooking Surface Width 60 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
Temperature Range 200°F to 550°F
Burner Count 5
Burner Type Atmospheric
BTU 150,000 BTU
Controls Solid State Thermostat
Ignition Type Electronic Spark Ignition
Pilot Protection Included
Drawer Count 2
Grease Drawer Capacity 6 Quarts
Back Splash Height 4 Inches
Side Splash Height 4 Inches
Leg Type Adjustable
Gas Connection 3/4 NPT
Voltage 120 Volts
Amps 2 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Energy Efficiency ENERGY STAR

Description

Vulcan VCCG60-AS is a countertop gas griddle with a 60-inch-wide by 24-inch-deep cooking surface and a 1-inch smooth steel plate.

It features five atmospheric burners, solid-state thermostat control at 12-inch intervals, electronic spark ignition with pilot protection, and wire knob guards.

  • Stainless steel front, sides, front top ledge, and front grease trough
  • Two grease drawers for the 60-inch model
  • 4-inch back and tapered side splashes
  • 4-inch adjustable legs
  • 120-volt, single-phase electrical connection with a NEMA 5-15 plug

Overall Dimensions:

60.0"W x 33.1"D x 18.8"H

Product Weight:

665.0 lb

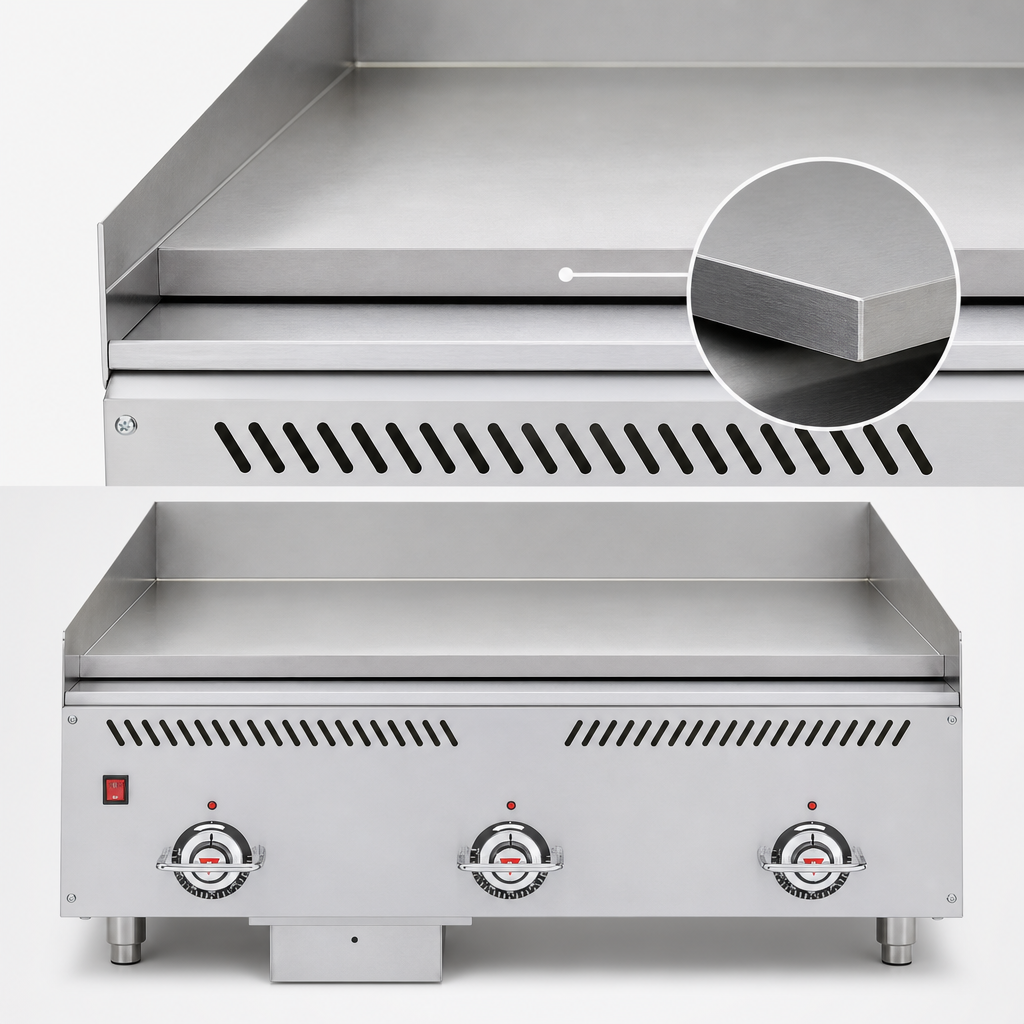

Smooth Steel Plate

The 60-inch-wide by 24-inch-deep cooking surface uses a 1-inch-thick smooth steel plate.

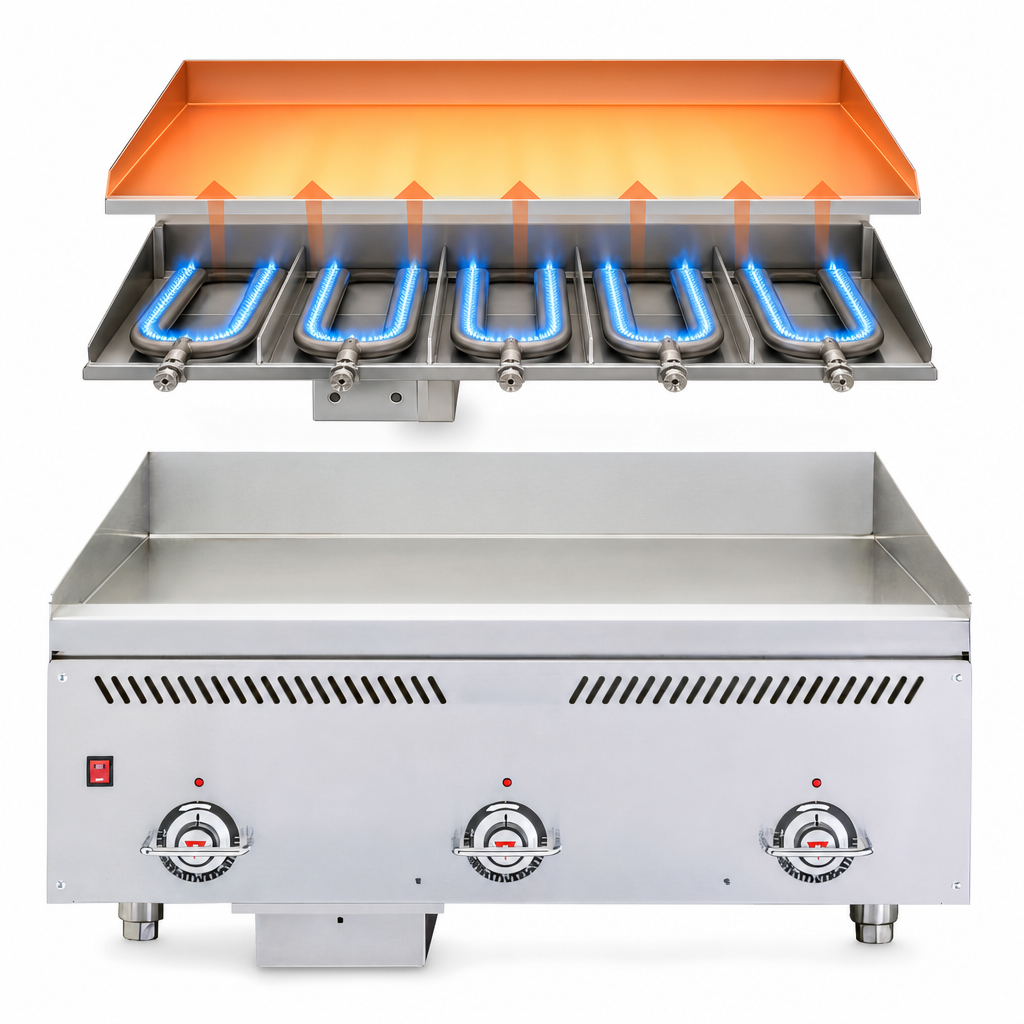

Atmospheric Burner System

Five atmospheric, U-shaped aluminized steel burners provide 150,000 BTU.

Solid-State Thermostat Control

Solid-state thermostat control is provided for each 12-inch cooking section.

Electronic Ignition

Electronic spark ignition includes pilot protection.

Stainless Steel Exterior

The front, sides, front top ledge, and front grease trough are stainless steel.

Dual Grease Drawers

The 60-inch model has two grease drawers.

Adjustable Legs and Splashes

The griddle includes 4-inch adjustable legs, a 4-inch back splash, and tapered 4-inch side splashes.

Wire Knob Guards

Frequently Asked Questions

The cooking surface is 60 inches wide by 24 inches deep.
The griddle plate is 1 inch thick and has a smooth steel finish.
It has five atmospheric burners with a total input of 150,000 BTU.
The griddle requires 120 volts, 2 amps, 50/60 Hz, and single-phase power. It uses a NEMA 5-15 plug and includes a 6-foot power cord.
The overall dimensions are 60 inches wide, 33.1 inches deep, and 18.8 inches high.
Yes. The documentation states that the appliance is manufactured for commercial installation only and is not intended for home use.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
