Vollrath HDCCB-48 Hot Food Displays
Description

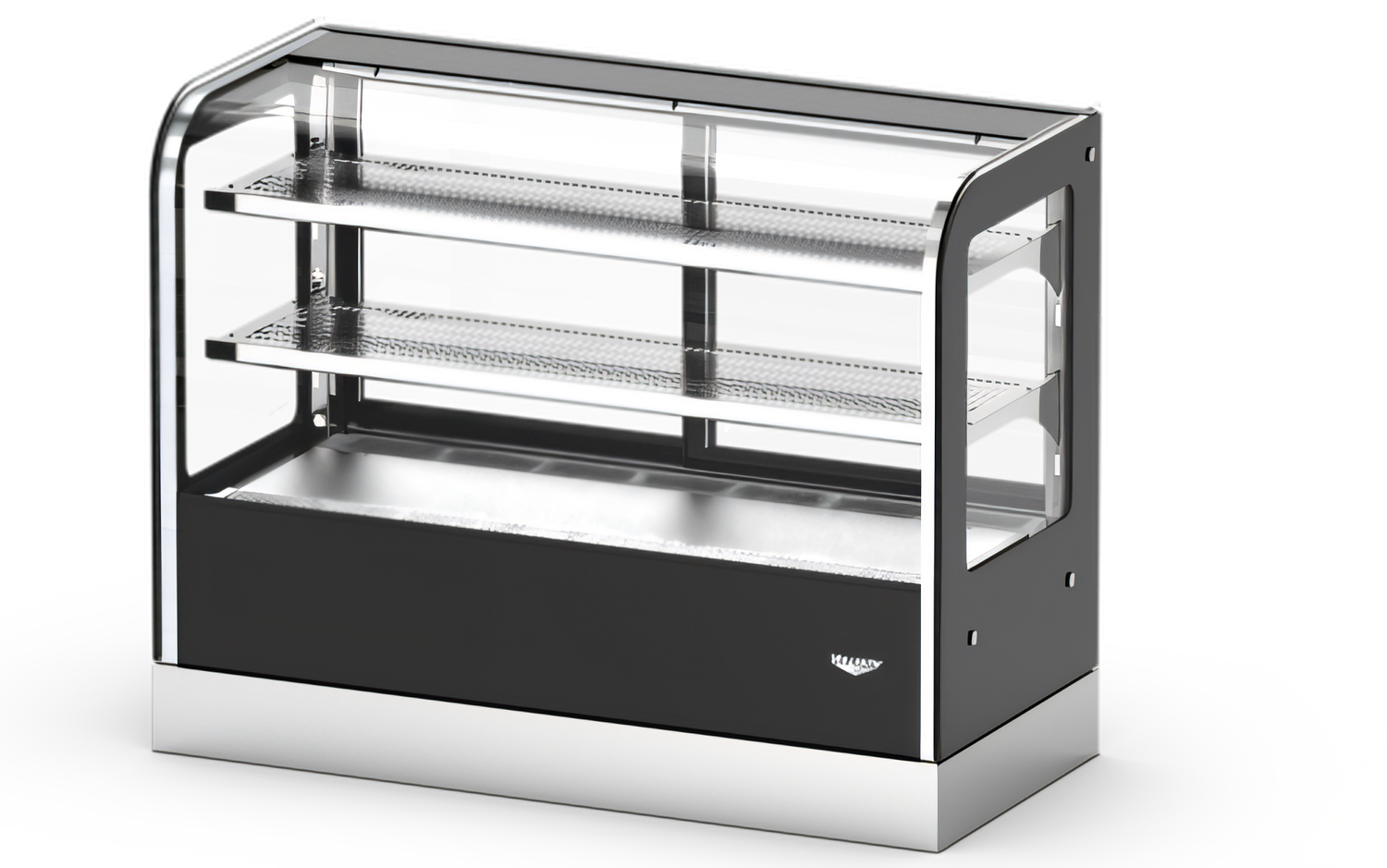

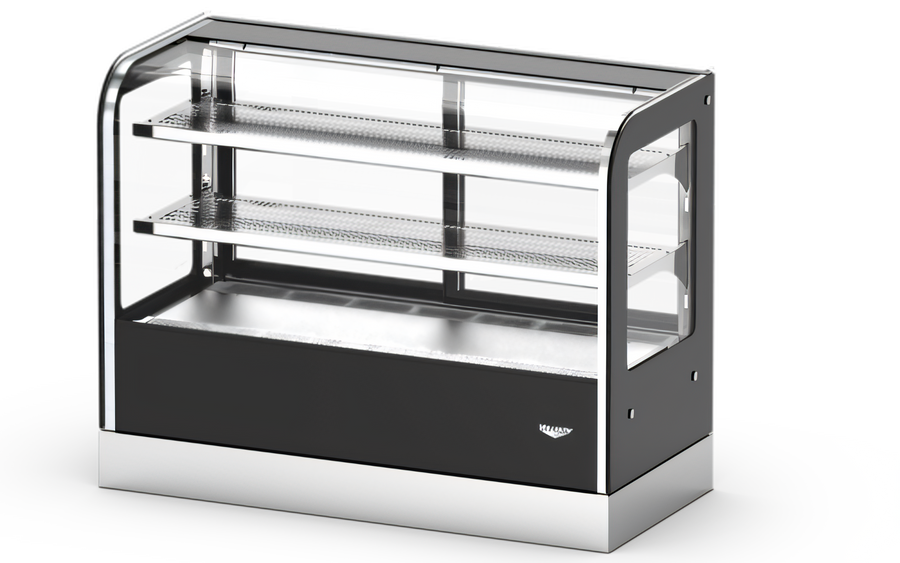

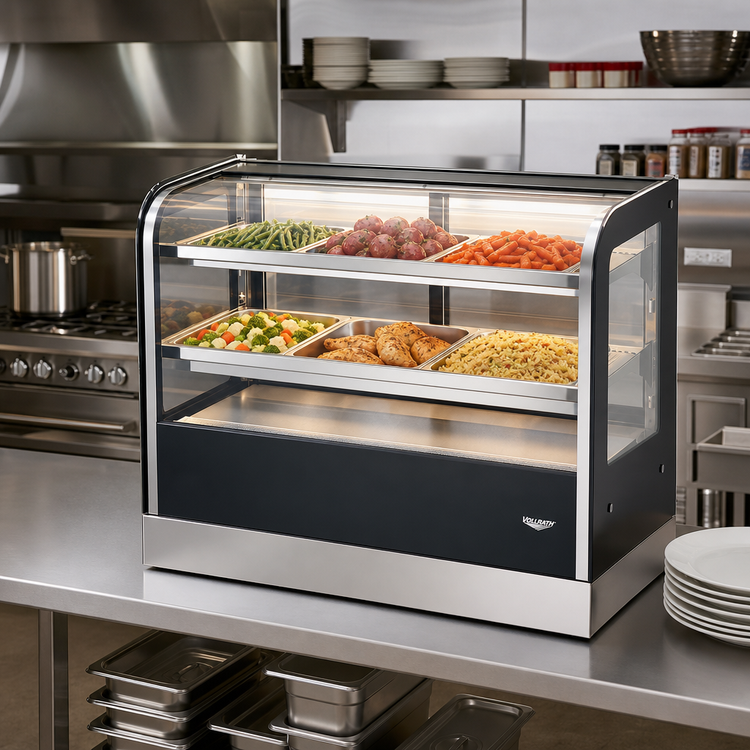

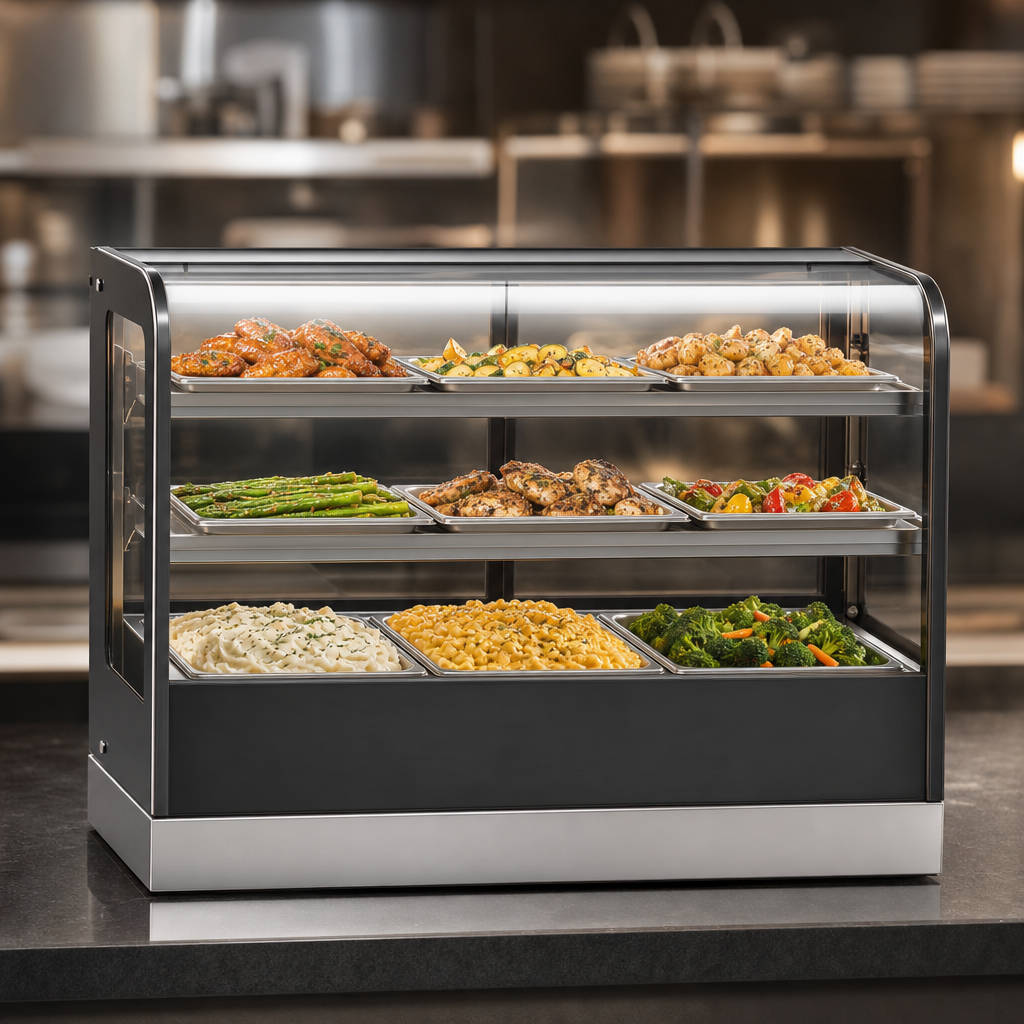

Vollrath HDC9348 Heated Cubed Countertop Display Case – 48″
Full-service merchandiser with LED lighting | 104 °F – 165 °F holding rangeKeep hot, ready-to-serve foods in the spotlight—and at safe serving temperatures—with the Vollrath HDC9348. This cubed, straight-glass display case combines eye-catching visibility, precise digital heat control, and easy rear-access service in a compact countertop footprint.
Key Benefits
- Brilliant top and shelf-mounted LED lighting showcases every item.
- Digitally controlled 104 °F – 165 °F (40 °C – 74 °C) range holds TCS foods safely.
- Internal fan circulation delivers uniform temperatures throughout the cabinet.
- Durable, energy-efficient argon-filled, low-E, double-pane glass on all sides.
- (2) three-position floating shelves plus deck for flexible merchandising.
- Lift-off rear sliding glass doors speed up serving, refilling, and cleaning.
- 6 ft (1.8 m) cord with NEMA 5-15P plug—just set on the counter and plug in.
- Operates as a heated or ambient display for year-round versatility.
Ideal For
- Deli and convenience store hot cases
- Bakery counters—warm pastries, breads, or cookies
- Cafeterias and grab-and-go kiosks
- Supermarket prepared-foods departments
Specifications
| Model | HDC9348 |
|---|---|

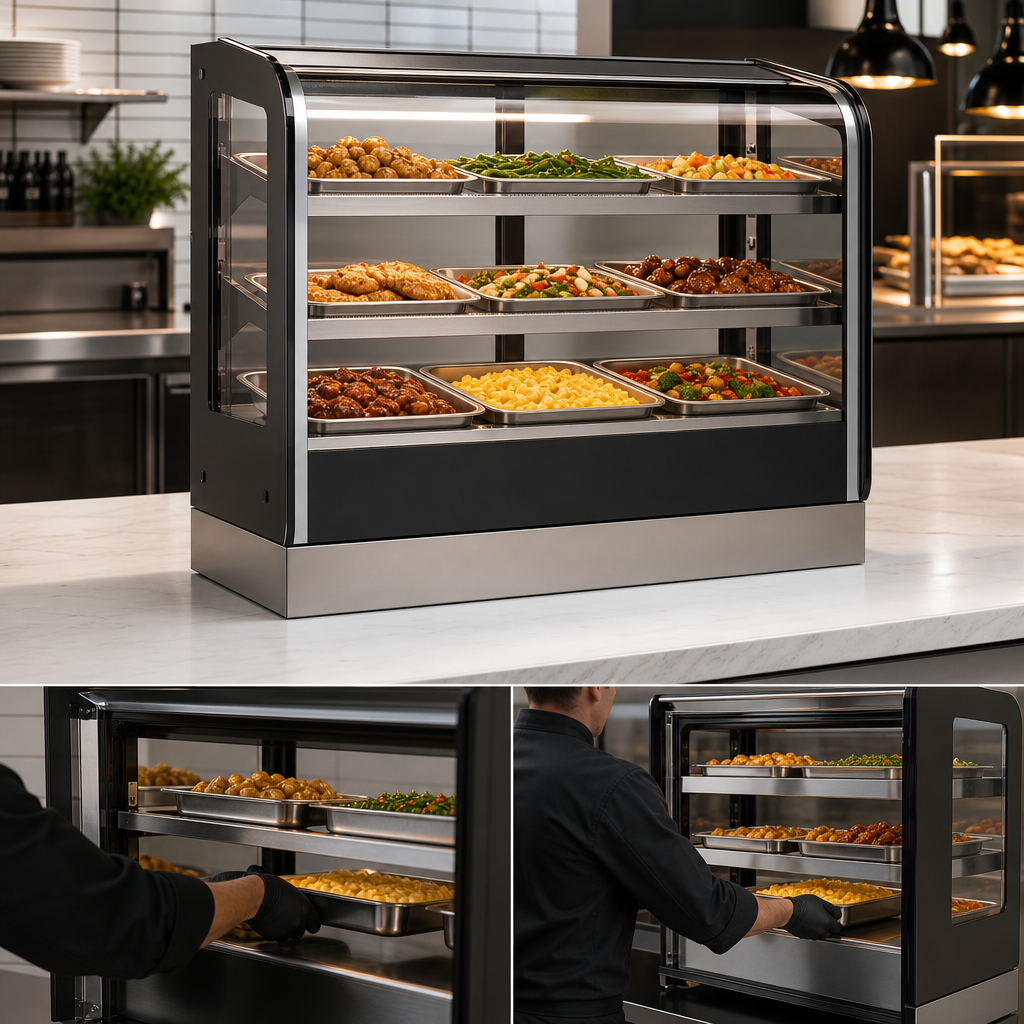

| Style | Cubed, countertop, full service |
| Exterior dimensions (W × D × H) | 47.9″ × 21.5″ × 37″ (122 cm × 55 cm × 94 cm) |
| Shelves | (2) adjustable floating glass shelves + base deck |
| Temperature range | 104 °F – 165 °F (40 °C – 74 °C) |
| Control type | Digital thermostat |
| Heat source | Forced-air convection with internal fan |
| Electrical | 120 V / 50–60 Hz / 1-phase, 5.8 A, 700 W |
| Plug | NEMA 5-15P (6 ft cord included) |
| Agency listings | cULus, UL EPH Classified (NSF/ANSI 4) |
| Crated weight | 423 lb (192 kg) |
| Optional accessories | 4″ adjustable legs (sold separately) |
Installation & Clearance
- Countertop design requires zero side clearance.
- Keep the operator side and top of unit unobstructed for proper ventilation.
- Do not block bottom vents or allow products to overhang the shelf edges.
Covered by Vollrath’s standard equipment warranty. Visit vollrathfoodservice.com for complete warranty terms and additional technical documentation.
